NXOpen::GeometricAnalysis::CurveAnalysisCombsBuilder Class Reference

This class handles the options setting for the curve analysis information (Curvature Combs) display. More...

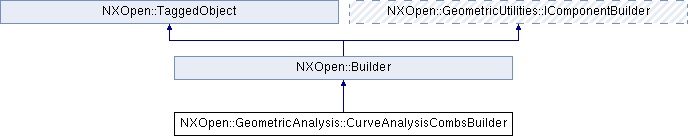

Inheritance diagram for NXOpen::GeometricAnalysis::CurveAnalysisCombsBuilder:

Public Types
enum	DirectionOptionType { DirectionOptionTypeNone, DirectionOptionTypePlaneOfCurve, DirectionOptionTypeSpecifyVector, DirectionOptionTypeWorkView }
	Direction option types. More...

Public Member Functions
NXOpen::GeometricUtilities::CombOptionsBuilder *	CombOptions ()
	Returns the comb options
NXOpen::GeometricUtilities::CurveRangeBuilder *	CurveRange ()
	Returns the curve range
NXOpen::GeometricAnalysis::CurveAnalysisCombsBuilder::DirectionOptionType	DirectionOption ()
	Returns the direction option
NXOpen::ScCollector *	SelectedCurves ()
	Returns the selected curves
void	SetDirectionOption (NXOpen::GeometricAnalysis::CurveAnalysisCombsBuilder::DirectionOptionType option)
	Sets the direction option
void	SetVector (NXOpen::Direction *vect)
	Sets the vector
void	UpdateCurves ()
	This method should be called after the selected curves have changed
NXOpen::Direction *	Vector ()
	Returns the vector
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This class handles the options setting for the curve analysis information (Curvature Combs) display.

 <br> To create a new instance of this class, use @link GeometricAnalysis::AnalysisObjectCollection::CreateCurveAnalysisCombsBuilder  GeometricAnalysis::AnalysisObjectCollection::CreateCurveAnalysisCombsBuilder @endlink  <br>

Default values.

Property	Value
CurveRange.AnchorPosition	Start

Deprecated:

Deprecated in NX8.5.0. Use GeometricAnalysis::CurveCurvatureAnalysis .

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::GeometricAnalysis::CurveAnalysisCombsBuilder::DirectionOptionType

Direction option types.

Enumerator:

DirectionOptionTypeNone	no direction
DirectionOptionTypePlaneOfCurve	best fit plane
DirectionOptionTypeSpecifyVector	specify vector
DirectionOptionTypeWorkView	work view

Member Function Documentation

NXOpen::GeometricUtilities::CombOptionsBuilder* NXOpen::GeometricAnalysis::CurveAnalysisCombsBuilder::CombOptions

(

)

Returns the comb options

Deprecated:

Deprecated in NX8.5.0.

Use GeometricAnalysis::CurveCurvatureAnalysis .

Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

NXOpen::GeometricUtilities::CurveRangeBuilder* NXOpen::GeometricAnalysis::CurveAnalysisCombsBuilder::CurveRange

(

)

Returns the curve range

Deprecated:

Deprecated in NX8.5.0.

Use GeometricAnalysis::CurveCurvatureAnalysis .

Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

NXOpen::GeometricAnalysis::CurveAnalysisCombsBuilder::DirectionOptionType NXOpen::GeometricAnalysis::CurveAnalysisCombsBuilder::DirectionOption

(

)

Returns the direction option

Deprecated:

Deprecated in NX8.5.0.

Use GeometricAnalysis::CurveCurvatureAnalysis .

Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

NXOpen::ScCollector* NXOpen::GeometricAnalysis::CurveAnalysisCombsBuilder::SelectedCurves

(

)

Returns the selected curves

Deprecated:

Deprecated in NX8.5.0.

Use GeometricAnalysis::CurveCurvatureAnalysis .

Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

void NXOpen::GeometricAnalysis::CurveAnalysisCombsBuilder::SetDirectionOption

(

NXOpen::GeometricAnalysis::CurveAnalysisCombsBuilder::DirectionOptionType

option

)

Sets the direction option

Deprecated:

Deprecated in NX8.5.0.

Use GeometricAnalysis::CurveCurvatureAnalysis .

Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

option

option

void NXOpen::GeometricAnalysis::CurveAnalysisCombsBuilder::SetVector

(

NXOpen::Direction *

vect

)

Sets the vector

Deprecated:

Deprecated in NX8.5.0.

Use GeometricAnalysis::CurveCurvatureAnalysis .

Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

vect

vect

void NXOpen::GeometricAnalysis::CurveAnalysisCombsBuilder::UpdateCurves

(

)

This method should be called after the selected curves have changed

Deprecated:

Deprecated in NX8.5.0.

Use GeometricAnalysis::CurveCurvatureAnalysis .

Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

NXOpen::Direction* NXOpen::GeometricAnalysis::CurveAnalysisCombsBuilder::Vector

(

)

Returns the vector

Deprecated:

Deprecated in NX8.5.0.

Use GeometricAnalysis::CurveCurvatureAnalysis .

Created in NX6.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

---

The documentation for this class was generated from the following file:

• GeometricAnalysis_CurveAnalysisCombsBuilder.hxx
