    Represents a @link SplitProfilePlateBuilder SplitProfilePlateBuilder@endlink .This class is for splitting ship profile/plate solidbodies
     <br> To create a new instance of this class, use @link Features::ShipCollection::CreateSplitProfilePlateBuilder  Features::ShipCollection::CreateSplitProfilePlateBuilder @endlink  <br>

Default values. More...

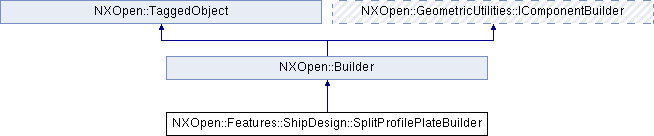

Inheritance diagram for NXOpen::Features::ShipDesign::SplitProfilePlateBuilder:

Public Types
enum	ProfileType { ProfileTypeProfileOrPlate, ProfileTypeBuiltUp }
	Represents the target body type. More...

enum	SplitDirectionOptionType { SplitDirectionOptionTypePerpendicularToMoldingFace, SplitDirectionOptionTypeAlongPlaneOrFace }
	Represents split direction to trim profile or plate solid body . More...

enum	ToolOptionType { ToolOptionTypePlane, ToolOptionTypeNewPlane, ToolOptionTypeExtrude }
	Represents trim tool type to trim profile or plate solid body. More...

Public Member Functions
bool	ApplyEndCut ()
	Returns the option to indicate whether to apply the end cut to the profiles Created in NX9.0.0.

NXOpen::Features::ShipDesign::BuiltUpOffsetBuilder *	BuiltUpOffset ()
	Returns the built-up offset data Created in NX9.0.0.

double	DistanceTolerance ()
	Returns the distance tolerance to determine if a profile is attached to a plate Created in NX8.5.0.

bool	DoTrimWithoutCopy ()
	Returns the option to determine if target bodies will be copied.

bool	ReverseDirection ()
	Returns the reverse direction option of tool datum or face for split.

void	SetApplyEndCut (bool applyEndCut)
	Sets the option to indicate whether to apply the end cut to the profiles Created in NX9.0.0.

void	SetDistanceTolerance (double dDistnaceTolerance)
	Sets the distance tolerance to determine if a profile is attached to a plate Created in NX8.5.0.

void	SetDoTrimWithoutCopy (bool doTrimWithoutCopy)
	Sets the option to determine if target bodies will be copied.

void	SetReverseDirection (bool reverseDirection)
	Sets the reverse direction option of tool datum or face for split.

void	SetSplitDirectionOption (NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::SplitDirectionOptionType splitDirectionOption)
	Sets the option to split profile/plate along tool face or perpendicular to profile/plate molding face.

void	SetTargetType (NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::ProfileType profileType)
	Sets the profile type of split target.

void	SetToolNewPlane (NXOpen::Plane *toolNewPlane)
	Sets the created new tool datum for split.

void	SetToolOption (NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::ToolOptionType toolOption)
	Sets the tool type for split.

void	SetToolVector (NXOpen::Direction *toolVector)
	Sets the tool vector to create extrude face for split.

void	SetTrimDirection (const NXOpen::Vector3d &trimDirection)
	Sets the trim direction, which works together with Reverse Direction option, to determine which part of target body will be trimmed.

NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::SplitDirectionOptionType	SplitDirectionOption ()
	Returns the option to split profile/plate along tool face or perpendicular to profile/plate molding face.

NXOpen::SelectNXObjectList *	TargetBuiltUps ()
	Returns the target built-up solid bodies for split.

NXOpen::SelectNXObjectList *	TargetProfileOrPlates ()
	Returns the target profile or plate solid bodies for split.

NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::ProfileType	TargetType ()
	Returns the profile type of split target.

NXOpen::SelectNXObjectList *	ToolCurves ()
	Returns the tool curve(s) to create extrude face for split.

NXOpen::SelectNXObjectList *	ToolFaces ()
	Returns the selected tool datum or face(s) for split.

NXOpen::Plane *	ToolNewPlane ()
	Returns the created new tool datum for split.

NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::ToolOptionType	ToolOption ()
	Returns the tool type for split.

NXOpen::Direction *	ToolVector ()
	Returns the tool vector to create extrude face for split.

NXOpen::Vector3d	TrimDirection ()
	Returns the trim direction, which works together with Reverse Direction option, to determine which part of target body will be trimmed.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

    Represents a @link SplitProfilePlateBuilder SplitProfilePlateBuilder@endlink .This class is for splitting ship profile/plate solidbodies
     <br> To create a new instance of this class, use @link Features::ShipCollection::CreateSplitProfilePlateBuilder  Features::ShipCollection::CreateSplitProfilePlateBuilder @endlink  <br>

Default values.

Property

Value

BuiltUpOffset.FlangeAngle.Value

0

BuiltUpOffset.FlangeOffset.Value

0 (millimeters part), 0 (inches part)

BuiltUpOffset.WebAngle.Value

0

BuiltUpOffset.WebOffset.Value

0 (millimeters part), 0 (inches part)

ToolOption

Plane

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::ProfileType

Represents the target body type.

Enumerator:

ProfileTypeProfileOrPlate	Select profile or plate as target for split.
ProfileTypeBuiltUp	Select built-up as target for split.

enum NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::SplitDirectionOptionType

Represents split direction to trim profile or plate solid body .

Enumerator:

SplitDirectionOptionTypePerpendicularToMoldingFace	create plane/face perpendicular to molding face as the split tool
SplitDirectionOptionTypeAlongPlaneOrFace	Split profile/plate along selected plane or face.

enum NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::ToolOptionType

Represents trim tool type to trim profile or plate solid body.

Enumerator:

ToolOptionTypePlane	Select existed datum or face for the tool target.
ToolOptionTypeNewPlane	Create a new datum for the tool target.
ToolOptionTypeExtrude	Select curve and direction as extrude for the tool target.

Member Function Documentation

bool NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::ApplyEndCut ( )

Returns the option to indicate whether to apply the end cut to the profiles
Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

NXOpen::Features::ShipDesign::BuiltUpOffsetBuilder* NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::BuiltUpOffset ( )

Returns the built-up offset data
Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

double NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::DistanceTolerance ( )

Returns the distance tolerance to determine if a profile is attached to a plate
Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::DoTrimWithoutCopy ( )

Returns the option to determine if target bodies will be copied.

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

bool NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::ReverseDirection ( )

Returns the reverse direction option of tool datum or face for split.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

void NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::SetApplyEndCut ( bool applyEndCut )

Sets the option to indicate whether to apply the end cut to the profiles
Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

applyEndCut applyendcut

void NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::SetDistanceTolerance ( double dDistnaceTolerance )

Sets the distance tolerance to determine if a profile is attached to a plate
Created in NX8.5.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

dDistnaceTolerance ddistnacetolerance

void NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::SetDoTrimWithoutCopy ( bool doTrimWithoutCopy )

Sets the option to determine if target bodies will be copied.

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

doTrimWithoutCopy dotrimwithoutcopy

void NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::SetReverseDirection ( bool reverseDirection )

Sets the reverse direction option of tool datum or face for split.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

reverseDirection reversedirection

void NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::SetSplitDirectionOption ( NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::SplitDirectionOptionType splitDirectionOption )

Sets the option to split profile/plate along tool face or perpendicular to profile/plate molding face.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

splitDirectionOption splitdirectionoption

void NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::SetTargetType ( NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::ProfileType profileType )

Sets the profile type of split target.

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

profileType profiletype

void NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::SetToolNewPlane ( NXOpen::Plane * toolNewPlane )

Sets the created new tool datum for split.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

toolNewPlane toolnewplane

void NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::SetToolOption ( NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::ToolOptionType toolOption )

Sets the tool type for split.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

toolOption tooloption

void NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::SetToolVector ( NXOpen::Direction * toolVector )

Sets the tool vector to create extrude face for split.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

toolVector toolvector

void NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::SetTrimDirection ( const NXOpen::Vector3d & trimDirection )

Sets the trim direction, which works together with Reverse Direction option, to determine which part of target body will be trimmed.

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

Parameters

trimDirection trimdirection

NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::SplitDirectionOptionType NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::SplitDirectionOption ( )

Returns the option to split profile/plate along tool face or perpendicular to profile/plate molding face.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

NXOpen::SelectNXObjectList* NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::TargetBuiltUps ( )

Returns the target built-up solid bodies for split.

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

NXOpen::SelectNXObjectList* NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::TargetProfileOrPlates ( )

Returns the target profile or plate solid bodies for split.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::ProfileType NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::TargetType ( )

Returns the profile type of split target.

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

NXOpen::SelectNXObjectList* NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::ToolCurves ( )

Returns the tool curve(s) to create extrude face for split.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

NXOpen::SelectNXObjectList* NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::ToolFaces ( )

Returns the selected tool datum or face(s) for split.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

NXOpen::Plane* NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::ToolNewPlane ( )

Returns the created new tool datum for split.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::ToolOptionType NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::ToolOption ( )

Returns the tool type for split.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

NXOpen::Direction* NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::ToolVector ( )

Returns the tool vector to create extrude face for split.

Created in NX8.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

NXOpen::Vector3d NXOpen::Features::ShipDesign::SplitProfilePlateBuilder::TrimDirection ( )

Returns the trim direction, which works together with Reverse Direction option, to determine which part of target body will be trimmed.

Created in NX9.0.0.

License requirements : nx_ship_detail ("Ship Detail Design")

The documentation for this class was generated from the following file:

Features_ShipDesign_SplitProfilePlateBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
