Represents a @link Features::ShipDesign::PenetrationRequest Features::ShipDesign::PenetrationRequest@endlink  builder  <br> To create a new instance of this class, use @link Features::ShipDesign::PenetrationRequestCollection::CreatePenetrationCutoutBuilder  Features::ShipDesign::PenetrationRequestCollection::CreatePenetrationCutoutBuilder @endlink  <br>

Default values. More...

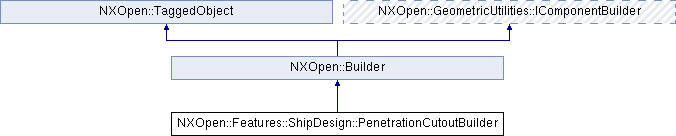

Inheritance diagram for NXOpen::Features::ShipDesign::PenetrationCutoutBuilder:

Public Member Functions
void	AddNonIntersectedStructure (NXOpen::Body *structure)
	Adds nonintersected structures Created in NX8.5.0.

NXOpen::Expression *	CornerRadius ()
	Returns the corner radius expression Created in NX8.0.0.

NXOpen::Features::ShipDesign::PenetrationRequest::CoutoutType	CoutoutType ()
	Returns the coutout type Created in NX8.0.0.

NXOpen::Expression *	Diameter ()
	Returns the diameter expression Created in NX8.0.0.

NXOpen::Features::ShipDesign::PenetrationRequest::DirectionType	DirectionType ()
	Returns the direction type Created in NX8.0.0.

NXOpen::Expression *	Height ()
	Returns the height expression Created in NX8.0.0.

NXString	HoleSubType ()
	Returns the hole sub-type Created in NX8.5.0.

NXString	HoleType ()
	Returns the hole type Created in NX8.5.0.

NXOpen::Direction *	HorizontalDirection ()
	Returns the horizontal direction Created in NX8.0.0.

NXOpen::Sketch *	ModifiedSketch ()
	Returns the modified sketch Created in NX8.5.0.

NXOpen::Expression *	Offset ()
	Returns the offset expression Created in NX8.0.0.

NXOpen::Direction *	Orientation ()
	Returns the orientation Created in NX8.0.0.

NXOpen::Expression *	Radius ()
	Returns the radius expression Created in NX8.0.0.

void	RemoveNonIntersectedStructures ()
	Removes all nonintersected structures Created in NX8.5.0.

void	SetCoutoutType (NXOpen::Features::ShipDesign::PenetrationRequest::CoutoutType enumCoutoutType)
	Sets the coutout type Created in NX8.0.0.

void	SetDialogType (NXOpen::Features::ShipDesign::PenetrationRequestBuilder::RequestDialogType dialogType)
	Set the dialog type Created in NX8.5.0.

void	SetDirectionType (NXOpen::Features::ShipDesign::PenetrationRequest::DirectionType enumDirection)
	Sets the direction type Created in NX8.0.0.

void	SetHoleSubType (const NXString &stringHoleType)
	Sets the hole sub-type Created in NX8.5.0.

void	SetHoleSubType (const char *stringHoleType)
	Sets the hole sub-type Created in NX8.5.0.

void	SetHoleType (const NXString &stringHoleType)
	Sets the hole type Created in NX8.5.0.

void	SetHoleType (const char *stringHoleType)
	Sets the hole type Created in NX8.5.0.

void	SetHorizontalDirection (NXOpen::Direction *vectorHorizontalDirection)
	Sets the horizontal direction Created in NX8.0.0.

void	SetModifiedSketch (NXOpen::Sketch *modifiedSketch)
	Sets the modified sketch Created in NX8.5.0.

void	SetOrientation (NXOpen::Direction *vectorOrientation)
	Sets the orientation Created in NX8.0.0.

NXOpen::Section *	Sketch ()
	Returns the sketch Created in NX8.0.0.

NXOpen::Expression *	Width ()
	Returns the width expression Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Features::ShipDesign::PenetrationRequest Features::ShipDesign::PenetrationRequest@endlink  builder  <br> To create a new instance of this class, use @link Features::ShipDesign::PenetrationRequestCollection::CreatePenetrationCutoutBuilder  Features::ShipDesign::PenetrationRequestCollection::CreatePenetrationCutoutBuilder @endlink  <br>

Default values.

Property

Value

CornerRadius.Value

0

CoutoutType

Circular

Diameter.Value

0

DirectionType

PerpendiculartoStructure

Height.Value

0

Offset.Value

0

Radius.Value

0

Width.Value

0

Created in NX8.0.0.

Member Function Documentation

void NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::AddNonIntersectedStructure ( NXOpen::Body * structure )

Adds nonintersected structures
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

structure structure

NXOpen::Expression* NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::CornerRadius ( )

Returns the corner radius expression
Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::PenetrationRequest::CoutoutType NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::CoutoutType ( )

Returns the coutout type
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::Diameter ( )

Returns the diameter expression
Created in NX8.0.0.

License requirements : None

NXOpen::Features::ShipDesign::PenetrationRequest::DirectionType NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::DirectionType ( )

Returns the direction type
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::Height ( )

Returns the height expression
Created in NX8.0.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::HoleSubType ( )

Returns the hole sub-type
Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::HoleType ( )

Returns the hole type
Created in NX8.5.0.

License requirements : None

NXOpen::Direction* NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::HorizontalDirection ( )

Returns the horizontal direction
Created in NX8.0.0.

License requirements : None

NXOpen::Sketch* NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::ModifiedSketch ( )

Returns the modified sketch
Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::Offset ( )

Returns the offset expression
Created in NX8.0.0.

License requirements : None

NXOpen::Direction* NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::Orientation ( )

Returns the orientation
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::Radius ( )

Returns the radius expression
Created in NX8.0.0.

License requirements : None

void NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::RemoveNonIntersectedStructures ( )

Removes all nonintersected structures
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

void NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::SetCoutoutType ( NXOpen::Features::ShipDesign::PenetrationRequest::CoutoutType enumCoutoutType )

Sets the coutout type
Created in NX8.0.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

enumCoutoutType enumcoutouttype

void NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::SetDialogType ( NXOpen::Features::ShipDesign::PenetrationRequestBuilder::RequestDialogType dialogType )

Set the dialog type
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

dialogType dialogtype

void NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::SetDirectionType ( NXOpen::Features::ShipDesign::PenetrationRequest::DirectionType enumDirection )

Sets the direction type
Created in NX8.0.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

enumDirection enumdirection

void NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::SetHoleSubType ( const NXString & stringHoleType )

Sets the hole sub-type
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

stringHoleType stringholetype

void NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::SetHoleSubType ( const char * stringHoleType )

Sets the hole sub-type
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

stringHoleType stringholetype

void NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::SetHoleType ( const NXString & stringHoleType )

Sets the hole type
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

stringHoleType stringholetype

void NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::SetHoleType ( const char * stringHoleType )

Sets the hole type
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

stringHoleType stringholetype

void NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::SetHorizontalDirection ( NXOpen::Direction * vectorHorizontalDirection )

Sets the horizontal direction
Created in NX8.0.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

vectorHorizontalDirection vectorhorizontaldirection

void NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::SetModifiedSketch ( NXOpen::Sketch * modifiedSketch )

Sets the modified sketch
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

modifiedSketch modifiedsketch

void NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::SetOrientation ( NXOpen::Direction * vectorOrientation )

Sets the orientation
Created in NX8.0.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

vectorOrientation vectororientation

NXOpen::Section* NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::Sketch ( )

Returns the sketch
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PenetrationCutoutBuilder::Width ( )

Returns the width expression
Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_PenetrationCutoutBuilder.hxx
