Represents a Features::ShipDesign::PenetrationAssociationBuilder builder
To create a new instance of this class, use Features::ShipDesign::PenetrationRequestCollection::CreatePenetrationAssociationBuilder

Created in NX8.0.0. More...

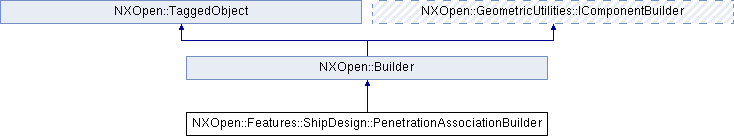

Inheritance diagram for NXOpen::Features::ShipDesign::PenetrationAssociationBuilder:

Public Member Functions
void	AddAdjacentStructure (NXOpen::Body *adjacentStructure)
	Adds adjacent structures Created in NX8.5.0.

void	AddNonIntersectedStructure (NXOpen::Body *structure)
	Adds nonintersected structures Created in NX8.5.0.

void	AddRequest (NXOpen::Features::ShipDesign::PenetrationRequest *request)
	Adds request object Created in NX8.5.0.

void	AddSelectedCurve (NXOpen::Body *curve)
	Adds selected curves Created in NX8.5.0.

void	ButtonCutout ()
	Used to open the cutout dialog Created in NX8.0.0.

NXOpen::Expression *	CornerRadius ()
	Returns the corner radius expression Created in NX8.5.0.

NXOpen::Features::ShipDesign::PenetrationRequest::CoutoutType	CoutoutType ()
	Returns the coutout type Created in NX8.5.0.

NXOpen::Part *	CutoutPart ()
	Returns the cutout part Created in NX8.5.0.

NXOpen::Expression *	Diameter ()
	Returns the diameter expression Created in NX8.5.0.

NXOpen::Features::ShipDesign::PenetrationRequest::DirectionType	DirectionType ()
	Returns the direction Created in NX8.5.0.

NXOpen::Expression *	Height ()
	Returns the height expression Created in NX8.5.0.

bool	IsEditMode ()
	Returns the flag to decide if it's requests association or associated requests editing Created in NX8.5.0.

bool	IsKeepAssociation ()
	Returns the flag to decide whether to keep association Created in NX8.5.0.

NXOpen::Sketch *	ModifiedSketch ()
	Returns the modified sketch Created in NX8.5.0.

NXOpen::Expression *	Offset ()
	Returns the offset expression Created in NX8.5.0.

NXOpen::Point *	Point ()
	Returns the penetration point Created in NX8.0.0.

NXOpen::Expression *	Radius ()
	Returns the radius expression Created in NX8.5.0.

void	RemoveNonIntersectedStructures ()
	Removes all nonintersected structures Created in NX8.5.0.

void	RemoveSelectedCurves ()
	Removes all selected curves Created in NX8.5.0.

void	SetCompensationPartNumber (const NXString &selectionCompensationNumber)
	The selection compensation Created in NX8.5.0.

void	SetCompensationPartNumber (const char *selectionCompensationNumber)
	The selection compensation Created in NX8.5.0.

void	SetCoutoutType (NXOpen::Features::ShipDesign::PenetrationRequest::CoutoutType enumCoutoutType)
	Sets the coutout type Created in NX8.5.0.

void	SetCutoutPart (NXOpen::Part *cutoutPart)
	Sets the cutout part Created in NX8.5.0.

void	SetDirectionType (NXOpen::Features::ShipDesign::PenetrationRequest::DirectionType enumDirection)
	Sets the direction Created in NX8.5.0.

void	SetEditMode (bool isEditMode)
	Sets the flag to decide if it's requests association or associated requests editing Created in NX8.5.0.

void	SetKeepAssociation (bool isKeepAssociation)
	Sets the flag to decide whether to keep association Created in NX8.5.0.

void	SetModifiedSketch (NXOpen::Sketch *modifiedSketch)
	Sets the modified sketch Created in NX8.5.0.

void	SetPoint (NXOpen::Point *point)
	Sets the penetration point Created in NX8.0.0.

void	SetSketchSection (NXOpen::Section *sectionSketch)
	Sets the sketch Created in NX8.5.0.

NXOpen::Section *	SketchSection ()
	Returns the sketch Created in NX8.5.0.

NXOpen::Expression *	Width ()
	Returns the width expression Created in NX8.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::ShipDesign::PenetrationAssociationBuilder builder
To create a new instance of this class, use Features::ShipDesign::PenetrationRequestCollection::CreatePenetrationAssociationBuilder

Created in NX8.0.0.

Member Function Documentation

void NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::AddAdjacentStructure ( NXOpen::Body * adjacentStructure )

Adds adjacent structures
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

adjacentStructure adjacentstructure

void NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::AddNonIntersectedStructure ( NXOpen::Body * structure )

Adds nonintersected structures
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

structure structure

void NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::AddRequest ( NXOpen::Features::ShipDesign::PenetrationRequest * request )

Adds request object
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

request request

void NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::AddSelectedCurve ( NXOpen::Body * curve )

Adds selected curves
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

curve curve

void NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::ButtonCutout ( )

Used to open the cutout dialog
Created in NX8.0.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

NXOpen::Expression* NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::CornerRadius ( )

Returns the corner radius expression
Created in NX8.5.0.

License requirements : None

NXOpen::Features::ShipDesign::PenetrationRequest::CoutoutType NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::CoutoutType ( )

Returns the coutout type
Created in NX8.5.0.

License requirements : None

NXOpen::Part* NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::CutoutPart ( )

Returns the cutout part
Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::Diameter ( )

Returns the diameter expression
Created in NX8.5.0.

License requirements : None

NXOpen::Features::ShipDesign::PenetrationRequest::DirectionType NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::DirectionType ( )

Returns the direction
Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::Height ( )

Returns the height expression
Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::IsEditMode ( )

Returns the flag to decide if it's requests association or associated requests editing
Created in NX8.5.0.

License requirements : None

bool NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::IsKeepAssociation ( )

Returns the flag to decide whether to keep association
Created in NX8.5.0.

License requirements : None

NXOpen::Sketch* NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::ModifiedSketch ( )

Returns the modified sketch
Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::Offset ( )

Returns the offset expression
Created in NX8.5.0.

License requirements : None

NXOpen::Point* NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::Point ( )

Returns the penetration point
Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::Radius ( )

Returns the radius expression
Created in NX8.5.0.

License requirements : None

void NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::RemoveNonIntersectedStructures ( )

Removes all nonintersected structures
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

void NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::RemoveSelectedCurves ( )

Removes all selected curves
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

void NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::SetCompensationPartNumber ( const NXString & selectionCompensationNumber )

The selection compensation
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

selectionCompensationNumber NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::SetCompensationPartNumber ( const char * selectionCompensationNumber )

The selection compensation
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

selectionCompensationNumber NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::SetCoutoutType ( NXOpen::Features::ShipDesign::PenetrationRequest::CoutoutType enumCoutoutType )

Sets the coutout type
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

enumCoutoutType enumcoutouttype

void NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::SetCutoutPart ( NXOpen::Part * cutoutPart )

Sets the cutout part
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

cutoutPart cutoutpart

void NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::SetDirectionType ( NXOpen::Features::ShipDesign::PenetrationRequest::DirectionType enumDirection )

Sets the direction
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

enumDirection enumdirection

void NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::SetEditMode ( bool isEditMode )

Sets the flag to decide if it's requests association or associated requests editing
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

isEditMode iseditmode

void NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::SetKeepAssociation ( bool isKeepAssociation )

Sets the flag to decide whether to keep association
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

isKeepAssociation iskeepassociation

void NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::SetModifiedSketch ( NXOpen::Sketch * modifiedSketch )

Sets the modified sketch
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

modifiedSketch modifiedsketch

void NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::SetPoint ( NXOpen::Point * point )

Sets the penetration point
Created in NX8.0.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

point point

void NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::SetSketchSection ( NXOpen::Section * sectionSketch )

Sets the sketch
Created in NX8.5.0.

License requirements : nx_penetration_mgmt ("Penetration Management")

Parameters

sectionSketch sectionsketch

NXOpen::Section* NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::SketchSection ( )

Returns the sketch
Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::ShipDesign::PenetrationAssociationBuilder::Width ( )

Returns the width expression
Created in NX8.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_ShipDesign_PenetrationAssociationBuilder.hxx
