Represents a Features::ShipDesign::DvToMvMapping builder. More...

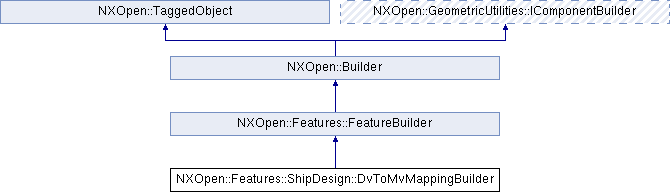

Inheritance diagram for NXOpen::Features::ShipDesign::DvToMvMappingBuilder:

Public Member Functions
NXOpen::Body *	AdoptedDesignBody ()
	Returns the adopted design body.

NXOpen::Body *	AdoptedMfgBody ()
	Returns the adopted manufacturing body.

NXOpen::Features::Feature *	DesignFeatureGroup ()
	Returns the design feature group.

NXOpen::Features::Feature *	MfgFeatureGroup ()
	Returns the mfg feature group.

NXOpen::Body *	OriginalDesignBody ()
	Returns the original design body.

NXOpen::Body *	OriginalMfgBody ()
	Returns the original manufacturing body.

void	SetAdoptedDesignBody (NXOpen::Body *adoptedDesignBody)
	Sets the adopted design body.

void	SetAdoptedMfgBody (NXOpen::Body *adoptedMfgBody)
	Sets the adopted manufacturing body.

void	SetDesignFeatureGroup (NXOpen::Features::Feature *designFeatureGroup)
	Sets the design feature group.

void	SetMfgFeatureGroup (NXOpen::Features::Feature *mfgFeatureGroup)
	Sets the mfg feature group.

void	SetOriginalDesignBody (NXOpen::Body *originalDesignBody)
	Sets the original design body.

void	SetOriginalMfgBody (NXOpen::Body *originalMfgBody)
	Sets the original manufacturing body.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::ShipDesign::DvToMvMapping builder.

This builder is used to create ship version-up design view to manufacturing view mapping feature. The mapping feature is created during a special version-up process, and will be used to drive NX to propagate changes from design body to manufacturing body automatically.
To create a new instance of this class, use Features::ShipCollection::CreateDvToMvMappingBuilder

Created in NX8.5.0.
