Represents a Clean-Up Utility builder builder <br> To create a new instance of this class, use @link Features::SheetMetal::SheetmetalManager::CreateCleanUpUtilityBuilder Features::SheetMetal::SheetmetalManager::CreateCleanUpUtilityBuilder @endlink <br>
Default values. More...

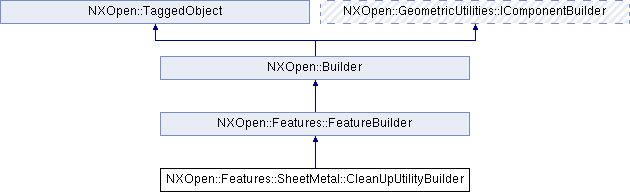

Inheritance diagram for NXOpen::Features::SheetMetal::CleanUpUtilityBuilder:
Public Member Functions | |
| bool | HideOriginal () |
| Returns the hide original Created in NX7.5.0. | |
| bool | InferThickness () |
| Returns the infer thickness Created in NX8.5.0. | |
| NXOpen::ScCollector * | SelectBaseFace () |
| Returns the select base face for clean-up utility Created in NX7.5.0. | |
| void | SetHideOriginal (bool hideOriginal) |
| Sets the hide original Created in NX7.5.0. | |
| void | SetInferThickness (bool inferThickness) |
| Sets the infer thickness Created in NX8.5.0. | |
| void | SetSliverTol (double sliverTol) |
| Sets the sliver tolerance Created in NX7.5.0. | |
| void | SetUseGlobal (bool useGlobal) |
| Sets the use global, if it equals to true - use global thickness value Created in NX7.5.0. | |
| double | SliverTol () |
| Returns the sliver tolerance Created in NX7.5.0. | |
| NXOpen::Expression * | ThicknessValue () |
| Returns the thickness value Created in NX7.5.0. | |
| bool | UseGlobal () |
| Returns the use global, if it equals to true - use global thickness value Created in NX7.5.0. | |
 Public Member Functions inherited from NXOpen::Features::FeatureBuilder | |
| NXOpen::Features::Feature * | CommitFeature () |
| Commits the feature parameters and creates the feature. | |
| NXOpen::Features::Feature * | GetFeature () |
| Returns the feature currently being edited by this builder. | |
| void | HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature) |
| Re-suppress an internal parent feature (a slave feature) after it has been edited. | |
| bool | ParentFeatureInternal () |
| Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0. | |
| bool | PatchSolutionFlag () |
| Returns the patch solution flag Created in NX8.0.1. | |
| NXString | PatchSurfaceFilename () |
| Returns the patch surface filename Created in NX8.0.1. | |
| void | SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature) |
| Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0. | |
| void | SetParentFeatureInternal (bool isInternal) |
| Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0. | |
| void | SetPatchSolutionFlag (bool optionValue) |
| Sets the patch solution flag Created in NX8.0.1. | |
| void | SetPatchSurfaceFilename (const NXString &surfaceFilename) |
| Sets the patch surface filename Created in NX8.0.1. | |
| void | SetPatchSurfaceFilename (const char *surfaceFilename) |
| Sets the patch surface filename Created in NX8.0.1. | |
| void | SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename) |
| Sets the surrounding patch surface filename Created in NX8.0.1. | |
| void | SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename) |
| Sets the surrounding patch surface filename Created in NX8.0.1. | |
| void | ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature) |
| Unsuppress an internal parent feature (a slave feature) so it can be edited. | |
| NXString | SurroundingPatchSurfaceFilename () |
| Returns the surrounding patch surface filename Created in NX8.0.1. | |
| void | UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature) |
| Set the internal parent feature of the feature being edited to external Created in NX6.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a Clean-Up Utility builder builder <br> To create a new instance of this class, use @link Features::SheetMetal::SheetmetalManager::CreateCleanUpUtilityBuilder Features::SheetMetal::SheetmetalManager::CreateCleanUpUtilityBuilder @endlink <br>
Default values.
| Property | Value |
|---|---|
|
SliverTol |
0.009 |
|
ThicknessValue.Value |
0 (millimeters part), 0 (inches part) |
|
UseGlobal |
1 |
Created in NX7.5.0.
Member Function Documentation
| bool NXOpen::Features::SheetMetal::CleanUpUtilityBuilder::HideOriginal | ( | ) |
Returns the hide original
Created in NX7.5.0.
License requirements : None
| bool NXOpen::Features::SheetMetal::CleanUpUtilityBuilder::InferThickness | ( | ) |
Returns the infer thickness
Created in NX8.5.0.
License requirements : None
| NXOpen::ScCollector* NXOpen::Features::SheetMetal::CleanUpUtilityBuilder::SelectBaseFace | ( | ) |
Returns the select base face for clean-up utility
Created in NX7.5.0.
License requirements : None
| void NXOpen::Features::SheetMetal::CleanUpUtilityBuilder::SetHideOriginal | ( | bool | hideOriginal | ) |
Sets the hide original
Created in NX7.5.0.
License requirements : nx_sheet_metal ("NX Sheet Metal")
- Parameters
-
hideOriginal The option to hide original value
| void NXOpen::Features::SheetMetal::CleanUpUtilityBuilder::SetInferThickness | ( | bool | inferThickness | ) |
Sets the infer thickness
Created in NX8.5.0.
License requirements : nx_sheet_metal ("NX Sheet Metal")
- Parameters
-
inferThickness The option to infer thickness value
| void NXOpen::Features::SheetMetal::CleanUpUtilityBuilder::SetSliverTol | ( | double | sliverTol | ) |
Sets the sliver tolerance
Created in NX7.5.0.
License requirements : nx_sheet_metal ("NX Sheet Metal")
- Parameters
-
sliverTol The sliver tolerance value
| void NXOpen::Features::SheetMetal::CleanUpUtilityBuilder::SetUseGlobal | ( | bool | useGlobal | ) |
Sets the use global, if it equals to true - use global thickness value
Created in NX7.5.0.
License requirements : nx_sheet_metal ("NX Sheet Metal")
- Parameters
-
useGlobal The option for global value
| double NXOpen::Features::SheetMetal::CleanUpUtilityBuilder::SliverTol | ( | ) |
Returns the sliver tolerance
Created in NX7.5.0.
License requirements : None
| NXOpen::Expression* NXOpen::Features::SheetMetal::CleanUpUtilityBuilder::ThicknessValue | ( | ) |
Returns the thickness value
Created in NX7.5.0.
License requirements : None
| bool NXOpen::Features::SheetMetal::CleanUpUtilityBuilder::UseGlobal | ( | ) |
Returns the use global, if it equals to true - use global thickness value
Created in NX7.5.0.
License requirements : None
The documentation for this class was generated from the following file:
- Features_SheetMetal_CleanUpUtilityBuilder.hxx
