Represents the base line display style. More...

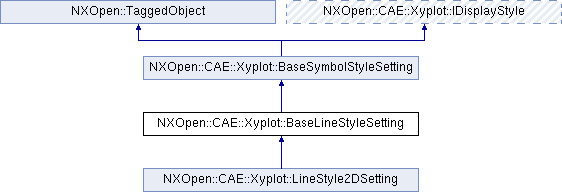

Inheritance diagram for NXOpen::CAE::Xyplot::BaseLineStyleSetting:

Public Member Functions
NXOpen::NXColor *	Color ()
	Returns the line color Created in NX9.0.0.

NXOpen::DisplayableObject::ObjectFont	Font ()
	Returns the line font Created in NX9.0.0.

void	SetColor (NXOpen::NXColor *color)
	Sets the line color Created in NX9.0.0.

void	SetFont (NXOpen::DisplayableObject::ObjectFont font)
	Sets the line font Created in NX9.0.0.

void	SetWidth (NXOpen::DisplayableObject::ObjectWidth lineWidth)
	Sets the line width Created in NX9.0.0.

NXOpen::DisplayableObject::ObjectWidth	Width ()
	Returns the line width Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAE::Xyplot::BaseSymbolStyleSetting
virtual void	CommitChange ()
	Commits any edits that have been applied to the display style.

NXOpen::CAE::Xyplot::PointMarker	PointMarker ()
	Returns the point marker Created in NX9.0.0.

void	SetPointMarker (NXOpen::CAE::Xyplot::PointMarker pointMarker)
	Sets the point marker Created in NX9.0.0.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the base line display style.

Call CAE::Xyplot::IDisplayStyle::CommitChange to apply style changes to corresponding plot after it's modified.
Not support KF.

Created in NX9.0.0.

Member Function Documentation

NXOpen::NXColor* NXOpen::CAE::Xyplot::BaseLineStyleSetting::Color ( )

Returns the line color
Created in NX9.0.0.

License requirements : None

NXOpen::DisplayableObject::ObjectFont NXOpen::CAE::Xyplot::BaseLineStyleSetting::Font ( )

Returns the line font
Created in NX9.0.0.

License requirements : None

void NXOpen::CAE::Xyplot::BaseLineStyleSetting::SetColor ( NXOpen::NXColor * color )

Sets the line color
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

color Text font color

void NXOpen::CAE::Xyplot::BaseLineStyleSetting::SetFont ( NXOpen::DisplayableObject::ObjectFont font )

Sets the line font
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

font Text font

void NXOpen::CAE::Xyplot::BaseLineStyleSetting::SetWidth ( NXOpen::DisplayableObject::ObjectWidth lineWidth )

Sets the line width
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

lineWidth Text line width

NXOpen::DisplayableObject::ObjectWidth NXOpen::CAE::Xyplot::BaseLineStyleSetting::Width ( )

Returns the line width
Created in NX9.0.0.

License requirements : None
