Represents the base bar display style. More...

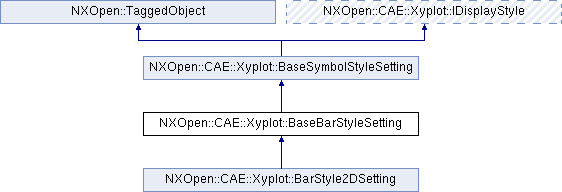

Inheritance diagram for NXOpen::CAE::Xyplot::BaseBarStyleSetting:

Public Member Functions
NXOpen::NXColor *	FillingColor ()
	Returns the filling color Created in NX9.0.0.

NXOpen::NXColor *	OutlineColor ()
	Returns the outline color Created in NX9.0.0.

void	SetFillingColor (NXOpen::NXColor *fillingColor)
	Sets the filling color Created in NX9.0.0.

void	SetOutlineColor (NXOpen::NXColor *outlineColor)
	Sets the outline color Created in NX9.0.0.

void	SetShowOutline (bool showOutline)
	Sets a value indicating whether to display the outline Created in NX9.0.0.

void	SetWidth (int barWidth)
	Sets the bar width.

bool	ShowOutline ()
	Returns a value indicating whether to display the outline Created in NX9.0.0.

int	Width ()
	Returns the bar width.

Public Member Functions inherited from NXOpen::CAE::Xyplot::BaseSymbolStyleSetting
virtual void	CommitChange ()
	Commits any edits that have been applied to the display style.

NXOpen::CAE::Xyplot::PointMarker	PointMarker ()
	Returns the point marker Created in NX9.0.0.

void	SetPointMarker (NXOpen::CAE::Xyplot::PointMarker pointMarker)
	Sets the point marker Created in NX9.0.0.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the base bar display style.

Call CAE::Xyplot::IDisplayStyle::CommitChange to apply style changes to corresponding plot after it's modified.
Not support KF.

Created in NX9.0.0.

Member Function Documentation

NXOpen::NXColor* NXOpen::CAE::Xyplot::BaseBarStyleSetting::FillingColor ( )

Returns the filling color
Created in NX9.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::CAE::Xyplot::BaseBarStyleSetting::OutlineColor ( )

Returns the outline color
Created in NX9.0.0.

License requirements : None

void NXOpen::CAE::Xyplot::BaseBarStyleSetting::SetFillingColor ( NXOpen::NXColor * fillingColor )

Sets the filling color
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

fillingColor fillingcolor

void NXOpen::CAE::Xyplot::BaseBarStyleSetting::SetOutlineColor ( NXOpen::NXColor * outlineColor )

Sets the outline color
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

outlineColor outlinecolor

void NXOpen::CAE::Xyplot::BaseBarStyleSetting::SetShowOutline ( bool showOutline )

Sets a value indicating whether to display the outline
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

showOutline showoutline

void NXOpen::CAE::Xyplot::BaseBarStyleSetting::SetWidth ( int barWidth )

Sets the bar width.

The range is from 0 to 100.
Created in NX9.0.0.

License requirements : nx_ftk ("NX Advanced Graphing")

Parameters

barWidth barwidth

bool NXOpen::CAE::Xyplot::BaseBarStyleSetting::ShowOutline ( )

Returns a value indicating whether to display the outline
Created in NX9.0.0.

License requirements : None

int NXOpen::CAE::Xyplot::BaseBarStyleSetting::Width ( )

Returns the bar width.

The range is from 0 to 100.
Created in NX9.0.0.

License requirements : None
