This is a manager to the CAE::ResponseSimulation::StrengthResultsEvaluationSetting class. More...

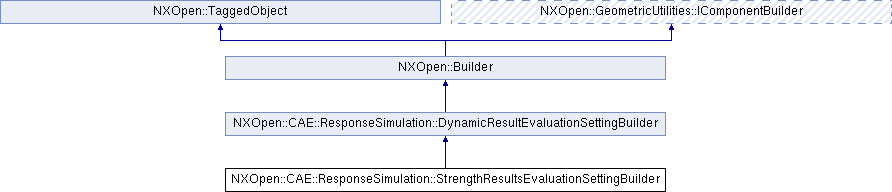

Inheritance diagram for NXOpen::CAE::ResponseSimulation::StrengthResultsEvaluationSettingBuilder:

Public Member Functions
NXOpen::CAE::ResponseSimulation::CombinationEvaluationOptions *	CombinationOptionsBuilder ()
	Returns the setting of combination evaluation Created in NX5.0.0.

NXOpen::CAE::ResponseSimulation::DataLocation *	DataLocation ()
	Returns the setting of combination evaluation Created in NX5.0.0.

std::vector < NXOpen::CAE::FEElement * >	GetDestinationElements ()
	Returns the destination elements.

NXOpen::CAE::ResponseSimulation::StrengthStressMaterialDefinitionMethod	MaterialDefinitionType ()
	Returns the definition method of material Created in NX5.0.0.

bool	MaterialOverrideOption ()
	Returns the choice of override material property or not.

double	MaterialSafetyFactor ()
	Returns the customized material safety factor Created in NX5.0.0.

void	SetDestinationElements (const std::vector< NXOpen::CAE::FEElement * > &destinationElement)
	Sets the destination elements Created in NX5.0.0.

void	SetMaterialDefinitionType (NXOpen::CAE::ResponseSimulation::StrengthStressMaterialDefinitionMethod materialProperty)
	Sets the definition method of material Created in NX5.0.0.

void	SetMaterialOverrideOption (bool overrideMaterialProperty)
	Sets the choice of override material property or not.

void	SetMaterialSafetyFactor (double safetyFactor)
	Sets the customized material safety factor Created in NX5.0.0.

void	SetStandardDeviation (double standardDeviation)
	Sets the customized standard deviation for random event Created in NX5.0.0.

void	SetStressCriteriaType (NXOpen::CAE::ResponseSimulation::StrengthStressCriteria stressCriteria)
	Sets the stress criteria type Created in NX5.0.0.

void	SetStressOptionType (NXOpen::CAE::ResponseSimulation::StrengthStressOption stressOption)
	Sets the stress option type Created in NX5.0.0.

double	StandardDeviation ()
	Returns the customized standard deviation for random event Created in NX5.0.0.

NXOpen::CAE::ResponseSimulation::StrengthStressCriteria	StressCriteriaType ()
	Returns the stress criteria type Created in NX5.0.0.

NXOpen::CAE::ResponseSimulation::StrengthStressOption	StressOptionType ()
	Returns the stress option type Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::DynamicResultEvaluationSettingBuilder
std::vector< NXString >	GetDescriptionString ()
	Returns the description.

void	SetDescriptionString (const std::vector< NXString > &description)
	Sets the description Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This is a manager to the CAE::ResponseSimulation::StrengthResultsEvaluationSetting class.

Object of type CAE::ResponseSimulation::StrengthResultsEvaluationSetting can be created and edited only through this class
To create a new instance of this class, use CAE::ResponseSimulation::EvaluationSettingManager::CreateStrengthResultsEvaluationSettingBuilder

Created in NX5.0.0.

Member Function Documentation

NXOpen::CAE::ResponseSimulation::CombinationEvaluationOptions* NXOpen::CAE::ResponseSimulation::StrengthResultsEvaluationSettingBuilder::CombinationOptionsBuilder ( )

Returns the setting of combination evaluation
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::DataLocation* NXOpen::CAE::ResponseSimulation::StrengthResultsEvaluationSettingBuilder::DataLocation ( )

Returns the setting of combination evaluation
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

std::vector<NXOpen::CAE::FEElement *> NXOpen::CAE::ResponseSimulation::StrengthResultsEvaluationSettingBuilder::GetDestinationElements ( )

Returns the destination elements.

Returns: Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::StrengthStressMaterialDefinitionMethod NXOpen::CAE::ResponseSimulation::StrengthResultsEvaluationSettingBuilder::MaterialDefinitionType ( )

Returns the definition method of material
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

bool NXOpen::CAE::ResponseSimulation::StrengthResultsEvaluationSettingBuilder::MaterialOverrideOption ( )

Returns the choice of override material property or not.

If false, the material safty factor will be read from destination element selected, else a customized value will be used
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

double NXOpen::CAE::ResponseSimulation::StrengthResultsEvaluationSettingBuilder::MaterialSafetyFactor ( )

Returns the customized material safety factor
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

void NXOpen::CAE::ResponseSimulation::StrengthResultsEvaluationSettingBuilder::SetDestinationElements ( const std::vector< NXOpen::CAE::FEElement * > & destinationElement )

Sets the destination elements
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

destinationElement destination element

void NXOpen::CAE::ResponseSimulation::StrengthResultsEvaluationSettingBuilder::SetMaterialDefinitionType ( NXOpen::CAE::ResponseSimulation::StrengthStressMaterialDefinitionMethod materialProperty )

Sets the definition method of material
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

materialProperty material property

void NXOpen::CAE::ResponseSimulation::StrengthResultsEvaluationSettingBuilder::SetMaterialOverrideOption ( bool overrideMaterialProperty )

Sets the choice of override material property or not.

If false, the material safty factor will be read from destination element selected, else a customized value will be used
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

overrideMaterialProperty override material property

void NXOpen::CAE::ResponseSimulation::StrengthResultsEvaluationSettingBuilder::SetMaterialSafetyFactor ( double safetyFactor )

Sets the customized material safety factor
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

safetyFactor safety factor

void NXOpen::CAE::ResponseSimulation::StrengthResultsEvaluationSettingBuilder::SetStandardDeviation ( double standardDeviation )

Sets the customized standard deviation for random event
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

standardDeviation standard deviation

void NXOpen::CAE::ResponseSimulation::StrengthResultsEvaluationSettingBuilder::SetStressCriteriaType ( NXOpen::CAE::ResponseSimulation::StrengthStressCriteria stressCriteria )

Sets the stress criteria type
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

stressCriteria stress criteria

void NXOpen::CAE::ResponseSimulation::StrengthResultsEvaluationSettingBuilder::SetStressOptionType ( NXOpen::CAE::ResponseSimulation::StrengthStressOption stressOption )

Sets the stress option type
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

stressOption stress option

double NXOpen::CAE::ResponseSimulation::StrengthResultsEvaluationSettingBuilder::StandardDeviation ( )

Returns the customized standard deviation for random event
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::StrengthStressCriteria NXOpen::CAE::ResponseSimulation::StrengthResultsEvaluationSettingBuilder::StressCriteriaType ( )

Returns the stress criteria type
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::StrengthStressOption NXOpen::CAE::ResponseSimulation::StrengthResultsEvaluationSettingBuilder::StressOptionType ( )

Returns the stress option type
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

The documentation for this class was generated from the following file:

CAE_ResponseSimulation_StrengthResultsEvaluationSettingBuilder.hxx
