This is a manager to the CAE::ResponseSimulation::StrainGageEvaluationSetting class. More...

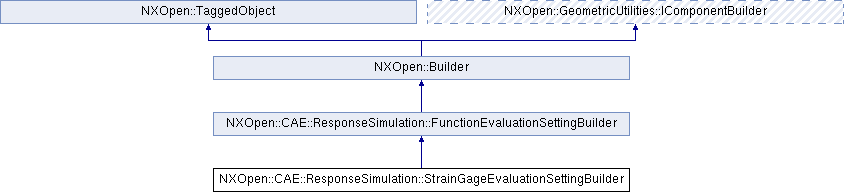

Inheritance diagram for NXOpen::CAE::ResponseSimulation::StrainGageEvaluationSettingBuilder:
Public Member Functions | |
| NXOpen::CAE::ResponseSimulation::DirectionDataComponent | DataComponent () |
| Returns the data component of strain gage evaluation results Created in NX6.0.0. | |
| void | SetDataComponent (NXOpen::CAE::ResponseSimulation::DirectionDataComponent dataComponent) |
| Sets the data component of strain gage evaluation results Created in NX6.0.0. | |
| NXOpen::SelectDisplayableObjectList * | StrainGage () |
| Returns the destination strain Gages Created in NX6.0.0. | |
 Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::FunctionEvaluationSettingBuilder | |
| NXOpen::CAE::ResponseSimulation::FunctionEvaluationOutputSettings * | OutputSettings () |
| Returns the output setting. | |
| NXOpen::CAE::ResponseSimulation::EvaluationResultType | ResultType () |
| Returns the result type Created in NX5.0.0. | |
| void | SetResultType (NXOpen::CAE::ResponseSimulation::EvaluationResultType resultType) |
| Sets the result type Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
This is a manager to the CAE::ResponseSimulation::StrainGageEvaluationSetting class.
Object of type @link CAE::ResponseSimulation::StrainGageEvaluationSetting CAE::ResponseSimulation::StrainGageEvaluationSetting@endlink can be
created and edited only through this class
<br> To create a new instance of this class, use @link CAE::ResponseSimulation::EvaluationSettingManager::CreateStrainGageEvaluationSettingBuilder CAE::ResponseSimulation::EvaluationSettingManager::CreateStrainGageEvaluationSettingBuilder @endlink <br>
Default values.
| Property | Value |
|---|---|
|
DataComponent |
AllXyPlane |
Created in NX6.0.0.
Member Function Documentation
| NXOpen::CAE::ResponseSimulation::DirectionDataComponent NXOpen::CAE::ResponseSimulation::StrainGageEvaluationSettingBuilder::DataComponent | ( | ) |
Returns the data component of strain gage evaluation results
Created in NX6.0.0.
License requirements : nx_response_anlys ("NX Response Analysis")
| void NXOpen::CAE::ResponseSimulation::StrainGageEvaluationSettingBuilder::SetDataComponent | ( | NXOpen::CAE::ResponseSimulation::DirectionDataComponent | dataComponent | ) |
Sets the data component of strain gage evaluation results
Created in NX6.0.0.
License requirements : nx_response_anlys ("NX Response Analysis")
- Parameters
-
dataComponent data component
| NXOpen::SelectDisplayableObjectList* NXOpen::CAE::ResponseSimulation::StrainGageEvaluationSettingBuilder::StrainGage | ( | ) |
Returns the destination strain Gages
Created in NX6.0.0.
License requirements : nx_response_anlys ("NX Response Analysis")
The documentation for this class was generated from the following file:
- CAE_ResponseSimulation_StrainGageEvaluationSettingBuilder.hxx
