Represents a StrainGageBuilder
 <br> To create a new instance of this class, use @link CAE::ResponseSimulation::StrainGageCollection::CreateStrainGageBuilder  CAE::ResponseSimulation::StrainGageCollection::CreateStrainGageBuilder @endlink  <br>

Default values. More...

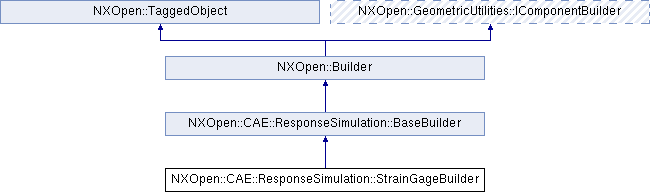

Inheritance diagram for NXOpen::CAE::ResponseSimulation::StrainGageBuilder:

Public Member Functions
NXOpen::SmartObject *	Csys ()
	Returns the orientation direction, Only available when the strain gage's orientation plane type is CAE::ResponseSimulation::StrainGageOrientationPlaneCsys Created in NX6.0.0.

NXOpen::CAE::ResponseSimulation::StrainGageType	GageType ()
	Returns the type of strain gage Created in NX6.0.0.

NXOpen::CAE::ResponseSimulation::StrainGagePlacementType	Placement ()
	Returns the placement type of strain gage Created in NX6.0.0.

NXOpen::CAE::ResponseSimulation::StrainGageOrientationPlane	Plane ()
	Returns the orientation plane type of strain gage Created in NX6.0.0.

NXOpen::CAE::ResponseSimulation::StrainGageResult	ResultType ()
	Returns the result type of strain gage Created in NX6.0.0.

NXOpen::Expression *	RotationAngle ()
	Returns the rotation angle, Only available when the strain gage's orientation plane type is CAE::ResponseSimulation::StrainGageOrientationPlaneCsys Created in NX6.0.0.

NXOpen::CAE::SelectFEElemFaceList *	SelectedElementFaces ()
	Returns the selected element face.

NXOpen::CAE::SelectFENodeList *	SelectedNode ()
	Returns the destination nodes, Only available when the strain gage's placement type is CAE::ResponseSimulation::StrainGagePlacementTypeNode Created in NX6.0.0.

void	SetCsys (NXOpen::SmartObject *orientationCoordSystem)
	Sets the orientation direction, Only available when the strain gage's orientation plane type is CAE::ResponseSimulation::StrainGageOrientationPlaneCsys Created in NX6.0.0.

void	SetGageType (NXOpen::CAE::ResponseSimulation::StrainGageType gageType)
	Sets the type of strain gage Created in NX6.0.0.

void	SetPlacement (NXOpen::CAE::ResponseSimulation::StrainGagePlacementType gagePlacement)
	Sets the placement type of strain gage Created in NX6.0.0.

void	SetPlane (NXOpen::CAE::ResponseSimulation::StrainGageOrientationPlane plane)
	Sets the orientation plane type of strain gage Created in NX6.0.0.

void	SetResultType (NXOpen::CAE::ResponseSimulation::StrainGageResult resultType)
	Sets the result type of strain gage Created in NX6.0.0.

void	SetShellElementFace (NXOpen::CAE::ResponseSimulation::StrainGageShellElementFaceType shellElementFace)
	Sets the shell element face location type of strain gage Created in NX6.0.0.

NXOpen::CAE::ResponseSimulation::StrainGageShellElementFaceType	ShellElementFace ()
	Returns the shell element face location type of strain gage Created in NX6.0.0.

Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::BaseBuilder
NXOpen::CAE::ResponseSimulation::ObjectLabel *	ObjectLabel ()
	Returns the object label Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a StrainGageBuilder
 <br> To create a new instance of this class, use @link CAE::ResponseSimulation::StrainGageCollection::CreateStrainGageBuilder  CAE::ResponseSimulation::StrainGageCollection::CreateStrainGageBuilder @endlink  <br>

Default values.

Property

Value

GageType

UniAxial

Placement

Node

Plane

FacePlane

ResultType

Strain

RotationAngle.Value

0.0 (millimeters part), 0.0 (inches part)

ShellElementFace

Top

Created in NX6.0.0.

Member Function Documentation

NXOpen::SmartObject* NXOpen::CAE::ResponseSimulation::StrainGageBuilder::Csys ( )

Returns the orientation direction, Only available when the strain gage's orientation plane type is CAE::ResponseSimulation::StrainGageOrientationPlaneCsys
Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::StrainGageType NXOpen::CAE::ResponseSimulation::StrainGageBuilder::GageType ( )

Returns the type of strain gage
Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::StrainGagePlacementType NXOpen::CAE::ResponseSimulation::StrainGageBuilder::Placement ( )

Returns the placement type of strain gage
Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::StrainGageOrientationPlane NXOpen::CAE::ResponseSimulation::StrainGageBuilder::Plane ( )

Returns the orientation plane type of strain gage
Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::StrainGageResult NXOpen::CAE::ResponseSimulation::StrainGageBuilder::ResultType ( )

Returns the result type of strain gage
Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::Expression* NXOpen::CAE::ResponseSimulation::StrainGageBuilder::RotationAngle ( )

Returns the rotation angle, Only available when the strain gage's orientation plane type is CAE::ResponseSimulation::StrainGageOrientationPlaneCsys
Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::SelectFEElemFaceList* NXOpen::CAE::ResponseSimulation::StrainGageBuilder::SelectedElementFaces ( )

Returns the selected element face.

       Only available when the strain gage's placement type is
       @link CAE::ResponseSimulation::StrainGagePlacementTypeElementFaceCenter CAE::ResponseSimulation::StrainGagePlacementTypeElementFaceCenter@endlink

Created in NX7.5.2.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::SelectFENodeList* NXOpen::CAE::ResponseSimulation::StrainGageBuilder::SelectedNode ( )

Returns the destination nodes, Only available when the strain gage's placement type is CAE::ResponseSimulation::StrainGagePlacementTypeNode
Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

void NXOpen::CAE::ResponseSimulation::StrainGageBuilder::SetCsys ( NXOpen::SmartObject * orientationCoordSystem )

Sets the orientation direction, Only available when the strain gage's orientation plane type is CAE::ResponseSimulation::StrainGageOrientationPlaneCsys
Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

orientationCoordSystem orientation coord system

void NXOpen::CAE::ResponseSimulation::StrainGageBuilder::SetGageType ( NXOpen::CAE::ResponseSimulation::StrainGageType gageType )

Sets the type of strain gage
Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

gageType gage type

void NXOpen::CAE::ResponseSimulation::StrainGageBuilder::SetPlacement ( NXOpen::CAE::ResponseSimulation::StrainGagePlacementType gagePlacement )

Sets the placement type of strain gage
Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

gagePlacement gage placement

void NXOpen::CAE::ResponseSimulation::StrainGageBuilder::SetPlane ( NXOpen::CAE::ResponseSimulation::StrainGageOrientationPlane plane )

Sets the orientation plane type of strain gage
Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

plane plane

void NXOpen::CAE::ResponseSimulation::StrainGageBuilder::SetResultType ( NXOpen::CAE::ResponseSimulation::StrainGageResult resultType )

Sets the result type of strain gage
Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

resultType result type

void NXOpen::CAE::ResponseSimulation::StrainGageBuilder::SetShellElementFace ( NXOpen::CAE::ResponseSimulation::StrainGageShellElementFaceType shellElementFace )

Sets the shell element face location type of strain gage
Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

shellElementFace shell element face

NXOpen::CAE::ResponseSimulation::StrainGageShellElementFaceType NXOpen::CAE::ResponseSimulation::StrainGageBuilder::ShellElementFace ( )

Returns the shell element face location type of strain gage
Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

The documentation for this class was generated from the following file:

CAE_ResponseSimulation_StrainGageBuilder.hxx
