Represents a CAE::ResponseSimulation::SensorBuilder
To create a new instance of this class, use CAE::ResponseSimulation::SensorCollection::CreateSensorBuilder

Created in NX5.0.0. More...

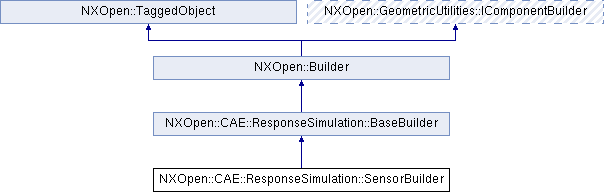

Inheritance diagram for NXOpen::CAE::ResponseSimulation::SensorBuilder:

Public Member Functions
std::vector < NXOpen::CAE::FENode * >	GetSelectedNodes ()
	Returns the destination nodes.

bool	ReverseNormalDirection ()
	Returns the option for reverse the normal direction.

NXOpen::CAE::ResponseSimulation::SensorCoordinateType	SensorCoordinateType ()
	Returns the sensor's coordinate type Created in NX5.0.0.

bool	SensorDirectionX ()
	Returns the setting for x direction compontent of sensor.

bool	SensorDirectionY ()
	Returns the setting for y direction compontent of sensor.

bool	SensorDirectionZ ()
	Returns the setting for z direction compontent of sensor.

NXOpen::CAE::ResponseSimulation::SensorResultType	SensorResultType ()
	Returns the sensor's result type Created in NX5.0.0.

bool	SensorRotationX ()
	Returns the setting for x rotation compontent of sensor.

bool	SensorRotationY ()
	Returns the setting for y rotation compontent of sensor.

bool	SensorRotationZ ()
	Returns the setting for z rotation compontent of sensor.

NXOpen::CAE::ResponseSimulation::SensorType	SensorType ()
	Returns the sensor's type Created in NX5.0.0.

NXOpen::Direction *	SensorVector ()
	Returns the user defined direction.

void	SetReverseNormalDirection (bool normalDirection)
	Sets the option for reverse the normal direction.

void	SetSelectedNodes (const std::vector< NXOpen::CAE::FENode * > &destinationNodes)
	Sets the destination nodes Created in NX5.0.0.

void	SetSensorCoordinateType (NXOpen::CAE::ResponseSimulation::SensorCoordinateType coordinateType)
	Sets the sensor's coordinate type Created in NX5.0.0.

void	SetSensorDirectionX (bool directionX)
	Sets the setting for x direction compontent of sensor.

void	SetSensorDirectionY (bool directionY)
	Sets the setting for y direction compontent of sensor.

void	SetSensorDirectionZ (bool directionZ)
	Sets the setting for z direction compontent of sensor.

void	SetSensorResultType (NXOpen::CAE::ResponseSimulation::SensorResultType resultType)
	Sets the sensor's result type Created in NX5.0.0.

void	SetSensorRotationX (bool rotationX)
	Sets the setting for x rotation compontent of sensor.

void	SetSensorRotationY (bool rotationY)
	Sets the setting for y rotation compontent of sensor.

void	SetSensorRotationZ (bool rotationZ)
	Sets the setting for z rotation compontent of sensor.

void	SetSensorType (NXOpen::CAE::ResponseSimulation::SensorType sensorType)
	Sets the sensor's type Created in NX5.0.0.

void	SetSensorVector (NXOpen::Direction *sensorVector)
	Sets the user defined direction.

Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::BaseBuilder
NXOpen::CAE::ResponseSimulation::ObjectLabel *	ObjectLabel ()
	Returns the object label Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::ResponseSimulation::SensorBuilder
To create a new instance of this class, use CAE::ResponseSimulation::SensorCollection::CreateSensorBuilder

Created in NX5.0.0.

Member Function Documentation

std::vector<NXOpen::CAE::FENode *> NXOpen::CAE::ResponseSimulation::SensorBuilder::GetSelectedNodes ( )

Returns the destination nodes.

Returns: Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

bool NXOpen::CAE::ResponseSimulation::SensorBuilder::ReverseNormalDirection ( )

Returns the option for reverse the normal direction.

       Only available when the sensor type is
       @link CAE::ResponseSimulation::SensorTypeNormal CAE::ResponseSimulation::SensorTypeNormal@endlink

Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::SensorCoordinateType NXOpen::CAE::ResponseSimulation::SensorBuilder::SensorCoordinateType ( )

Returns the sensor's coordinate type
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

bool NXOpen::CAE::ResponseSimulation::SensorBuilder::SensorDirectionX ( )

Returns the setting for x direction compontent of sensor.

       If true, the response on direction x will be calculated.
       Only available when the sensor type is
       @link CAE::ResponseSimulation::SensorTypeComponent CAE::ResponseSimulation::SensorTypeComponent@endlink

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

bool NXOpen::CAE::ResponseSimulation::SensorBuilder::SensorDirectionY ( )

Returns the setting for y direction compontent of sensor.

       If true, the response on direction y will be calculated.
       Only available when the sensor type is
       @link CAE::ResponseSimulation::SensorTypeComponent CAE::ResponseSimulation::SensorTypeComponent@endlink

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

bool NXOpen::CAE::ResponseSimulation::SensorBuilder::SensorDirectionZ ( )

Returns the setting for z direction compontent of sensor.

       If true, the response on direction z will be calculated.
       Only available when the sensor type is
       @link CAE::ResponseSimulation::SensorTypeComponent CAE::ResponseSimulation::SensorTypeComponent@endlink

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::SensorResultType NXOpen::CAE::ResponseSimulation::SensorBuilder::SensorResultType ( )

Returns the sensor's result type
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

bool NXOpen::CAE::ResponseSimulation::SensorBuilder::SensorRotationX ( )

Returns the setting for x rotation compontent of sensor.

       If true, the response on rotation x will be calculated.
       Only available when the sensor type is
       @link CAE::ResponseSimulation::SensorTypeComponent CAE::ResponseSimulation::SensorTypeComponent@endlink

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

bool NXOpen::CAE::ResponseSimulation::SensorBuilder::SensorRotationY ( )

Returns the setting for y rotation compontent of sensor.

       If true, the response on rotation y will be calculated.
       Only available when the sensor type is
       @link CAE::ResponseSimulation::SensorTypeComponent CAE::ResponseSimulation::SensorTypeComponent@endlink

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

bool NXOpen::CAE::ResponseSimulation::SensorBuilder::SensorRotationZ ( )

Returns the setting for z rotation compontent of sensor.

       If true, the response on rotation z will be calculated.
       Only available when the sensor type is
       @link CAE::ResponseSimulation::SensorTypeComponent CAE::ResponseSimulation::SensorTypeComponent@endlink

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::SensorType NXOpen::CAE::ResponseSimulation::SensorBuilder::SensorType ( )

Returns the sensor's type
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::Direction* NXOpen::CAE::ResponseSimulation::SensorBuilder::SensorVector ( )

Returns the user defined direction.

       Only available when the sensor type is
       @link CAE::ResponseSimulation::SensorTypeDirection CAE::ResponseSimulation::SensorTypeDirection@endlink

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

void NXOpen::CAE::ResponseSimulation::SensorBuilder::SetReverseNormalDirection ( bool normalDirection )

Sets the option for reverse the normal direction.

       Only available when the sensor type is
       @link CAE::ResponseSimulation::SensorTypeNormal CAE::ResponseSimulation::SensorTypeNormal@endlink

Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

normalDirection normal direction

void NXOpen::CAE::ResponseSimulation::SensorBuilder::SetSelectedNodes ( const std::vector< NXOpen::CAE::FENode * > & destinationNodes )

Sets the destination nodes
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

destinationNodes destination nodes

void NXOpen::CAE::ResponseSimulation::SensorBuilder::SetSensorCoordinateType ( NXOpen::CAE::ResponseSimulation::SensorCoordinateType coordinateType )

Sets the sensor's coordinate type
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

coordinateType coordinate type

void NXOpen::CAE::ResponseSimulation::SensorBuilder::SetSensorDirectionX ( bool directionX )

Sets the setting for x direction compontent of sensor.

       If true, the response on direction x will be calculated.
       Only available when the sensor type is
       @link CAE::ResponseSimulation::SensorTypeComponent CAE::ResponseSimulation::SensorTypeComponent@endlink

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

directionX direction x

void NXOpen::CAE::ResponseSimulation::SensorBuilder::SetSensorDirectionY ( bool directionY )

Sets the setting for y direction compontent of sensor.

       If true, the response on direction y will be calculated.
       Only available when the sensor type is
       @link CAE::ResponseSimulation::SensorTypeComponent CAE::ResponseSimulation::SensorTypeComponent@endlink

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

directionY direction y

void NXOpen::CAE::ResponseSimulation::SensorBuilder::SetSensorDirectionZ ( bool directionZ )

Sets the setting for z direction compontent of sensor.

       If true, the response on direction z will be calculated.
       Only available when the sensor type is
       @link CAE::ResponseSimulation::SensorTypeComponent CAE::ResponseSimulation::SensorTypeComponent@endlink

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

directionZ direction z

void NXOpen::CAE::ResponseSimulation::SensorBuilder::SetSensorResultType ( NXOpen::CAE::ResponseSimulation::SensorResultType resultType )

Sets the sensor's result type
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

resultType result type

void NXOpen::CAE::ResponseSimulation::SensorBuilder::SetSensorRotationX ( bool rotationX )

Sets the setting for x rotation compontent of sensor.

       If true, the response on rotation x will be calculated.
       Only available when the sensor type is
       @link CAE::ResponseSimulation::SensorTypeComponent CAE::ResponseSimulation::SensorTypeComponent@endlink

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

rotationX rotation x

void NXOpen::CAE::ResponseSimulation::SensorBuilder::SetSensorRotationY ( bool rotationY )

Sets the setting for y rotation compontent of sensor.

       If true, the response on rotation y will be calculated.
       Only available when the sensor type is
       @link CAE::ResponseSimulation::SensorTypeComponent CAE::ResponseSimulation::SensorTypeComponent@endlink

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

rotationY rotation y

void NXOpen::CAE::ResponseSimulation::SensorBuilder::SetSensorRotationZ ( bool rotationZ )

Sets the setting for z rotation compontent of sensor.

       If true, the response on rotation z will be calculated.
       Only available when the sensor type is
       @link CAE::ResponseSimulation::SensorTypeComponent CAE::ResponseSimulation::SensorTypeComponent@endlink

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

rotationZ rotation z

void NXOpen::CAE::ResponseSimulation::SensorBuilder::SetSensorType ( NXOpen::CAE::ResponseSimulation::SensorType sensorType )

Sets the sensor's type
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

sensorType sensor type

void NXOpen::CAE::ResponseSimulation::SensorBuilder::SetSensorVector ( NXOpen::Direction * sensorVector )

Sets the user defined direction.

       Only available when the sensor type is
       @link CAE::ResponseSimulation::SensorTypeDirection CAE::ResponseSimulation::SensorTypeDirection@endlink

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

sensorVector sensor vector

The documentation for this class was generated from the following file:

CAE_ResponseSimulation_SensorBuilder.hxx

Public Member Functions

Detailed Description

Member Function Documentation
