NXOpen::CAE::ResponseSimulation::FrfEvaluationSettingBuilder Class Reference

This is a manager to the CAE::ResponseSimulation::FrfEvaluationSetting class. More...

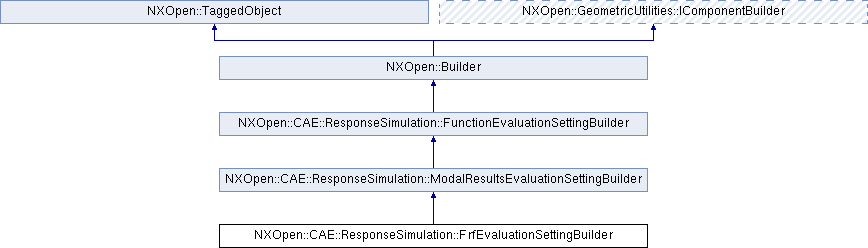

Inheritance diagram for NXOpen::CAE::ResponseSimulation::FrfEvaluationSettingBuilder:

Additional Inherited Members
Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::ModalResultsEvaluationSettingBuilder
NXOpen::CAE::ResponseSimulation::DataLocation *	DataLocation ()
	Returns the frequency setting Created in NX5.0.0.
NXOpen::CAE::ResponseSimulation::FrequencyDefinition *	EvaluationProperty ()
	Returns the frequency setting Created in NX5.0.0.
std::vector < NXOpen::CAE::FEElement * >	GetOutputElements ()
	Returns destination nodes.
std::vector < NXOpen::CAE::FENode * >	GetOutputNodes ()
	Returns destination nodes.
NXOpen::CAE::ResponseSimulation::DirectionDataComponent	InputDirection ()
	Returns the source direction data component Created in NX5.0.0.
NXOpen::CAE::FENode *	InputNode ()
	Returns the source node.
NXOpen::CAE::FENode *	ObservationNode ()
	Returns the observation nodes.
NXOpen::CAE::ResponseSimulation::DirectionDataComponent	OutputRequest ()
	Returns the destination direction data component Created in NX5.0.0.
void	SetInputDirection (NXOpen::CAE::ResponseSimulation::DirectionDataComponent dataComponent)
	Sets the source direction data component Created in NX5.0.0.
void	SetInputNode (NXOpen::CAE::FENode *sourceNode)
	Sets the source node.
void	SetObservationNode (NXOpen::CAE::FENode *observationNode)
	Sets the observation nodes.
void	SetOutputElements (const std::vector< NXOpen::CAE::FEElement * > &destinationElements)
	Sets destination nodes Created in NX5.0.0.
void	SetOutputNodes (const std::vector< NXOpen::CAE::FENode * > &destinationNode)
	Sets destination nodes Created in NX5.0.0.
void	SetOutputRequest (NXOpen::CAE::ResponseSimulation::DirectionDataComponent dataComponent)
	Sets the destination direction data component Created in NX5.0.0.

Detailed Description

This is a manager to the CAE::ResponseSimulation::FrfEvaluationSetting class.

Object of type CAE::ResponseSimulation::FrfEvaluationSetting can be created and edited only through this class
To create a new instance of this class, use CAE::ResponseSimulation::EvaluationSettingManager::CreateFrfEvaluationSettingBuilder

Created in NX5.0.0.

---

The documentation for this class was generated from the following file:

• CAE_ResponseSimulation_FrfEvaluationSettingBuilder.hxx
