Represents the CSD build
To create a new instance of this class, use CAE::ResponseSimulation::EvaluationSettingManager::CreateCsdEvaluationSettingBuilder

Created in NX6.0.0. More...

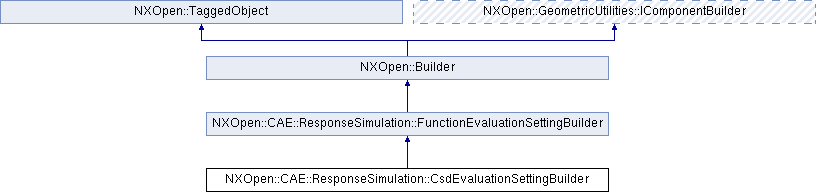

Inheritance diagram for NXOpen::CAE::ResponseSimulation::CsdEvaluationSettingBuilder:

Public Member Functions
std::vector < NXOpen::CAE::FEElement * >	GetResponseElements ()
	Get the response elments.

std::vector < NXOpen::CAE::FENode * >	GetResponseNodes ()
	Get the response nodes.

NXOpen::CAE::ResponseSimulation::CoordinateSystem	ReferenceCoordinateSystem ()
	Returns the coordinate system of reference element.

NXOpen::CAE::ResponseSimulation::DataLocation *	ReferenceDataLocation ()
	Returns the reference element location of reference element.

NXOpen::CAE::FEElement *	ReferenceElement ()
	Returns the reference element.

NXOpen::CAE::ResponseSimulation::DirectionDataComponent	ReferenceElementDataComponent ()
	Returns the direction data component of reference element.

NXOpen::CAE::FENode *	ReferenceNode ()
	Returns the reference node.

NXOpen::CAE::ResponseSimulation::DirectionDataComponent	ReferenceNodeDataComponent ()
	Returns the direction data component of reference node.

NXOpen::Direction *	ReferenceUserDefinedDirection ()
	Returns the user defined direction of reference node.

NXOpen::CAE::ResponseSimulation::NodalFunctionEvalRequest	ReferenceUsingUserDefinedDirection ()
	Returns the option of using user defined direction of the reference node.

NXOpen::CAE::ResponseSimulation::CoordinateSystem	ResponseCoordinateSystem ()
	Returns the coordinate system of response elements.

NXOpen::CAE::ResponseSimulation::DataLocation *	ResponseDataLocation ()
	Returns the response element location.

NXOpen::CAE::ResponseSimulation::DirectionDataComponent	ResponseElementDataComponent ()
	Returns the direction data component of response elements.

NXOpen::CAE::ResponseSimulation::DirectionDataComponent	ResponseNodeDataComponent ()
	Returns the direction data component of response node.

NXOpen::Direction *	ResponseUserDefinedDirection ()
	Returns the user defined direction of response nodes.

NXOpen::CAE::ResponseSimulation::NodalFunctionEvalRequest	ResponseUsingUserDefinedDirection ()
	Returns the option of using user defined direction of response nodes.

void	SetReferenceCoordinateSystem (NXOpen::CAE::ResponseSimulation::CoordinateSystem referenceCoordinateSystem)
	Sets the coordinate system of reference element.

void	SetReferenceElement (NXOpen::CAE::FEElement *referenceElement)
	Sets the reference element.

void	SetReferenceElementDataComponent (NXOpen::CAE::ResponseSimulation::DirectionDataComponent referenceElementDataComponent)
	Sets the direction data component of reference element.

void	SetReferenceNode (NXOpen::CAE::FENode *referenceNode)
	Sets the reference node.

void	SetReferenceNodeDataComponent (NXOpen::CAE::ResponseSimulation::DirectionDataComponent referenceNodeDataComponent)
	Sets the direction data component of reference node.

void	SetReferenceUserDefinedDirection (NXOpen::Direction *referenceUserDefinedDirection)
	Sets the user defined direction of reference node.

void	SetReferenceUsingUserDefinedDirection (NXOpen::CAE::ResponseSimulation::NodalFunctionEvalRequest referenceUsingUserDefinedDirection)
	Sets the option of using user defined direction of the reference node.

void	SetResponseCoordinateSystem (NXOpen::CAE::ResponseSimulation::CoordinateSystem responseCoordinateSystem)
	Sets the coordinate system of response elements.

void	SetResponseElementDataComponent (NXOpen::CAE::ResponseSimulation::DirectionDataComponent responseElementDataComponent)
	Sets the direction data component of response elements.

void	SetResponseElements (const std::vector< NXOpen::CAE::FEElement * > &responseElements)
	Set the response elments.

void	SetResponseNodeDataComponent (NXOpen::CAE::ResponseSimulation::DirectionDataComponent responseNodeDataComponent)
	Sets the direction data component of response node.

void	SetResponseNodes (const std::vector< NXOpen::CAE::FENode * > &responseNode)
	Set the response nodes.

void	SetResponseUserDefinedDirection (NXOpen::Direction *responseUserDefinedDirection)
	Sets the user defined direction of response nodes.

void	SetResponseUsingUserDefinedDirection (NXOpen::CAE::ResponseSimulation::NodalFunctionEvalRequest responseUsingUserDefinedDirection)
	Sets the option of using user defined direction of response nodes.

Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::FunctionEvaluationSettingBuilder
NXOpen::CAE::ResponseSimulation::FunctionEvaluationOutputSettings *	OutputSettings ()
	Returns the output setting.

NXOpen::CAE::ResponseSimulation::EvaluationResultType	ResultType ()
	Returns the result type Created in NX5.0.0.

void	SetResultType (NXOpen::CAE::ResponseSimulation::EvaluationResultType resultType)
	Sets the result type Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the CSD build
To create a new instance of this class, use CAE::ResponseSimulation::EvaluationSettingManager::CreateCsdEvaluationSettingBuilder

Created in NX6.0.0.

Member Function Documentation

std::vector<NXOpen::CAE::FEElement *> NXOpen::CAE::ResponseSimulation::CsdEvaluationSettingBuilder::GetResponseElements ( )

Get the response elments.

    Available if the result type is
    @link CAE::ResponseSimulation::EvaluationResultTypeStress CAE::ResponseSimulation::EvaluationResultTypeStress@endlink
    @link CAE::ResponseSimulation::EvaluationResultTypeStrain CAE::ResponseSimulation::EvaluationResultTypeStrain@endlink
    @link CAE::ResponseSimulation::EvaluationResultTypeShellStressResultant CAE::ResponseSimulation::EvaluationResultTypeShellStressResultant@endlink
    @link CAE::ResponseSimulation::EvaluationResultTypeElementForce CAE::ResponseSimulation::EvaluationResultTypeElementForce@endlink
    @link CAE::ResponseSimulation::EvaluationResultTypeBeamElementForce CAE::ResponseSimulation::EvaluationResultTypeBeamElementForce@endlink
    @return
