Represents a CAE::OneDimensionalElementSplitBuilder
To create a new instance of this class, use CAE::NodeElementManager::CreateOneDimensionalElementSplitBuilder
Created in NX8.5.0.
More...
Public Types | |
| enum | SplitMethodType { SplitMethodTypeNumberElement, SplitMethodTypeLengthElement } |
| represents the split method types More... | |
Public Member Functions | |
| NXOpen::CAE::SelectElementsBuilder * | Elements () |
| Returns the selected elements Created in NX8.5.0. | |
| NXOpen::Expression * | LengthOfSubElements () |
| Returns the length of sub elements Created in NX8.5.0. | |
| int | NumberOfSubElements () |
| Returns the number of sub elements Created in NX8.5.0. | |
| void | SetNumberOfSubElements (int numberOfSubElements) |
| Sets the number of sub elements Created in NX8.5.0. | |
| void | SetSplitMethod (NXOpen::CAE::OneDimensionalElementSplitBuilder::SplitMethodType option) |
| Sets the split method type Created in NX8.5.0. | |
| NXOpen::CAE::OneDimensionalElementSplitBuilder::SplitMethodType | SplitMethod () |
| Returns the split method type Created in NX8.5.0. | |

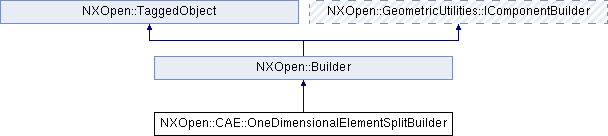

 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a CAE::OneDimensionalElementSplitBuilder
To create a new instance of this class, use CAE::NodeElementManager::CreateOneDimensionalElementSplitBuilder
Created in NX8.5.0.
Member Enumeration Documentation
Member Function Documentation
| NXOpen::CAE::SelectElementsBuilder* NXOpen::CAE::OneDimensionalElementSplitBuilder::Elements | ( | ) |
Returns the selected elements
Created in NX8.5.0.
License requirements : None
| NXOpen::Expression* NXOpen::CAE::OneDimensionalElementSplitBuilder::LengthOfSubElements | ( | ) |
Returns the length of sub elements
Created in NX8.5.0.
License requirements : None
| int NXOpen::CAE::OneDimensionalElementSplitBuilder::NumberOfSubElements | ( | ) |
Returns the number of sub elements
Created in NX8.5.0.
License requirements : None
| void NXOpen::CAE::OneDimensionalElementSplitBuilder::SetNumberOfSubElements | ( | int | numberOfSubElements | ) |
Sets the number of sub elements
Created in NX8.5.0.
License requirements : nx_masterfem ("Finite Element Modeling")
- Parameters
-
numberOfSubElements numberofsubelements
| void NXOpen::CAE::OneDimensionalElementSplitBuilder::SetSplitMethod | ( | NXOpen::CAE::OneDimensionalElementSplitBuilder::SplitMethodType | option | ) |
Sets the split method type
Created in NX8.5.0.
License requirements : nx_masterfem ("Finite Element Modeling")
- Parameters
-
option option
| NXOpen::CAE::OneDimensionalElementSplitBuilder::SplitMethodType NXOpen::CAE::OneDimensionalElementSplitBuilder::SplitMethod | ( | ) |
Returns the split method type
Created in NX8.5.0.
License requirements : None
The documentation for this class was generated from the following file:
- CAE_OneDimensionalElementSplitBuilder.hxx
