UF_DRAW Functions

定义在: uf_draw.h

概述

(use UF_DRAW_set_display_state)

set drawing display state in the drafting application

Return code:
1 = OK
if not 1,
error_code = UF_DRAWING_STATE_OK
error_code = UF_DRAWING_INVALID_STATE_FLAG
error_code = UF_DRAWING_NOOP_WORK_MEM_VIEW
error_code = UF_DRAWING_STATE_NOT_SET
error_code = UF_DRAWING_NO_VIEW_AVAILABLE

环境

Internal and External

需要许可证（S）

drafting

int uc6476
(

int view_type

)

int (整数型)

view_type

Input（输入）

type of view
1 = modeling view
2 = drawing view

uc6477 (查看源代码)

定义在: uf_draw.h

概述

(use UF_DRAW_ask_display_state)

ask drawing display state in the drafting application

Return code:
1 = modeling view
2 = drawing view
if not 1 or 2, error_code

环境

Internal and External

需要许可证（S）

drafting

int uc6477
(

void

)

uc6478 (查看源代码)

定义在: uf_draw.h

概述

(use UF_DRAW_create_drawing)

create drawing

Return code:
0 = OK
if not 0,
error_code = UF_DRAWING_DESIGN_IN_CONTEXT
error_code = UF_DRAWING_WORK_IN_MEMBER_VIEW
error_code = UF_DRAWING_INVALID_DRAWING_NAME
error_code = UF_DRAWING_DRAWING_ALREADY_EXISTS
error_code = UF_DRAWING_VIEW_ALREADY_EXISTS
error_code = UF_DRAWING_INVALID_UNITS
error_code = UF_DRAWING_INVALID_SIZE_CODE
error_code = UF_DRAWING_INVALID_DRAWING_SIZE

环境

Internal and External

需要许可证（S）

drafting

int uc6478
(

const char * drawing_name,
const int drawing_units,
const int size_code,
const double * custom_size

)

const char *	drawing_name	Input（输入）	drawing name " " = current drawing (30 characters max)
const int	drawing_units	Input（输入）	drawing units 1 = inches 2 = millimeters
const int	size_code	Input（输入）	drawing size code 0 = custom size 1 = A/A0 2 = B/A1 3 = C/A2 4 = D/A3 5 = E/A4 6 = F/-- 7 = H/-- 8 = J/--
const double *	custom_size	Input（输入）	custom drawing size [0] height [1] width

uc6479 (查看源代码)

定义在: uf_draw.h

概述

(use UF_DRAW_ask_drawing_info)

ask drawing size

Return code:
0 = OK
if not 0 = error code
21 = DRAWING DOES NOT EXIST
22 = INVALID DRAWING NAME
29 = NO CURRENT DRAWING

环境

Internal and External

需要许可证（S）

drafting

int uc6479
(

const char * drawing_name,
int * drawing_units,
int * size_code,
double * custom_size

)

const char *	drawing_name	Input（输入）	drawing name " " = current drawing (30 characters max)
int * (整数型指针)	drawing_units	Output（输出）	drawing units 1 = inches 2 = millimeters
int * (整数型指针)	size_code	Output（输出）	drawing size code 0 = custom size 1 = A/A0 2 = B/A1 3 = C/A2 4 = D/A3 5 = E/A4
double * (实数型指针)	custom_size	Output（输出）	custom drawing size [0] height [1] width

uc6480 (查看源代码)

定义在: uf_draw.h

概述

(use UF_DRAW_set_drawing_info)

set drawing size

Return code:
0 = OK
if not 0 = error code
21 = DRAWING DOES NOT EXIST
22 = INVALID DRAWING NAME
29 = NO CURRENT DRAWING
31 = INVALID UNITS
32 = INVALID SIZE CODE
33 = INVALID DRAWING SIZE
36 = CANNOT CHANGE DRAWING SIZE WHILE WORK IN MEMBER VIEW

环境

Internal and External

需要许可证（S）

drafting

int uc6480
(

const char * drawing_name,
const int drawing_units,
const int size_code,
const double * custom_size

)

const char *	drawing_name	Input（输入）	drawing name " " = current drawing (30 characters max)
const int	drawing_units	Input（输入）	drawing units 1 = inches 2 = millimeters
const int	size_code	Input（输入）	drawing size code 0 = custom size 1 = A/A0 2 = B/A1 3 = C/A2 4 = D/A3 5 = E/A4 6 = F/-- 7 = H/-- 8 = J/--
const double *	custom_size	Input（输入）	custom drawing size [0] height [1] width

uc6481 (查看源代码)

定义在: uf_draw.h

概述

Use UF_DRAW_import_view
uc6481 add view to drawing

需要许可证（S）

drafting

int uc6481
(

const char * dwg_name,
const char * view_name,
const double * reference_pt,
const int view_status

)

const char *	dwg_name	Input（输入）
const char *	view_name	Input（输入）
const double *	reference_pt	Input（输入）
const int	view_status	Input（输入）

uc6482 (查看源代码)

定义在: uf_draw.h

概述

Use UF_VIEW_delete
uc6482 remove view from drawing

需要许可证（S）

drafting

int uc6482
(

const char * dwg_name,
const char * view_name

)

const char *	dwg_name	Input（输入）
const char *	view_name	Input（输入）

uc6483 (查看源代码)

定义在: uf_draw.h

概述

uc6483 read view reference point on drawing
Use UF_DRAW_ask_drawing_ref_pt
This is actually the drawing reference point

需要许可证（S）

drafting

int uc6483
(

const char * dwg_name,
const char * view_name,
double * reference_pt

)

const char *	dwg_name	Input（输入）
const char *	view_name	Input（输入）
double * (实数型指针)	reference_pt	Output（输出）

uc6484 (查看源代码)

定义在: uf_draw.h

概述

uc6484 set view reference point on drawing
Use UF_DRAW_set_drawing_ref_pt

需要许可证（S）

drafting

int uc6484
(

const char * dwg_name,
const char * view_name,
const double * reference_pt

)

const char *	dwg_name	Input（输入）
const char *	view_name	Input（输入）
const double *	reference_pt	Input（输入）

uc6485 (查看源代码)

定义在: uf_draw.h

概述

uc6485 read view borders on current drawing
Use UF_DRAW_ask_view_borders

需要许可证（S）

drafting

int uc6485
(

char * cp1,
double * rr2

)

char * (字符型指针)	cp1
double * (实数型指针)	rr2

uc6486 (查看源代码)

定义在: uf_draw.h

概述

uc6486 set view borders on current drawing

需要许可证（S）

drafting

int uc6486
(

char * cp1,
double * rp2

)

char * (字符型指针)	cp1
double * (实数型指针)	rp2

uc6488 (查看源代码)

定义在: uf_draw.h

概述

uc6488 read view status in drawing
Use UF_DRAW_ask_view_status

需要许可证（S）

drafting

int uc6488
(

const char * dwg_name,
const char * view_name,
int * view_status

)

const char *	dwg_name	Input（输入）
const char *	view_name	Input（输入）
int * (整数型指针)	view_status	Output（输出）

uc6489 (查看源代码)

定义在: uf_draw.h

概述

uc6489 set view status in drawing
Use UF_DRAW_set_view_status

需要许可证（S）

drafting

int uc6489
(

const char * dwg_name,
const char * view_name,
const int view_status

)

const char *	dwg_name	Input（输入）
const char *	view_name	Input（输入）
const int	view_status	Input（输入）

uc6492 (查看源代码)

定义在: uf_draw.h

概述

Use UF_DRAW_ask_current_drawing and UF_OBJ_ask_name.
uc6492 read current drawing name

需要许可证（S）

drafting

int uc6492
(

char * cr1

)

char * (字符型指针)

cr1

Output（输出）

This parameter must be a character buffer large enough to
hold the returned drawing name (UF_OBJ_NAME_LEN + 1).

uc6494 (查看源代码)

定义在: uf_draw.h

概述

uc6494 retrieve drawing
Use UF_DRAW_open_drawing

需要许可证（S）

drafting

int uc6494
(

const char * dwg_name

)

const char *

dwg_name

uc6495 (查看源代码)

定义在: uf_draw.h

概述

uc6495 delete drawing
Use UF_DRAW_delete_drawing

需要许可证（S）

drafting

int uc6495
(

const char * dwg_name

)

const char *

dwg_name

uc6496 (查看源代码)

定义在: uf_draw.h

概述

uc6496 rename drawing
Use UF_DRAW_rename_drawing

需要许可证（S）

drafting

int uc6496
(

const char * old_dwg_name,
const char * new_dwg_name

)

const char *	old_dwg_name	Input（输入）
const char *	new_dwg_name	Input（输入）

uc6497 (查看源代码)

定义在: uf_draw.h

概述

uc6497 cycle drawings in a part

Return code of 0 = OK
21 = Drawing does not exist
22 = Invalid Drawing Name
all other numbers - error

环境

Internal and External

需要许可证（S）

drafting

int uc6497
(

char * ca1

)

char * (字符型指针)

ca1

Input / Output

Drawing name - 30 characters max.
Pass in an empty string to start the cycle.
By calling this function in a loop and passing
the last drawing name - the next drawing will be
returned. An empty string is returned when
all drawings have been cycled.

uc6498 (查看源代码)

定义在: uf_draw.h

概述

uc6498 read number of views in a drawing

需要许可证（S）

drafting

int uc6498
(

char * cp1,
int * ir2

)

char * (字符型指针)	cp1
int * (整数型指针)	ir2

uc6499 (查看源代码)

定义在: uf_draw.h

概述

uc6499 cycle views in drawing

需要许可证（S）

drafting

int uc6499
(

char * cp1,
char * ca2

)

char * (字符型指针)	cp1
char * (字符型指针)	ca2

UF_DRAW_add_auxiliary_view (查看源代码)

定义在: uf_draw.h

概述

Adds an auxiliary view to the current drawing.

环境

内部和外部

参见

See the example

历史

This function was originally released in V15.0

需要许可证（S）

drafting

int UF_DRAW_add_auxiliary_view
(

const tag_t drawing_tag,
const tag_t parent_view_tag,
const tag_t hinge_line_tag,
double dwg_reference_point [ 2 ] ,
tag_t * aux_view_tag

)

const tag_t	drawing_tag	Input（输入）	The drawing tag (must be current drawing).
const tag_t	parent_view_tag	Input（输入）	tag of parent view.
const tag_t	hinge_line_tag	Input（输入）	tag of smart hinge line
double (实数型)	dwg_reference_point [ 2 ]	Input（输入）	Drawing reference point (drawing coordinates)
tag_t * (tag_t型的指针)	aux_view_tag	Output（输出）	tag of auxiliary view

UF_DRAW_add_circ_detail_view (查看源代码)

定义在: uf_draw.h

概述

Adds an associative circular detail view to the current drawing.

环境

内部和外部

参见

See example

历史

Original release was in V15.0.

需要许可证（S）

drafting

int UF_DRAW_add_circ_detail_view
(

const tag_t drawing_tag,
const tag_t parent_view_tag,
const tag_t center_pt_tag,
const tag_t circle_pt_tag,
const double view_scale,
double dwg_reference_point [ 2 ] ,
tag_t * detail_view_tag

)

const tag_t	drawing_tag	Input（输入）	The drawing tag (must be current drawing).
const tag_t	parent_view_tag	Input（输入）	tag of parent view.
const tag_t	center_pt_tag	Input（输入）	tag of smart center point for the detail circle.
const tag_t	circle_pt_tag	Input（输入）	tag of smart point on the detail circle.
const double	view_scale	Input（输入）	The desired view scale
double (实数型)	dwg_reference_point [ 2 ]	Input（输入）	Drawing reference point (drawing coordinates)
tag_t * (tag_t型的指针)	detail_view_tag	Output（输出）	tag of detail view

UF_DRAW_add_detail_view (查看源代码)

定义在: uf_draw.h

概述

This function adds a detailed view to the current drawing.
There is currently a restriction requiring the input drawing
tag to be the tag of the current drawing. We intend to relax this
restriction in the future. As a result, we are requiring the input tag to
ensure that future code changes will not be required by NX Open
API developers.

环境

内部和外部

参见

See the example

历史

Original release was in V13.0.

需要许可证（S）

drafting

int UF_DRAW_add_detail_view
(

const tag_t drawing_tag,
const tag_t parent_view_tag,
double xy1 [ 2 ] ,
double xy2 [ 2 ] ,
const double view_scale,
double dwg_reference_point [ 2 ] ,
tag_t * detail_view_tag

)

const tag_t	drawing_tag	Input（输入）	Drawing Tag, must be the current drawing.
const tag_t	parent_view_tag	Input（输入）	tag of parent view.
double (实数型)	xy1 [ 2 ]	Input（输入）	Left lower corner of area to create detailed view, in drawing coordinates (x1,y1).
double (实数型)	xy2 [ 2 ]	Input（输入）	Right upper corner of area to create detailed view, in drawing coordinates (x2, y2). This corner should be the diagonal corner to corner1.
const double	view_scale	Input（输入）	desired view scale of detailed view.
double (实数型)	dwg_reference_point [ 2 ]	Input（输入）	Drawing Reference point (in drawing coordinates x,y)
tag_t * (tag_t型的指针)	detail_view_tag	Output（输出）	tag of new detail view.

UF_DRAW_add_orthographic_view (查看源代码)

定义在: uf_draw.h

概述

Adds an orthographic view to the current drawing.

环境

内部和外部

参见

UF_DRAW_proj_dir_t
See the example

历史

This function was originally released in V15.0

需要许可证（S）

drafting

int UF_DRAW_add_orthographic_view
(

const tag_t drawing_tag,
const tag_t parent_view_tag,
const UF_DRAW_proj_dir_t projection_direction,
double dwg_reference_point [ 2 ] ,
tag_t * ortho_view_tag

)

const tag_t	drawing_tag	Input（输入）	The drawing tag (must be current drawing).
const tag_t	parent_view_tag	Input（输入）	tag of parent view.
const UF_DRAW_proj_dir_t	projection_direction	Input（输入）	direction of projection if none specified, the projection direction is determined by the location of the drawing reference point relative to the center of the parent view
double (实数型)	dwg_reference_point [ 2 ]	Input（输入）	Drawing reference point (drawing coordinates)
tag_t * (tag_t型的指针)	ortho_view_tag	Output（输出）	tag of orthographic view

UF_DRAW_add_sxline_sxseg (查看源代码)

定义在: uf_draw.h

概述

Adds a segment to a section line, then updates all of its associated
section views located on the current drawing. Associated section views
not on the current drawing are marked out of date. To perform this
edit on the section line without an update, use the suppress view
update feature provided in UF_DRF_set_suppress_view_update.

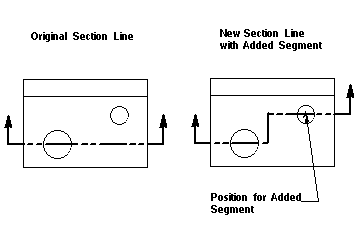

Figure. Adding a new segment to a section line.

环境

内部和外部

参见

UF_DRF_set_suppress_view_update

需要许可证（S）

drafting

int UF_DRAW_add_sxline_sxseg
(

tag_t sxline_tag,
UF_DRAW_sxseg_type_t sxseg_type,
UF_DRAW_sxline_leg_t sxline_leg,
UF_DRF_object_p_t object,
tag_t * sxseg_tag

)

tag_t （tag_t类型）	sxline_tag	Input（输入）	Tag of section line
UF_DRAW_sxseg_type_t	sxseg_type	Input（输入）	Segment_type: UF_DRAW_sxseg_cut = cut segment (only type currently supported for add)
UF_DRAW_sxline_leg_t	sxline_leg	Input（输入）	If a section line is a two-legged revolved type , UF_DRAW_sxline_leg1= add segment to leg 1 UF_DRAW_sxline_leg2= add segment to leg 2
UF_DRF_object_p_t	object	Input（输入）	Object to associate new segment to
tag_t * (tag_t型的指针)	sxseg_tag	Output（输出）	Tag of added section segment

UF_DRAW_add_sxseg (查看源代码)

定义在: uf_draw.h

概述

环境

内部和外部

参见

UF_DRAW_sxline_sxsegs_t
UF_DRF_set_suppress_view_update
See the example

历史

Original release was in V14.0.

需要许可证（S）

drafting

int UF_DRAW_add_sxseg
(

tag_t sxline_tag,
UF_DRAW_sxline_sxsegs_p_t sxseg_data,
tag_t * sxseg_tag

)

tag_t （tag_t类型）	sxline_tag	Input（输入）	Tag of section line
UF_DRAW_sxline_sxsegs_p_t	sxseg_data	Input（输入）	Segment data contains: segment type: UF_DRAW_sxseg_cut, linear segment angle, and object to associate to
tag_t * (tag_t型的指针)	sxseg_tag	Output（输出）	Tag of newly created section line segment.

UF_DRAW_ask_auto_update (查看源代码)

定义在: uf_draw.h

概述

Queries the current value of the Automatic Update preference
setting.

环境

内部和外部

参见

UF_DRAW_set_auto_update
See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_auto_update
(

tag_t view_tag,
logical * auto_update

)

tag_t （tag_t类型）	view_tag	Input（输入）	Tag of section view
logical *	auto_update	Output（输出）	TRUE = Automatically update the view FALSE = Do not automatically update the view

UF_DRAW_ask_body_sils_in_view (查看源代码)

定义在: uf_draw.h

概述

Outputs an array of silhouettes of the input body that reside in the
input drawing member view.

环境

内部和外部

参见

See the example

历史

Original Release was in V14.0.

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_body_sils_in_view
(

tag_t body_tag,
tag_t view_tag,
int * num_silhouettes,
tag_p_t * silhouette_tags

)

tag_t （tag_t类型）	body_tag	Input（输入）	Tag of a body
tag_t （tag_t类型）	view_tag	Input（输入）	Tag of a drawing member view
int * (整数型指针)	num_silhouettes	Output（输出）	Number of silhouettes
tag_p_t *	silhouette_tags	Output to be freed 输出并释放	If num_silhouettes > 0, this is an array of silhouette tags. Use UF_free to deallocate this memory.

UF_DRAW_ask_border_color (查看源代码)

定义在: uf_draw.h

概述

UF_DRAW_ask_border_color

DESCRIPTION -
Output the color of view borders

PARAMETERS -
border_color <O> Color of view borders
Returns -
0 = OK
if not 0 = error code

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_border_color
(

int * border_color

)

int * (整数型指针)

border_color

Output（输出）

UF_DRAW_ask_border_display (查看源代码)

定义在: uf_draw.h

概述

UF_DRAW_ask_border_display

DESCRIPTION -
Ask the view border display status

PARAMETERS -
border_display <O> True if borders are displayed
Returns -
0 = OK
if not 0 = error code

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_border_display
(

logical * border_display

)

logical *

border_display

Output（输出）

UF_DRAW_ask_bound_by_objects (查看源代码)

定义在: uf_draw.h

概述

Retrieves the view's bounded objects.

环境

内部和外部

参见

UF_DRAW_define_bound_by_objects
See the example

历史

Original release was in V13.0.

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_bound_by_objects
(

const tag_t view_tag,
int* num_objects,
tag_t* * bounded_objects

)

const tag_t	view_tag	Input（输入）	Tag of view whose model reference point is to be obtained.
int*	num_objects	Output（输出）	Pointer to int that represents the number of object tags returned.
tag_t* *	bounded_objects	Output to be freed 输出并释放	Pointer to tag array of objects used to calculate the bounding box for the view boundary. Use UF_free() to free this array when done.

UF_DRAW_ask_boundary_curves (查看源代码)

定义在: uf_draw.h

概述

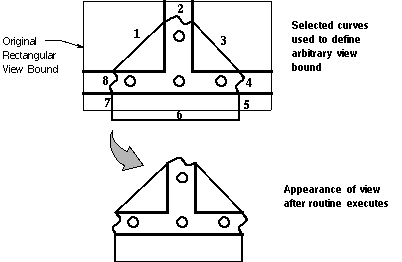

Retrieves the view boundary curves, the smart defining points of those
curves, and the tolerance. These items are used to create an arbitrary
clipping bound for a view.

环境

内部和外部

参见

UF_DRAW_define_view_boundary
See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_boundary_curves
(

tag_t view_tag,
double * tolerance,
int * num_curves,
UF_DRAW_view_boundary_t * * boundary_curves

)

tag_t （tag_t类型）	view_tag	Input（输入）	Tag of view whose view boundary curves are to be obtained.
double * (实数型指针)	tolerance	Output（输出）	The chain tolerance used to create the arbitrary clipping bounds for this view.
int * (整数型指针)	num_curves	Output（输出）	Count of structures. = 0 if view does not have an arbitrary boundary defined.
UF_DRAW_view_boundary_t * *	boundary_curves	Output to be freed 输出并释放	Pointer to view boundary structure. Use UF_DRAW_free_boundary to free the pointer. If a boundary curve has been deleted, its curve_tag will be NULL.

UF_DRAW_ask_boundary_type (查看源代码)

定义在: uf_draw.h

概述

Retrieves the view's boundary type.

环境

内部和外部

参见

See the example

历史

Original Release was in V13.0.

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_boundary_type
(

const tag_t view_tag,
UF_DRAW_boundary_type_t * boundary_type

)

const tag_t	view_tag	Input（输入）	Tag of view whose model reference point is to be obtained.
UF_DRAW_boundary_type_t *	boundary_type	Output（输出）	Boundary type of member view: UF_DRAW_BREAK_DETAIL_TYPE, UF_DRAW_MANUAL_RECTANGLE_TYPE, UF_DRAW_AUTOMATIC_RECTANGLE_TYPE, UF_DRAW_BOUND_BY_OBJECTS_TYPE

UF_DRAW_ask_break_region_data (查看源代码)

定义在: uf_draw.h

概述

This routine retrieves the break region data for a given break region.

0 = OK
if not 0 = Failing error code
Use UF_get_fail_message to obtain the message
string associated with the error code.

Please reference ufd_drw_broken_view.c to review an example of using
this function.

环境

Internal and External

历史

New for V16.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_break_region_data
(

tag_t region,
UF_DRAW_break_region_data_p_t break_region_data

)

tag_t （tag_t类型）	region	Input（输入）	Tag of the break region.
UF_DRAW_break_region_data_p_t	break_region_data	Output（输出）	Break region data.

UF_DRAW_ask_break_regions (查看源代码)

定义在: uf_draw.h

概述

This routine retrieves the array of break regions for a given view.

环境

Internal and External

历史

New for V17.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_break_regions
(

tag_t view_tag,
int * num_regions,
tag_p_t * break_regions

)

tag_t （tag_t类型）	view_tag	Input（输入）	View to be queried
int * (整数型指针)	num_regions	Output（输出）	Number of break regions
tag_p_t *	break_regions	Output to be freed 输出并释放	Tags of the break regions; may be NULL

UF_DRAW_ask_breakout_data (查看源代码)

定义在: uf_draw.h

概述

This routine retrieves the breakout data from a given breakout
section.

0 = OK
if not 0 = Failing error code
Use UF_get_fail_message to obtain the message
string associated with the error code.

Please reference ufd_drw_cre_breakout.c to review an example of using
this function.

环境

Internal and External

历史

New for V16.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_breakout_data
(

tag_t breakline,
tag_p_t view_tag,
UF_DRAW_breakout_data_p_t breakout_data

)

tag_t （tag_t类型）	breakline	Input（输入）	Tag of the breakout section.
tag_p_t	view_tag	Output（输出）	View which contains the given breakout section.
UF_DRAW_breakout_data_p_t	breakout_data	Output（输出）	Breakout section data.

UF_DRAW_ask_comp_section_in_view (查看源代码)

定义在: uf_draw.h

概述

This routine asks whether or not the component of a given section view
is defined to be sectioned or non-sectioned.

0 = OK
if not 0 = Failing error code
Use UF_get_fail_message to obtain the message
string associated with the error code.

Please reference ufd_drw_comp_section_in_view.c to review an example
of using this function.

环境

Internal and External

历史

New for V16.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_comp_section_in_view
(

const tag_t component,
const tag_t sx_view,
UF_DRAW_comp_section_in_view_t * sx_property

)

const tag_t	component	Input（输入）	Tag of the component in the section view.
const tag_t	sx_view	Input（输入）	Tag of the section view.
UF_DRAW_comp_section_in_view_t *	sx_property	Output（输出）	Sectioning property UF_DRAW_NON_SECTIONED UF_DRAW_SECTIONED UF_DRAW_NOT_VIEW_SPECIFIED

UF_DRAW_ask_current_drawing (查看源代码)

定义在: uf_draw.h

概述

n
Returns the tag of the current drawing.

环境

内部和外部

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_current_drawing
(

tag_t * drawing_tag

)

tag_t * (tag_t型的指针)

drawing_tag

Output（输出）

Tag of current drawing

UF_DRAW_ask_curve_group_members (查看源代码)

定义在: uf_draw.h

概述

This routine gets members and count of members of a drafting curve group.

0 = OK
if not 0 = Failing error code
Use UF_get_fail_message to obtain the message
string associated with the error code.

环境

Internal and External

历史

New for V19.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_curve_group_members
(

tag_t curve_group,
tag_t* * curves,
int * curve_count

)

tag_t （tag_t类型）	curve_group	Input（输入）	Tag of drafting curve group
tag_t* *	curves	Output to be freed 输出并释放	curve_count Tag array of all curves in the drafting curve group and must be freed by UF_free()
int * (整数型指针)	curve_count	Output（输出）	Number of curves in the drafting curve group

UF_DRAW_ask_curve_of_sxedge (查看源代码)

定义在: uf_draw.h

概述

Given the tag of a section edge, outputs the tag of its curve. Note that
section edges that result from a section line's bend segment do not
have an associated curve tag. If a section edge from a bend segment is
input to this function, curve_tag is returned as a pointer to a null tag.

Return code:
0 = No error
UF_DRAW_no_sxedge_curve = warning
not 0 = Error code

环境

内部和外部

参见

See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_curve_of_sxedge
(

tag_t sxseg_tag,
tag_t* curve_tag

)

tag_t （tag_t类型）	sxseg_tag	Input（输入）	section edge tag
tag_t*	curve_tag	Output（输出）	section edge curve tag

UF_DRAW_ask_display_state (查看源代码)

定义在: uf_draw.h

概述

This routine retrieves the drawing display state in the drafting
application. The view_type parameter does not indicate what type of view
is being displayed, it indicates what will be displayed when you are in
the Drafting application.
To determine if a drawing is currently displayed in any application, use
UF_DRAW_ask_current_drawing.
To determine the type of the work view, use UF_VIEW_ask_work_view
then UF_VIEW_ask_type.

环境

Internal and External

参见

See the example program ufd_drw_ask_display_state.c

历史

New for V16.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_display_state
(

int * view_type

)

int * (整数型指针)

view_type

Output（输出）

Flag Setting:
1 = Modeling View
2 = Drawing View

UF_DRAW_ask_displayed_objects (查看源代码)

定义在: uf_draw.h

概述

This routine outputs the diusplayed objects which were defined by the user.

0 = OK
if not 0 = Failing error code
Use UF_get_fail_message to obtain the message
string associated with the error code.

环境

Internal and External

历史

New for V18.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_displayed_objects
(

const tag_t view,
int * num_objects,
tag_p_t * objects

)

const tag_t	view	Input（输入）	Tag of the view
int * (整数型指针)	num_objects	Output（输出）	Number of objects
tag_p_t *	objects	Output to be freed 输出并释放	num_objects An array of objects and must be freed by UF_free()

UF_DRAW_ask_dmv_rotation_plane (查看源代码)

定义在: uf_draw.h

概述

This routine outputs the plane tag which is associated with the view
orientation.

0 = OK
if not 0 = Failing error code
Use UF_get_fail_message to obtain the message
string associated with the error code.

环境

Internal and External

历史

New for V18.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_dmv_rotation_plane
(

const tag_t view,
tag_p_t plane

)

const tag_t	view	Input（输入）	Tag of the view
tag_p_t	plane	Output（输出）	The associated plane

UF_DRAW_ask_drawing_info (查看源代码)

定义在: uf_draw.h

概述

This function retrieves the information about a drawing, including the
size, scale, units, and projection angle.

环境

内部和外部

参见

UF_DRAW_set_drawing_info
See the example

历史

Original Release was in V13.0.

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_drawing_info
(

tag_t drawing_tag,
UF_DRAW_info_t * drawing_info

)

tag_t （tag_t类型）	drawing_tag	Input（输入）	Drawing Tag - if a NULL_TAG is passed in for the drawing_tag, the current drawing will be used.
UF_DRAW_info_t *	drawing_info	Output（输出）	Pointer to Drawing Info Structure

UF_DRAW_ask_drawing_of_view (查看源代码)

定义在: uf_draw.h

概述

This routine retrieves the tag of the drawing which contains the
given member view or drawing sheet view.

环境

Internal and External

参见

See the example program ufd_drf_edit_dim_assoc.c

历史

New for V16.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_drawing_of_view
(

const tag_t member_view,
tag_t * drawing

)

const tag_t	member_view	Input（输入）	Tag of view whose drawing is unknown. may also be a drawing sheet view
tag_t * (tag_t型的指针)	drawing	Output（输出）	Tag of the drawing containing member_view. NULL_TAG if not found.

UF_DRAW_ask_drawing_ref_pt (查看源代码)

定义在: uf_draw.h

概述

This routine reads the drawing reference point for a view on the drawing.
This is the point which controls where the view is on the drawing sheet.

环境

Internal and External

参见

See the example program ufd_drw_cre_simple_sxvw.c

历史

New for V16.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_drawing_ref_pt
(

const tag_t view_tag,
double * reference_pt

)

const tag_t	view_tag	Input（输入）	Tag of the view. Must be a member view. If NULL_TAG, the work view is used. It will cause an error if the work view is not a member view.
double * (实数型指针)	reference_pt	Output（输出）	Reference point (Drawing Coordinates). [0] - X-coordinate [1] - Y-coordinate

UF_DRAW_ask_drawings (查看源代码)

定义在: uf_draw.h

概述

This routine returns an array of all of the drawings in
the current work part.

Please reference ufd_drw_object_out_of_date.c to review an example of
using this function.

参见

See the example program ufd_drw_object_out_of_date.c

环境

(内部和外部)

历史

New for V16.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_drawings
(

int * num_drawings,
tag_p_t * drawing_tags

)

int * (整数型指针)	num_drawings	Output（输出）	Number of drawings.
tag_p_t *	drawing_tags	Output to be freed 输出并释放	Array of drawing tags. Use UF_free to free this memory.

UF_DRAW_ask_face_of_sil (查看源代码)

定义在: uf_draw.h

概述

Outputs the associated face of a given silhouette that resides in a
drawing member view. The silhouette must be a line, circle, conic or
spline type object.

环境

内部和外部

参见

See the example

历史

Original Release was in V14.0.

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_face_of_sil
(

tag_t silhouette_tag,
tag_t * face_tag

)

tag_t （tag_t类型）	silhouette_tag	Input（输入）	Tag of silhouette in a drawing member view Must be a line, circle, conic, or spline type.
tag_t * (tag_t型的指针)	face_tag	Output（输出）	Tag of face that the silhouette is associated to

UF_DRAW_ask_face_sils_in_view (查看源代码)

定义在: uf_draw.h

概述

Outputs an array of silhouettes of the input face that reside in the
input drawing member view.

环境

内部和外部

参见

Please see the example

历史

Original Release was in V14.0.

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_face_sils_in_view
(

tag_t face_tag,
tag_t view_tag,
int * num_silhouettes,
tag_p_t * sil_tags

)

tag_t （tag_t类型）	face_tag	Input（输入）	Tag of a face
tag_t （tag_t类型）	view_tag	Input（输入）	Tag of a drawing member view
int * (整数型指针)	num_silhouettes	Output（输出）	Number of silhouettes
tag_p_t *	sil_tags	Output to be freed 输出并释放	If num_silhouettes > 0, this is an array of silhouette tags. Use UF_free to deallocate memory when done.

UF_DRAW_ask_group_of_curve (查看源代码)

定义在: uf_draw.h

概述

Given the tag of a curve, outputs the tag of the associated drawing
member view curve group, the group's type, and subtype.

环境

内部和外部

参见

See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_group_of_curve
(

tag_t curve_tag,
tag_t * group_tag,
int * group_type,
int * group_subtype

)

tag_t （tag_t类型）	curve_tag	Input（输入）	Tag of curve
tag_t * (tag_t型的指针)	group_tag	Output（输出）	Tag of drawing member view curve group. The group_tag is a NULL_TAG if curve is not a drafting edge.
int * (整数型指针)	group_type	Output（输出）	Type of drawing member view curve group, either: UF_solid_silhouette_type, UF_solid_section_type or UF_curve_group_type
int * (整数型指针)	group_subtype	Output（输出）	Subtype of drawing member view curve group: If group is UF_solid_silhouette_type, either UF_solid_silhouette_sl_subtype, UF_solid_silhouette_uvhatch_subtype, or UF_vicurve_subtype Else if group is UF_curve_group_type, either UF_dropped_edge_group_subtype or UF_simplified_group_subtype Else = 0

UF_DRAW_ask_half_sxline (查看源代码)

定义在: uf_draw.h

概述

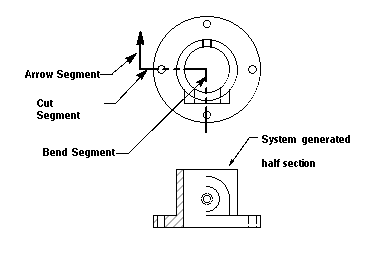

Retrieves half section line information, given the tag of the section
line. If a section line has an invalid section line status it
does not independently cause the return code to be set to a non-zero
value.

环境

内部和外部

参见

UF_DRAW_sxline_status_t
See UF_DRAW_create_half_sxview
for more information about half section lines and views.
See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_half_sxline
(

tag_t sxline_tag,
double step_dir [ 3 ] ,
double arrow_dir [ 3 ] ,
tag_t * pview_tag,
int * num_sxviews,
tag_p_t * sxview_tags,
int * num_sxsegs,
tag_p_t * sxseg_tags,
UF_DRAW_sxline_status_t * sxline_status

)

tag_t （tag_t类型）	sxline_tag	Input（输入）	Tag of half section line to query
double (实数型)	step_dir [ 3 ]	Output（输出）	Step direction vector (unitized) relative to the drawing: step_dir[0] = x value step_dir[1] = y value step_dir[2] = z value
double (实数型)	arrow_dir [ 3 ]	Output（输出）	Arrow direction vector (unitized) relative to the drawing: arrow_dir[0] = x value arrow_dir[1] = y value arrow_dir[2] = z value
tag_t * (tag_t型的指针)	pview_tag	Output（输出）	Parent view tag
int * (整数型指针)	num_sxviews	Output（输出）	Number of section views associated to the input section line
tag_p_t *	sxview_tags	Output to be freed 输出并释放	Array of Section line's section views Use UF_free to free memory
int * (整数型指针)	num_sxsegs	Output（输出）	Number of section line segments
tag_p_t *	sxseg_tags	Output to be freed 输出并释放	Array of section line segment tags Use UF_free to free memory
UF_DRAW_sxline_status_t *	sxline_status	Output（输出）	Section line status

UF_DRAW_ask_num_drawings (查看源代码)

定义在: uf_draw.h

概述

This routine returns the number of drawings in the current work part.

环境

Internal and External

参见

See the example program ufd_drw_ask_num_drawings.c

历史

New for V16.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_num_drawings
(

int * num_drawings

)

int * (整数型指针)

num_drawings

Output（输出）

Number of drawings.

UF_DRAW_ask_num_views (查看源代码)

定义在: uf_draw.h

概述

This routine returns the number of views in the given drawing.

环境

Internal and External

参见

See the example program ufd_drw_ask_num_views.c

历史

New for V16.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_num_views
(

const tag_t drawing_tag,
int * num_views

)

const tag_t	drawing_tag	Input（输入）	Tag of the drawing. If NULL_TAG, use current drawing.
int * (整数型指针)	num_views	Output（输出）	Number of views in the drawing.

UF_DRAW_ask_pictorial_sxline (查看源代码)

定义在: uf_draw.h

概述

This routine retrieves information from a pictorial section
line, given the tag of the section line. A pictorial section
line cannot be revolved or unfolded.

0 = OK
if not 0 = Failure error code
Use UF_get_fail_message to obtain the message
string associated with the error code.

Please reference ufd_drw_cre_dmv_sxvw.c to review an example of
using this function.

参见

UF_DRAW_sxline_status_t

环境

(内部和外部)

历史

New for V16.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_pictorial_sxline
(

tag_t sxline_tag,
UF_DRAW_sxline_type_t * sxline_type,
double cut_dir [ 3 ] ,
double arrow_dir [ 3 ] ,
tag_t * parent_view_tag,
int * num_sxviews,
tag_p_t * sxview_tags,
int * num_sxsegs,
tag_p_t * sxseg_tags,
logical * pictorial_sxview,
UF_DRAW_sxline_status_t * sxline_status

)

tag_t （tag_t类型）	sxline_tag	Input（输入）	Tag of the section line.
UF_DRAW_sxline_type_t *	sxline_type	Output（输出）	Type of section line.
double (实数型)	cut_dir [ 3 ]	Output（输出）	Original user-specified cut direction: cut_dir[0] = x value cut_dir[1] = y value cut_dir[2] = z value
double (实数型)	arrow_dir [ 3 ]	Output（输出）	Original user-specified arrow direction: arrow_dir[0] = x value arrow_dir[1] = y value arrow_dir[2] = z value
tag_t * (tag_t型的指针)	parent_view_tag	Output（输出）	Parent view tag.
int * (整数型指针)	num_sxviews	Output（输出）	Number of section views associated to the input section line.
tag_p_t *	sxview_tags	Output to be freed 输出并释放	Array of section line's section views. Use UF_free to free this.
int * (整数型指针)	num_sxsegs	Output（输出）	Number of section line segments.
tag_p_t *	sxseg_tags	Output to be freed 输出并释放	Array of section line segment tags. Use UF_free to free this.
logical *	pictorial_sxview	Output（输出）	Whether or not the section view is pictorial.
UF_DRAW_sxline_status_t *	sxline_status	Output（输出）	Section line status

UF_DRAW_ask_render_set_objects (查看源代码)

定义在: uf_draw.h

概述

This routine retrieves the objects (solids or component sets) the given
render set reference.

环境

内部和外部

参见

See the example program ufd_draw_render_set.c

历史

Created in v16.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_render_set_objects
(

tag_t render_set,
int * number_objects,
tag_p_t * objects

)

tag_t （tag_t类型）	render_set	Input（输入）	Tag of render set.
int * (整数型指针)	number_objects	Output（输出）	Number of objects referenced by the render set.
tag_p_t *	objects	Output to be freed 输出并释放	Array of solids or component sets to be referenced by the render set. Use UF_free() to free the memory pointed to by this variable.

UF_DRAW_ask_render_set_parms (查看源代码)

定义在: uf_draw.h

概述

This routine retrieves the display parameters for a given render set.

环境

内部和外部

参见

See the example program ufd_draw_render_set.c

历史

Created in v16.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_render_set_parms
(

tag_t render_set,
UF_DRAW_render_prefs_t * render_parms

)

tag_t （tag_t类型）	render_set	Input（输入）	Tag of render set. If this is a NULL_TAG, the function retrieves the default parameters.
UF_DRAW_render_prefs_t *	render_parms	Output（输出）	Pointer to render set preferences structure, with settings for visible and hidden line color, font, and widths, edge hiding edge and hidden line options.

UF_DRAW_ask_render_sets (查看源代码)

定义在: uf_draw.h

概述

This routine retrieves the render sets in the current part.

环境

内部和外部

参见

See the example program ufd_draw_render_set.c

历史

Created in v16.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_render_sets
(

int * number_render_sets,
tag_p_t * render_sets

)

int * (整数型指针)	number_render_sets	Output（输出）	Number of render sets in the part.
tag_p_t *	render_sets	Output to be freed 输出并释放	Array of render sets in the current part. Use UF_free to free the memory.

UF_DRAW_ask_render_sets_of_view (查看源代码)

定义在: uf_draw.h

概述

This routine retrieves the render sets references by the given drawing member
view. These render sets are listed in the order they are rendered in.

环境

内部和外部

参见

See the example program ufd_draw_render_set.c

历史

Created in v16.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_render_sets_of_view
(

tag_t view,
int * number_render_sets,
tag_p_t * render_sets

)

tag_t （tag_t类型）	view	Input（输入）	Tag of drawing member view.
int * (整数型指针)	number_render_sets	Output（输出）	Number of render sets
tag_p_t *	render_sets	Output to be freed 输出并释放	Array of render sets referenced by the given view. They are listed in the rendering order. This array must be freed by calling UF_free.

UF_DRAW_ask_revolved_sxline (查看源代码)

定义在: uf_draw.h

概述

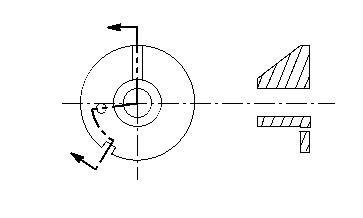

Retrieves revolved section line information, given the tag of the
section line. Note that if a section line has a invalid section line status
it does not independently cause the return code to be set to a
non-zero value.

环境

内部和外部

参见

UF_DRAW_sxline_status_t
See UF_DRAW_create_revolved_sxview
for more information about revolved section lines and views.
See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_revolved_sxline
(

tag_t sxline_tag,
double step_dir [ 3 ] ,
double arrow_dir [ 3 ] ,
tag_t * pview_tag,
UF_DRF_object_t * rotpt_object,
int * num_sxviews,
tag_p_t * sxview_tags,
int * num_sxsegs,
int * num_leg1_sxsegs,
UF_DRAW_sxline_leg_t * cut_plane_leg,
tag_p_t * sxseg_tags,
UF_DRAW_sxline_status_t * sxline_status

)

tag_t （tag_t类型）	sxline_tag	Input（输入）	Tag of revolved section line to query
double (实数型)	step_dir [ 3 ]	Output（输出）	Step direction vector (unitized) relative to the drawing: step_dir[0] = x value step_dir[1] = y value step_dir[2] = z value
double (实数型)	arrow_dir [ 3 ]	Output（输出）	Arrow direction vector (unitized) relative to the drawing: arrow_dir[0] = x value arrow_dir[1] = y value arrow_dir[2] = z value
tag_t * (tag_t型的指针)	pview_tag	Output（输出）	Parent view tag
UF_DRF_object_t *	rotpt_object	Output（输出）	Object associated to rotation point
int * (整数型指针)	num_sxviews	Output（输出）	Number of section views associated to section line
tag_p_t *	sxview_tags	Output to be freed 输出并释放	Array of section line's section view tags Use UF_free to free memory
int * (整数型指针)	num_sxsegs	Output（输出）	Number of section line segments.
int * (整数型指针)	num_leg1_sxsegs	Output（输出）	Number of section segments input to define the first leg. Cannot be greater than num_sxsegs. Any remaining segments define leg2.
UF_DRAW_sxline_leg_t *	cut_plane_leg	Output（输出）	Leg used to define cut plane = UF_DRAW_sxline_leg1 = UF_DRAW_sxline_leg2
tag_p_t *	sxseg_tags	Output to be freed 输出并释放	Array of section line segment tags Use UF_free to free memory
UF_DRAW_sxline_status_t *	sxline_status	Output（输出）	Section line status

UF_DRAW_ask_simple_sxline (查看源代码)

定义在: uf_draw.h

概述

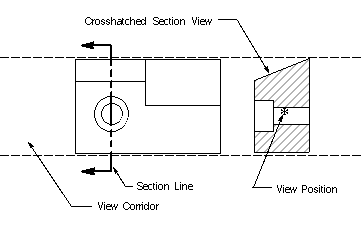

Retrieves simple section line information, given the tag of the section
line. If a section line has an invalid section line status, this
does not independently cause the return code to be set to a non-zero
value.

环境

内部和外部

参见

UF_DRAW_sxline_status_t
See UF_DRAW_create_simple_sxview
for more information about simple section lines and views.
See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_simple_sxline
(

)

tag_t （tag_t类型）	sxline_tag	Input（输入）	Tag of section line to query
double (实数型)	step_dir [ 3 ]	Output（输出）	Step direction vector (unitized) relative to the drawing: step_dir[0] = x value step_dir[1]= y value step_dir[2] = z value
double (实数型)	arrow_dir [ 3 ]	Output（输出）	Step direction vector (unitized) relative to the drawing: arrow_dir[0] = x value arrow_dir[1]= y value arrow_dir[2] = z value
tag_t * (tag_t型的指针)	pview_tag	Output（输出）	Parent view tag
int * (整数型指针)	num_sxviews	Output（输出）	Number of section views associated to section line
tag_p_t *	sxview_tags	Output to be freed 输出并释放	Array of section line's section views. Use UF_free to free memory.
int * (整数型指针)	num_sxsegs	Output（输出）	Number of section line segments
tag_p_t *	sxseg_tags	Output to be freed 输出并释放	Array of section line segment tags. Use UF_free to free memory
UF_DRAW_sxline_status_t *	sxline_status	Output（输出）	Section line status

UF_DRAW_ask_simplified_curve (查看源代码)

定义在: uf_draw.h

概述

Given a drawing curve (a silhouette or a section edge) or an edge that
is a conic or a spline, and the tag to a drawing member view where
this curve or edge resides, this function returns simplified curves (if
they exist), and the simplification creation information. If a
NULL_TAG is input as the view_tag and the master_curve_tag is a
section edge or silhouette, the view is inferred, and if the
master_curve_tag is an edge, the first view found where the edge is
simplified is used.

环境

内部和外部

参见

See the example

历史

Original release was in V13.0.

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_simplified_curve
(

tag_t master_curve_tag,
tag_t * view_tag,
logical * flat_arc_to_line,
double * tolerance,
int * num_segments,
tag_p_t * segments

)

tag_t （tag_t类型）	master_curve_tag	Input（输入）	Tag of the master curve or edge that was simplified.
tag_t * (tag_t型的指针)	view_tag	Input / Output	Tag of the drawing member view of the master_curve.
logical *	flat_arc_to_line	Output（输出）	If TRUE, a post processing of the arc segments output from the simplification was performed to convert flat arc segments with chordal tolerance less than half the view display tolerance to line segments. Also, adjacent line segments and arc segments may have been joined, if the result was within half of the view display tolerance.
double * (实数型指针)	tolerance	Output（输出）	Tolerance that was used to produce the simplification.
int * (整数型指针)	num_segments	Output（输出）	Number of simplified curves
tag_p_t *	segments	Output to be freed 输出并释放	Array of simplified curves. Use UF_free to free memory.

UF_DRAW_ask_solid_of_section (查看源代码)

定义在: uf_draw.h

概述

UF_DRAW_ask_solid_of_section

DESCRIPTION -
Given the tag of a section solid, output the tag of its solid.

PARAMETERS -
sxsolid_tag <I> Tag of section
solid_tag <O> Tag of solid
Returns -
0 = OK
if not 0 = error code

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_solid_of_section
(

tag_t sxsolid_tag,
tag_t * solid_tag

)

tag_t （tag_t类型）	sxsolid_tag	Input（输入）	Tag of section
tag_t * (tag_t型的指针)	solid_tag	Output（输出）	Tag of solid

UF_DRAW_ask_stepped_sxline (查看源代码)

定义在: uf_draw.h

概述

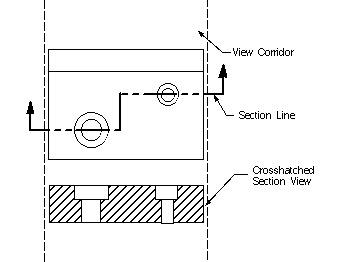

Retrieves stepped section line information, given the tag of the
section line. NOTE: If a section line has a invalid section line status it
does not independently cause the return code to be set to a non-zero
value.

环境

内部和外部

参见

UF_DRAW_sxline_status_t
See UF_DRAW_create_stepped_sxview
for more information about stepped section lines and views.
See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_stepped_sxline
(

)

tag_t （tag_t类型）	sxline_tag	Input（输入）	Tag of stepped section line to query
double (实数型)	step_dir [ 3 ]	Output（输出）	Step direction vector (unitized) relative to the drawing: step_dir[0] = x value step_dir[1] = y value step_dir[2] = z value
double (实数型)	arrow_dir [ 3 ]	Output（输出）	Arrow direction vector (unitized) relative to the drawing: arrow_dir[0] = x value arrow_dir[1] = y value arrow_dir[2] = z value
tag_t * (tag_t型的指针)	pview_tag	Output（输出）	Parent view tag
int * (整数型指针)	num_sxviews	Output（输出）	Number of section views associated to section line
tag_p_t *	sxview_tags	Output to be freed 输出并释放	Array of section line's section views. Use UF_free to free memory.
int * (整数型指针)	num_sxsegs	Output（输出）	Number of section line segments
tag_p_t *	sxseg_tags	Output to be freed 输出并释放	Array of section line's segment tags. Use UF_free to free memory.
UF_DRAW_sxline_status_t *	sxline_status	Output（输出）	Section line status

UF_DRAW_ask_suppress_view_updat (查看源代码)

定义在: uf_draw.h

概述

Queries the current value of the Suppress View Update preference.
This preference is saved with a part. Retrieves value from the root part.
If no parts are loaded, an error will occur.
If the preference is TRUE, then functions which perform implicit
drawing update, will not update the drawing member views.

Note: Starting in nx2, this preference was saved with the part.
Some parts may have been inadvertently saved in nx2 with suppress
view updated turned off.
To allow users to override the suppress view update setting, an
environment variable "UGII_SUPPRESS_VIEW_UPDATE" can be set with
values "0" or "1". If set to 1, this will prevent an automatic
update of the out-of-date views.

环境

内部和外部

参见

UF_DRAW_set_suppress_view_updat
UF_DRAW_update_one_view
UF_DRAW_is_object_out_of_date
See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_suppress_view_updat
(

logical * suppress_view_update

)

logical *

suppress_view_update

Output（输出）

Suppress View Update preference setting:
TRUE = suppress all system initiated view
updates
FALSE = allow all system initiated view
updates

UF_DRAW_ask_sxedges_of_sxsolid (查看源代码)

定义在: uf_draw.h

概述

Given the tag of a solid section, outputs the number of associated
section edges and an array of tags of these section edges.

环境

内部和外部

参见

See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_sxedges_of_sxsolid
(

tag_t sxsolid_tag,
int* num_sxedges,
tag_t* * sxedge_tags

)

tag_t （tag_t类型）	sxsolid_tag	Input（输入）	solid section tag
int*	num_sxedges	Output（输出）	number of section edges of solid section
tag_t* *	sxedge_tags	Output to be freed 输出并释放	Array of section edge tags. Use UF_free to free memory.

UF_DRAW_ask_sxline_default_prfs (查看源代码)

定义在: uf_draw.h

概述

This routine retrieves the default section line display preferences,
including section line visibility and arrow parameters.

环境

内部和外部

参见

See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_sxline_default_prfs
(

UF_DRAW_arrow_parms_t * arrow_parms,
UF_DRAW_sxline_display_t * sxline_display

)

UF_DRAW_arrow_parms_t *	arrow_parms	Output（输出）	Section line arrow parameters
UF_DRAW_sxline_display_t *	sxline_display	Output（输出）	Section line display: UF_DRAW_display_sxline = display section line. UF_DRAW_no_display_sxline = do not display section line.

UF_DRAW_ask_sxline_display (查看源代码)

定义在: uf_draw.h

概述

Retrieves the input section line's display preferences, including the
the section line's visibility and its arrow parameters.

NOTE: Do not invoke this routine for section lines of type UF_DRAW_breakline.

环境

内部和外部

参见

See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_sxline_display
(

tag_t sxline_tag,
UF_DRAW_arrow_parms_t * arrow_parms,
UF_DRAW_sxline_display_t * sxline_display

)

tag_t （tag_t类型）	sxline_tag	Input（输入）	Tag of section line
UF_DRAW_arrow_parms_t *	arrow_parms	Output（输出）	Section line arrow parameters
UF_DRAW_sxline_display_t *	sxline_display	Output（输出）	Section line display: UF_DRAW_display_sxline = display section line. UF_DRAW_no_display_sxline = do not display section line.

UF_DRAW_ask_sxline_of_sxview (查看源代码)

定义在: uf_draw.h

概述

Retrieves the section line tag that is associated to the given section
view.

环境

内部和外部

参见

See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_sxline_of_sxview
(

tag_t sxview_tag,
tag_t * sxline_tag

)

tag_t （tag_t类型）	sxview_tag	Input（输入）	Tag of section view
tag_t * (tag_t型的指针)	sxline_tag	Output（输出）	Tag of associated section line

UF_DRAW_ask_sxline_sxseg (查看源代码)

定义在: uf_draw.h

概述

Retrieves section line segment information, given the tag of the
section line segment.

环境

内部和外部

参见

UF_DRAW_sxline_sxsegs_t
See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_sxline_sxseg
(

tag_t sxseg_tag,
UF_DRAW_sxseg_info_t * sxseg_info,
tag_t * curve_tag,
UF_DRF_object_p_t * object

)

tag_t （tag_t类型）	sxseg_tag	Input（输入）	Tag of section line segment to query
UF_DRAW_sxseg_info_t *	sxseg_info	Output（输出）	Segment information
tag_t * (tag_t型的指针)	curve_tag	Output（输出）	Tag of segment curve
UF_DRF_object_p_t *	object	Output to be freed 输出并释放	Object associated to segment. Use UF_free to free the memory.

UF_DRAW_ask_sxline_type (查看源代码)

定义在: uf_draw.h

概述

Retrieves the section line type, given the tag of the section line.

环境

内部和外部

参见

See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_sxline_type
(

tag_t sxline_tag,
UF_DRAW_sxline_type_t * sxline_type

)

tag_t （tag_t类型）	sxline_tag	Input（输入）	Tag of section line to query its type
UF_DRAW_sxline_type_t *	sxline_type	Output（输出）	UF_DRAW_simple_sxline= simple section line UF_DRAW_stepped_sxline= stepped section line UF_DRAW_half_sxline = half section line UF_DRAW_revolved_sxline = revolved section line UF_DRAW_unfolded_sxline = unfolded section line

UF_DRAW_ask_sxsolids_of_sxview (查看源代码)

定义在: uf_draw.h

概述

Returns the count and array of solid sections created by the sectioning
of an input leg. Depending on whether the section view is a revolved
or non-revolved type the following descriptions will apply:
For Non-Revolved Section Views
Given the tag of a section view output an array of solid section tags
that are sectioned in the input section view.
For Revolved Section Views
Given the tag of a section view and the leg number, output an array of
solid section tags that are sectioned in the input section view by the
leg of the section view's section line.

环境

内部和外部

参见

See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_sxsolids_of_sxview
(

tag_t sxview_tag,
UF_DRAW_sxline_leg_t leg_num,
int* num_sxsolids,
tag_t* * sxsolid_tags

)

tag_t （tag_t类型）	sxview_tag	Input（输入）	Tag of section view
UF_DRAW_sxline_leg_t	leg_num	Input（输入）	Leg number of the cut, UF_DRAW_sxline_leg1 or UF_DRAW_sxline_leg2. Required only if sxview_tag was created from a two legged revolved section line.
int*	num_sxsolids	Output（输出）	Number of solid sections created by the sectioning of the input leg.
tag_t* *	sxsolid_tags	Output to be freed 输出并释放	Array of solid sections created by the sectioning of the input leg. Use UF_free to free memory.

UF_DRAW_ask_sxview_display (查看源代码)

定义在: uf_draw.h

概述

Returns the structure of a single specified section view display setting.

环境

内部和外部

参见

UF_DRAW_set_sxview_display
See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_sxview_display
(

tag_t view_tag,
UF_DRAW_sxview_prfs_t * sxview_parms

)

tag_t （tag_t类型）	view_tag	Input（输入）	Tag of section view
UF_DRAW_sxview_prfs_t *	sxview_parms	Output（输出）	Data structure contains the section view preference parameters.

UF_DRAW_ask_unfolded_sxline (查看源代码)

定义在: uf_draw.h

概述

Retrieves unfolded section line information, given the tag of the
section line.
NOTE: If a section line has an invalid section line status it does not
independently cause the return code to be set to a non-zero value.

环境

内部和外部

参见

UF_DRAW_sxline_status_t
See UF_DRAW_create_unfolded_sxview
for more information about unfolded section lines and views.
See the example

历史

Original release was in V14.0.

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_unfolded_sxline
(

)

tag_t （tag_t类型）	sxline_tag	Input（输入）	Tag of unfolded section line to query
double (实数型)	step_dir [ 3 ]	Output（输出）	Step direction vector (unitized) relative to the drawing: step_dir[0] = x value step_dir[1] = y value step_dir[2] = z value
double (实数型)	arrow_dir [ 3 ]	Output（输出）	Arrow direction vector (unitized) relative to the drawing: arrow_dir[0] = x value arrow_dir[1] = y value arrow_dir[2] = z value
tag_t * (tag_t型的指针)	pview_tag	Output（输出）	Parent view tag
int * (整数型指针)	num_sxviews	Output（输出）	Number of section views associated to section line
tag_p_t *	sxview_tags	Output to be freed 输出并释放	Array of section line's section views. Use UF_free to free memory.
int * (整数型指针)	num_sxsegs	Output（输出）	Number of section line segments
tag_p_t *	sxseg_tags	Output to be freed 输出并释放	Array of section line's segment tags. Use UF_free to free memory.
UF_DRAW_sxline_status_t *	sxline_status	Output（输出）	Section line status

UF_DRAW_ask_view_anchor (查看源代码)

定义在: uf_draw.h

概述

Retrieves the view's anchor point.

环境

内部和外部

参见

See the example

历史

Original Release was in V13.0.

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_view_anchor
(

const tag_t view_tag,
tag_t * anchor_point

)

const tag_t	view_tag	Input（输入）	Tag of view whose model reference point is to be obtained.
tag_t * (tag_t型的指针)	anchor_point	Output（输出）	Pointer to tag of point that represents the view reference point.

UF_DRAW_ask_view_angle (查看源代码)

定义在: uf_draw.h

概述

Returns the view angle in degrees.

环境

Internal & External

参见

See UF_DRAW_set_view_angle
See example

历史

This function was originally released in V15.0.

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_view_angle
(

tag_t view_tag,
double * angle_value

)

tag_t （tag_t类型）	view_tag	Input（输入）	The view tag
double * (实数型指针)	angle_value	Output（输出）	The angle of the view in degrees

UF_DRAW_ask_view_borders (查看源代码)

定义在: uf_draw.h

概述

This routine reads the view borders on the current drawing.

环境

Internal and External

参见

See the example program ufd_draw_ask_view_borders.c

历史

New for V16.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_view_borders
(

const tag_t view_tag,
double view_borders [ 4 ]

)

const tag_t	view_tag	Input（输入）	Tag of the view. If NULL_TAG, use Work view.
double (实数型)	view_borders [ 4 ]	Output（输出）	View Borders (Drawing Coordinates). [0] - X min [1] - Y min [2] - X max [3] - Y max

UF_DRAW_ask_view_display (查看源代码)

定义在: uf_draw.h

概述

Returns the structure of a single specified view display setting for a
specific drawing member view. The display structures are as follows:

环境

内部和外部

参见

See the example
UF_DRAW_view_prfs_t

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_view_display
(

tag_t view_tag,
UF_DRAW_view_prfs_t * view_parms

)

tag_t （tag_t类型）	view_tag	Input（输入）	Tag of drawing member view
UF_DRAW_view_prfs_t *	view_parms	Output（输出）	Data structure contains the hidden line removal, edge hiding edge, silhouette, uv hatch, smooth edge display, smooth edge color, font,, width and gap, virtual intersection color, font, width, gap, and status, tolerance, hidden line color, font, and width parameters, and the extracted edges setting.

UF_DRAW_ask_view_label (查看源代码)

定义在: uf_draw.h

概述

This routine retrieves the tag of the view label associated to a view.
If no view label is associated, view_label_tag is set to NULL_TAG.

0 = successful
= UF_DRAW_tag_not_view

环境

内部和外部

历史

Created in v17.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_view_label
(

tag_t view_tag,
tag_t * view_label_tag

)

tag_t （tag_t类型）	view_tag	Input（输入）	Drawing member view tag
tag_t * (tag_t型的指针)	view_label_tag	Output（输出）	View label tag

UF_DRAW_ask_view_label_parms (查看源代码)

定义在: uf_draw.h

概述

This routine retrieves the parameters from a view label object. If
the view label has been customized and the parameters cannot be
determined, UF_DRAW_invalid_parameter will be returned and
view_label_parms will not be changed.

Note: If the input parameter view_label_tag is NULL_TAG, the
view_label_parm_type element in the view_label_parms structure
must be set to a valid type in order to retrieve global view label
parameters for that type of view label.

0 = successful
= UF_DRAW_invalid_parameter

环境

内部和外部

历史

Created in v17.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_view_label_parms
(

tag_t view_label_tag,
UF_DRAW_view_label_parms_p_t view_label_parms

)

tag_t （tag_t类型）	view_label_tag	Input（输入）	View label tag OR NULL_TAG to ask global preferences
UF_DRAW_view_label_parms_p_t	view_label_parms	Output（输出）	Structure that will be filled with the view label parameters

UF_DRAW_ask_view_notes (查看源代码)

定义在: uf_draw.h

概述

Checks whether a drawing member view has associated notes. If true,
this function returns the tags of the notes as output. Otherwise, the
number of the associated notes is zero (0).

环境

内部和外部

参见

UF_DRAW_ask_view_of_note
UF_DRAW_attach_note_to_view
UF_DRAW_detach_note_from_view
See the example

历史

Original release was in V14.0.

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_view_notes
(

tag_t view_tag,
int * num_notes,
tag_p_t * note_tags

)

tag_t （tag_t类型）	view_tag	Input（输入）	Drawing member view tag
int * (整数型指针)	num_notes	Output（输出）	Number of associated notes
tag_p_t *	note_tags	Output to be freed 输出并释放	If num_notes > 0, the array of note tags must be freed. Use UF_free to free note_tags.

UF_DRAW_ask_view_of_drawing (查看源代码)

定义在: uf_draw.h

概述

This routine retrieves the tag of the drawing view for the given
drawing.

环境

Internal and External

参见

See the example program ufd_drw_ask_num_views.c

历史

New for V18.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_view_of_drawing
(

const tag_t drawing,
tag_t * view

)

const tag_t	drawing	Input（输入）	Tag of drawing whose view is unknown.
tag_t * (tag_t型的指针)	view	Output（输出）	Tag of the view for the given drawing. NULL_TAG if not found.

UF_DRAW_ask_view_of_note (查看源代码)

定义在: uf_draw.h

概述

Detemines if a note is associated to a drawing member view. If so, this
function returns the view tag as an output. This routine is not meant to
determine the view associated to a view label.
Use UF_DRAW_ask_view_of_view_label() to determine the view associated to a
view label.

环境

内部和外部

参见

UF_DRAW_ask_view_notes
UF_DRAW_attach_note_to_view
UF_DRAW_detach_note_from_view
UF_DRAW_ask_view_of_view_label
See the example

历史

Original release was in V14.0.

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_view_of_note
(

tag_t note_tag,
tag_t * view_tag

)

tag_t （tag_t类型）	note_tag	Input（输入）	Note tag
tag_t * (tag_t型的指针)	view_tag	Output（输出）	The drawing member view the note is associated to. NULL_TAG if the note is not associated to a view.

UF_DRAW_ask_view_of_view_label (查看源代码)

定义在: uf_draw.h

概述

This routine retrieves the tag of the view associated to a view label.
If no view is associated, view_tag is set to NULL_TAG.

0 = successful
= UF_DRAW_tag_not_view, UF_DRAW_invalid_parameter

环境

内部和外部

历史

Created in v19.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_view_of_view_label
(

tag_t view_label_tag,
tag_t * view_tag

)

tag_t （tag_t类型）	view_label_tag	Input（输入）	view label tag
tag_t * (tag_t型的指针)	view_tag	Output（输出）	Drawing member view label tag

UF_DRAW_ask_view_parm_scale (查看源代码)

定义在: uf_draw.h

概述

If the view scale is associative, this function outputs an expression tag
and view scale value. If the view scale is not associative, this function
still outputs the view scale value, but the expression is equal to a
NULL_TAG and returns an error.

Return code:
0 = No error
UF_DRAW_hinge_not_linear = warning
not 0 = Error code

环境

内部和外部

参见

See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_view_parm_scale
(

tag_t view_tag,
tag_t * exp_tag,
double * scale_value

)

tag_t （tag_t类型）	view_tag	Input（输入）	View from which the scale value and associated expression is obtained.
tag_t * (tag_t型的指针)	exp_tag	Output（输出）	Expression associated to the view scale, NULL_TAG if the view scale is not associative
double * (实数型指针)	scale_value	Output（输出）	The scale value of the view.

UF_DRAW_ask_view_scale (查看源代码)

定义在: uf_draw.h

概述

Returns the view scale. Also returns the expression tag if the view
scale is parametric. If the view scale is not parametric, it returns a
NULL_TAG.

环境

Internal & External

参见

See UF_DRAW_set_view_scale
See example

历史

This function was originally released in V15.0.

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_view_scale
(

tag_t view_tag,
tag_t * exp_tag,
double * scale_value

)

tag_t （tag_t类型）	view_tag	Input（输入）	The view tag
tag_t * (tag_t型的指针)	exp_tag	Output（输出）	The expression tag
double * (实数型指针)	scale_value	Output（输出）	The scale of the view

UF_DRAW_ask_view_status (查看源代码)

定义在: uf_draw.h

概述

This routine reads the view status in the drawing.

环境

Internal and External

参见

See the example program ufd_drw_set_view_status.c

历史

New for V16.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_view_status
(

const tag_t view_tag,
UF_DRAW_view_status_t * view_status

)

const tag_t	view_tag	Input（输入）	Tag of the view. If NULL_TAG, use Work view.
UF_DRAW_view_status_t *	view_status	Output（输出）	View Status UF_DRAW_ACTIVE_VIEW UF_DRAW_REFERENCE_VIEW

UF_DRAW_ask_view_thd_app_pitch (查看源代码)

定义在: uf_draw.h

概述

Accepts a view tag as an input parameter and returns the minimum
apparent pitch. The minimum apparent pitch is defined as the
minimum value used to visually represent the pitch when rendering
symbolic thread features on drawing member views. It can be used to
preserve the visual clarity of threads whose pitch is small relative to
the view scale.

For example, if a view with a scale of 2.0 contained threads with an
actual pitch of 0.0125 inches, the actual thread pitch would render at
0.0125 2 = 0.025 inches which may be unreadable when plotted at
full scale. If the view's minimum apparent pitch had been set to
0.0625 inches, then that value (in drawing units) would be used to
render the thread pitch.

环境

内部和外部

参见

UF_DRAW_ask_view_thd_meth
UF_DRAW_set_view_thd_meth
UF_DRAW_set_view_thd_app_pitch

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_view_thd_app_pitch
(

tag_t view,
double * app_pitch

)

tag_t （tag_t类型）	view	Input（输入）	Tag of drawing member view
double * (实数型指针)	app_pitch	Output（输出）	The minimum pitch for rendered threads in the given view

UF_DRAW_ask_view_thd_meth (查看源代码)

定义在: uf_draw.h

概述

Accepts a view tag as an input parameter and returns the view
rendering method. Each rendering method corresponds with an ANSI
or ISO thread standard. Valid rendering methods are:
UF_DRAW_THD_METH_NONE
UF_DRAW_THD_METH_ANSI_SIMPLIFIED
UF_DRAW_THD_METH_ANSI_SCHEMATIC
UF_DRAW_THD_METH_ANSI_DETAILED
UF_DRAW_THD_METH_ISO_SIMPLIFIED
UF_DRAW_THD_METH_ISO_DETAILED
The default rendering method for pre-V12 member views is
UF_DRAW_THD_METH_NONE.

环境

内部和外部

参见

See UF_DRAW_ask_view_thd_app_pitch
UF_DRAW_set_view_thd_meth
UF_DRAW_set_view_thd_app_pitch

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_view_thd_meth
(

tag_t view,
int * method

)

tag_t （tag_t类型）	view	Input（输入）	tag of the drawing member view
int * (整数型指针)	method	Output（输出）	the view's current rendering method

UF_DRAW_ask_views (查看源代码)

定义在: uf_draw.h

概述

This routine reads the number of member views in the given drawing and
returns an array of the member view tags.

环境

Internal and External

参见

See the example program ufd_draw_ask_view_angle.c

历史

New for V16.0

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_views
(

const tag_t drawing_tag,
int * num_views,
tag_p_t * view_tag

)

const tag_t	drawing_tag	Input（输入）	Tag of the drawing. If NULL_TAG, use current drawing.
int * (整数型指针)	num_views	Output（输出）	Number of views in the drawing.
tag_p_t *	view_tag	Output to be freed 输出并释放	Array of the view tags in the drawing. Use UF_free to free this memory.

UF_DRAW_ask_xhatch_of_sxsolid (查看源代码)

定义在: uf_draw.h

概述

Given the tag of a solid section, output the tag of its associated
crosshatch entity. Note that if a section view has its crosshatch
preference turned off, a tag to a crosshatch entity that has no line
information will be output.

环境

内部和外部

参见

See the example of

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_ask_xhatch_of_sxsolid
(

tag_t sxsolid_tag,
tag_t* xhatch_tag

)

tag_t （tag_t类型）	sxsolid_tag	Input（输入）	section solid tag
tag_t*	xhatch_tag	Output（输出）	crosshatch tag

UF_DRAW_attach_note_to_view (查看源代码)

定义在: uf_draw.h

概述

Associates an existing note to an existing drawing member view. If the
note is already associated to another drawing member view, it need
not be disassociated from the view prior to calling this function.

环境

内部和外部

参见

UF_DRAW_ask_view_of_note
UF_DRAW_ask_view_notes
UF_DRAW_detach_note_from_view
See the example

历史

Original release was in V14.0.

需要许可证（S）

drafting

int UF_DRAW_attach_note_to_view
(

tag_t note_tag,
tag_t view_tag

)

tag_t （tag_t类型）	note_tag	Input（输入）	Note tag to be associated to the view
tag_t （tag_t类型）	view_tag	Input（输入）	The drawing member view the note will be associated to.

UF_DRAW_copy_view (查看源代码)

定义在: uf_draw.h

概述

This routine copies a view and its associated annotation, leaving the
new view positioned on top of the original view. The new view can be
moved to another drawing with UF_DRAW_move_view_to_drawing, or
to another position on the same drawing with UF_DRAW_move_view.

环境

内部和外部

参见

UF_DRAW_move_view_to_drawing
UF_DRAW_move_view
See the example

历史

Original Release was in V13.0.

需要许可证（S）

drafting

int UF_DRAW_copy_view
(

tag_t view_tag,
tag_t * new_view

)

tag_t （tag_t类型）	view_tag	Input（输入）	Tag of drawing member view to copy. It must be on the current drawing.
tag_t * (tag_t型的指针)	new_view	Output（输出）	Pointer to new view (copy of the original view).

UF_DRAW_create_break_region (查看源代码)

定义在: uf_draw.h

概述

This routine creates a break region for a given view.

环境

Internal and External

历史

New for V17.0

需要许可证（S）

drafting

int UF_DRAW_create_break_region
(

tag_t view_tag,
tag_t anchor_point,
int num_curves,
UF_DRAW_break_region_boundary_p_t curves,
tag_p_t break_region

)

tag_t （tag_t类型）	view_tag	Input（输入）	View to which the break region is to be added.
tag_t （tag_t类型）	anchor_point	Input（输入）	tag of anchor_point for break region
int (整数型)	num_curves	Input（输入）	number of boundary curves
UF_DRAW_break_region_boundary_p_t	curves	Input（输入）	Break region boundary data.
tag_p_t	break_region	Output（输出）	Tag of the break region created.

UF_DRAW_create_breakout (查看源代码)

定义在: uf_draw.h

概述

This routine creates a breakout section within a given view.

环境

Internal and External

历史

New for V16.0

需要许可证（S）

drafting

int UF_DRAW_create_breakout
(

tag_t view_tag,
UF_DRAW_breakout_data_p_t breakout_data,
tag_p_t breakline

)

tag_t （tag_t类型）	view_tag	Input（输入）	View to which the breakout is to be added.
UF_DRAW_breakout_data_p_t	breakout_data	Input（输入）	Breakout section data.
tag_p_t	breakline	Output（输出）	Tag of the breakout section created.

UF_DRAW_create_drawing (查看源代码)

定义在: uf_draw.h

概述

This routine creates a new drawing.

环境

Internal and External

参见

See the example program ufd_drw_create_drawing.c

历史

New for V16.0

需要许可证（S）

drafting

int UF_DRAW_create_drawing
(

const char * drawing_name,
const UF_DRAW_info_p_t drawing_info,
tag_p_t drawing_tag

)

const char *	drawing_name	Input（输入）	Name of the drawing.
const UF_DRAW_info_p_t	drawing_info	Input（输入）	The desired drawing info.
tag_p_t	drawing_tag	Output（输出）	Tag of the new drawing.

UF_DRAW_create_half_sxview (查看源代码)

定义在: uf_draw.h

概述

Creates a half section line and view.

Figure. A half section line and section view

环境

内部和外部

参见

See the discussion on the half_sxsegs structure in the Types and

参见

UF_DRAW_half_sxsegs_t
See the example

需要许可证（S）

drafting

int UF_DRAW_create_half_sxview
(

tag_t dwg_tag,
double sxview_scale,
double step_dir [ 3 ] ,
double arrow_dir [ 3 ] ,
tag_t pview_tag,
int num_sxsegs,
UF_DRAW_half_sxsegs_p_t half_sxseg_objects,
double view_placement_pt [ 2 ] ,
tag_t* sxview_tag

)

tag_t （tag_t类型）	dwg_tag	Input（输入）	Drawing tag
double (实数型)	sxview_scale	Input（输入）	Section view scale
double (实数型)	step_dir [ 3 ]	Input（输入）	Step direction vector (unitized) relative to the drawing: step_dir[0] = x value step_dir[1] = y value step_dir[2] = z value
double (实数型)	arrow_dir [ 3 ]	Input（输入）	Arrow direction vector (unitized) relative to the drawing. arrow_dir[0] = x value arrow_dir[1] = y value arrow_dir[2] = z value
tag_t （tag_t类型）	pview_tag	Input（输入）	Parent view tag
int (整数型)	num_sxsegs	Input（输入）	Number of section segments. A cut segment and bend segment must be provided (num_segs=2). If the arrow segment location is optionally provided, num_segs=3.
UF_DRAW_half_sxsegs_p_t	half_sxseg_objects	Input（输入）	Section line segment object structure
double (实数型)	view_placement_pt [ 2 ]	Input（输入）	View placement point on drawing in absolute drawing coordinates (x,y))
tag_t*	sxview_tag	Output（输出）	Tag of newly created section view

UF_DRAW_create_render_set (查看源代码)

定义在: uf_draw.h

概述

This routine creates a render set with the given display preferences

环境

内部和外部

参见

See the example program ufd_draw_render_set.c

历史

Created in v16.0

需要许可证（S）

drafting

int UF_DRAW_create_render_set
(

char * render_set_name,
UF_DRAW_render_prefs_t * render_parms,
tag_t * render_set

)

char * (字符型指针)	render_set_name	Input（输入）	Desired name of render set.
UF_DRAW_render_prefs_t *	render_parms	Input（输入）	Pointer to render set preferences structure, with desired settings for visible and hidden line color, font, and widths, edge hiding edge and hidden line options.
tag_t * (tag_t型的指针)	render_set	Output（输出）	Tag of newly created render set, if successful.

UF_DRAW_create_revolved_sxview (查看源代码)

定义在: uf_draw.h

概述

Creates a revolved section view. The system generates a
bend when two cut segments are input with no intervening bend
definition. The system also ignores the second of two consecutive
input bend segments. The system generates arrow segments if they are
not input.

Figure. A revolved section line and section view.

环境

内部和外部

参见

UF_DRAW_sxline_sxsegs_t
See the example

需要许可证（S）

drafting

int UF_DRAW_create_revolved_sxview
(

tag_t dwg_tag,
double sxview_scale,
double step_dir [ 3 ] ,
double arrow_dir [ 3 ] ,
tag_t pview_tag,
UF_DRF_object_p_t rotpt_object,
int num_sxsegs,
int num_leg1_sxsegs,
UF_DRAW_sxline_sxsegs_p_t rev_sxsegs,
double view_placement_pt [ 2 ] ,
tag_t * sxview_tag

)

tag_t （tag_t类型）	dwg_tag	Input（输入）	Drawing tag
double (实数型)	sxview_scale	Input（输入）	Section view scale
double (实数型)	step_dir [ 3 ]	Input（输入）	Step direction vector (unitized) relative to the drawing: step_dir[0] = x value step_dir[1]= y value step_dir[2] = z value
double (实数型)	arrow_dir [ 3 ]	Input（输入）	Arrow direction vector (unitized) relative to the drawing. arrow_dir[0] = x value arrow_dir[1] = y value arrow_dir[2] = z value
tag_t （tag_t类型）	pview_tag	Input（输入）	Parent view tag
UF_DRF_object_p_t	rotpt_object	Input（输入）	Object defining rotation point associativity.
int (整数型)	num_sxsegs	Input（输入）	Number of section segments used to initially define the section line. A cut segment must be defined (num_segs must be > 0). This number defines the size of the rev_sxseg_objects array. A section line cannot have more than 99 segments and cannot have more than 49 cut segments.
int (整数型)	num_leg1_sxsegs	Input（输入）	Number of section segments input to define the first leg. Cannot be greater than num_segs. Any remaining segments define leg2.
UF_DRAW_sxline_sxsegs_p_t	rev_sxsegs	Input（输入）	For each section segment defined, a segment type is given that determines whether the segment is a cut, bend, or arrow. Bend and arrow segments are optional. Also, for each section segment defined, an object is given to define the section segment associativity.
double (实数型)	view_placement_pt [ 2 ]	Input（输入）	View placement point on drawing in absolute drawing coordinates (x,y))
tag_t * (tag_t型的指针)	sxview_tag	Output（输出）	Tag of newly created section view

UF_DRAW_create_simple_sxview (查看源代码)

定义在: uf_draw.h

概述

Creates a simple section line and view. Only the cut segment of the
section line is input. The arrow segments of the section line are
automatically generated.

Figure. A simple section line and section view

环境

内部和外部

参见

See the example

需要许可证（S）

drafting

int UF_DRAW_create_simple_sxview
(

tag_t dwg_tag,
double sxview_scale,
double step_dir [ 3 ] ,
double arrow_dir [ 3 ] ,
tag_t pview_tag,
UF_DRF_object_p_t cut_object,
double view_placement_pt [ 2 ] ,
tag_t * sxview_tag

)

tag_t （tag_t类型）	dwg_tag	Input（输入）	Drawing tag
double (实数型)	sxview_scale	Input（输入）	Section view scale
double (实数型)	step_dir [ 3 ]	Input（输入）	Step direction vector (unitized) relative to the drawing: step_dir[0] = x value step_dir[1] = y value step_dir[2] = z value
double (实数型)	arrow_dir [ 3 ]	Input（输入）	Arrow direction vector (unitized) relative to the drawing. arrow_dir[0] = x value arrow_dir[1] = y value arrow_dir[2] = z value
tag_t （tag_t类型）	pview_tag	Input（输入）	Parent view tag
UF_DRF_object_p_t	cut_object	Input（输入）	Object associated to cut segment
double (实数型)	view_placement_pt [ 2 ]	Input（输入）	View placement point on drawing in absolute drawing coordinates (x,y)
tag_t * (tag_t型的指针)	sxview_tag	Output（输出）	Tag of newly created section view

UF_DRAW_create_simplified_curve (查看源代码)

定义在: uf_draw.h

概述

Given a drawing curve (a silhouette or a section edge) or an edge that
is a conic or a spline, and the tag to a drawing member view where
this curve or edge is displayed, this function creates new arcs or lines
that approximate that conic or spline curve.
The approximation uses the drawing member view's tolerance view
display preference in its calculations.
Note that the simplification can be deleted by deleting any one of the
curves of the simplification.

环境

内部和外部

参见

See UF_DRAW_set_view_display
to change the tolerance value. This tolerance value is defined in
UF_DRAW_view_prfs_t
See the example

历史

Original release was in V13.0.

需要许可证（S）

drafting

int UF_DRAW_create_simplified_curve
(

tag_t master_curve_tag,
tag_t view_tag,
logical flat_arc_to_line,
int * num_segments,
tag_p_t * segments

)

tag_t （tag_t类型）	master_curve_tag	Input（输入）	Tag of the master curve or edge to simplify
tag_t （tag_t类型）	view_tag	Input（输入）	Tag of the drawing member view of the master_curve. If the master_curve is a section edge or silhouette, view_tag will be ignored as simple curves will be created in the view of the master curve.
logical	flat_arc_to_line	Input（输入）	If TRUE, a post processing of the arc segments output from the simplification will be performed to convert flat arc segments with chordal tolerance less than half the view display tolerance to line segments. Also, adjacent line segments and arc segments will be joined if the result is within half the view display tolerance.
int * (整数型指针)	num_segments	Output（输出）	Number of simplified curves
tag_p_t *	segments	Output to be freed 输出并释放	Array of simplified curves. Use UF_free to free memory.

UF_DRAW_create_stepped_sxview (查看源代码)

定义在: uf_draw.h

概述

Creates a stepped section view. The system generates a
bend when two cut segments are input with no intervening bend
definition. The system also ignores the second of two consecutive
input bend segments. The system generates arrow segments if they are
not input.

Figure. A stepped section line and section view

环境

内部和外部

参见

UF_DRAW_sxline_sxsegs_t

需要许可证（S）

drafting

int UF_DRAW_create_stepped_sxview
(

tag_t dwg_tag,
double sxview_scale,
double step_dir [ 3 ] ,
double arrow_dir [ 3 ] ,
tag_t pview_tag,
int num_sxsegs,
UF_DRAW_sxline_sxsegs_p_t stepped_sxsegs,
double view_placement_pt [ 2 ] ,
tag_t * sxview_tag

)

tag_t （tag_t类型）	dwg_tag	Input（输入）	Drawing tag
double (实数型)	sxview_scale	Input（输入）	Section view scale
double (实数型)	step_dir [ 3 ]	Input（输入）	Step direction vector (unitized) relative to the drawing: step_dir[0] = x value step_dir[1] = y value step_dir[2] = z value
double (实数型)	arrow_dir [ 3 ]	Input（输入）	Arrow direction vector (unitized) relative to the drawing. arrow_dir[0] = x value arrow_dir[1] = y value arrow_dir[2] = z value
tag_t （tag_t类型）	pview_tag	Input（输入）	Parent view tag
int (整数型)	num_sxsegs	Input（输入）	Number of section segments used to initially define the section line. A cut segment must be provided (num_sxsegs>0). This number determines the length of the stepped_sxsegs array.
UF_DRAW_sxline_sxsegs_p_t	stepped_sxsegs	Input（输入）	For each section segment defined, a segment type is given that determines whether the segment is a cut, bend or arrow. Bend and arrow segments are optional. Also, for each section seg ment defined, an object is given to de fine the section segment associativity. A section line cannot have more than 99 segments and cannot have more than 49 cut segments.
double (实数型)	view_placement_pt [ 2 ]	Input（输入）	View placement point on drawing in absolute drawing coordinates (x,y))
tag_t * (tag_t型的指针)	sxview_tag	Output（输出）	Tag of newly created section view

UF_DRAW_create_sxview_from_dmv (查看源代码)

定义在: uf_draw.h

概述

This routine allows the user to create a section line and a
section view from any view, excluding revolved section view
and unfolded section view. The display of the section line
is pictorial.

环境

Internal and External

历史

New for V16.0

需要许可证（S）

drafting

int UF_DRAW_create_sxview_from_dmv
(

tag_t drawing_tag,
tag_t parent_view_tag,
UF_DRAW_sxline_type_t section_type,
double section_view_scale,
double cut_dir [ 3 ] ,
double arrow_dir [ 3 ] ,
int num_sxsegs,
UF_DRAW_sxline_sxsegs_p_t segment_data,
double view_placement_pt [ 2 ] ,
logical expect_pictorial_sxview,
tag_t * section_view_tag

)

tag_t （tag_t类型）	drawing_tag	Input（输入）	Drawing tag.
tag_t （tag_t类型）	parent_view_tag	Input（输入）	Parent view tag.
UF_DRAW_sxline_type_t	section_type	Input（输入）	Type of the section.
double (实数型)	section_view_scale	Input（输入）	Section view scale.
double (实数型)	cut_dir [ 3 ]	Input（输入）	Cut direction vector (unitized) relative to the model space cut_dir[0] = x value cut_dir[1] = y value cut_dir[2] = z value
double (实数型)	arrow_dir [ 3 ]	Input（输入）	Arrow direction vector (unitized) relative to the model space arrow_dir[0] = x value arrow_dir[1] = y value arrow_dir[2] = z value
int (整数型)	num_sxsegs	Input（输入）	Number of section line segments
UF_DRAW_sxline_sxsegs_p_t	segment_data	Input（输入）	Data of these section segments
double (实数型)	view_placement_pt [ 2 ]	Input（输入）	Location of the section view relative to the drawing.
logical	expect_pictorial_sxview	Input（输入）	Whether or not we expect a pictorial sxview.
tag_t * (tag_t型的指针)	section_view_tag	Output（输出）	Tag of the newly created section view.

UF_DRAW_create_unfolded_sxview (查看源代码)

定义在: uf_draw.h

概述

Creates an unfolded section view.
NOTE: The system generates arrow segments if they are not input.

环境

内部和外部

参见

UF_DRAW_sxline_sxsegs_t
See the example

历史

Original release was in V14.0.

需要许可证（S）

drafting

int UF_DRAW_create_unfolded_sxview
(

tag_t dwg_tag,
double sxview_scale,
double step_dir [ 3 ] ,
double arrow_dir [ 3 ] ,
tag_t pview_tag,
int num_sxsegs,
UF_DRAW_sxline_sxsegs_p_t unfolded_sxsegs,
double view_placement_pt [ 2 ] ,
tag_t * sxview_tag

)

tag_t （tag_t类型）	dwg_tag	Input（输入）	Tag of drawing
double (实数型)	sxview_scale	Input（输入）	Scale of section view
double (实数型)	step_dir [ 3 ]	Input（输入）	Step direction vector (unitized) relative to the drawing: step_dir[0] = x value step_dir[1] = y value step_dir[2] = z value
double (实数型)	arrow_dir [ 3 ]	Input（输入）	Arrow direction vector (unitized) relative to the drawing. arrow_dir[0] = x value arrow_dir[1] = y value arrow_dir[2] = z value
tag_t （tag_t类型）	pview_tag	Input（输入）	Parent view tag
int (整数型)	num_sxsegs	Input（输入）	Number of section segments used to initially define the section line. A cut segment must be provided (num_sxsegs>0). This number determines the length of the stepped_sxsegs array.
UF_DRAW_sxline_sxsegs_p_t	unfolded_sxsegs	Input（输入）	For each section segment defined, a segment type is given that determines whether the segment is a cut, bend or arrow. Bend and arrow segments are op- tional. Also, for each section segment defined, an object is given to define the section segment associativity. A section line cannot have more than 99 segments and cannot have more than 49 cut segments.
double (实数型)	view_placement_pt [ 2 ]	Input（输入）	View placement point on drawing in absolute drawing coordinates (x,y))
tag_t * (tag_t型的指针)	sxview_tag	Output（输出）	Tag of newly created section view

UF_DRAW_create_view_label (查看源代码)

定义在: uf_draw.h

概述

This routine adds a view label to the specified view. If a view
already has a view label, the function edits the existing view label.

= 0 : successful
= UF_DRAW_tag_not_view
= UF_DRAW_invalid_parameter

环境

内部和外部

历史

Created in v17.0

需要许可证（S）

drafting

int UF_DRAW_create_view_label
(

tag_t view_tag,
UF_DRAW_view_label_parms_p_t view_label_parms,
tag_t * view_label_tag

)

tag_t （tag_t类型）	view_tag	Input（输入）	Drawing member view tag
UF_DRAW_view_label_parms_p_t	view_label_parms	Input（输入）	Structure that is filled with the view view label parameters
tag_t * (tag_t型的指针)	view_label_tag	Output（输出）	View label tag

UF_DRAW_define_bound_by_objects (查看源代码)

定义在: uf_draw.h

概述

Sets the view boundary type to Bound By Objects and defines an array of
objects that must be contained with the bounds of the view.

环境

内部和外部

参见

UF_DRAW_ask_bound_by_objects
See the example

历史

Original release was in V13.0

需要许可证（S）

drafting

int UF_DRAW_define_bound_by_objects
(

const tag_t view_tag,
const int num_objects,
tag_t* bounded_objects

)

const tag_t	view_tag	Input（输入）	Tag of the view whose location is to be defined.
const int	num_objects	Input（输入）	Number of tags in the bounded_objects array.
tag_t*	bounded_objects	Input（输入）	num_objects Array of tags of objects to be used to calculate the bounding box for the view boundary.

UF_DRAW_define_view_auto_rect (查看源代码)

定义在: uf_draw.h

概述

Defines the view boundary for the input view as an automatic view
boundary. The view cannot be a detail view. The view must be active
and on the current drawing. No view may be expanded prior to calling
this function.

环境

内部和外部

参见

See the example

需要许可证（S）

drafting

int UF_DRAW_define_view_auto_rect
(

tag_t view_tag

)

tag_t （tag_t类型）

view_tag

Input（输入）

Tag of view.

UF_DRAW_define_view_boundary (查看源代码)

定义在: uf_draw.h

概述

Creates a view boundary of a closed, connected, non-self-intersecting
loop of curves. Valid curve types are UF_line_type, UF_circle_type,
and UF_spline_type. All curves must be visible in the view. If the
curve type is UF_circle_type, the circle must be in the plane of the
view.

The Figure below shows an example of the the construction of an
arbitrary view bound defined by selecting several curves. In the figure, the
numbers associated with each curve are used to illustrate the curve selection
order.

Figure. Construction of an arbitrary view bound

环境

内部和外部

参见

UF_DRAW_ask_boundary_curves
See the example

需要许可证（S）

drafting

int UF_DRAW_define_view_boundary
(

tag_t view_tag,
int curve_count,
UF_DRAW_define_boundary_p_t* boundary_curves

)

tag_t （tag_t类型）	view_tag	Input（输入）	Tag of the view whose boundary is to be defined.
int (整数型)	curve_count	Input（输入）	Count of tags of curves in curve_list
UF_DRAW_define_boundary_p_t*	boundary_curves	Input（输入）	curve_count Pointer to array of structures that are used to define the view boundary.

UF_DRAW_define_view_manual_rect (查看源代码)

定义在: uf_draw.h

概述

Sets view borders for the given view on the current drawing. The view
must be active on the current drawing. No view may be expanded
before calling this function.

环境

内部和外部

参见

See the example

需要许可证（S）

drafting

int UF_DRAW_define_view_manual_rect
(

tag_t view_tag,
double view_borders [ 4 ]

)

tag_t （tag_t类型）	view_tag	Input（输入）	Tag of view.
double (实数型)	view_borders [ 4 ]	Input（输入）	View Borders (Drawing Coordinates), can be any two diagonal corners (X1,Y1,X2,Y2) of the view box.

UF_DRAW_delete_drawing (查看源代码)

定义在: uf_draw.h

概述

This routine deletes the drawing.

环境

Internal and External

参见

See the example program ufd_drw_delete_drawing.c

历史

New for V16.0

需要许可证（S）

drafting

int UF_DRAW_delete_drawing
(

const tag_t drawing_tag

)

const tag_t

drawing_tag

Input（输入）

Tag of drawing to delete.

UF_DRAW_delete_sxline_sxseg (查看源代码)

定义在: uf_draw.h

概述

Deletes a segment of a section line, then updates all of the section
line's associated section views located on the current drawing.
Associated section views not on the current drawing are marked out
of date. To perform this edit on the section line without an update, use
the suppress view update feature provided in UF_DRF_set_suppress_view_update.

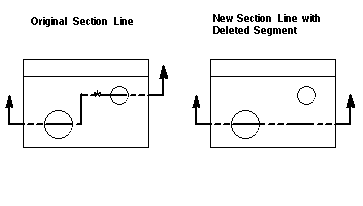

Figure. The deletion of a section line cut segment.

环境

内部和外部

参见

UF_DRF_set_suppress_view_update

需要许可证（S）

drafting

int UF_DRAW_delete_sxline_sxseg
(

tag_t sxseg_tag

)

tag_t （tag_t类型）

sxseg_tag

Input（输入）

Tag of section line segment to delete

UF_DRAW_delete_view_label (查看源代码)

定义在: uf_draw.h

概述

This routine deletes a view label from the specified view. The
routine silently ignores views that do not already include a view label.

= 0 : successful
= UF_DRAW_tag_not_view

环境

内部和外部

历史

Created in v17.0

需要许可证（S）

drafting

int UF_DRAW_delete_view_label
(

tag_t view_tag

)

tag_t （tag_t类型）

view_tag

Input（输入）

Drawing member view tag

UF_DRAW_detach_note_from_view (查看源代码)

定义在: uf_draw.h

概述

Disassociates an existing note from an existing drawing member view.
NOTE: A section view label cannot be disassociated from the section
view. A section line cannot be disassociated from its parent view.

环境

内部和外部

参见

UF_DRAW_ask_view_of_note
UF_DRAW_ask_view_notes
UF_DRAW_attach_note_to_view
See the example

历史

Original release was in V14.0.

需要许可证（S）

drafting

int UF_DRAW_detach_note_from_view
(

tag_t note_tag

)

tag_t （tag_t类型）

note_tag

Input（输入）

Note tag to be associated to the view

UF_DRAW_edit_boundary_point (查看源代码)

定义在: uf_draw.h

概述

Replaces a smart defining point for an associative view boundary
curve with a new smart defining point. This function may return errors
used in UF_DRAW_define_view_boundary, because when defining_pt is
replaced with new_pt, the break line/detail boundary is redefined,
based on the new point location.

环境

内部和外部

参见

UF_DRAW_set_boundary_assoc
See the figure
See the example

历史

Original release was in V14.0.

需要许可证（S）

drafting

int UF_DRAW_edit_boundary_point
(

tag_t defining_point,
tag_t new_point,
tag_t view_tag

)

tag_t （tag_t类型）	defining_point	Input（输入）	Tag of the defining point which is to be replaced
tag_t （tag_t类型）	new_point	Input（输入）	Tag of the new point which will replace the defining point.
tag_t （tag_t类型）	view_tag	Input（输入）	Tag of the view whose defining point is being replaced. The view must have a break line/detail type boundary, and the boundary must be associated to model geometry (via UF_DRAW_set_boundary_assoc).

UF_DRAW_edit_sxline_display (查看源代码)

定义在: uf_draw.h

概述

Edits the input section line's display preferences, including the the
section line's visibility and its arrow parameters, and updates the
display of the section line. The input preferences are also saved as the
new global section line display preferences.

环境

内部和外部

参见

UF_DRAW_arror_parms_t

需要许可证（S）

drafting

int UF_DRAW_edit_sxline_display
(

tag_t sxline_tag,
UF_DRAW_arrow_parms_p_t arrow_parms,
UF_DRAW_sxline_display_t sxline_display

)

tag_t （tag_t类型）	sxline_tag	Input（输入）	Tag of section line to edit
UF_DRAW_arrow_parms_p_t	arrow_parms	Input（输入）	Section line arrow parameters
UF_DRAW_sxline_display_t	sxline_display	Input（输入）	Section line display: UF_DRAW_display_sxline=display section line UF_DRAW_no_display_sxline=do not display section line

UF_DRAW_erase_sxview_objects (查看源代码)

定义在: uf_draw.h

概述

This routine displays the input faces and/or bodies, and erases all the
others in the section view.

0 = OK
if not 0 = Failing error code
Use UF_get_fail_message to obtain the message
string associated with the error code.

环境

Internal and External

历史

New for V18.0

需要许可证（S）

drafting

int UF_DRAW_erase_sxview_objects
(

const tag_t view,
const int num_objects,
const tag_p_t objects

)

const tag_t	view	Input（输入）	Tag of the view
const int	num_objects	Input（输入）	Number of objects
const tag_p_t	objects	Input（输入）	num_objects An array of objects

UF_DRAW_free_boundary (查看源代码)

定义在: uf_draw.h

概述

Frees the memory in the boundary_curves structure.

环境

内部和外部

参见

UF_DRAW_ask_bound_by_objects
See the example

历史

Original release was in V14.0.

需要许可证（S）

drafting

int UF_DRAW_free_boundary
(

int curve_count,
UF_DRAW_view_boundary_p_t boundary_curves

)

int (整数型)	curve_count	Input（输入）	Count of curves in curve list
UF_DRAW_view_boundary_p_t	boundary_curves	Input（输入）	Pointer to curve list, i.e. array of structures containing the boundary curves and their defining points.

UF_DRAW_get_view_model_view_part (查看源代码)

定义在: uf_draw.h

概述

This function gets the part name of the model view
that is imported into the drawing member view

环境

Internal and External

历史

Original release in NX5.0.3

需要许可证（S）

drafting

int UF_DRAW_get_view_model_view_part
(

tag_t view,
char model_view_partname [ MAX_FSPEC_SIZE+1 ]

)

tag_t （tag_t类型）	view	Input（输入）	drawing member view
char	model_view_partname [ MAX_FSPEC_SIZE+1 ]	Output（输出）	(filespec with path) part name of view

UF_DRAW_import_view (查看源代码)

定义在: uf_draw.h

概述

This function imports a view onto the current drawing. Use the view
info structure to set the view status, anchor point, view scale, use
reference point, clean model view, transfer annotation, and inherit
boundary parameters.
NOTE: There is currently a restriction requiring the input drawing tag
to be the tag of the current drawing. We intend to relax this restriction
in the future. As a result, we are requiring the input tag to ensure that
future code changes will not be required by NX or by
NX Open API developers.

环境

内部和外部

参见

See the example

历史

Original release in V13.0.

需要许可证（S）

drafting

int UF_DRAW_import_view
(

const tag_t drawing_tag,
const tag_t view_tag,
double dwg_reference_point [ 2 ] ,
UF_DRAW_view_info_t * view_info,
tag_t * draw_view_tag

)

const tag_t	drawing_tag	Input（输入）	Drawing Tag, must be the current drawing.
const tag_t	view_tag	Input（输入）	Tag of model view to import.
double (实数型)	dwg_reference_point [ 2 ]	Input（输入）	Drawing Reference Point (in drawing coordinates, x,y).
UF_DRAW_view_info_t *	view_info	Input（输入）	View Info (see uf_draw_types.h).
tag_t * (tag_t型的指针)	draw_view_tag	Output（输出）	View Tag of imported view on drawing

UF_DRAW_initialize_view_info (查看源代码)

定义在: uf_draw.h

概述

This function initializes the view info structure that
is used as an input to UF_DRAW_import_view.

环境

内部和外部

历史

Original release in V16.0.

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

void UF_DRAW_initialize_view_info
(

UF_DRAW_view_info_t * view_info

)

UF_DRAW_view_info_t *

view_info

Output（输出）

info structure to be initialized

UF_DRAW_is_drafting_component (查看源代码)

定义在: uf_draw.h

概述

This function determines if the component is a Drafting component,
that is, if the component is a result of Add View from Part

环境

Internal and External

历史

Original release in NX5.0.3

需要许可证（S）

drafting

int UF_DRAW_is_drafting_component
(

tag_t component,
logical * is_drafting_component

)

tag_t （tag_t类型）	component	Input（输入）	component being tested
logical *	is_drafting_component	Output（输出）	true - component is a Drafting component

UF_DRAW_is_object_out_of_date (查看源代码)

定义在: uf_draw.h

概述

Queries the up-to-date status of an object. Currently, only two types
of objects are valid: views and drawings.

环境

内部和外部

参见

UF_DRAW_ask_suppress_view_updat
UF_DRAW_set_suppress_view_updat
UF_DRAW_update_one_view
See the example

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_is_object_out_of_date
(

tag_t object,
logical * out_of_date

)

tag_t （tag_t类型）	object	Input（输入）	tag of view or drawing
logical *	out_of_date	Output（输出）	object out-of-date status

UF_DRAW_is_sxview (查看源代码)

定义在: uf_draw.h

概述

Given the tag of a view, outputs whether the view is a section view.

环境

内部和外部

参见

See the example

历史

Original release was in V14.0.

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_is_sxview
(

tag_t view_tag,
logical * is_a_sxview

)

tag_t （tag_t类型）	view_tag	Input（输入）	Tag of view
logical *	is_a_sxview	Output（输出）	If TRUE, the view is a section view, else it is not.

UF_DRAW_is_thread_curve (查看源代码)

定义在: uf_draw.h

概述

Determines whether the specified curve is a thread curve. This can
be used in conjunction with UF_DRAW_ask_group_of_curve to determine
if a thread curve is a thread silhouette or thread section edge.

环境

内部和外部

需要许可证（S）

gateway （UG入口基本模块，Gateway是所有其它Uuigraphics模块的一个必要条件）

int UF_DRAW_is_thread_curve
(

tag_t curve_tag,
logical * is_thread_curve

)

tag_t （tag_t类型）	curve_tag	Input（输入）	Tag of curve
logical *	is_thread_curve	Output（输出）	TRUE = curve is a thread curve (thread silhouette or section edge) FALSE = curve is not a thread curve

UF_DRAW_move_sxline_rotpt (查看源代码)

定义在: uf_draw.h

概述

Moves a section line rotation point to a location defined by the input
new object, then updates all of the section line's associated section
views located on the current drawing. Associated section views not on
the current drawing are marked out of date. To perform edits on the
section line without an update, use the suppress view update feature
provided in UF_DRF_set_suppress_view_update.

环境

内部和外部

参见

UF_DRAW_create_revolved_sxview
UF_DRF_set_suppress_view_update
for more information on revolved section lines and section views.
See the example

需要许可证（S）

drafting

int UF_DRAW_move_sxline_rotpt
(

tag_t sxline_tag,
UF_DRF_object_p_t new_object

)

tag_t （tag_t类型）	sxline_tag	Input（输入）	Tag of revolved section line
UF_DRF_object_p_t	new_object	Input（输入）	New object to associate rotation point

UF_DRAW_move_sxline_sxseg (查看源代码)

定义在: uf_draw.h

概述

Moves a section line segment to a location defined by the input
new_object, then updates all of the section line's associated section
views located on the current drawing. Associated section views not on
the current drawing are marked out of date. To perform edits on the
section line without an update, use the suppress view update feature
provided in UF_DRF_set_suppress_view_update.

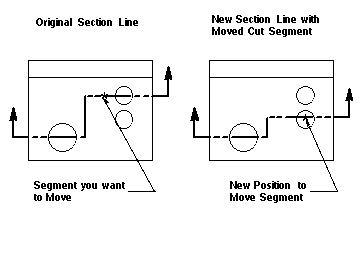

Figure. Moving section line segments

环境

内部和外部

参见

UF_DRF_set_suppress_view_update
See the example

需要许可证（S）

drafting

int UF_DRAW_move_sxline_sxseg
(

tag_t sxseg_tag,
UF_DRF_object_p_t new_object

)

tag_t （tag_t类型）	sxseg_tag	Input（输入）	Tag of section line segment to move.
UF_DRF_object_p_t	new_object	Input（输入）	New object to associate segment.

UF_DRAW_move_sxseg (查看源代码)

定义在: uf_draw.h

概述

Moves a section line segment to a location defined by the input new
object of sxseg_data, then updates all of the section line's associated
section views located on the current drawing. Associated section views
not on the current drawing are marked out of date. To perform this
edit on the section line without an update, use the suppress view
update feature provided in UF_DRF_set_suppress_view_update.

环境

内部和外部

参见

UF_DRF_set_suppress_view_update
UF_DRAW_sxline_sxsegs_t
See the example

历史

Original release was in V14.0.

需要许可证（S）

drafting

int UF_DRAW_move_sxseg
(

tag_t sxseg_tag,
UF_DRAW_sxline_sxsegs_p_t sxseg_data

)

tag_t （tag_t类型）	sxseg_tag	Input（输入）	Tag of section line segment to move.
UF_DRAW_sxline_sxsegs_p_t	sxseg_data	Input（输入）	Segment data contains: segment type: UF_DRAW_sxseg_cut, linear segment angle, and object to associate to. The sxseg_object is used to move all segments. The sxseg_angle is used to move an unfolded sxseg.

UF_DRAW_move_view (查看源代码)

定义在: uf_draw.h

概述

This routine moves a specified view to the given position on the
current drawing.

环境

内部和外部

参见

UF_DRAW_copy_view
UF_DRAW_move_view_to_drawing
See the example

历史

Original release was in V13.0.

需要许可证（S）

drafting

int UF_DRAW_move_view
(

const tag_t view_tag,
const double drawing_reference_point [ 2 ]

)

const tag_t	view_tag	Input（输入）	Drawing member view to move. It must be on the current drawing.
const double	drawing_reference_point [ 2 ]	Input（输入）	Desired drawing reference point, in drawing coordinates.

UF_DRAW_move_view_to_drawing (查看源代码)

定义在: uf_draw.h

概述

This routine moves a drawing member view to the specified drawing.
Annotation spanning the view and other views on the drawing are
deleted. If the view does not fit on a smaller destination drawing, an
error is returned.

环境

内部和外部

参见

UF_DRAW_copy_view
UF_DRAW_move_view
See the example

历史

Original release was in V13.0.

需要许可证（S）

drafting

int UF_DRAW_move_view_to_drawing
(

tag_t view_tag,
const tag_t drawing_tag

)

tag_t （tag_t类型）	view_tag	Input（输入）	Tag of drawing member view to move. It must be on the current drawing.
const tag_t	drawing_tag	Input（输入）	Destination drawing tag. It must not be the current drawing.

UF_DRAW_open_drawing (查看源代码)

定义在: uf_draw.h

概述

This routine opens a drawing.

环境

Internal and External

参见

See the example program ufd_drw_create_drawing.c

历史

New for V16.0

需要许可证（S）

drafting

int UF_DRAW_open_drawing
(

const tag_t drawing_tag

)

const tag_t

drawing_tag

Input（输入）

Tag of drawing to open.

UF_DRAW_redefine_sxline_hinge (查看源代码)

定义在: uf_draw.h

概述

Redefines the section line's hinge line given the tag of a section line
and a drafting line object. The section view and any details of the
section view are reoriented about their center to reflect the newly
defined hinge line.

To perform this edit on the section line without an update, use the
suppress view updated feature provided in UF_DRF_set_suppress_view_update.

NOTE: The hinge_line.line_assoc_type must be either
UF_DRF_dwg_line, UF_DRF_existing_line or UF_DRF_two_points.
If hinge_line.line_assoc_type is UF_DRF_dwg_line, the hinge line has
no associativity and is defined by a direction vector defined from
hinge_line.object1.assoc_dwg_pos to hinge_line.point_object2.assoc_dwg_pos.

Return code:
0 = No error
UF_DRAW_hinge_not_linear = warning
not 0 = Error code

环境

内部和外部

参见

UF_DRF_set_suppress_view_update
See the example

需要许可证（S）

drafting

int UF_DRAW_redefine_sxline_hinge
(

tag_t sxline_tag,
UF_DRF_line_object_p_t hinge_line,
logical arrow_same_dir

)

tag_t （tag_t类型）	sxline_tag	Input（输入）	section line tag
UF_DRF_line_object_p_t	hinge_line	Input（输入）	object to associate hinge line to
logical	arrow_same_dir	Input（输入）	If true, the new arrow direction will point away from the new hinge line in the same relative direction as the old arrow pointed away from the old hinge line. Else, the direction is flipped.

UF_DRAW_remove_break_region (查看源代码)

定义在: uf_draw.h

概述

This routine removes a break region from a given view.

环境

Internal and External

历史

New for V17.0

需要许可证（S）

drafting

int UF_DRAW_remove_break_region
(

tag_t break_region,
logical delete_curves

)

tag_t （tag_t类型）	break_region	Input（输入）	Tag of the break region to be removed
logical	delete_curves	Input（输入）	Whether or not to delete the visible break region boundary curves.

UF_DRAW_remove_breakout (查看源代码)

定义在: uf_draw.h

概述

This routine removes a breakout section from a given view.

环境

Internal and External

历史

New for V16.0

需要许可证（S）

drafting

int UF_DRAW_remove_breakout
(

tag_t breakline,
logical delete_curves

)

tag_t （tag_t类型）	breakline	Input（输入）	Tag of a curve in the breakout.
logical	delete_curves	Input（输入）	Whether or not to delete the breakout curves.

UF_DRAW_remove_dmv_rotation_plane (查看源代码)

定义在: uf_draw.h

概述

This routine removes the associativity between the plane tag and the view,
and restores the view orientation.

0 = OK
if not 0 = Failing error code
Use UF_get_fail_message to obtain the message
string associated with the error code.

环境

Internal and External

历史

New for V18.0

需要许可证（S）

drafting

int UF_DRAW_remove_dmv_rotation_plane
(

const tag_t view

)

const tag_t

view

Input（输入）

Tag of the view

UF_DRAW_rename_drawing (查看源代码)

定义在: uf_draw.h

概述

This routine renames a drawing.

环境

Internal and External

参见

See the example program ufd_drw_rename_drawing.c

历史

New for V16.0

需要许可证（S）

drafting

int UF_DRAW_rename_drawing
(

const tag_t drawing_tag,
const char * new_drawing_name

)

const tag_t	drawing_tag	Input（输入）	Tag of the drawing. If NULL_TAG, use current drawing
const char *	new_drawing_name	Input（输入）	New name for the drawing.

UF_DRAW_retrieve_drawing_cgm (查看源代码)

定义在: uf_draw.h

概述

UF_DRAW_retrieve_drawing_cgm

DESCRIPTION -
Function will retrieve drawing cgm data stored in NX QAF.
The drawing cgm data will be stored in TMP_DIR, the file name will be
TMP_DIR/file_name-sheet_name.cgm

Returns -
0 = OK
if not 0 = error code

需要许可证（S）

drafting

int UF_DRAW_retrieve_drawing_cgm
(

char * file_name,
char * * * out_file_names,
int * num_sheets

)

char * (字符型指针)	file_name	Input（输入）	file name used to query cgm data
char * * *	out_file_names	Output to be freed 输出并释放	an array of output name files
int * (整数型指针)	num_sheets	Output（输出）	number of output file names

UF_DRAW_set_auto_update (查看源代码)

定义在: uf_draw.h

概述

This function sets the current value of the Automatic Update
preference.

环境

内部和外部

参见

UF_DRAW_ask_auto_update
See the example

需要许可证（S）

drafting

int UF_DRAW_set_auto_update
(

tag_t view_tag,
logical * auto_update

)

tag_t （tag_t类型）	view_tag	Input（输入）	Tag of view object
logical *	auto_update	Output（输出）	TRUE = Automatically update the view FALSE = Do not automatically update the view

UF_DRAW_set_border_color (查看源代码)

定义在: uf_draw.h

概述

UF_DRAW_set_border_color

DESCRIPTION -
Set the color of view borders

PARAMETERS -
border_color <I> Color of view borders
Returns -
0 = OK
if not 0 = error code

需要许可证（S）

drafting

int UF_DRAW_set_border_color
(

int border_color

)

int (整数型)

border_color

Input（输入）

UF_DRAW_set_border_display (查看源代码)

定义在: uf_draw.h

概述

UF_DRAW_set_border_display

DESCRIPTION -
Set the view border display status

PARAMETERS -
border_display <I> True, if borders are to be displayed
Returns -
0 = OK
if not 0 = error code

需要许可证（S）

drafting

int UF_DRAW_set_border_display
(

logical border_display

)

logical

border_display

Input（输入）

UF_DRAW_set_boundary_assoc (查看源代码)

定义在: uf_draw.h

概述

This routine makes the boundary associative with the model by
making each defining point in the boundary a smart point which is at a
fixed offset from the anchor point. The view's anchor point must be
defined, and it must be a smart point which is associated with the
model. This function uses the structure boundary_curves to return the
tags of each boundary curve's smart defining points. For this function
to successfully complete, none of the curves in the boundary can
already be associative with the model. If the boundary contains a
spline, that spline must be defined via defining points and cannot have
tangency or curvature constraints.

环境

内部和外部

参见

UF_DRAW_define_view_boundary
UF_DRAW_edit_boundary_point

Return code:
UF_DRAW_NO_ERRORS - The view boundary was successfully
made to be associative.
UF_DRAW_tag_is_null - The view tag or the model_reference_pt
tag is null.
UF_DRAW_invalid_parameter - A parameter is invalid, such as
curve_count is less than or equal
to zero.
UF_DRAW_anchor_point_is_not_smart_point - The anchor point is
not a smart point
associated with the
model.
UF_DRAW_sketch_object - At least one of the curves in the
boundary belongs to a sketch.
UF_DRAW_curve_is_associative - At least one of the curves in the
boundary is already associative
and has smart defining points.
UF_DRAW_invalid_spline - There is a spline in the boundary which
violates the following rule. The spline
must be defined via defining points and
cannot have tangency or curvature
constraints.

参见

See the example

历史

Original release was in V14.0.

需要许可证（S）

drafting

int UF_DRAW_set_boundary_assoc
(

tag_t view,
int * curve_count,
UF_DRAW_view_boundary_p_t * boundary_curves

)

tag_t （tag_t类型）	view	Input（输入）	Tag of the view whose boundary is to be made associative. The view must have a break line/detail boundary type. The view must have an anchor point defined.
int * (整数型指针)	curve_count	Output（输出）	Pointer to count of curves in curve list
UF_DRAW_view_boundary_p_t *	boundary_curves	Output to be freed 输出并释放	Pointer to curve list, i.e. array of structures containing the boundary curves and the points used to define them. Use UF_DRAW_free_boundary to free the pointer.

UF_DRAW_set_break_region_data (查看源代码)

定义在: uf_draw.h

概述

This routine modifies the break region data of an existing break region.

环境

Internal and External

历史

New for V17.0

需要许可证（S）

drafting

int UF_DRAW_set_break_region_data
(

tag_t break_region,
UF_DRAW_break_region_data_p_t break_region_data

)

tag_t （tag_t类型）	break_region	Input（输入）	Tag of the break region.
UF_DRAW_break_region_data_p_t	break_region_data	Input（输入）	Break region data.

UF_DRAW_set_breakout_data (查看源代码)

定义在: uf_draw.h

概述

This routine modifies the breakout data of an existing breakout
section by deleting the existing breakout section and creating
a new one.

环境

Internal and External

历史

New for V16.0

需要许可证（S）

drafting

int UF_DRAW_set_breakout_data
(

tag_t breakline,
UF_DRAW_breakout_data_p_t breakout_data,
tag_p_t new_breakline

)

tag_t （tag_t类型）	breakline	Input（输入）	Tag of the existing breakout section.
UF_DRAW_breakout_data_p_t	breakout_data	Input（输入）	Breakout section data.
tag_p_t	new_breakline	Output（输出）	Tag of the new (modified) breakout section.

UF_DRAW_set_comp_section_in_view (查看源代码)

定义在: uf_draw.h

概述

This routine sets the component of a given section view to be sectioned
or non-sectioned.

环境

Internal and External

历史

New for V16.0

需要许可证（S）

drafting

int UF_DRAW_set_comp_section_in_view
(

const tag_t component,
const tag_t sx_view,
const UF_DRAW_comp_section_in_view_t sx_property

)

const tag_t	component	Input（输入）	Tag of the component in the section view.
const tag_t	sx_view	Input（输入）	Tag of the section view.
const UF_DRAW_comp_section_in_view_t	sx_property	Input（输入）	Sectioning property UF_DRAW_NON_SECTIONED UF_DRAW_SECTIONED UF_DRAW_NOT_VIEW_SPECIFIED

UF_DRAW_set_display_state (查看源代码)

定义在: uf_draw.h

概述

This routine sets the drawing display state.

环境

Internal and External

参见

See the example program ufd_draw_aux_view.c

历史

New for V16.0

需要许可证（S）

drafting

int UF_DRAW_set_display_state
(

const int view_type

)

const int

view_type

Input（输入）

Setting Flag
1 = Modeling View
2 = Drawing View

UF_DRAW_set_dmv_rotation_plane (查看源代码)

定义在: uf_draw.h

概述

This routine sets the plane to the drawing member view. The view will be
rotated to the plane after view update.

0 = OK
if not 0 = Failing error code
Use UF_get_fail_message to obtain the message
string associated with the error code.

环境

Internal and External

历史

New for V18.0

需要许可证（S）

drafting

int UF_DRAW_set_dmv_rotation_plane
(

const tag_t view,
const tag_t plane,
const tag_t x_vector

)

const tag_t	view	Input（输入）	Tag of the view
const tag_t	plane	Input（输入）	Tag of the plane
const tag_t	x_vector	Input（输入）	Tag of the x direction

UF_DRAW_set_drawing_info (查看源代码)

定义在: uf_draw.h

概述

Sets the information about the current drawing, including the size,
scale, units, and projection angle. The projection angle cannot be
changed if a drawing has one or more auxiliary or orthogonal views.
NOTE: There is currently a restriction requiring the input drawing tag
to be the tag of the current drawing. We intend to relax this restriction
in the future. As a result, we are requiring the input tag to ensure that
future code changes will not be required by NX or by
NX Open API developers.

环境

内部和外部

参见

UF_DRAW_ask_drawing_info

历史

Original release was in V13.0.

需要许可证（S）

drafting

int UF_DRAW_set_drawing_info
(

const tag_t drawing_tag,
UF_DRAW_info_p_t drawing_info

)

const tag_t	drawing_tag	Input（输入）	Drawing Tag, must be the current drawing.
UF_DRAW_info_p_t	drawing_info	Input（输入）	Pointer to Drawing Info Structure

UF_DRAW_set_drawing_ref_pt (查看源代码)

定义在: uf_draw.h

概述

This routine sets the drawing reference point for a view on the drawing.
This is the point which controls where the view is on the drawing sheet.

环境

Internal and External

参见

See the example program ufd_drw_set_drawing_ref_pt.c

历史

New for V16.0

需要许可证（S）

drafting

int UF_DRAW_set_drawing_ref_pt
(

const tag_t drawing_tag,
const tag_t view_tag,
const double * reference_pt

)

const tag_t	drawing_tag	Input（输入）	Tag of the drawing. If NULL_TAG, use current drawing.
const tag_t	view_tag	Input（输入）	Tag of the view. If NULL_TAG, use work view.
const double *	reference_pt	Input（输入）	Reference point (Drawing Coordinates). [0] - X-coordinate [1] - Y-coordinate

UF_DRAW_set_render_set_objects (查看源代码)

定义在: uf_draw.h

概述

This routine defines the objects (solids or component sets) the given
render set will reference. The objects will replace the objects the render set
referenced prior to calling this function.

环境

内部和外部

参见

See the example program ufd_draw_render_set.c

历史

Created in v16.0

需要许可证（S）

drafting

int UF_DRAW_set_render_set_objects
(

tag_t render_set,
int number_objects,
tag_t * objects

)

tag_t （tag_t类型）	render_set	Input（输入）	Tag of render set.
int (整数型)	number_objects	Input（输入）	Number of objects to be included in the render set. Set to zero if you want the render set to contain no objects.
tag_t * (tag_t型的指针)	objects	Input（输入）	number_objects Array of solids or component sets to be referenced by the render set. These objects will replace the objects the render set referenced prior to calling this function. Set to NULL if you want the render set to contain no objects.

UF_DRAW_set_render_set_parms (查看源代码)

定义在: uf_draw.h

概述

This routine sets the display parameters for a given render set.

环境

内部和外部

参见

See the example program ufd_draw_render_set.c

历史

Created in v16.0

需要许可证（S）

drafting

int UF_DRAW_set_render_set_parms
(

tag_t render_set,
UF_DRAW_render_prefs_t * render_parms

)

tag_t （tag_t类型）	render_set	Input（输入）	Tag of render set.
UF_DRAW_render_prefs_t *	render_parms	Input（输入）	Pointer to render set preferences structure, with desired settings for visible and hidden line color, font, and widths, edge hiding edge and hidden line options.

UF_DRAW_set_render_sets_for_view (查看源代码)

定义在: uf_draw.h

概述

This routine defines the render sets to be rendered in the given
drawing member view. List the render sets in the desired rendering
order.

环境

内部和外部

参见

See the example program ufd_draw_render_set.c

历史

Created in v16.0

需要许可证（S）

drafting

int UF_DRAW_set_render_sets_for_view
(

tag_t view,
int number_render_sets,
tag_t * render_sets

)

tag_t （tag_t类型）	view	Input（输入）	Tag of drawing member view.
int (整数型)	number_render_sets	Input（输入）	Number of render sets
tag_t * (tag_t型的指针)	render_sets	Input（输入）	Array of render sets to be rendered in the given view. List them in the desired rendering order.

UF_DRAW_set_suppress_view_updat (查看源代码)

定义在: uf_draw.h

概述

Changes the value of the Suppress View Update preference. This
preference is saved to the root part.
If no parts are loaded, an error will occur.
If the preference is TRUE, then functions which perform implicit
drawing update, will not update the drawing member views.
Please note that manual views do not update automatically.
For a view to automatically update, set UF_DRAW_set_auto_update to TRUE,
and set suppress_view_update to FALSE.

Note: Starting in nx2, this preference was saved with the part.
Some parts may have been inadvertently saved with suppress view updated
turned off. To allow users to override the suppress view update setting,
an environment variable "UGII_SUPPRESS_VIEW_UPDATE" can be set with
values "0" or "1". If set to 1, this will prevent an automatic
update of the out-of-date views.

环境

内部和外部

参见

UF_DRF_ask_suppress_view_update
UF_DRF_update_views
UF_DRF_is_object_out_of_date
See the example

需要许可证（S）

drafting

int UF_DRAW_set_suppress_view_updat
(

logical suppress_view_update

)

logical

suppress_view_update

Input（输入）

Suppress View Update preference setting:
TRUE = suppress all system initiated view updates.
FALSE = allow all system initiated view updates.

UF_DRAW_set_sxline_default_prfs (查看源代码)

定义在: uf_draw.h

概述

Sets the section line default display preferences, including visibility
and arrow parameters.

环境

内部和外部

参见

UF_DRAW_arror_parms_t
See the example

需要许可证（S）

drafting

int UF_DRAW_set_sxline_default_prfs
(

UF_DRAW_arrow_parms_p_t arrow_parms,
UF_DRAW_sxline_display_t sxline_display

)

UF_DRAW_arrow_parms_p_t	arrow_parms	Input（输入）	Section line arrow parameters
UF_DRAW_sxline_display_t	sxline_display	Input（输入）	Section line display: UF_DRAW_display_sxline = display section line. UF_DRAW_no_display_sxline = do not display section line.

UF_DRAW_set_sxview_display (查看源代码)

定义在: uf_draw.h

概述

Sets the value of a specified section view display preference.

环境

内部和外部

参见

UF_DRAW_ask_sxview_display
See the example

需要许可证（S）

drafting

int UF_DRAW_set_sxview_display
(

tag_t view_tag,
UF_DRAW_sxview_prfs_t * sxview_parms

)

tag_t （tag_t类型）	view_tag	Input（输入）	Tag of section view object
UF_DRAW_sxview_prfs_t *	sxview_parms	Input（输入）	Data structure contains the section view preference parameters.

UF_DRAW_set_view_anchor (查看源代码)

定义在: uf_draw.h

概述

Defines an associative view reference point that is to coincide with the
view anchor point. The anchor point must be on the model, or in the
view (not on the drawing sheet). An anchor point cannot be a point on
a drawing member view's boundary curves. The anchor point must be
a smart point. If you wish to use a "dumb point" to set the view
reference point, use uc6484.

Please reference ufd_drw_set_view_anchor.c to review an example of
using this function.

环境

内部和外部

参见

UF_DRAW_ask_view_anchor
See the example

历史

Original release was in V13.0.

需要许可证（S）

drafting

int UF_DRAW_set_view_anchor
(

const tag_t view_tag,
const tag_t anchor_point

)

const tag_t	view_tag	Input（输入）	Tag of the view whose location is to be defined.
const tag_t	anchor_point	Input（输入）	Tag of a smart point which defines the location of the model that will coincide with the drawing reference point The point must be a smart point (see uf_so.h).

UF_DRAW_set_view_angle (查看源代码)

定义在: uf_draw.h

概述

Sets the view angle to a specific value.

环境

Internal & External

参见

See UF_DRAW_ask_view_angle
See example

历史

This function was originally released in V15.0.

需要许可证（S）

drafting

int UF_DRAW_set_view_angle
(

tag_t view_tag,
double angle

)

tag_t （tag_t类型）	view_tag	Input（输入）	The view tag
double (实数型)	angle	Input（输入）	The new angle in degrees.

UF_DRAW_set_view_display (查看源代码)

定义在: uf_draw.h

概述

Sets the value of a specified view display preference for a specific
drawing member view.

Note: Call UF_DRAW_update_one_view() to force this view to
update after calling UF_DRAW_set_view_display()

环境

内部和外部

参见

UF_DRAW_ask_view_display
See the example

需要许可证（S）

drafting

int UF_DRAW_set_view_display
(

tag_t view_tag,
UF_DRAW_view_prfs_t* view_parms

)

tag_t （tag_t类型）	view_tag	Input（输入）	Tag of drawing member view
UF_DRAW_view_prfs_t*	view_parms	Input（输入）	Data structure contains the hidden line removal, edge hiding edge, silhouette, uv hatch, smooth edge display, smooth edge color, font, width and gap, virtual intersection color, font, width, gap, and status, tolerance, and hidden line color, font, and width parameters.

UF_DRAW_set_view_label_parms (查看源代码)

定义在: uf_draw.h

概述

This routine sets the parameters of a view label and updates the view
label.

0 = successful
= UF_DRAW_invalid_parameter

环境

内部和外部

历史

Created in v17.0

需要许可证（S）

drafting

int UF_DRAW_set_view_label_parms
(

tag_t view_label_tag,
UF_DRAW_view_label_parms_p_t view_label_parms

)

tag_t （tag_t类型）	view_label_tag	Input（输入）	View label tag OR NULL_TAG to set global preferences
UF_DRAW_view_label_parms_p_t	view_label_parms	Input（输入）	Structure that is filled with the view view label parameters

UF_DRAW_set_view_parm_scale (查看源代码)

定义在: uf_draw.h

概述

Associates the expression to the view scale of drawing member views
or model views. The expression does not have to be in the same part
file as the view. An Expression from a different part file can be
associated to the view scale as long as the part containing the
expression is loaded.

Return code:
0 = No error
UF_DRAW_hinge_not_linear = warning
not 0 = Error code

环境

内部和外部

参见

See the example

需要许可证（S）

drafting

int UF_DRAW_set_view_parm_scale
(

tag_t view,
tag_t exp_tag

)

tag_t （tag_t类型）	view	Input（输入）	The scale of this view is made associative to the expression.
tag_t （tag_t类型）	exp_tag	Input（输入）	The expression which is to be associated to the view scale.

UF_DRAW_set_view_scale (查看源代码)

定义在: uf_draw.h

概述

Sets the view scale to a specific value.

环境

Internal and External

参见

UF_DRAW_ask_view_scale
See the example

历史

This function was originally released in V15.0.

需要许可证（S）

drafting

int UF_DRAW_set_view_scale
(

tag_t view_tag,
double scale

)

tag_t （tag_t类型）	view_tag	Input（输入）	The view tag
double (实数型)	scale	Input（输入）	The new scale (must be > 0.0)

UF_DRAW_set_view_status (查看源代码)

定义在: uf_draw.h

概述

This routine sets the view status in the drawing.

环境

Internal and External

参见

See the example program ufd_drw_set_view_status.c

历史

New for V16.0

需要许可证（S）

drafting

int UF_DRAW_set_view_status
(

const tag_t view_tag,
const UF_DRAW_view_status_t view_status

)

const tag_t	view_tag	Input（输入）	Tag of the view. If NULL_TAG, use work view.
const UF_DRAW_view_status_t	view_status	Input（输入）	View Status. UF_DRAW_ACTIVE_VIEW UF_DRAW_REFERENCE_VIEW

UF_DRAW_set_view_thd_app_pitch (查看源代码)

定义在: uf_draw.h

概述

Sets the minimum apparent pitch for all the threads in a drawing
member view. When set, any previously existing threads with an actual
pitch less than the minimum value are rendered using this value
instead.

环境

内部和外部

参见

UF_DRAW_ask_view_thd_app_pitch
UF_DRAW_ask_view_thd_meth
UF_DRAW_set_view_thd_meth

需要许可证（S）

drafting

int UF_DRAW_set_view_thd_app_pitch
(

tag_t view,
double app_picth

)

tag_t （tag_t类型）	view	Input（输入）	tag of drawing member view
double (实数型)	app_picth	Input（输入）	This is a double value representing the new minimum apparent pitch for the view. This means that although a thread may have a smaller pitch, the smallest pitch which will be drawn is specified by app _pitch for visual clarity. For example, if a thread had a pitch of 0.001 inches but the minimum apparent pitch was 0.1, the thread would be drawn showing a pitch of 0.1, although the actual modelling data remains unchanged with a true pitch of 0.001 inches. the minimum apparent pitch for the view

UF_DRAW_set_view_thd_meth (查看源代码)

定义在: uf_draw.h

概述

Accepts a view tag and a thread rendering method as input
parameters. Each rendering method corresponds with an ANSI or
ISO thread standard. Valid rendering methods are:
UF_DRAW_THD_METH_NONE
UF_DRAW_THD_METH_ANSI_SIMPLIFIED
UF_DRAW_THD_METH_ANSI_SCHEMATIC
UF_DRAW_THD_METH_ANSI_DETAILED
UF_DRAW_THD_METH_ISO_SIMPLIFIED
UF_DRAW_THD_METH_ISO_DETAILED
Changing the method affects the display of all symbolic thread
features rendered in the specified view.

环境

内部和外部

参见

UF_DRAW_ask_view_thd_app_pitch
UF_DRAW_ask_view_thd_meth
UF_DRAW_set_view_thd_app_pitch

需要许可证（S）

drafting

int UF_DRAW_set_view_thd_meth
(

tag_t view,
int method

)

tag_t （tag_t类型）	view	Input（输入）	tag of the drawing member view
int (整数型)	method	Input（输入）	the thread rendering method you wish to use for this view.

UF_DRAW_upd_out_of_date_views (查看源代码)

定义在: uf_draw.h

概述

This function updates those views that are out of date.

环境

Internal and External

历史

Originally released in V16.0

需要许可证（S）

drafting

int UF_DRAW_upd_out_of_date_views
(

tag_t drawing_tag

)

tag_t （tag_t类型）

drawing_tag

Input（输入）

If drawing_tag is the tag of a drawing,
it updates all the out of date views on
the drawing. If drawing_tag is a NULL_TAG,
it updates all the views in the part.

UF_DRAW_update_one_view (查看源代码)

定义在: uf_draw.h

概述

Updates one drawing member view on a drawing. The view update
process includes updating the view bounds, resectioning section views,
updating silhouettes, and updating hidden line display when
applicable.
NOTE: When running this function interactively you must be
operating in an application that creates, retrieves, or requires the
presence of a drawing (Gateway, Drafting, Valisys, and Genconnect).

环境

内部和外部

参见

UF_DRAW_ask_suppress_view_updat
UF_DRAW_set_suppress_view_updat
UF_DRAW_is_object_out_of_date
See the example

需要许可证（S）

drafting

int UF_DRAW_update_one_view
(

tag_t drawing_tag,
tag_t view_tag

)

tag_t （tag_t类型）	drawing_tag	Input（输入）	Tag of drawing
tag_t （tag_t类型）	view_tag	Input（输入）	Tag of view to update
