This class is used to create or edit the information shared among all Structure Weld builders. More...

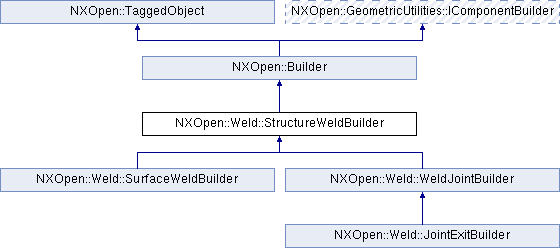

Inheritance diagram for NXOpen::Weld::StructureWeldBuilder:

Public Member Functions
std::vector < NXOpen::Assemblies::Component * >	GetCommittedComponents ()
	This method returns the component parts that are created by Builder::Commit .

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This class is used to create or edit the information shared among all Structure Weld builders.

This is an abstract class, and cannot be instantiated.

Created in NX9.0.0.

Member Function Documentation

std::vector<NXOpen::Assemblies::Component *> NXOpen::Weld::StructureWeldBuilder::GetCommittedComponents ( )

This method returns the component parts that are created by Builder::Commit .

    @return  The components created by Commit

Created in NX9.0.0.

License requirements : None

The documentation for this class was generated from the following file:
