A builder used to create or edit a Weld::EdgePrep feature. More...

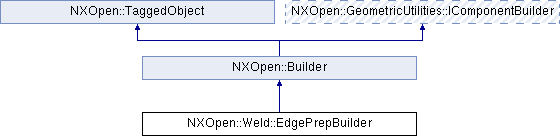

Inheritance diagram for NXOpen::Weld::EdgePrepBuilder:

Public Member Functions
int	ErrorCode ()
	Returns the error code for the first welding joint curve that could not be processed.

std::vector< NXOpen::Curve * >	GetNoResultsInfo ()
	Returns the curves that weld preparation was attempted on, but could not be performed.

NXOpen::SelectCurveList *	WeldObjects ()
	Returns the welding joints to drive edge preparation Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

A builder used to create or edit a Weld::EdgePrep feature.

To create a new instance of this class, use Weld::WeldManager::CreateEdgePrepBuilder

Created in NX8.0.0.

Member Function Documentation

int NXOpen::Weld::EdgePrepBuilder::ErrorCode ( )

Returns the error code for the first welding joint curve that could not be processed.

Created in NX8.5.0.

License requirements : None

std::vector<NXOpen::Curve *> NXOpen::Weld::EdgePrepBuilder::GetNoResultsInfo ( )

Returns the curves that weld preparation was attempted on, but could not be performed.

Returns: The welding joint curves that weld preparation failed on.
Created in NX8.5.0.

License requirements : None

NXOpen::SelectCurveList* NXOpen::Weld::EdgePrepBuilder::WeldObjects ( )

Returns the welding joints to drive edge preparation
Created in NX8.0.0.

License requirements : None
