Used to import a VRML file into the work part. More...

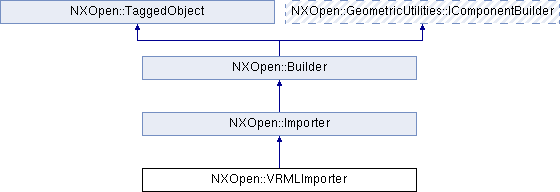

Inheritance diagram for NXOpen::VRMLImporter:

Public Types
enum	AngularToleranceType { AngularToleranceTypeCoarse, AngularToleranceTypeMedium, AngularToleranceTypeFine }
	Specifies the angular tolerance. More...

enum	FileUnitsType { FileUnitsTypeMeters, FileUnitsTypeMillimeters, FileUnitsTypeInches }
	Specifies the VRML file units. More...

Public Member Functions
bool	AllLevelsOfDetail ()
	Returns the All Levels of Detail flag.

NXOpen::VRMLImporter::AngularToleranceType	AngularTolerance ()
	Returns the angular tolerance.

NXOpen::VRMLImporter::FileUnitsType	FileUnits ()
	Returns the file units.

bool	GenerateOneModel ()
	Returns the Generate One Model flag.

bool	HideSmoothEdges ()
	Returns the Hide Smooth Edges flag.

bool	MoreSummaryDetails ()
	Returns the More Summary Details flag.

void	SetAllLevelsOfDetail (bool allLevelsOfDetail)
	Sets the All Levels of Detail flag.

void	SetAngularTolerance (NXOpen::VRMLImporter::AngularToleranceType angularTolerance)
	Sets the angular tolerance.

void	SetFileUnits (NXOpen::VRMLImporter::FileUnitsType fileUnits)
	Sets the file units.

void	SetGenerateOneModel (bool generateOneModel)
	Sets the Generate One Model flag.

void	SetHideSmoothEdges (bool hideSmoothEdges)
	Sets the Hide Smooth Edges flag.

void	SetMoreSummaryDetails (bool moreSummaryDetails)
	Sets the More Summary Details flag.

void	SetSuppressWarningMessages (bool suppressWarningMessages)
	Sets the Suppress Warning Messages flag.

bool	SuppressWarningMessages ()
	Returns the Suppress Warning Messages flag.

Public Member Functions inherited from NXOpen::Importer
NXString	FileName ()
	Returns the name of the file containing the data to import.

void	SetFileName (const NXString &fileName)
	Sets the name of the file containing the data to import.

void	SetFileName (const char *fileName)
	Sets the name of the file containing the data to import.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Used to import a VRML file into the work part.

To obtain an instance of this class use ImportManager::CreateVrmlImporter .

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::VRMLImporter::AngularToleranceType

Specifies the angular tolerance.

Created in NX5.0.0.

Enumerator:

AngularToleranceTypeCoarse	Import with coarse angular tolerance.
AngularToleranceTypeMedium	Import with medium angular tolerance.
AngularToleranceTypeFine	Import with fine angular tolerance.

enum NXOpen::VRMLImporter::FileUnitsType

Specifies the VRML file units.

Created in NX5.0.0.

Enumerator:

FileUnitsTypeMeters	VRML file is in units of meters.
FileUnitsTypeMillimeters	VRML file is in units of millimeters.
FileUnitsTypeInches	VRML file is in units of inches.
