Tooling  builder to assign and edit attributes of objects  <br> To create a new instance of this class, use @link Tooling::ObjectAttributeManagementCollection::CreateObjectAttributeManagementBuilder  Tooling::ObjectAttributeManagementCollection::CreateObjectAttributeManagementBuilder @endlink  <br>

Default values. More...

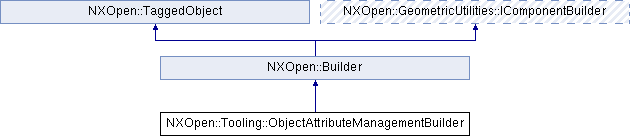

Inheritance diagram for NXOpen::Tooling::ObjectAttributeManagementBuilder:

Public Types
enum	FilterAccordingToAttributeType { FilterAccordingToAttributeTypeComponent, FilterAccordingToAttributeTypeSolidBody, FilterAccordingToAttributeTypeFace }
	the selection filter type according to attribute More...

enum	FilterType { FilterTypeComponent, FilterTypeSolidBody, FilterTypeFace }
	the selection filter type More...

enum	ShowComponentsType { ShowComponentsTypeShowAllComponents, ShowComponentsTypeOnlyShowComponentsWithAttribute, ShowComponentsTypeHideComponentsWithAttribute }
	the show type according to attribute More...

enum	ShowType { ShowTypeShowAttributeOfSelectedObject, ShowTypeShowObjectAccordingToAttribute }
	show attributes of selected objects or show objects according to attribute More...

Public Member Functions
void	AddFromDataFileAttributeList ()
	The action to add selected attributes from attributes spreadsheet Created in NX9.0.0.

bool	AttributeOfRootPart ()
	Returns the option whether to show attributes of root part Created in NX9.0.0.

NXString	AttributeTitles ()
	Returns the attribute titles Created in NX9.0.0.

NXString	AttributeValues ()
	Returns the attribute values Created in NX9.0.0.

void	CopyAttribute ()
	The action to copy selected attributes Created in NX9.0.0.

void	DeleteAttribute ()
	The action to delete selected attributes Created in NX9.0.0.

void	EditConfigurationFile ()
	Tha action to edit attribute spreadsheet Created in NX9.0.0.

void	NewAttribute ()
	The action to new an attribute Created in NX9.0.0.

void	PasteAttribute ()
	The action to paste copied attributes Created in NX9.0.0.

NXString	SelectAttributeSpreadsheet ()
	Returns the selected attribute spreadsheet Created in NX9.0.0.

NXOpen::SelectNXObjectList *	SelectBody ()
	Returns the select body Created in NX9.0.0.

NXOpen::SelectNXObjectList *	SelectBodyAccordingToAttribute ()
	Returns the select body according to attribute Created in NX9.0.0.

NXOpen::SelectNXObjectList *	SelectComponent ()
	Returns the selected objects Created in NX9.0.0.

NXOpen::SelectNXObjectList *	SelectComponentAccordingToAttribute ()
	Returns the objects according to attributes Created in NX9.0.0.

NXOpen::ScCollector *	SelectFace ()
	Returns the select face Created in NX9.0.0.

NXOpen::ScCollector *	SelectFaceAccordingToAttribute ()
	Returns the faces according to attribute Created in NX9.0.0.

NXOpen::Tooling::ObjectAttributeManagementBuilder::FilterType	SelectionFilter ()
	Returns the selection filter Created in NX9.0.0.

NXOpen::Tooling::ObjectAttributeManagementBuilder::FilterAccordingToAttributeType	SelectionFilterAccordingToAttribute ()
	Returns the selection filter according to attribute Created in NX9.0.0.

void	SetAttributeOfRootPart (bool attributeOfRootPart)
	Sets the option whether to show attributes of root part Created in NX9.0.0.

void	SetAttributeTitles (const NXString &attributeTitles)
	Sets the attribute titles Created in NX9.0.0.

void	SetAttributeTitles (const char *attributeTitles)
	Sets the attribute titles Created in NX9.0.0.

void	SetAttributeValues (const NXString &attributeValues)
	Sets the attribute values Created in NX9.0.0.

void	SetAttributeValues (const char *attributeValues)
	Sets the attribute values Created in NX9.0.0.

void	SetSelectAttributeSpreadsheet (const NXString &fileName)
	Sets the selected attribute spreadsheet Created in NX9.0.0.

void	SetSelectAttributeSpreadsheet (const char *fileName)
	Sets the selected attribute spreadsheet Created in NX9.0.0.

void	SetSelectionFilter (NXOpen::Tooling::ObjectAttributeManagementBuilder::FilterType selectionFilter)
	Sets the selection filter Created in NX9.0.0.

void	SetSelectionFilterAccordingToAttribute (NXOpen::Tooling::ObjectAttributeManagementBuilder::FilterAccordingToAttributeType selectionFilterAccordingToAttribute)
	Sets the selection filter according to attribute Created in NX9.0.0.

void	SetShowTypeEnum (NXOpen::Tooling::ObjectAttributeManagementBuilder::ShowComponentsType showComponentsTypeEnum)
	Sets the show type enumeration Created in NX9.0.0.

void	SetToggleListDependents (bool toggleListDependents)
	Sets the option whether to list dependent components Created in NX9.0.0.

void	SetType (NXOpen::Tooling::ObjectAttributeManagementBuilder::ShowType type)
	Sets the type show objects or attributes Created in NX9.0.0.

void	SetWizardType (int wizardType)
	Sets the wizard type Created in NX9.0.0.

NXOpen::Tooling::ObjectAttributeManagementBuilder::ShowComponentsType	ShowTypeEnum ()
	Returns the show type enumeration Created in NX9.0.0.

bool	ToggleListDependents ()
	Returns the option whether to list dependent components Created in NX9.0.0.

NXOpen::Tooling::ObjectAttributeManagementBuilder::ShowType	Type ()
	Returns the type show objects or attributes Created in NX9.0.0.

void	UndoButton ()
	The action to undo last delete Created in NX9.0.0.

int	WizardType ()
	Returns the wizard type Created in NX9.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Tooling  builder to assign and edit attributes of objects  <br> To create a new instance of this class, use @link Tooling::ObjectAttributeManagementCollection::CreateObjectAttributeManagementBuilder  Tooling::ObjectAttributeManagementCollection::CreateObjectAttributeManagementBuilder @endlink  <br>

Default values.

Property

Value

AttributeOfRootPart

0

SelectionFilter

Component

SelectionFilterAccordingToAttribute

Component

ShowTypeEnum

ShowAllComponents

ToggleListDependents

0

Type

ShowObjectAccordingToAttribute

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::Tooling::ObjectAttributeManagementBuilder::FilterAccordingToAttributeType

the selection filter type according to attribute

Enumerator:

FilterAccordingToAttributeTypeComponent	component
FilterAccordingToAttributeTypeSolidBody	solid body
FilterAccordingToAttributeTypeFace	face

enum NXOpen::Tooling::ObjectAttributeManagementBuilder::FilterType

the selection filter type

Enumerator:

FilterTypeComponent	component
FilterTypeSolidBody	solid body
FilterTypeFace	face

enum NXOpen::Tooling::ObjectAttributeManagementBuilder::ShowComponentsType

the show type according to attribute

Enumerator:

ShowComponentsTypeShowAllComponents	show all components
ShowComponentsTypeOnlyShowComponentsWithAttribute	only show components with attribute
ShowComponentsTypeHideComponentsWithAttribute	hide components with attribute

enum NXOpen::Tooling::ObjectAttributeManagementBuilder::ShowType

show attributes of selected objects or show objects according to attribute

Enumerator:

ShowTypeShowAttributeOfSelectedObject	show attribute of selected object
ShowTypeShowObjectAccordingToAttribute	show object according to attribute

Member Function Documentation

void NXOpen::Tooling::ObjectAttributeManagementBuilder::AddFromDataFileAttributeList ( )

The action to add selected attributes from attributes spreadsheet
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

bool NXOpen::Tooling::ObjectAttributeManagementBuilder::AttributeOfRootPart ( )

Returns the option whether to show attributes of root part
Created in NX9.0.0.

License requirements : None

NXString NXOpen::Tooling::ObjectAttributeManagementBuilder::AttributeTitles ( )

Returns the attribute titles
Created in NX9.0.0.

License requirements : None

NXString NXOpen::Tooling::ObjectAttributeManagementBuilder::AttributeValues ( )

Returns the attribute values
Created in NX9.0.0.

License requirements : None

void NXOpen::Tooling::ObjectAttributeManagementBuilder::CopyAttribute ( )

The action to copy selected attributes
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

void NXOpen::Tooling::ObjectAttributeManagementBuilder::DeleteAttribute ( )

The action to delete selected attributes
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

void NXOpen::Tooling::ObjectAttributeManagementBuilder::EditConfigurationFile ( )

Tha action to edit attribute spreadsheet
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

void NXOpen::Tooling::ObjectAttributeManagementBuilder::NewAttribute ( )

The action to new an attribute
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

void NXOpen::Tooling::ObjectAttributeManagementBuilder::PasteAttribute ( )

The action to paste copied attributes
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

NXString NXOpen::Tooling::ObjectAttributeManagementBuilder::SelectAttributeSpreadsheet ( )

Returns the selected attribute spreadsheet
Created in NX9.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::Tooling::ObjectAttributeManagementBuilder::SelectBody ( )

Returns the select body
Created in NX9.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::Tooling::ObjectAttributeManagementBuilder::SelectBodyAccordingToAttribute ( )

Returns the select body according to attribute
Created in NX9.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::Tooling::ObjectAttributeManagementBuilder::SelectComponent ( )

Returns the selected objects
Created in NX9.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::Tooling::ObjectAttributeManagementBuilder::SelectComponentAccordingToAttribute ( )

Returns the objects according to attributes
Created in NX9.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Tooling::ObjectAttributeManagementBuilder::SelectFace ( )

Returns the select face
Created in NX9.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Tooling::ObjectAttributeManagementBuilder::SelectFaceAccordingToAttribute ( )

Returns the faces according to attribute
Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::ObjectAttributeManagementBuilder::FilterType NXOpen::Tooling::ObjectAttributeManagementBuilder::SelectionFilter ( )

Returns the selection filter
Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::ObjectAttributeManagementBuilder::FilterAccordingToAttributeType NXOpen::Tooling::ObjectAttributeManagementBuilder::SelectionFilterAccordingToAttribute ( )

Returns the selection filter according to attribute
Created in NX9.0.0.

License requirements : None

void NXOpen::Tooling::ObjectAttributeManagementBuilder::SetAttributeOfRootPart ( bool attributeOfRootPart )

Sets the option whether to show attributes of root part
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

attributeOfRootPart attributeofrootpart

void NXOpen::Tooling::ObjectAttributeManagementBuilder::SetAttributeTitles ( const NXString & attributeTitles )

Sets the attribute titles
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

attributeTitles attributetitles

void NXOpen::Tooling::ObjectAttributeManagementBuilder::SetAttributeTitles ( const char * attributeTitles )

Sets the attribute titles
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

attributeTitles attributetitles

void NXOpen::Tooling::ObjectAttributeManagementBuilder::SetAttributeValues ( const NXString & attributeValues )

Sets the attribute values
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

attributeValues attributevalues

void NXOpen::Tooling::ObjectAttributeManagementBuilder::SetAttributeValues ( const char * attributeValues )

Sets the attribute values
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

attributeValues attributevalues

void NXOpen::Tooling::ObjectAttributeManagementBuilder::SetSelectAttributeSpreadsheet ( const NXString & fileName )

Sets the selected attribute spreadsheet
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

fileName filename

void NXOpen::Tooling::ObjectAttributeManagementBuilder::SetSelectAttributeSpreadsheet ( const char * fileName )

Sets the selected attribute spreadsheet
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

fileName filename

void NXOpen::Tooling::ObjectAttributeManagementBuilder::SetSelectionFilter ( NXOpen::Tooling::ObjectAttributeManagementBuilder::FilterType selectionFilter )

Sets the selection filter
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

selectionFilter selectionfilter

void NXOpen::Tooling::ObjectAttributeManagementBuilder::SetSelectionFilterAccordingToAttribute ( NXOpen::Tooling::ObjectAttributeManagementBuilder::FilterAccordingToAttributeType selectionFilterAccordingToAttribute )

Sets the selection filter according to attribute
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

selectionFilterAccordingToAttribute selectionfilteraccordingtoattribute

void NXOpen::Tooling::ObjectAttributeManagementBuilder::SetShowTypeEnum ( NXOpen::Tooling::ObjectAttributeManagementBuilder::ShowComponentsType showComponentsTypeEnum )

Sets the show type enumeration
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

showComponentsTypeEnum showcomponentstypeenum

void NXOpen::Tooling::ObjectAttributeManagementBuilder::SetToggleListDependents ( bool toggleListDependents )

Sets the option whether to list dependent components
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

toggleListDependents togglelistdependents

void NXOpen::Tooling::ObjectAttributeManagementBuilder::SetType ( NXOpen::Tooling::ObjectAttributeManagementBuilder::ShowType type )

Sets the type show objects or attributes
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

type type

void NXOpen::Tooling::ObjectAttributeManagementBuilder::SetWizardType ( int wizardType )

Sets the wizard type
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

wizardType wizardtype

NXOpen::Tooling::ObjectAttributeManagementBuilder::ShowComponentsType NXOpen::Tooling::ObjectAttributeManagementBuilder::ShowTypeEnum ( )

Returns the show type enumeration
Created in NX9.0.0.

License requirements : None

bool NXOpen::Tooling::ObjectAttributeManagementBuilder::ToggleListDependents ( )

Returns the option whether to list dependent components
Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::ObjectAttributeManagementBuilder::ShowType NXOpen::Tooling::ObjectAttributeManagementBuilder::Type ( )

Returns the type show objects or attributes
Created in NX9.0.0.

License requirements : None

void NXOpen::Tooling::ObjectAttributeManagementBuilder::UndoButton ( )

The action to undo last delete
Created in NX9.0.0.

License requirements : ug_mold_design ("UG MOLD") OR prog_die_wizard ("UG/Progressive Die Wizard")

int NXOpen::Tooling::ObjectAttributeManagementBuilder::WizardType ( )

Returns the wizard type
Created in NX9.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Tooling_ObjectAttributeManagementBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
