Represents a builder to be used to perform Molded Part Validation analysis. More...

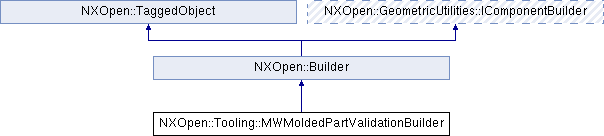

Inheritance diagram for NXOpen::Tooling::MWMoldedPartValidationBuilder:

Public Types
enum	AssignToRegion { AssignToRegionCavityRegion, AssignToRegionCoreRegion }
	Options for assigning faces to the Cavity or Core region. More...

enum	CalculateOption { CalculateOptionKeepExisting, CalculateOptionEditRegionsOnly, CalculateOptionResetAll }
	Calculation options. More...

enum	CheckScope { CheckScopeFaceProperties, CheckScopeModelProperties, CheckScopeSharpCorners }
	Check scope for information. More...

enum	RangeType { RangeTypeUniform, RangeTypeRange, RangeTypePlain }
	Range type for displaying small corner radius faces. More...

Public Member Functions
int	ActiveTabPage ()
	Returns the active tab page.

void	Calculate ()
	Calculate button on the Calculate Tab page.

NXOpen::Direction *	CalculationDrawDirection ()
	Returns the draw direction on the Calculate Tab page.

NXOpen::Tooling::MWMoldedPartValidationBuilder::CalculateOption	CalculationOption ()
	Returns the calculation option on the Calculate Tab page.

NXOpen::SelectBody *	CalculationProductBody ()
	Returns the product body to be analyzed on the Calculate Tab page.

NXOpen::NXColor *	FaceAllFacesColor ()
	Returns the color for applying to all faces on the Face Tab page.

NXOpen::NXColor *	FaceCrossoverFacesColor ()
	Returns the color for applying to the crossover faces on the Face Tab page.

double	FaceDraftAngleLimit ()
	Returns the draft angle limit on the Face Tab page.

bool	FaceHighlightSelectedFaces ()
	Returns the option for highlighting the selected faces on the Face Tab page.

NXOpen::NXColor *	FaceNegativeFacesColor1 ()
	Returns the color for applying to the negative small radius faces on the Face Tab page.

NXOpen::NXColor *	FaceNegativeFacesColor2 ()
	Returns the color for applying to the negative faces on the Face Tab page.

int	FaceNonSelectedFacesTranslucency ()
	Returns the translucency for the non-selected faces on the Face Tab page.

NXOpen::NXColor *	FacePositiveFacesColor1 ()
	Returns the color for applying to the positive faces on the Face Tab page.

NXOpen::NXColor *	FacePositiveFacesColor2 ()
	Returns the color for applying to the positive small radius faces on the Face Tab page.

bool	FaceSelectAllFaces ()
	Returns the option for turning on/off the selection of all faces on the Face Tab page.

bool	FaceSelectCrossoverFaces ()
	Returns the option for turning on/off the highlight of the crossover faces on the Face Tab page.

int	FaceSelectedFacesTranslucency ()
	Returns the translucency for the selected faces on the Face Tab page.

bool	FaceSelectNegativeFaces1 ()
	Returns the option for turning on/off the highlight of the negative small radius faces on the Face Tab page.

bool	FaceSelectNegativeFaces2 ()
	Returns the option for turning on/off the highlight of the negative faces on the Face Tab page.

bool	FaceSelectPositiveFaces1 ()
	Returns the option for turning on/off the highlight of the positive faces on the Face Tab page.

bool	FaceSelectPositiveFaces2 ()
	Returns the option for turning on/off the highlight of the positive small radius faces on the Face Tab page.

bool	FaceSelectUndercutAreas ()
	Returns the option for turning on/off the highlight of the undercut area faces on the Face Tab page.

bool	FaceSelectUndercutEdges ()
	Returns the option for turning on/off the highlight of the undercut edges on the Face Tab page.

bool	FaceSelectVerticalFaces ()
	Returns the option for turning on/off the highlight of the vertical faces on the Face Tab page.

void	FaceSetAllFacesColor ()
	Action button for setting color on all faces on the Face Tab page.

NXOpen::NXColor *	FaceUndercutAreasColor ()
	Returns the color for applying to the undercut area faces on the Face Tab page.

NXOpen::NXColor *	FaceUndercutEdgesColor ()
	Returns the color for applying to the undercut edges on the Face Tab page.

NXOpen::NXColor *	FaceVerticalFacesColor ()
	Returns the color for applying to the vertical faces on the Face Tab page.

int	InApplyStatus ()
	Returns the flag that indicates the Apply status of the command, needed only in the interactive environment.

NXOpen::Tooling::MWMoldedPartValidationBuilder::CheckScope	InformationCheckScope ()
	Returns the check scope on the Information Tab page.

NXOpen::NXColor *	InformationColorR01 ()
	Returns the color of row 1 for the small radius faces on the Information Tab page.

NXOpen::NXColor *	InformationColorR02 ()
	Returns the color of row 2 for the small radius faces on the Information Tab page.

NXOpen::NXColor *	InformationColorR03 ()
	Returns the color of row 3 for the small radius faces on the Information Tab page.

NXOpen::NXColor *	InformationColorR04 ()
	Returns the color of row 4 for the small radius faces on the Information Tab page.

NXOpen::NXColor *	InformationColorR05 ()
	Returns the color of row 5 for the small radius faces on the Information Tab page.

NXOpen::NXColor *	InformationColorR06 ()
	Returns the color of row 6 for the small radius faces on the Information Tab page.

NXOpen::NXColor *	InformationColorR07 ()
	Returns the color of row 7 for the small radius faces on the Information Tab page.

NXOpen::NXColor *	InformationColorR08 ()
	Returns the color of row 8 for the small radius faces on the Information Tab page.

NXOpen::NXColor *	InformationColorR09 ()
	Returns the color of row 9 for the small radius faces on the Information Tab page.

NXOpen::NXColor *	InformationColorR10 ()
	Returns the color of row 10 for the small radius faces on the Information Tab page.

NXOpen::NXColor *	InformationColorR11 ()
	Returns the color of row 11 for the small radius faces on the Information Tab page.

NXOpen::NXColor *	InformationColorR12 ()
	Returns the color of row 12 for the small radius faces on the Information Tab page.

NXOpen::SelectFace *	InformationInspectFace ()
	Returns the face selected face for displaying the face properties.

double	InformationLowerLimit ()
	Returns the lower limit of the range limit values on the Information Tab page.

double	InformationLowerLimitR01 ()
	Returns the lower limit of row 1 for the small radius faces on the Information Tab page.

double	InformationLowerLimitR02 ()
	Returns the lower limit of row 2 for the small radius faces on the Information Tab page.

double	InformationLowerLimitR03 ()
	Returns the lower limit of row 3 for the small radius faces on the Information Tab page.

double	InformationLowerLimitR04 ()
	Returns the lower limit of row 4 for the small radius faces on the Information Tab page.

double	InformationLowerLimitR05 ()
	Returns the lower limit of row 5 for the small radius faces on the Information Tab page.

double	InformationLowerLimitR06 ()
	Returns the lower limit of row 6 for the small radius faces on the Information Tab page.

double	InformationLowerLimitR07 ()
	Returns the lower limit of row 7 for the small radius faces on the Information Tab page.

double	InformationLowerLimitR08 ()
	Returns the lower limit of row 8 for the small radius faces on the Information Tab page.

double	InformationLowerLimitR09 ()
	Returns the lower limit of row 9 for the small radius faces on the Information Tab page.

double	InformationLowerLimitR10 ()
	Returns the lower limit of row 10 for the small radius faces on the Information Tab page.

double	InformationLowerLimitR11 ()
	Returns the lower limit of row 11 for the small radius faces on the Information Tab page.

double	InformationLowerLimitR12 ()
	Returns the lower limit of row 12 for the small radius faces on the Information Tab page.

NXOpen::Tooling::MWMoldedPartValidationBuilder::RangeType	InformationRangeType ()
	Returns the range type on the Information Tab page.

double	InformationSharpAngleLimit ()
	Returns the sharp angle limit on the Information Tab page.

bool	InformationShowBoundaryEdges ()
	Returns the option for turning on/off the highlight of the boundary edges of the sheet body on the Information Tab page.

bool	InformationShowRangeR01 ()
	Returns the option of selecting the small radius faces within the range limit values of row 1 on the Information Tab page.

bool	InformationShowRangeR02 ()
	Returns the option of selecting the small radius faces within the range limit values of row 2 on the Information Tab page.

bool	InformationShowRangeR03 ()
	Returns the option of selecting the small radius faces within the range limit values of row 3 on the Information Tab page.

bool	InformationShowRangeR04 ()
	Returns the option of selecting the small radius faces within the range limit values of row 4 on the Information Tab page.

bool	InformationShowRangeR05 ()
	Returns the option of selecting the small radius faces within the range limit values of row 5 on the Information Tab page.

bool	InformationShowRangeR06 ()
	Returns the option of selecting the small radius faces within the range limit values of row 6 on the Information Tab page.

bool	InformationShowRangeR07 ()
	Returns the option of selecting the small radius faces within the range limit values of row 7 on the Information Tab page.

bool	InformationShowRangeR08 ()
	Returns the option of selecting the small radius faces within the range limit values of row 8 on the Information Tab page.

bool	InformationShowRangeR09 ()
	Returns the option of selecting the small radius faces within the range limit values of row 9 on the Information Tab page.

bool	InformationShowRangeR10 ()
	Returns the option of selecting the small radius faces within the range limit values of row 10 on the Information Tab page.

bool	InformationShowRangeR11 ()
	Returns the option of selecting the small radius faces within the range limit values of row 11 on the Information Tab page.

bool	InformationShowRangeR12 ()
	Returns the option of selecting the small radius faces within the range limit values of row 12 on the Information Tab page.

bool	InformationShowSharpEdges ()
	Returns the option for turning on/off the highlight of the sharp edges of the sheet body on the Information Tab page.

double	InformationUpperLimit ()
	Returns the upper limit on the Information Tab page.

double	InformationUpperLimitR01 ()
	Returns the upper limit of row 1 for the small radius faces on the Information Tab page.

double	InformationUpperLimitR02 ()
	Returns the upper limit of row 2 for the small radius faces on the Information Tab page.

double	InformationUpperLimitR03 ()
	Returns the upper limit of row 3 for the small radius faces on the Information Tab page.

double	InformationUpperLimitR04 ()
	Returns the upper limit of row 4 for the small radius faces on the Information Tab page.

double	InformationUpperLimitR05 ()
	Returns the upper limit of row 5 for the small radius faces on the Information Tab page.

double	InformationUpperLimitR06 ()
	Returns the upper limit of row 6 for the small radius faces on the Information Tab page.

double	InformationUpperLimitR07 ()
	Returns the upper limit of row 7 for the small radius faces on the Information Tab page.

double	InformationUpperLimitR08 ()
	Returns the upper limit of row 8 for the small radius faces on the Information Tab page.

double	InformationUpperLimitR09 ()
	Returns the upper limit of row 9 for the small radius faces on the Information Tab page.

double	InformationUpperLimitR10 ()
	Returns the upper limit of row 10 for the small radius faces on the Information Tab page.

double	InformationUpperLimitR11 ()
	Returns the upper limit of row 11 for the small radius faces on the Information Tab page.

double	InformationUpperLimitR12 ()
	Returns the upper limit of row 12 for the small radius faces on the Information Tab page.

bool	InformationUseSingleTolerance ()
	Returns the option for using a single tolerance for defining the range limit values on the Information Tab page.

void	InitMpvData (int changeBody)
	Initialize the MPV data for performing analysis in Molded Part Validation.

void	PerformModelPropertiesCalculation ()
	Perform model properties calculation if the calculation has not been performed before.

void	PerformSharpCornersCalculation ()
	Perform the sharp corners calculation if the calculation has not been performed before.

void	ProcessFaceSplit ()
	Action button for invoking the Split Face command on the Face Tab page.

NXOpen::Tooling::MWMoldedPartValidationBuilder::AssignToRegion	RegionAssignToRegionOption ()
	Returns the option for assigning the selected region faces to the cavity or core region on the Region Tab page.

NXOpen::NXColor *	RegionCavityRegionColor ()
	Returns the color for applying to the cavity region faces on the Region Tab page.

int	RegionCavityRegionTranslucency ()
	Returns the translucency for applying to the cavity region faces on the Region Tab page.

NXOpen::NXColor *	RegionCoreRegionColor ()
	Returns the color for applying to the core region faces on the Region Tab page.

int	RegionCoreRegionTranslucency ()
	Returns the translucency for applying to the core region faces on the Region Tab page.

NXOpen::SelectFaceList *	RegionFaces ()
	Returns the faces selected for assigning to the cavity or core region.

bool	RegionSelectCrossoverRegionFaces ()
	Returns the option for including or removing the crossover region faces in the selection on the Region Tab page.

bool	RegionSelectCrossoverVerticalFaces ()
	Returns the option for including or removing the crossover vertical faces in the selection on the Region Tab page.

bool	RegionSelectUnknownFaces ()
	Returns the option for including or removing the unknown faces in the selection on the Region Tab page.

void	RegionSetRegionsColor ()
	Action button for setting color on the cavity, core and undefined region faces on the Region Tab page.

bool	RegionShowIncompleteLoops ()
	Returns the option for turning on/off the highlight of the incomplete loop edges.

bool	RegionShowInternalLoops ()
	Returns the option for turning on/off the highlight of the internal loop edges.

bool	RegionShowPartingEdges ()
	Returns the option for turning on/off the highlight of the parting edges.

NXOpen::NXColor *	RegionUndefinedRegionColor ()
	Returns the color for applying to the undefined region faces on the Region Tab page.

void	SetActiveTabPage (int activeTabPage)
	Sets the active tab page.

void	SetCalculationDrawDirection (NXOpen::Direction *calculationDrawDirection)
	Sets the draw direction on the Calculate Tab page.

void	SetCalculationOption (NXOpen::Tooling::MWMoldedPartValidationBuilder::CalculateOption calculationOption)
	Sets the calculation option on the Calculate Tab page.

void	SetFaceAllFacesColor (NXOpen::NXColor *faceAllFacesColor)
	Sets the color for applying to all faces on the Face Tab page.

void	SetFaceCrossoverFacesColor (NXOpen::NXColor *faceCrossoverFacesColor)
	Sets the color for applying to the crossover faces on the Face Tab page.

void	SetFaceDraftAngleLimit (double faceDraftAngleLimit)
	Sets the draft angle limit on the Face Tab page.

void	SetFaceHighlightSelectedFaces (bool faceHighlightSelectedFaces)
	Sets the option for highlighting the selected faces on the Face Tab page.

void	SetFaceNegativeFacesColor1 (NXOpen::NXColor *faceNegativeFacesColor1)
	Sets the color for applying to the negative small radius faces on the Face Tab page.

void	SetFaceNegativeFacesColor2 (NXOpen::NXColor *faceNegativeFacesColor2)
	Sets the color for applying to the negative faces on the Face Tab page.

void	SetFaceNonSelectedFacesTranslucency (int faceNonSelectedFacesTranslucency)
	Sets the translucency for the non-selected faces on the Face Tab page.

void	SetFacePositiveFacesColor1 (NXOpen::NXColor *facePositiveFacesColor1)
	Sets the color for applying to the positive faces on the Face Tab page.

void	SetFacePositiveFacesColor2 (NXOpen::NXColor *facePositiveFacesColor2)
	Sets the color for applying to the positive small radius faces on the Face Tab page.

void	SetFaceSelectAllFaces (bool faceSelectAllFaces)
	Sets the option for turning on/off the selection of all faces on the Face Tab page.

void	SetFaceSelectCrossoverFaces (bool faceSelectCrossoverFaces)
	Sets the option for turning on/off the highlight of the crossover faces on the Face Tab page.

void	SetFaceSelectedFacesTranslucency (int faceSelectedFacesTranslucency)
	Sets the translucency for the selected faces on the Face Tab page.

void	SetFaceSelectNegativeFaces1 (bool faceSelectNegativeFaces1)
	Sets the option for turning on/off the highlight of the negative small radius faces on the Face Tab page.

void	SetFaceSelectNegativeFaces2 (bool faceSelectNegativeFaces2)
	Sets the option for turning on/off the highlight of the negative faces on the Face Tab page.

void	SetFaceSelectPositiveFaces1 (bool faceSelectPositiveFaces1)
	Sets the option for turning on/off the highlight of the positive faces on the Face Tab page.

void	SetFaceSelectPositiveFaces2 (bool faceSelectPositiveFaces2)
	Sets the option for turning on/off the highlight of the positive small radius faces on the Face Tab page.

void	SetFaceSelectUndercutAreas (bool faceSelectUndercutAreas)
	Sets the option for turning on/off the highlight of the undercut area faces on the Face Tab page.

void	SetFaceSelectUndercutEdges (bool faceSelectUndercutEdges)
	Sets the option for turning on/off the highlight of the undercut edges on the Face Tab page.

void	SetFaceSelectVerticalFaces (bool faceSelectVerticalFaces)
	Sets the option for turning on/off the highlight of the vertical faces on the Face Tab page.

void	SetFaceUndercutAreasColor (NXOpen::NXColor *faceUndercutAreasColor)
	Sets the color for applying to the undercut area faces on the Face Tab page.

void	SetFaceUndercutEdgesColor (NXOpen::NXColor *faceUndercutEdgesColor)
	Sets the color for applying to the undercut edges on the Face Tab page.

void	SetFaceVerticalFacesColor (NXOpen::NXColor *faceVerticalFacesColor)
	Sets the color for applying to the vertical faces on the Face Tab page.

void	SetInApplyStatus (int inApplyStatus)
	Sets the flag that indicates the Apply status of the command, needed only in the interactive environment.

void	SetInformationCheckScope (NXOpen::Tooling::MWMoldedPartValidationBuilder::CheckScope informationCheckScope)
	Sets the check scope on the Information Tab page.

void	SetInformationColorR01 (NXOpen::NXColor *informationColorR01)
	Sets the color of row 1 for the small radius faces on the Information Tab page.

void	SetInformationColorR02 (NXOpen::NXColor *informationColorR02)
	Sets the color of row 2 for the small radius faces on the Information Tab page.

void	SetInformationColorR03 (NXOpen::NXColor *informationColorR03)
	Sets the color of row 3 for the small radius faces on the Information Tab page.

void	SetInformationColorR04 (NXOpen::NXColor *informationColorR04)
	Sets the color of row 4 for the small radius faces on the Information Tab page.

void	SetInformationColorR05 (NXOpen::NXColor *informationColorR05)
	Sets the color of row 5 for the small radius faces on the Information Tab page.

void	SetInformationColorR06 (NXOpen::NXColor *informationColorR06)
	Sets the color of row 6 for the small radius faces on the Information Tab page.

void	SetInformationColorR07 (NXOpen::NXColor *informationColorR07)
	Sets the color of row 7 for the small radius faces on the Information Tab page.

void	SetInformationColorR08 (NXOpen::NXColor *informationColorR08)
	Sets the color of row 8 for the small radius faces on the Information Tab page.

void	SetInformationColorR09 (NXOpen::NXColor *informationColorR09)
	Sets the color of row 9 for the small radius faces on the Information Tab page.

void	SetInformationColorR10 (NXOpen::NXColor *informationColorR10)
	Sets the color of row 10 for the small radius faces on the Information Tab page.

void	SetInformationColorR11 (NXOpen::NXColor *informationColorR11)
	Sets the color of row 11 for the small radius faces on the Information Tab page.

void	SetInformationColorR12 (NXOpen::NXColor *informationColorR12)
	Sets the color of row 12 for the small radius faces on the Information Tab page.

void	SetInformationLowerLimit (double informationLowerLimit)
	Sets the lower limit of the range limit values on the Information Tab page.

void	SetInformationLowerLimitR01 (double informationLowerLimitR01)
	Sets the lower limit of row 1 for the small radius faces on the Information Tab page.

void	SetInformationLowerLimitR02 (double informationLowerLimitR02)
	Sets the lower limit of row 2 for the small radius faces on the Information Tab page.

void	SetInformationLowerLimitR03 (double informationLowerLimitR03)
	Sets the lower limit of row 3 for the small radius faces on the Information Tab page.

void	SetInformationLowerLimitR04 (double informationLowerLimitR04)
	Sets the lower limit of row 4 for the small radius faces on the Information Tab page.

void	SetInformationLowerLimitR05 (double informationLowerLimitR05)
	Sets the lower limit of row 5 for the small radius faces on the Information Tab page.

void	SetInformationLowerLimitR06 (double informationLowerLimitR06)
	Sets the lower limit of row 6 for the small radius faces on the Information Tab page.

void	SetInformationLowerLimitR07 (double informationLowerLimitR07)
	Sets the lower limit of row 7 for the small radius faces on the Information Tab page.

void	SetInformationLowerLimitR08 (double informationLowerLimitR08)
	Sets the lower limit of row 8 for the small radius faces on the Information Tab page.

void	SetInformationLowerLimitR09 (double informationLowerLimitR09)
	Sets the lower limit of row 9 for the small radius faces on the Information Tab page.

void	SetInformationLowerLimitR10 (double informationLowerLimitR10)
	Sets the lower limit of row 10 for the small radius faces on the Information Tab page.

void	SetInformationLowerLimitR11 (double informationLowerLimitR11)
	Sets the lower limit of row 11 for the small radius faces on the Information Tab page.

void	SetInformationLowerLimitR12 (double informationLowerLimitR12)
	Sets the lower limit of row 12 for the small radius faces on the Information Tab page.

void	SetInformationRangeType (NXOpen::Tooling::MWMoldedPartValidationBuilder::RangeType informationRangeType)
	Sets the range type on the Information Tab page.

void	SetInformationSharpAngleLimit (double informationSharpAngleLimit)
	Sets the sharp angle limit on the Information Tab page.

void	SetInformationShowBoundaryEdges (bool informationShowBoundaryEdges)
	Sets the option for turning on/off the highlight of the boundary edges of the sheet body on the Information Tab page.

void	SetInformationShowRangeR01 (bool informationShowRangeR01)
	Sets the option of selecting the small radius faces within the range limit values of row 1 on the Information Tab page.

void	SetInformationShowRangeR02 (bool informationShowRangeR02)
	Sets the option of selecting the small radius faces within the range limit values of row 2 on the Information Tab page.

void	SetInformationShowRangeR03 (bool informationShowRangeR03)
	Sets the option of selecting the small radius faces within the range limit values of row 3 on the Information Tab page.

void	SetInformationShowRangeR04 (bool informationShowRangeR04)
	Sets the option of selecting the small radius faces within the range limit values of row 4 on the Information Tab page.

void	SetInformationShowRangeR05 (bool informationShowRangeR05)
	Sets the option of selecting the small radius faces within the range limit values of row 5 on the Information Tab page.

void	SetInformationShowRangeR06 (bool informationShowRangeR06)
	Sets the option of selecting the small radius faces within the range limit values of row 6 on the Information Tab page.

void	SetInformationShowRangeR07 (bool informationShowRangeR07)
	Sets the option of selecting the small radius faces within the range limit values of row 7 on the Information Tab page.

void	SetInformationShowRangeR08 (bool informationShowRangeR08)
	Sets the option of selecting the small radius faces within the range limit values of row 8 on the Information Tab page.

void	SetInformationShowRangeR09 (bool informationShowRangeR09)
	Sets the option of selecting the small radius faces within the range limit values of row 9 on the Information Tab page.

void	SetInformationShowRangeR10 (bool informationShowRangeR10)
	Sets the option of selecting the small radius faces within the range limit values of row 10 on the Information Tab page.

void	SetInformationShowRangeR11 (bool informationShowRangeR11)
	Sets the option of selecting the small radius faces within the range limit values of row 11 on the Information Tab page.

void	SetInformationShowRangeR12 (bool informationShowRangeR12)
	Sets the option of selecting the small radius faces within the range limit values of row 12 on the Information Tab page.

void	SetInformationShowSharpEdges (bool informationShowSharpEdges)
	Sets the option for turning on/off the highlight of the sharp edges of the sheet body on the Information Tab page.

void	SetInformationUpperLimit (double informationUpperLimit)
	Sets the upper limit on the Information Tab page.

void	SetInformationUpperLimitR01 (double informationUpperLimitR01)
	Sets the upper limit of row 1 for the small radius faces on the Information Tab page.

void	SetInformationUpperLimitR02 (double informationUpperLimitR02)
	Sets the upper limit of row 2 for the small radius faces on the Information Tab page.

void	SetInformationUpperLimitR03 (double informationUpperLimitR03)
	Sets the upper limit of row 3 for the small radius faces on the Information Tab page.

void	SetInformationUpperLimitR04 (double informationUpperLimitR04)
	Sets the upper limit of row 4 for the small radius faces on the Information Tab page.

void	SetInformationUpperLimitR05 (double informationUpperLimitR05)
	Sets the upper limit of row 5 for the small radius faces on the Information Tab page.

void	SetInformationUpperLimitR06 (double informationUpperLimitR06)
	Sets the upper limit of row 6 for the small radius faces on the Information Tab page.

void	SetInformationUpperLimitR07 (double informationUpperLimitR07)
	Sets the upper limit of row 7 for the small radius faces on the Information Tab page.

void	SetInformationUpperLimitR08 (double informationUpperLimitR08)
	Sets the upper limit of row 8 for the small radius faces on the Information Tab page.

void	SetInformationUpperLimitR09 (double informationUpperLimitR09)
	Sets the upper limit of row 9 for the small radius faces on the Information Tab page.

void	SetInformationUpperLimitR10 (double informationUpperLimitR10)
	Sets the upper limit of row 10 for the small radius faces on the Information Tab page.

void	SetInformationUpperLimitR11 (double informationUpperLimitR11)
	Sets the upper limit of row 11 for the small radius faces on the Information Tab page.

void	SetInformationUpperLimitR12 (double informationUpperLimitR12)
	Sets the upper limit of row 12 for the small radius faces on the Information Tab page.

void	SetInformationUseSingleTolerance (bool informationUseSingleTolerance)
	Sets the option for using a single tolerance for defining the range limit values on the Information Tab page.

void	SetRegionAssignToRegionOption (NXOpen::Tooling::MWMoldedPartValidationBuilder::AssignToRegion regionAssignToRegionOption)
	Sets the option for assigning the selected region faces to the cavity or core region on the Region Tab page.

void	SetRegionCavityRegionColor (NXOpen::NXColor *regionCavityRegionColor)
	Sets the color for applying to the cavity region faces on the Region Tab page.

void	SetRegionCavityRegionTranslucency (int regionCavityRegionTranslucency)
	Sets the translucency for applying to the cavity region faces on the Region Tab page.

void	SetRegionCoreRegionColor (NXOpen::NXColor *regionCoreRegionColor)
	Sets the color for applying to the core region faces on the Region Tab page.

void	SetRegionCoreRegionTranslucency (int regionCoreRegionTranslucency)
	Sets the translucency for applying to the core region faces on the Region Tab page.

void	SetRegionSelectCrossoverRegionFaces (bool regionSelectCrossoverRegionFaces)
	Sets the option for including or removing the crossover region faces in the selection on the Region Tab page.

void	SetRegionSelectCrossoverVerticalFaces (bool regionSelectCrossoverVerticalFaces)
	Sets the option for including or removing the crossover vertical faces in the selection on the Region Tab page.

void	SetRegionSelectUnknownFaces (bool regionSelectUnknownFaces)
	Sets the option for including or removing the unknown faces in the selection on the Region Tab page.

void	SetRegionShowIncompleteLoops (bool regionShowIncompleteLoops)
	Sets the option for turning on/off the highlight of the incomplete loop edges.

void	SetRegionShowInternalLoops (bool regionShowInternalLoops)
	Sets the option for turning on/off the highlight of the internal loop edges.

void	SetRegionShowPartingEdges (bool regionShowPartingEdges)
	Sets the option for turning on/off the highlight of the parting edges.

void	SetRegionUndefinedRegionColor (NXOpen::NXColor *regionUndefinedRegionColor)
	Sets the color for applying to the undefined region faces on the Region Tab page.

void	UpdateEjectDirection ()
	Update the eject direction.

void	UpdateMpvData ()
	Update the MPV data used in performing analysis in Molded Part Validation whenever there are changes in data on dialog.

void	UpdateSharpEdgesInformation ()
	Update the sharp edges information based on the new sharp angle limit which has been changed by the user.

void	UpdateSmallRadiusFacesInformation ()
	Update the small radius faces information based on the new range limits of the radius which has been changed by the user.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a builder to be used to perform Molded Part Validation analysis.

To create a new instance of this class, use Tooling::MWMoldedPartValidationManager::CreateMWMoldedPartValidationBuilder
Default values.

Property

Value

CalculationOption

KeepExisting

FaceDraftAngleLimit

3

FaceHighlightSelectedFaces

1

FaceNonSelectedFacesTranslucency

0

FaceSelectAllFaces

0

FaceSelectCrossoverFaces

0

FaceSelectNegativeFaces1

0

FaceSelectNegativeFaces2

0

FaceSelectPositiveFaces1

0

FaceSelectPositiveFaces2

0

FaceSelectUndercutAreas

0

FaceSelectUndercutEdges

0

FaceSelectVerticalFaces

0

FaceSelectedFacesTranslucency

0

InformationCheckScope

FaceProperties

InformationLowerLimit

0

InformationLowerLimitR01

5.5

InformationLowerLimitR02

5

InformationLowerLimitR03

4.5

InformationLowerLimitR04

4

InformationLowerLimitR05

3.5

InformationLowerLimitR06

3

InformationLowerLimitR07

2.5

InformationLowerLimitR08

2

InformationLowerLimitR09

1.5

InformationLowerLimitR10

1

InformationLowerLimitR11

0.5

InformationLowerLimitR12

0

InformationRangeType

Uniform

InformationSharpAngleLimit

6

InformationShowBoundaryEdges

0

InformationShowRangeR01

0

InformationShowRangeR02

0

InformationShowRangeR03

0

InformationShowRangeR04

0

InformationShowRangeR05

0

InformationShowRangeR06

0

InformationShowRangeR07

0

InformationShowRangeR08

0

InformationShowRangeR09

0

InformationShowRangeR10

0

InformationShowRangeR11

0

InformationShowRangeR12

0

InformationShowSharpEdges

0

InformationUpperLimit

6

InformationUpperLimitR01

6

InformationUpperLimitR02

5.5

InformationUpperLimitR03

5

InformationUpperLimitR04

4.5

InformationUpperLimitR05

4

InformationUpperLimitR06

3.5

InformationUpperLimitR07

3

InformationUpperLimitR08

2.5

InformationUpperLimitR09

2

InformationUpperLimitR10

0.5

InformationUpperLimitR11

1

InformationUpperLimitR12

0.5

InformationUseSingleTolerance

0

RegionAssignToRegionOption

CavityRegion

RegionCavityRegionTranslucency

0

RegionCoreRegionTranslucency

0

RegionSelectCrossoverRegionFaces

0

RegionSelectCrossoverVerticalFaces

0

RegionSelectUnknownFaces

0

RegionShowIncompleteLoops

1

RegionShowInternalLoops

1

RegionShowPartingEdges

1

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::Tooling::MWMoldedPartValidationBuilder::AssignToRegion

Options for assigning faces to the Cavity or Core region.

Enumerator:

AssignToRegionCavityRegion	assign selected region faces to the Cavity region
AssignToRegionCoreRegion	assign selected region faces to the Core region

enum NXOpen::Tooling::MWMoldedPartValidationBuilder::CalculateOption

Calculation options.

Enumerator:

CalculateOptionKeepExisting	calculate and keep existing properties on the faces
CalculateOptionEditRegionsOnly	edit properties of region faces only
CalculateOptionResetAll	calculate and replace all properties for region faces

enum NXOpen::Tooling::MWMoldedPartValidationBuilder::CheckScope

Check scope for information.

Enumerator:

CheckScopeFaceProperties	face properties
CheckScopeModelProperties	model properties
CheckScopeSharpCorners	sharp corners

enum NXOpen::Tooling::MWMoldedPartValidationBuilder::RangeType

Range type for displaying small corner radius faces.

Enumerator:

RangeTypeUniform	uniform range limit values
RangeTypeRange	user-defined range limit values
RangeTypePlain	range limit values defined by tolerances

Member Function Documentation

int NXOpen::Tooling::MWMoldedPartValidationBuilder::ActiveTabPage ( )

Returns the active tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

void NXOpen::Tooling::MWMoldedPartValidationBuilder::Calculate ( )

Calculate button on the Calculate Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::Direction* NXOpen::Tooling::MWMoldedPartValidationBuilder::CalculationDrawDirection ( )

Returns the draw direction on the Calculate Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::Tooling::MWMoldedPartValidationBuilder::CalculateOption NXOpen::Tooling::MWMoldedPartValidationBuilder::CalculationOption ( )

Returns the calculation option on the Calculate Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::SelectBody* NXOpen::Tooling::MWMoldedPartValidationBuilder::CalculationProductBody ( )

Returns the product body to be analyzed on the Calculate Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceAllFacesColor ( )

Returns the color for applying to all faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceCrossoverFacesColor ( )

Returns the color for applying to the crossover faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceDraftAngleLimit ( )

Returns the draft angle limit on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceHighlightSelectedFaces ( )

Returns the option for highlighting the selected faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceNegativeFacesColor1 ( )

Returns the color for applying to the negative small radius faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceNegativeFacesColor2 ( )

Returns the color for applying to the negative faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

int NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceNonSelectedFacesTranslucency ( )

Returns the translucency for the non-selected faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::FacePositiveFacesColor1 ( )

Returns the color for applying to the positive faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::FacePositiveFacesColor2 ( )

Returns the color for applying to the positive small radius faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceSelectAllFaces ( )

Returns the option for turning on/off the selection of all faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceSelectCrossoverFaces ( )

Returns the option for turning on/off the highlight of the crossover faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

int NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceSelectedFacesTranslucency ( )

Returns the translucency for the selected faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceSelectNegativeFaces1 ( )

Returns the option for turning on/off the highlight of the negative small radius faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceSelectNegativeFaces2 ( )

Returns the option for turning on/off the highlight of the negative faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceSelectPositiveFaces1 ( )

Returns the option for turning on/off the highlight of the positive faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceSelectPositiveFaces2 ( )

Returns the option for turning on/off the highlight of the positive small radius faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceSelectUndercutAreas ( )

Returns the option for turning on/off the highlight of the undercut area faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceSelectUndercutEdges ( )

Returns the option for turning on/off the highlight of the undercut edges on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceSelectVerticalFaces ( )

Returns the option for turning on/off the highlight of the vertical faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

void NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceSetAllFacesColor ( )

Action button for setting color on all faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceUndercutAreasColor ( )

Returns the color for applying to the undercut area faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceUndercutEdgesColor ( )

Returns the color for applying to the undercut edges on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::FaceVerticalFacesColor ( )

Returns the color for applying to the vertical faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

int NXOpen::Tooling::MWMoldedPartValidationBuilder::InApplyStatus ( )

Returns the flag that indicates the Apply status of the command, needed only in the interactive environment.

0: "Apply" has not been done before; 1: "Apply" has been done before.
Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::Tooling::MWMoldedPartValidationBuilder::CheckScope NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationCheckScope ( )

Returns the check scope on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationColorR01 ( )

Returns the color of row 1 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationColorR02 ( )

Returns the color of row 2 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationColorR03 ( )

Returns the color of row 3 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationColorR04 ( )

Returns the color of row 4 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationColorR05 ( )

Returns the color of row 5 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationColorR06 ( )

Returns the color of row 6 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationColorR07 ( )

Returns the color of row 7 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationColorR08 ( )

Returns the color of row 8 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationColorR09 ( )

Returns the color of row 9 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationColorR10 ( )

Returns the color of row 10 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationColorR11 ( )

Returns the color of row 11 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationColorR12 ( )

Returns the color of row 12 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::SelectFace* NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationInspectFace ( )

Returns the face selected face for displaying the face properties.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationLowerLimit ( )

Returns the lower limit of the range limit values on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationLowerLimitR01 ( )

Returns the lower limit of row 1 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationLowerLimitR02 ( )

Returns the lower limit of row 2 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationLowerLimitR03 ( )

Returns the lower limit of row 3 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationLowerLimitR04 ( )

Returns the lower limit of row 4 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationLowerLimitR05 ( )

Returns the lower limit of row 5 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationLowerLimitR06 ( )

Returns the lower limit of row 6 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationLowerLimitR07 ( )

Returns the lower limit of row 7 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationLowerLimitR08 ( )

Returns the lower limit of row 8 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationLowerLimitR09 ( )

Returns the lower limit of row 9 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationLowerLimitR10 ( )

Returns the lower limit of row 10 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationLowerLimitR11 ( )

Returns the lower limit of row 11 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationLowerLimitR12 ( )

Returns the lower limit of row 12 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::Tooling::MWMoldedPartValidationBuilder::RangeType NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationRangeType ( )

Returns the range type on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationSharpAngleLimit ( )

Returns the sharp angle limit on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationShowBoundaryEdges ( )

Returns the option for turning on/off the highlight of the boundary edges of the sheet body on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationShowRangeR01 ( )

Returns the option of selecting the small radius faces within the range limit values of row 1 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationShowRangeR02 ( )

Returns the option of selecting the small radius faces within the range limit values of row 2 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationShowRangeR03 ( )

Returns the option of selecting the small radius faces within the range limit values of row 3 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationShowRangeR04 ( )

Returns the option of selecting the small radius faces within the range limit values of row 4 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationShowRangeR05 ( )

Returns the option of selecting the small radius faces within the range limit values of row 5 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationShowRangeR06 ( )

Returns the option of selecting the small radius faces within the range limit values of row 6 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationShowRangeR07 ( )

Returns the option of selecting the small radius faces within the range limit values of row 7 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationShowRangeR08 ( )

Returns the option of selecting the small radius faces within the range limit values of row 8 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationShowRangeR09 ( )

Returns the option of selecting the small radius faces within the range limit values of row 9 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationShowRangeR10 ( )

Returns the option of selecting the small radius faces within the range limit values of row 10 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationShowRangeR11 ( )

Returns the option of selecting the small radius faces within the range limit values of row 11 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationShowRangeR12 ( )

Returns the option of selecting the small radius faces within the range limit values of row 12 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationShowSharpEdges ( )

Returns the option for turning on/off the highlight of the sharp edges of the sheet body on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationUpperLimit ( )

Returns the upper limit on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationUpperLimitR01 ( )

Returns the upper limit of row 1 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationUpperLimitR02 ( )

Returns the upper limit of row 2 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationUpperLimitR03 ( )

Returns the upper limit of row 3 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationUpperLimitR04 ( )

Returns the upper limit of row 4 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationUpperLimitR05 ( )

Returns the upper limit of row 5 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationUpperLimitR06 ( )

Returns the upper limit of row 6 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationUpperLimitR07 ( )

Returns the upper limit of row 7 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationUpperLimitR08 ( )

Returns the upper limit of row 8 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationUpperLimitR09 ( )

Returns the upper limit of row 9 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationUpperLimitR10 ( )

Returns the upper limit of row 10 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationUpperLimitR11 ( )

Returns the upper limit of row 11 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

double NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationUpperLimitR12 ( )

Returns the upper limit of row 12 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::InformationUseSingleTolerance ( )

Returns the option for using a single tolerance for defining the range limit values on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

void NXOpen::Tooling::MWMoldedPartValidationBuilder::InitMpvData ( int changeBody )

Initialize the MPV data for performing analysis in Molded Part Validation.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

changeBody 0: No change in the selected body; 1: Change in the selected body; 2: Change in direction for the selected body.

void NXOpen::Tooling::MWMoldedPartValidationBuilder::PerformModelPropertiesCalculation ( )

Perform model properties calculation if the calculation has not been performed before.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

void NXOpen::Tooling::MWMoldedPartValidationBuilder::PerformSharpCornersCalculation ( )

Perform the sharp corners calculation if the calculation has not been performed before.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

void NXOpen::Tooling::MWMoldedPartValidationBuilder::ProcessFaceSplit ( )

Action button for invoking the Split Face command on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::Tooling::MWMoldedPartValidationBuilder::AssignToRegion NXOpen::Tooling::MWMoldedPartValidationBuilder::RegionAssignToRegionOption ( )

Returns the option for assigning the selected region faces to the cavity or core region on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::RegionCavityRegionColor ( )

Returns the color for applying to the cavity region faces on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

int NXOpen::Tooling::MWMoldedPartValidationBuilder::RegionCavityRegionTranslucency ( )

Returns the translucency for applying to the cavity region faces on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::RegionCoreRegionColor ( )

Returns the color for applying to the core region faces on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

int NXOpen::Tooling::MWMoldedPartValidationBuilder::RegionCoreRegionTranslucency ( )

Returns the translucency for applying to the core region faces on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::SelectFaceList* NXOpen::Tooling::MWMoldedPartValidationBuilder::RegionFaces ( )

Returns the faces selected for assigning to the cavity or core region.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::RegionSelectCrossoverRegionFaces ( )

Returns the option for including or removing the crossover region faces in the selection on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::RegionSelectCrossoverVerticalFaces ( )

Returns the option for including or removing the crossover vertical faces in the selection on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::RegionSelectUnknownFaces ( )

Returns the option for including or removing the unknown faces in the selection on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

void NXOpen::Tooling::MWMoldedPartValidationBuilder::RegionSetRegionsColor ( )

Action button for setting color on the cavity, core and undefined region faces on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::RegionShowIncompleteLoops ( )

Returns the option for turning on/off the highlight of the incomplete loop edges.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::RegionShowInternalLoops ( )

Returns the option for turning on/off the highlight of the internal loop edges.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

bool NXOpen::Tooling::MWMoldedPartValidationBuilder::RegionShowPartingEdges ( )

Returns the option for turning on/off the highlight of the parting edges.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

NXOpen::NXColor* NXOpen::Tooling::MWMoldedPartValidationBuilder::RegionUndefinedRegionColor ( )

Returns the color for applying to the undefined region faces on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetActiveTabPage ( int activeTabPage )

Sets the active tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

activeTabPage activetabpage

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetCalculationDrawDirection ( NXOpen::Direction * calculationDrawDirection )

Sets the draw direction on the Calculate Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

calculationDrawDirection calculationdrawdirection

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetCalculationOption ( NXOpen::Tooling::MWMoldedPartValidationBuilder::CalculateOption calculationOption )

Sets the calculation option on the Calculate Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

calculationOption calculationoption

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceAllFacesColor ( NXOpen::NXColor * faceAllFacesColor )

Sets the color for applying to all faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceAllFacesColor faceallfacescolor

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceCrossoverFacesColor ( NXOpen::NXColor * faceCrossoverFacesColor )

Sets the color for applying to the crossover faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceCrossoverFacesColor facecrossoverfacescolor

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceDraftAngleLimit ( double faceDraftAngleLimit )

Sets the draft angle limit on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceDraftAngleLimit facedraftanglelimit

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceHighlightSelectedFaces ( bool faceHighlightSelectedFaces )

Sets the option for highlighting the selected faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceHighlightSelectedFaces facehighlightselectedfaces

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceNegativeFacesColor1 ( NXOpen::NXColor * faceNegativeFacesColor1 )

Sets the color for applying to the negative small radius faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceNegativeFacesColor1 facenegativefacescolor1

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceNegativeFacesColor2 ( NXOpen::NXColor * faceNegativeFacesColor2 )

Sets the color for applying to the negative faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceNegativeFacesColor2 facenegativefacescolor2

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceNonSelectedFacesTranslucency ( int faceNonSelectedFacesTranslucency )

Sets the translucency for the non-selected faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceNonSelectedFacesTranslucency facenonselectedfacestranslucency

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFacePositiveFacesColor1 ( NXOpen::NXColor * facePositiveFacesColor1 )

Sets the color for applying to the positive faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

facePositiveFacesColor1 facepositivefacescolor1

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFacePositiveFacesColor2 ( NXOpen::NXColor * facePositiveFacesColor2 )

Sets the color for applying to the positive small radius faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

facePositiveFacesColor2 facepositivefacescolor2

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceSelectAllFaces ( bool faceSelectAllFaces )

Sets the option for turning on/off the selection of all faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceSelectAllFaces faceselectallfaces

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceSelectCrossoverFaces ( bool faceSelectCrossoverFaces )

Sets the option for turning on/off the highlight of the crossover faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceSelectCrossoverFaces faceselectcrossoverfaces

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceSelectedFacesTranslucency ( int faceSelectedFacesTranslucency )

Sets the translucency for the selected faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceSelectedFacesTranslucency faceselectedfacestranslucency

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceSelectNegativeFaces1 ( bool faceSelectNegativeFaces1 )

Sets the option for turning on/off the highlight of the negative small radius faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceSelectNegativeFaces1 faceselectnegativefaces1

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceSelectNegativeFaces2 ( bool faceSelectNegativeFaces2 )

Sets the option for turning on/off the highlight of the negative faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceSelectNegativeFaces2 faceselectnegativefaces2

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceSelectPositiveFaces1 ( bool faceSelectPositiveFaces1 )

Sets the option for turning on/off the highlight of the positive faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceSelectPositiveFaces1 faceselectpositivefaces1

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceSelectPositiveFaces2 ( bool faceSelectPositiveFaces2 )

Sets the option for turning on/off the highlight of the positive small radius faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceSelectPositiveFaces2 faceselectpositivefaces2

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceSelectUndercutAreas ( bool faceSelectUndercutAreas )

Sets the option for turning on/off the highlight of the undercut area faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceSelectUndercutAreas faceselectundercutareas

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceSelectUndercutEdges ( bool faceSelectUndercutEdges )

Sets the option for turning on/off the highlight of the undercut edges on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceSelectUndercutEdges faceselectundercutedges

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceSelectVerticalFaces ( bool faceSelectVerticalFaces )

Sets the option for turning on/off the highlight of the vertical faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceSelectVerticalFaces faceselectverticalfaces

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceUndercutAreasColor ( NXOpen::NXColor * faceUndercutAreasColor )

Sets the color for applying to the undercut area faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceUndercutAreasColor faceundercutareascolor

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceUndercutEdgesColor ( NXOpen::NXColor * faceUndercutEdgesColor )

Sets the color for applying to the undercut edges on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceUndercutEdgesColor faceundercutedgescolor

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetFaceVerticalFacesColor ( NXOpen::NXColor * faceVerticalFacesColor )

Sets the color for applying to the vertical faces on the Face Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

faceVerticalFacesColor faceverticalfacescolor

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInApplyStatus ( int inApplyStatus )

Sets the flag that indicates the Apply status of the command, needed only in the interactive environment.

0: "Apply" has not been done before; 1: "Apply" has been done before.
Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

inApplyStatus inapplystatus

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationCheckScope ( NXOpen::Tooling::MWMoldedPartValidationBuilder::CheckScope informationCheckScope )

Sets the check scope on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationCheckScope informationcheckscope

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationColorR01 ( NXOpen::NXColor * informationColorR01 )

Sets the color of row 1 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationColorR01 informationcolorr01

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationColorR02 ( NXOpen::NXColor * informationColorR02 )

Sets the color of row 2 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationColorR02 informationcolorr02

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationColorR03 ( NXOpen::NXColor * informationColorR03 )

Sets the color of row 3 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationColorR03 informationcolorr03

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationColorR04 ( NXOpen::NXColor * informationColorR04 )

Sets the color of row 4 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationColorR04 informationcolorr04

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationColorR05 ( NXOpen::NXColor * informationColorR05 )

Sets the color of row 5 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationColorR05 informationcolorr05

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationColorR06 ( NXOpen::NXColor * informationColorR06 )

Sets the color of row 6 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationColorR06 informationcolorr06

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationColorR07 ( NXOpen::NXColor * informationColorR07 )

Sets the color of row 7 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationColorR07 informationcolorr07

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationColorR08 ( NXOpen::NXColor * informationColorR08 )

Sets the color of row 8 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationColorR08 informationcolorr08

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationColorR09 ( NXOpen::NXColor * informationColorR09 )

Sets the color of row 9 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationColorR09 informationcolorr09

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationColorR10 ( NXOpen::NXColor * informationColorR10 )

Sets the color of row 10 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationColorR10 informationcolorr10

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationColorR11 ( NXOpen::NXColor * informationColorR11 )

Sets the color of row 11 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationColorR11 informationcolorr11

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationColorR12 ( NXOpen::NXColor * informationColorR12 )

Sets the color of row 12 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationColorR12 informationcolorr12

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationLowerLimit ( double informationLowerLimit )

Sets the lower limit of the range limit values on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationLowerLimit informationlowerlimit

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationLowerLimitR01 ( double informationLowerLimitR01 )

Sets the lower limit of row 1 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationLowerLimitR01 informationlowerlimitr01

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationLowerLimitR02 ( double informationLowerLimitR02 )

Sets the lower limit of row 2 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationLowerLimitR02 informationlowerlimitr02

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationLowerLimitR03 ( double informationLowerLimitR03 )

Sets the lower limit of row 3 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationLowerLimitR03 informationlowerlimitr03

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationLowerLimitR04 ( double informationLowerLimitR04 )

Sets the lower limit of row 4 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationLowerLimitR04 informationlowerlimitr04

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationLowerLimitR05 ( double informationLowerLimitR05 )

Sets the lower limit of row 5 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationLowerLimitR05 informationlowerlimitr05

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationLowerLimitR06 ( double informationLowerLimitR06 )

Sets the lower limit of row 6 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationLowerLimitR06 informationlowerlimitr06

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationLowerLimitR07 ( double informationLowerLimitR07 )

Sets the lower limit of row 7 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationLowerLimitR07 informationlowerlimitr07

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationLowerLimitR08 ( double informationLowerLimitR08 )

Sets the lower limit of row 8 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationLowerLimitR08 informationlowerlimitr08

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationLowerLimitR09 ( double informationLowerLimitR09 )

Sets the lower limit of row 9 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationLowerLimitR09 informationlowerlimitr09

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationLowerLimitR10 ( double informationLowerLimitR10 )

Sets the lower limit of row 10 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationLowerLimitR10 informationlowerlimitr10

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationLowerLimitR11 ( double informationLowerLimitR11 )

Sets the lower limit of row 11 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationLowerLimitR11 informationlowerlimitr11

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationLowerLimitR12 ( double informationLowerLimitR12 )

Sets the lower limit of row 12 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationLowerLimitR12 informationlowerlimitr12

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationRangeType ( NXOpen::Tooling::MWMoldedPartValidationBuilder::RangeType informationRangeType )

Sets the range type on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationRangeType informationrangetype

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationSharpAngleLimit ( double informationSharpAngleLimit )

Sets the sharp angle limit on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationSharpAngleLimit informationsharpanglelimit

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationShowBoundaryEdges ( bool informationShowBoundaryEdges )

Sets the option for turning on/off the highlight of the boundary edges of the sheet body on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationShowBoundaryEdges informationshowboundaryedges

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationShowRangeR01 ( bool informationShowRangeR01 )

Sets the option of selecting the small radius faces within the range limit values of row 1 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationShowRangeR01 informationshowranger01

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationShowRangeR02 ( bool informationShowRangeR02 )

Sets the option of selecting the small radius faces within the range limit values of row 2 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationShowRangeR02 informationshowranger02

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationShowRangeR03 ( bool informationShowRangeR03 )

Sets the option of selecting the small radius faces within the range limit values of row 3 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationShowRangeR03 informationshowranger03

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationShowRangeR04 ( bool informationShowRangeR04 )

Sets the option of selecting the small radius faces within the range limit values of row 4 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationShowRangeR04 informationshowranger04

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationShowRangeR05 ( bool informationShowRangeR05 )

Sets the option of selecting the small radius faces within the range limit values of row 5 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationShowRangeR05 informationshowranger05

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationShowRangeR06 ( bool informationShowRangeR06 )

Sets the option of selecting the small radius faces within the range limit values of row 6 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationShowRangeR06 informationshowranger06

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationShowRangeR07 ( bool informationShowRangeR07 )

Sets the option of selecting the small radius faces within the range limit values of row 7 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationShowRangeR07 informationshowranger07

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationShowRangeR08 ( bool informationShowRangeR08 )

Sets the option of selecting the small radius faces within the range limit values of row 8 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationShowRangeR08 informationshowranger08

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationShowRangeR09 ( bool informationShowRangeR09 )

Sets the option of selecting the small radius faces within the range limit values of row 9 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationShowRangeR09 informationshowranger09

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationShowRangeR10 ( bool informationShowRangeR10 )

Sets the option of selecting the small radius faces within the range limit values of row 10 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationShowRangeR10 informationshowranger10

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationShowRangeR11 ( bool informationShowRangeR11 )

Sets the option of selecting the small radius faces within the range limit values of row 11 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationShowRangeR11 informationshowranger11

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationShowRangeR12 ( bool informationShowRangeR12 )

Sets the option of selecting the small radius faces within the range limit values of row 12 on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationShowRangeR12 informationshowranger12

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationShowSharpEdges ( bool informationShowSharpEdges )

Sets the option for turning on/off the highlight of the sharp edges of the sheet body on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationShowSharpEdges informationshowsharpedges

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationUpperLimit ( double informationUpperLimit )

Sets the upper limit on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationUpperLimit informationupperlimit

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationUpperLimitR01 ( double informationUpperLimitR01 )

Sets the upper limit of row 1 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationUpperLimitR01 informationupperlimitr01

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationUpperLimitR02 ( double informationUpperLimitR02 )

Sets the upper limit of row 2 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationUpperLimitR02 informationupperlimitr02

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationUpperLimitR03 ( double informationUpperLimitR03 )

Sets the upper limit of row 3 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationUpperLimitR03 informationupperlimitr03

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationUpperLimitR04 ( double informationUpperLimitR04 )

Sets the upper limit of row 4 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationUpperLimitR04 informationupperlimitr04

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationUpperLimitR05 ( double informationUpperLimitR05 )

Sets the upper limit of row 5 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationUpperLimitR05 informationupperlimitr05

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationUpperLimitR06 ( double informationUpperLimitR06 )

Sets the upper limit of row 6 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationUpperLimitR06 informationupperlimitr06

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationUpperLimitR07 ( double informationUpperLimitR07 )

Sets the upper limit of row 7 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationUpperLimitR07 informationupperlimitr07

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationUpperLimitR08 ( double informationUpperLimitR08 )

Sets the upper limit of row 8 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationUpperLimitR08 informationupperlimitr08

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationUpperLimitR09 ( double informationUpperLimitR09 )

Sets the upper limit of row 9 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationUpperLimitR09 informationupperlimitr09

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationUpperLimitR10 ( double informationUpperLimitR10 )

Sets the upper limit of row 10 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationUpperLimitR10 informationupperlimitr10

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationUpperLimitR11 ( double informationUpperLimitR11 )

Sets the upper limit of row 11 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationUpperLimitR11 informationupperlimitr11

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationUpperLimitR12 ( double informationUpperLimitR12 )

Sets the upper limit of row 12 for the small radius faces on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationUpperLimitR12 informationupperlimitr12

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetInformationUseSingleTolerance ( bool informationUseSingleTolerance )

Sets the option for using a single tolerance for defining the range limit values on the Information Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

informationUseSingleTolerance informationusesingletolerance

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetRegionAssignToRegionOption ( NXOpen::Tooling::MWMoldedPartValidationBuilder::AssignToRegion regionAssignToRegionOption )

Sets the option for assigning the selected region faces to the cavity or core region on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

regionAssignToRegionOption regionassigntoregionoption

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetRegionCavityRegionColor ( NXOpen::NXColor * regionCavityRegionColor )

Sets the color for applying to the cavity region faces on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

regionCavityRegionColor regioncavityregioncolor

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetRegionCavityRegionTranslucency ( int regionCavityRegionTranslucency )

Sets the translucency for applying to the cavity region faces on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

regionCavityRegionTranslucency regioncavityregiontranslucency

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetRegionCoreRegionColor ( NXOpen::NXColor * regionCoreRegionColor )

Sets the color for applying to the core region faces on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

regionCoreRegionColor regioncoreregioncolor

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetRegionCoreRegionTranslucency ( int regionCoreRegionTranslucency )

Sets the translucency for applying to the core region faces on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

regionCoreRegionTranslucency regioncoreregiontranslucency

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetRegionSelectCrossoverRegionFaces ( bool regionSelectCrossoverRegionFaces )

Sets the option for including or removing the crossover region faces in the selection on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

regionSelectCrossoverRegionFaces regionselectcrossoverregionfaces

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetRegionSelectCrossoverVerticalFaces ( bool regionSelectCrossoverVerticalFaces )

Sets the option for including or removing the crossover vertical faces in the selection on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

regionSelectCrossoverVerticalFaces regionselectcrossoververticalfaces

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetRegionSelectUnknownFaces ( bool regionSelectUnknownFaces )

Sets the option for including or removing the unknown faces in the selection on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

regionSelectUnknownFaces regionselectunknownfaces

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetRegionShowIncompleteLoops ( bool regionShowIncompleteLoops )

Sets the option for turning on/off the highlight of the incomplete loop edges.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

regionShowIncompleteLoops regionshowincompleteloops

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetRegionShowInternalLoops ( bool regionShowInternalLoops )

Sets the option for turning on/off the highlight of the internal loop edges.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

regionShowInternalLoops regionshowinternalloops

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetRegionShowPartingEdges ( bool regionShowPartingEdges )

Sets the option for turning on/off the highlight of the parting edges.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

regionShowPartingEdges regionshowpartingedges

void NXOpen::Tooling::MWMoldedPartValidationBuilder::SetRegionUndefinedRegionColor ( NXOpen::NXColor * regionUndefinedRegionColor )

Sets the color for applying to the undefined region faces on the Region Tab page.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

Parameters

regionUndefinedRegionColor regionundefinedregioncolor

void NXOpen::Tooling::MWMoldedPartValidationBuilder::UpdateEjectDirection ( )

Update the eject direction.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

void NXOpen::Tooling::MWMoldedPartValidationBuilder::UpdateMpvData ( )

Update the MPV data used in performing analysis in Molded Part Validation whenever there are changes in data on dialog.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

void NXOpen::Tooling::MWMoldedPartValidationBuilder::UpdateSharpEdgesInformation ( )

Update the sharp edges information based on the new sharp angle limit which has been changed by the user.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

void NXOpen::Tooling::MWMoldedPartValidationBuilder::UpdateSmallRadiusFacesInformation ( )

Update the small radius faces information based on the new range limits of the radius which has been changed by the user.

Created in NX8.0.0.

License requirements : ug_mold_design ("UG MOLD") OR ug_prod_des_advisor ("Product Design Advisor") OR prog_die_wizard ("UG/Progressive Die Wizard") OR die_engineering ("DIE ENGINEERING") OR ug_die_design ("Die Design") OR nx_electrode_wizard ("NX Electrode Wizard")

The documentation for this class was generated from the following file:

Tooling_MWMoldedPartValidationBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
