Mold Wizard mold insert management builder <br> To create a new instance of this class, use @link Tooling::MoldInsertCollection::CreateMoldInsertBuilder Tooling::MoldInsertCollection::CreateMoldInsertBuilder @endlink <br>
Default values. More...

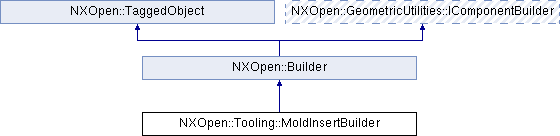

Inheritance diagram for NXOpen::Tooling::MoldInsertBuilder:
Public Types | |
| enum | BooleanType { BooleanTypeUniteSingleWorkpieces, BooleanTypeSubtractOverallWorkpieces } |
| design type: unite single workpieces, subtract overall workpieces More... | |
Public Member Functions | |
| NXOpen::Tooling::MoldInsertBuilder::BooleanType | MethodType () |
| Returns the method type Created in NX6.0.0. | |
| bool | Rename () |
| Returns the rename method Created in NX6.0.0. | |
| NXOpen::SelectBodyList * | SelectBody () |
| Returns the select body Created in NX6.0.0. | |
| void | SetMethodType (NXOpen::Tooling::MoldInsertBuilder::BooleanType methodType) |
| Sets the method type Created in NX6.0.0. | |
| void | SetRename (bool rename) |
| Sets the rename method Created in NX6.0.0. | |
 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Mold Wizard mold insert management builder <br> To create a new instance of this class, use @link Tooling::MoldInsertCollection::CreateMoldInsertBuilder Tooling::MoldInsertCollection::CreateMoldInsertBuilder @endlink <br>
Default values.
| Property | Value |
|---|---|
|
MethodType |
UniteSingleWorkpieces |
|
Rename |
0 |
Created in NX6.0.0.
Member Enumeration Documentation
Member Function Documentation
| NXOpen::Tooling::MoldInsertBuilder::BooleanType NXOpen::Tooling::MoldInsertBuilder::MethodType | ( | ) |
Returns the method type
Created in NX6.0.0.
License requirements : None
| bool NXOpen::Tooling::MoldInsertBuilder::Rename | ( | ) |
Returns the rename method
Created in NX6.0.0.
License requirements : None
| NXOpen::SelectBodyList* NXOpen::Tooling::MoldInsertBuilder::SelectBody | ( | ) |
Returns the select body
Created in NX6.0.0.
License requirements : None
| void NXOpen::Tooling::MoldInsertBuilder::SetMethodType | ( | NXOpen::Tooling::MoldInsertBuilder::BooleanType | methodType | ) |
Sets the method type
Created in NX6.0.0.
License requirements : None
- Parameters
-
methodType methodtype
| void NXOpen::Tooling::MoldInsertBuilder::SetRename | ( | bool | rename | ) |
Sets the rename method
Created in NX6.0.0.
License requirements : None
- Parameters
-
rename rename
The documentation for this class was generated from the following file:
- Tooling_MoldInsertBuilder.hxx
