Stamping Die LS-Dyna integration draw geometry preprare builder. More...

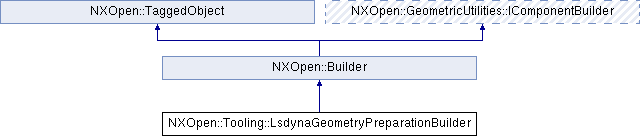

Inheritance diagram for NXOpen::Tooling::LsdynaGeometryPreparationBuilder:

Public Types
enum	BlankOption { BlankOptionSheet, BlankOptionCurve }
	the enum of blank option. More...

enum	BlankPosition { BlankPositionAboveBinder, BlankPositionAboveBinderandPunch }
	the enum of blank position. More...

enum	ContactType { ContactTypeFormingOneWaySurfaceToSurface, ContactTypeFormingOneWaySurfaceToSurfaceSmooth, ContactTypeFormingSurfaceToSurface, ContactTypeFormingSurfaceToSurfaceSmooth, ContactTypeSurfaceToSurface, ContactTypeAutomaticSurfaceToSurface }
	the enum of contact type. More...

enum	DrawBeadType { DrawBeadTypeRound, DrawBeadTypeRectangle }
	the enum of draw bead type. More...

enum	DrawType { DrawTypeSingleDraw, DrawTypeDoubleDraw }
	the enum of draw type. More...

enum	MaterialType { MaterialTypeNXMaterial, MaterialTypeLSDynaMaterial }
	the enum of material type. More...

enum	ProcessActionBinder { ProcessActionBinderStationary, ProcessActionBinderClosureWith, ProcessActionBinderFollowWith, ProcessActionBinderTravel, ProcessActionBinderUntilHome, ProcessActionBinderForce }
	the enum of process action binder type. More...

enum	ProcessActionDie { ProcessActionDieStationary, ProcessActionDieClosureWith, ProcessActionDieFollowWith, ProcessActionDieTravel, ProcessActionDieUntilHome, ProcessActionDieForce }
	the enum of process action die type. More...

enum	ProcessActionPunch { ProcessActionPunchStationary, ProcessActionPunchClosureWith, ProcessActionPunchFollowWith, ProcessActionPunchTravel, ProcessActionPunchUntilHome, ProcessActionPunchForce }
	the enum of process action punch type. More...

enum	ProcessType { ProcessTypeGravity, ProcessTypeClosing, ProcessTypeDrawing }
	the enum of process type. More...

enum	TargetBinder { TargetBinderPunch, TargetBinderBinder, TargetBinderDie }
	the enum of target binder type. More...

enum	TargetDie { TargetDiePunch, TargetDieBinder, TargetDieDie }
	the enum of target die type. More...

enum	TargetPunch { TargetPunchPunch, TargetPunchBinder, TargetPunchDie }
	the enum of target punch type. More...

Public Member Functions
bool	AutoPositionOption ()
	Returns the automatic position for punch, die and binder.

double	BinderPosition ()
	Returns the distance value to move binder.

NXOpen::SelectBody *	BinderSheet ()
	Returns the binder sheet.

NXOpen::Section *	BlankCurve ()
	Returns the blank curve.

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::BlankOption	BlankOptionType ()
	Returns the blank option.

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::BlankPosition	BlankPositionType ()
	Returns the blank position type.

double	BlankPositionValue ()
	Returns the distance value to move blank.

NXOpen::SelectBody *	BlankSheet ()
	Returns the blank sheet.

double	BlankThickness ()
	Returns the blank thickness.

double	ContactOffset ()
	Returns the contact offset.

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ContactType	ContactTypeOption ()
	Returns the contact type.

double	DiePosition ()
	Returns the distance value to move die.

NXOpen::SelectBody *	DieSheet ()
	Returns the die sheet.

NXOpen::SelectCurveList *	DrawBeadCurves ()
	Returns the draw bead profiles.

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::DrawBeadType	DrawBeadTypeOption ()
	Returns the draw bead type.

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::DrawType	DrawTypeOption ()
	Returns the draw type.

void	ExecuteMovePosition ()
	Move the position of die, punch and binder, according to Tooling::LsdynaGeometryPreparationBuilder::DiePosition , Tooling::LsdynaGeometryPreparationBuilder::PunchPosition , Tooling::LsdynaGeometryPreparationBuilder::BinderPosition settings.

void	ExecuteRestorePosition ()
	Restore the position of die, punch and binder.

double	Friction ()
	Returns the friction.

void	GetPercentageForceArray (std::vector< double > &doublePercentageForceArray)
	Gets the percentage of force.

NXString	MaterialName ()
	Returns the material name.

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::MaterialType	MaterialTypeOption ()
	Returns the material type.

double	NormalForce ()
	Returns the normal force.

double	PercentageForce ()
	Returns the percentage of force.

double	ProcessBinder ()
	Returns the value of binder process.

bool	ProcessBinderOption ()
	Returns the option of binder process.

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessActionBinder	ProcessBinderType ()
	Returns the type of binder process.

double	ProcessDie ()
	Returns the value of die process.

bool	ProcessDieOption ()
	Returns the option of die process.

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessActionDie	ProcessDieType ()
	Returns the type of die process.

double	ProcessPunch ()
	Returns the value of punch process.

bool	ProcessPunchOption ()
	Returns the option of punch process.

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessActionPunch	ProcessPunchType ()
	Returns the type of punch process.

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessType	ProcessTypeOption ()
	Returns the process type.

double	PunchPosition ()
	Returns the distance value to move punch.

NXOpen::SelectBody *	PunchSheet ()
	Returns the punch sheet.

NXOpen::Expression *	RestrainForce ()
	Returns the expression of restraining force.

void	SetAutoPositionOption (bool toggleAutoPosition)
	Sets the automatic position for punch, die and binder.

void	SetBinderPosition (double doubleBinderPosition)
	Sets the distance value to move binder.

void	SetBlankOptionType (NXOpen::Tooling::LsdynaGeometryPreparationBuilder::BlankOption enumBlankOption)
	Sets the blank option.

void	SetBlankPositionType (NXOpen::Tooling::LsdynaGeometryPreparationBuilder::BlankPosition enumBlankPosition)
	Sets the blank position type.

void	SetBlankPositionValue (double doubleBlankPosition)
	Sets the distance value to move blank.

void	SetBlankThickness (double doubleBlankThickness)
	Sets the blank thickness.

void	SetContactOffset (double doubleContactOffset)
	Sets the contact offset.

void	SetContactTypeOption (NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ContactType enumContactType)
	Sets the contact type.

void	SetDiePosition (double doubleDiePosition)
	Sets the distance value to move die.

void	SetDrawBeadCurves (const std::vector< NXOpen::Curve * > &drawBeadCurves)
	Sets the draw bead curves.

void	SetDrawBeadTypeOption (NXOpen::Tooling::LsdynaGeometryPreparationBuilder::DrawBeadType enumDrawBeadType)
	Sets the draw bead type.

void	SetDrawTypeOption (NXOpen::Tooling::LsdynaGeometryPreparationBuilder::DrawType enumDrawType)
	Sets the draw type.

void	SetFriction (double doubleFriction)
	Sets the friction.

void	SetMaterialName (const NXString &materialName)
	Sets the material name.

void	SetMaterialName (const char *materialName)
	Sets the material name.

void	SetMaterialTypeOption (NXOpen::Tooling::LsdynaGeometryPreparationBuilder::MaterialType enumMaterialType)
	Sets the material type.

void	SetNormalForce (double normalForce)
	Sets the normal force.

void	SetPercentageForce (double doublePercentageForce)
	Sets the percentage of force.

void	SetPercentageForceArray (const std::vector< double > &doublePercentageForceArray)
	Sets the percentage of force.

void	SetProcessBinder (double doubleProcessBinder)
	Sets the value of binder process.

void	SetProcessBinderOption (bool toggleProcessBinder)
	Sets the option of binder process.

void	SetProcessBinderType (NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessActionBinder enumProcessBinder)
	Sets the type of binder process.

void	SetProcessDie (double doubleProcessDie)
	Sets the value of die process.

void	SetProcessDieOption (bool toggleProcessDie)
	Sets the option of die process.

void	SetProcessDieType (NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessActionDie enumProcessDie)
	Sets the type of die process.

void	SetProcessPunch (double doubleProcessPunch)
	Sets the value of punch process.

void	SetProcessPunchOption (bool toggleProcessPunch)
	Sets the option of punch process.

void	SetProcessPunchType (NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessActionPunch enumProcessPunch)
	Sets the type of punch process.

void	SetProcessTypeOption (NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessType enumProcessType)
	Sets the process type.

void	SetPunchPosition (double doublePunchPosition)
	Sets the distance value to move punch.

void	SetTargetBinderType (NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TargetBinder enumTargetBinder)
	Sets the type of binder target.

void	SetTargetDieType (NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TargetDie enumTargetDie)
	Sets the type of die target.

void	SetTargetPunchType (NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TargetPunch enumTargetPunch)
	Sets the type of punch target.

void	SetTensileStrength (double doubleTensileStrength)
	Sets the restraining force.

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TargetBinder	TargetBinderType ()
	Returns the type of binder target.

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TargetDie	TargetDieType ()
	Returns the type of die target.

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TargetPunch	TargetPunchType ()
	Returns the type of punch target.

double	TensileStrength ()
	Returns the restraining force.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Stamping Die LS-Dyna integration draw geometry preprare builder.

To create a new instance of this class, use Tooling::AutoDieCollection::CreateLsdynaGeometryPreparationBuilder
Default values.

Property

Value

AutoPositionOption

0

BinderPosition

0

BlankOptionType

Sheet

BlankPositionType

AboveBinder

BlankPositionValue

0

BlankThickness

0

ContactOffset

0

ContactTypeOption

FormingOneWaySurfaceToSurface

DiePosition

0

DrawBeadTypeOption

Round

DrawTypeOption

SingleDraw

Friction

0.15

NormalForce

0

PercentageForce

50

ProcessBinder

0

ProcessBinderOption

0

ProcessBinderType

Stationary

ProcessDie

0

ProcessDieOption

0

ProcessDieType

Stationary

ProcessPunch

0

ProcessPunchOption

0

ProcessPunchType

Stationary

ProcessTypeOption

Closing

PunchPosition

0

RestrainForce.Value

356.5 (millimeters part), 356.5 (inches part)

TargetBinderType

Punch

TargetDieType

Punch

TargetPunchType

Punch

TensileStrength

0

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::Tooling::LsdynaGeometryPreparationBuilder::BlankOption

the enum of blank option.

Enumerator:

BlankOptionSheet	Select a sheet body as blank.
BlankOptionCurve	Select several curves to create a blank.

enum NXOpen::Tooling::LsdynaGeometryPreparationBuilder::BlankPosition

the enum of blank position.

Enumerator:

BlankPositionAboveBinder	Blank sheet body is above binder.
BlankPositionAboveBinderandPunch	Blank sheet body is above binder and punch.

enum NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ContactType

the enum of contact type.

Enumerator:

ContactTypeFormingOneWaySurfaceToSurface	The draw components contact type is forming one way surface to surface.
ContactTypeFormingOneWaySurfaceToSurfaceSmooth	The draw components contact type is forming one way surface to surface smooth.
ContactTypeFormingSurfaceToSurface	The draw components contact type is forming surface to surface.
ContactTypeFormingSurfaceToSurfaceSmooth	The draw components contact type is forming surface to surface smooth.
ContactTypeSurfaceToSurface	The draw components contact type is surface to surface.
ContactTypeAutomaticSurfaceToSurface	The draw components contact type is automatic surface to surface.

enum NXOpen::Tooling::LsdynaGeometryPreparationBuilder::DrawBeadType

the enum of draw bead type.

Enumerator:

DrawBeadTypeRound	Draw bead section has round shape.
DrawBeadTypeRectangle	Draw bead section has rectangle shape.

enum NXOpen::Tooling::LsdynaGeometryPreparationBuilder::DrawType

the enum of draw type.

Enumerator:

DrawTypeSingleDraw	For draw die, punch and binder are lower than die.
DrawTypeDoubleDraw	For draw die, punch and binder are higher than die.

enum NXOpen::Tooling::LsdynaGeometryPreparationBuilder::MaterialType

the enum of material type.

Enumerator:

MaterialTypeNXMaterial	Use NX material for LS-Dyna solver.
MaterialTypeLSDynaMaterial	Use LS-Dyna material for LS-Dyna solver.

enum NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessActionBinder

the enum of process action binder type.

Enumerator:

ProcessActionBinderStationary	The process action for binder is stationary.
ProcessActionBinderClosureWith	The process action for binder is closure with other draw components.
ProcessActionBinderFollowWith	The process action for binder is follow with other draw components.
ProcessActionBinderTravel	The process action for binder is travel to other draw components.
ProcessActionBinderUntilHome	The process action for binder is until home.
ProcessActionBinderForce	The process action for binder is by force.

enum NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessActionDie

the enum of process action die type.

Enumerator:

ProcessActionDieStationary	The process action for die is stationary.
ProcessActionDieClosureWith	The process action for die is closure with other draw components.
ProcessActionDieFollowWith	The process action for die is follow with other draw components.
ProcessActionDieTravel	The process action for die is travel to other draw components.
ProcessActionDieUntilHome	The process action for die is until home.
ProcessActionDieForce	The process action for die is by force.

enum NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessActionPunch

the enum of process action punch type.

Enumerator:

ProcessActionPunchStationary	The process action for punch is stationary.
ProcessActionPunchClosureWith	The process action for punch is closure with other draw components.
ProcessActionPunchFollowWith	The process action for punch is follow with other draw components.
ProcessActionPunchTravel	The process action for punch is travel to other draw components.
ProcessActionPunchUntilHome	The process action for punch is until home.
ProcessActionPunchForce	The process action for punch is by force.

enum NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessType

the enum of process type.

Enumerator:

ProcessTypeGravity	Blank has elastic deformation in flexible status.
ProcessTypeClosing	The process of die travels from initial position to binder.
ProcessTypeDrawing	The process of die travels from binder to punch.

enum NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TargetBinder

the enum of target binder type.

Enumerator:

TargetBinderPunch	For the process, the target of binder is punch.
TargetBinderBinder	For the process, the target of binder is binder.
TargetBinderDie	For the process, the target of binder is die.

enum NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TargetDie

the enum of target die type.

Enumerator:

TargetDiePunch	For the process, the target of die is punch.
TargetDieBinder	For the process, the target of die is binder.
TargetDieDie	For the process, the target of die is die.

enum NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TargetPunch

the enum of target punch type.

Enumerator:

TargetPunchPunch	For the process, the target of punch is punch.
TargetPunchBinder	For the process, the target of punch is binder.
TargetPunchDie	For the process, the target of punch is die.

Member Function Documentation

bool NXOpen::Tooling::LsdynaGeometryPreparationBuilder::AutoPositionOption ( )

Returns the automatic position for punch, die and binder.

Created in NX9.0.0.

License requirements : None

double NXOpen::Tooling::LsdynaGeometryPreparationBuilder::BinderPosition ( )

Returns the distance value to move binder.

Created in NX9.0.0.

License requirements : None

NXOpen::SelectBody* NXOpen::Tooling::LsdynaGeometryPreparationBuilder::BinderSheet ( )

Returns the binder sheet.

Created in NX9.0.0.

License requirements : None

NXOpen::Section* NXOpen::Tooling::LsdynaGeometryPreparationBuilder::BlankCurve ( )

Returns the blank curve.

Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::BlankOption NXOpen::Tooling::LsdynaGeometryPreparationBuilder::BlankOptionType ( )

Returns the blank option.

Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::BlankPosition NXOpen::Tooling::LsdynaGeometryPreparationBuilder::BlankPositionType ( )

Returns the blank position type.

Created in NX9.0.0.

License requirements : None

double NXOpen::Tooling::LsdynaGeometryPreparationBuilder::BlankPositionValue ( )

Returns the distance value to move blank.

Created in NX9.0.0.

License requirements : None

NXOpen::SelectBody* NXOpen::Tooling::LsdynaGeometryPreparationBuilder::BlankSheet ( )

Returns the blank sheet.

Created in NX9.0.0.

License requirements : None

double NXOpen::Tooling::LsdynaGeometryPreparationBuilder::BlankThickness ( )

Returns the blank thickness.

Created in NX9.0.0.

License requirements : None

double NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ContactOffset ( )

Returns the contact offset.

Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ContactType NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ContactTypeOption ( )

Returns the contact type.

Created in NX9.0.0.

License requirements : None

double NXOpen::Tooling::LsdynaGeometryPreparationBuilder::DiePosition ( )

Returns the distance value to move die.

Created in NX9.0.0.

License requirements : None

NXOpen::SelectBody* NXOpen::Tooling::LsdynaGeometryPreparationBuilder::DieSheet ( )

Returns the die sheet.

Created in NX9.0.0.

License requirements : None

NXOpen::SelectCurveList* NXOpen::Tooling::LsdynaGeometryPreparationBuilder::DrawBeadCurves ( )

Returns the draw bead profiles.

Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::DrawBeadType NXOpen::Tooling::LsdynaGeometryPreparationBuilder::DrawBeadTypeOption ( )

Returns the draw bead type.

Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::DrawType NXOpen::Tooling::LsdynaGeometryPreparationBuilder::DrawTypeOption ( )

Returns the draw type.

Created in NX9.0.0.

License requirements : None

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ExecuteMovePosition ( )

Move the position of die, punch and binder, according to Tooling::LsdynaGeometryPreparationBuilder::DiePosition , Tooling::LsdynaGeometryPreparationBuilder::PunchPosition , Tooling::LsdynaGeometryPreparationBuilder::BinderPosition settings.

Created in NX9.0.0.

License requirements : None

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ExecuteRestorePosition ( )

Restore the position of die, punch and binder.

Created in NX9.0.0.

License requirements : None

double NXOpen::Tooling::LsdynaGeometryPreparationBuilder::Friction ( )

Returns the friction.

Created in NX9.0.0.

License requirements : None

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::GetPercentageForceArray ( std::vector< double > & doublePercentageForceArray )

Gets the percentage of force.

Created in NX9.0.0.

License requirements : None

Parameters

doublePercentageForceArray doublepercentageforcearray

NXString NXOpen::Tooling::LsdynaGeometryPreparationBuilder::MaterialName ( )

Returns the material name.

Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::MaterialType NXOpen::Tooling::LsdynaGeometryPreparationBuilder::MaterialTypeOption ( )

Returns the material type.

Created in NX9.0.0.

License requirements : None

double NXOpen::Tooling::LsdynaGeometryPreparationBuilder::NormalForce ( )

Returns the normal force.

Created in NX9.0.0.

License requirements : None

double NXOpen::Tooling::LsdynaGeometryPreparationBuilder::PercentageForce ( )

Returns the percentage of force.

Created in NX9.0.0.

License requirements : None

double NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessBinder ( )

Returns the value of binder process.

Created in NX9.0.0.

License requirements : None

bool NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessBinderOption ( )

Returns the option of binder process.

Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessActionBinder NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessBinderType ( )

Returns the type of binder process.

Created in NX9.0.0.

License requirements : None

double NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessDie ( )

Returns the value of die process.

Created in NX9.0.0.

License requirements : None

bool NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessDieOption ( )

Returns the option of die process.

Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessActionDie NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessDieType ( )

Returns the type of die process.

Created in NX9.0.0.

License requirements : None

double NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessPunch ( )

Returns the value of punch process.

Created in NX9.0.0.

License requirements : None

bool NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessPunchOption ( )

Returns the option of punch process.

Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessActionPunch NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessPunchType ( )

Returns the type of punch process.

Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessType NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessTypeOption ( )

Returns the process type.

Created in NX9.0.0.

License requirements : None

double NXOpen::Tooling::LsdynaGeometryPreparationBuilder::PunchPosition ( )

Returns the distance value to move punch.

Created in NX9.0.0.

License requirements : None

NXOpen::SelectBody* NXOpen::Tooling::LsdynaGeometryPreparationBuilder::PunchSheet ( )

Returns the punch sheet.

Created in NX9.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Tooling::LsdynaGeometryPreparationBuilder::RestrainForce ( )

Returns the expression of restraining force.

Created in NX9.0.0.

License requirements : None

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetAutoPositionOption ( bool toggleAutoPosition )

Sets the automatic position for punch, die and binder.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

toggleAutoPosition toggleautoposition

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetBinderPosition ( double doubleBinderPosition )

Sets the distance value to move binder.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

doubleBinderPosition doublebinderposition

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetBlankOptionType ( NXOpen::Tooling::LsdynaGeometryPreparationBuilder::BlankOption enumBlankOption )

Sets the blank option.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

enumBlankOption enumblankoption

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetBlankPositionType ( NXOpen::Tooling::LsdynaGeometryPreparationBuilder::BlankPosition enumBlankPosition )

Sets the blank position type.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

enumBlankPosition enumblankposition

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetBlankPositionValue ( double doubleBlankPosition )

Sets the distance value to move blank.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

doubleBlankPosition doubleblankposition

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetBlankThickness ( double doubleBlankThickness )

Sets the blank thickness.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

doubleBlankThickness doubleblankthickness

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetContactOffset ( double doubleContactOffset )

Sets the contact offset.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

doubleContactOffset doublecontactoffset

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetContactTypeOption ( NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ContactType enumContactType )

Sets the contact type.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

enumContactType enumcontacttype

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetDiePosition ( double doubleDiePosition )

Sets the distance value to move die.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

doubleDiePosition doubledieposition

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetDrawBeadCurves ( const std::vector< NXOpen::Curve * > & drawBeadCurves )

Sets the draw bead curves.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING")

Parameters

drawBeadCurves drawbeadcurves

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetDrawBeadTypeOption ( NXOpen::Tooling::LsdynaGeometryPreparationBuilder::DrawBeadType enumDrawBeadType )

Sets the draw bead type.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

enumDrawBeadType enumdrawbeadtype

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetDrawTypeOption ( NXOpen::Tooling::LsdynaGeometryPreparationBuilder::DrawType enumDrawType )

Sets the draw type.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

enumDrawType enumdrawtype

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetFriction ( double doubleFriction )

Sets the friction.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

doubleFriction doublefriction

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetMaterialName ( const NXString & materialName )

Sets the material name.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

materialName materialname

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetMaterialName ( const char * materialName )

Sets the material name.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

materialName materialname

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetMaterialTypeOption ( NXOpen::Tooling::LsdynaGeometryPreparationBuilder::MaterialType enumMaterialType )

Sets the material type.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

enumMaterialType enummaterialtype

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetNormalForce ( double normalForce )

Sets the normal force.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

normalForce normalforce

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetPercentageForce ( double doublePercentageForce )

Sets the percentage of force.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

doublePercentageForce doublepercentageforce

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetPercentageForceArray ( const std::vector< double > & doublePercentageForceArray )

Sets the percentage of force.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

doublePercentageForceArray doublepercentageforcearray

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetProcessBinder ( double doubleProcessBinder )

Sets the value of binder process.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

doubleProcessBinder doubleprocessbinder

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetProcessBinderOption ( bool toggleProcessBinder )

Sets the option of binder process.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

toggleProcessBinder toggleprocessbinder

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetProcessBinderType ( NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessActionBinder enumProcessBinder )

Sets the type of binder process.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

enumProcessBinder enumprocessbinder

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetProcessDie ( double doubleProcessDie )

Sets the value of die process.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

doubleProcessDie doubleprocessdie

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetProcessDieOption ( bool toggleProcessDie )

Sets the option of die process.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

toggleProcessDie toggleprocessdie

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetProcessDieType ( NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessActionDie enumProcessDie )

Sets the type of die process.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

enumProcessDie enumprocessdie

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetProcessPunch ( double doubleProcessPunch )

Sets the value of punch process.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

doubleProcessPunch doubleprocesspunch

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetProcessPunchOption ( bool toggleProcessPunch )

Sets the option of punch process.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

toggleProcessPunch toggleprocesspunch

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetProcessPunchType ( NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessActionPunch enumProcessPunch )

Sets the type of punch process.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

enumProcessPunch enumprocesspunch

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetProcessTypeOption ( NXOpen::Tooling::LsdynaGeometryPreparationBuilder::ProcessType enumProcessType )

Sets the process type.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

enumProcessType enumprocesstype

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetPunchPosition ( double doublePunchPosition )

Sets the distance value to move punch.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

doublePunchPosition doublepunchposition

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetTargetBinderType ( NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TargetBinder enumTargetBinder )

Sets the type of binder target.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

enumTargetBinder enumtargetbinder

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetTargetDieType ( NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TargetDie enumTargetDie )

Sets the type of die target.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

enumTargetDie enumtargetdie

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetTargetPunchType ( NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TargetPunch enumTargetPunch )

Sets the type of punch target.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

enumTargetPunch enumtargetpunch

void NXOpen::Tooling::LsdynaGeometryPreparationBuilder::SetTensileStrength ( double doubleTensileStrength )

Sets the restraining force.

Created in NX9.0.0.

License requirements : die_engineering ("DIE ENGINEERING") OR prog_die_wizard ("UG/Progressive Die Wizard")

Parameters

doubleTensileStrength doubletensilestrength

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TargetBinder NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TargetBinderType ( )

Returns the type of binder target.

Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TargetDie NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TargetDieType ( )

Returns the type of die target.

Created in NX9.0.0.

License requirements : None

NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TargetPunch NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TargetPunchType ( )

Returns the type of punch target.

Created in NX9.0.0.

License requirements : None

double NXOpen::Tooling::LsdynaGeometryPreparationBuilder::TensileStrength ( )

Returns the restraining force.

Created in NX9.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Tooling_LsdynaGeometryPreparationBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
