Used to import an STL file into the work part. More...

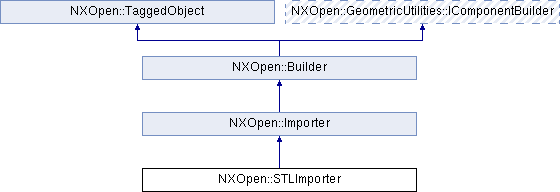

Inheritance diagram for NXOpen::STLImporter:

Public Types
enum	AngularToleranceType { AngularToleranceTypeCoarse, AngularToleranceTypeMedium, AngularToleranceTypeFine }
	Specifies the angular tolerance. More...

enum	FileFormatType { FileFormatTypeAscii, FileFormatTypeBinary }
	Specifies the STL file format. More...

enum	FileUnitsType { FileUnitsTypeMeters, FileUnitsTypeMillimeters, FileUnitsTypeInches }
	Specifies the STL file units. More...

Public Member Functions
NXOpen::STLImporter::AngularToleranceType	AngularTolerance ()
	Returns the angular tolerance.

bool	DisplayInformation ()
	Returns the Display Information flag.

NXOpen::STLImporter::FileFormatType	FileFormat ()
	Returns the file format.

NXOpen::STLImporter::FileUnitsType	FileUnits ()
	Returns the file units.

bool	HideSmoothEdges ()
	Returns the Hide Smooth Edges flag.

void	SetAngularTolerance (NXOpen::STLImporter::AngularToleranceType angularTolerance)
	Sets the angular tolerance.

void	SetDisplayInformation (bool displayInformation)
	Sets the Display Information flag.

void	SetFileFormat (NXOpen::STLImporter::FileFormatType fileFormat)
	Sets the file format.

void	SetFileUnits (NXOpen::STLImporter::FileUnitsType fileUnits)
	Sets the file units.

void	SetHideSmoothEdges (bool hideSmoothEdges)
	Sets the Hide Smooth Edges flag.

Public Member Functions inherited from NXOpen::Importer
NXString	FileName ()
	Returns the name of the file containing the data to import.

void	SetFileName (const NXString &fileName)
	Sets the name of the file containing the data to import.

void	SetFileName (const char *fileName)
	Sets the name of the file containing the data to import.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Used to import an STL file into the work part.

To obtain an instance of this class use ImportManager::CreateStlImporter .

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::STLImporter::AngularToleranceType

Specifies the angular tolerance.

Created in NX5.0.0.

Enumerator:

AngularToleranceTypeCoarse	Import with coarse angular tolerance.
AngularToleranceTypeMedium	Import with medium angular tolerance.
AngularToleranceTypeFine	Import with fine angular tolerance.

enum NXOpen::STLImporter::FileFormatType

Specifies the STL file format.

Created in NX5.0.0.

Enumerator:

FileFormatTypeAscii	STL file is in ASCII format.
FileFormatTypeBinary	STL file is in binary format.

enum NXOpen::STLImporter::FileUnitsType

Specifies the STL file units.

Created in NX5.0.0.

Enumerator:

FileUnitsTypeMeters	STL file is in units of meters.
FileUnitsTypeMillimeters	STL file is in units of millimeters.
FileUnitsTypeInches	STL file is in units of inches.
