Represents a sketch offset constraint
Use SketchCollection::CreateSketchOffsetBuilder to create an instance of this class. More...

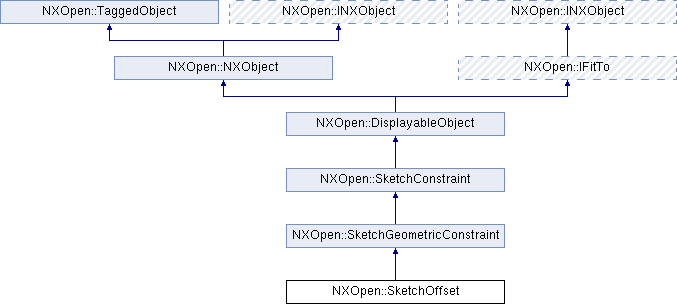

Inheritance diagram for NXOpen::SketchOffset:

Public Types
enum	CapType { CapTypeExtension, CapTypeArc }
	Represents the cap type of the offset. More...

Additional Inherited Members
Public Member Functions inherited from NXOpen::SketchGeometricConstraint
std::vector < NXOpen::Sketch::ConstraintGeometry >	GetGeometry ()
	Returns the geometry associated with the constraint.

bool	IsInferred ()
	Returns a flag indicating whether the constraint is an inferred constraint Created in NX3.0.0.

Detailed Description

Represents a sketch offset constraint
Use SketchCollection::CreateSketchOffsetBuilder to create an instance of this class.

Created in NX5.0.0.

Member Enumeration Documentation

Represents the cap type of the offset.

Enumerator:

CapTypeExtension	The cap type is curve extension.
CapTypeArc	The cap type is arc cap.
