Represents Routing Electrical ShieldStockDefinition object
Creator not available in KF.
More...

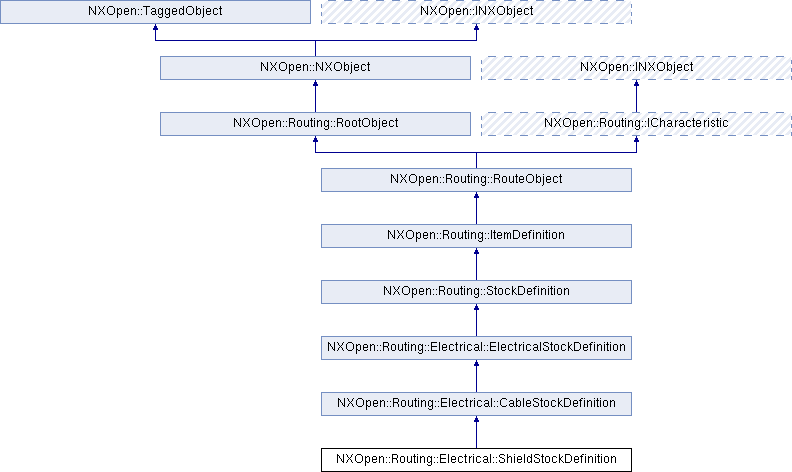

Inheritance diagram for NXOpen::Routing::Electrical::ShieldStockDefinition:
Additional Inherited Members | |
 Public Types inherited from NXOpen::Routing::Electrical::ElectricalStockDefinition | |
| enum | SectionType { SectionTypeCircular, SectionTypeRectangular } |
| Stock section type. More... | |
| Public Member Functions inherited from NXOpen::Routing::Electrical::CableStockDefinition | |
| int | CableLocation () |
| Returns the cable stock's location Created in NX4.0.2. | |
| double | CoverThickness () |
| Returns the thickness of the cable's covering. | |
| void | SetCableLocation (int locationValue) |
| Sets the cable stock's location Created in NX5.0.0. | |
| void | SetCoverThickness (double thicknessValue) |
| Sets the thickness of the cable's covering. | |
| void | SetWireSpacing (double spacingValue) |
| Sets the separation between wires in a cable. | |
| double | WireSpacing () |
| Returns the separation between wires in a cable. | |
Detailed Description
Represents Routing Electrical ShieldStockDefinition object
Creator not available in KF.
Created in NX4.0.2.
The documentation for this class was generated from the following file:
- Routing_Electrical_ShieldStockDefinition.hxx
