NXOpen::Routing::Electrical::ElectricalDeviceRelationship Class Reference

Represents a relationship between Routing Electrical devices. More...

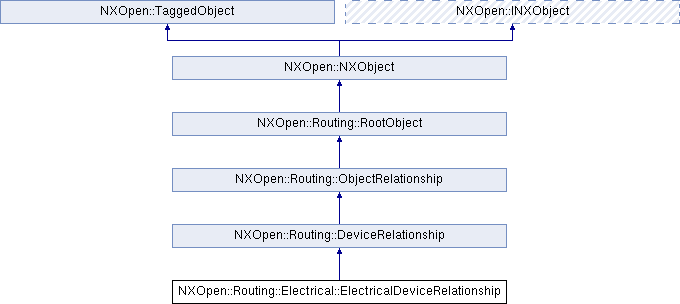

Inheritance diagram for NXOpen::Routing::Electrical::ElectricalDeviceRelationship:

Additional Inherited Members
Public Types inherited from NXOpen::Routing::DeviceRelationship
enum	RelationType { RelationTypeAssociatedEquipment }
	Specifies the nature of the relationship between the related and relating objects. More...
Public Member Functions inherited from NXOpen::Routing::DeviceRelationship
void	AddRelatedSingleDevice (NXOpen::Routing::SingleDevice *relatedDevice)
	Adds a Routing::SingleDevice to the collection of related Routing::SingleDevice objects.
std::vector < NXOpen::Routing::SingleDevice * >	GetRelatedSingleDevices ()
	Returns the list of related Routing::SingleDevice objects.
NXOpen::Routing::SingleDevice *	GetRelatingSingleDevice ()
	Returns the one Routing::SingleDevice to which the other Routing::SingleDevice objects are related.
NXOpen::Routing::DeviceRelationship::RelationType	RelationshipType ()
	Returns the type of the relationship.
void	RemoveRelatedSingleDevice (NXOpen::Routing::SingleDevice *relatedDevice)
	Removes a Routing::SingleDevice from the collection of related Routing::SingleDevice objects.
void	ReplaceRelatedSingleDevices (const std::vector< NXOpen::Routing::SingleDevice * > &relatedDevices)
	Replaces the collection of related Routing::SingleDevice objects.
void	SetRelatingSingleDevice (NXOpen::Routing::SingleDevice *relatingDevice)
	Sets the one Relating Routing::SingleDevice .
void	SetRelationshipType (NXOpen::Routing::DeviceRelationship::RelationType relationshipType)
	Sets the type of the relationship.

Detailed Description

Represents a relationship between Routing Electrical devices.

       <br>
        Use this class to associate electrical connectors to electrical equipment outside of a harness.
       <br>
       @code
       (example)
           Use an ElectricalDeviceRelationship to represent connectors C1 and C2 mounted on a piece of equipment, D1.
           The Relating object is D1 and the Related objects are C1 and C2.
       @endcode
    <br> To create a new instance of this class, use @link Routing::Electrical::ElectricalDeviceRelationshipCollection::CreateElectricalDeviceRelationship  Routing::Electrical::ElectricalDeviceRelationshipCollection::CreateElectricalDeviceRelationship @endlink  <br>

Created in NX4.0.2.

---

The documentation for this class was generated from the following file:

• Routing_Electrical_ElectricalDeviceRelationship.hxx
