Creates attibutemembers builder object to add to the search criteria list used by FindByAttributesBuilder
To create a new instance of this class, use Routing::FindByAttributesBuilder::AttributeMembersBuilder

Created in NX8.5.0. More...

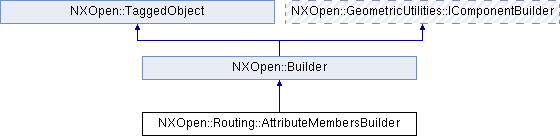

Inheritance diagram for NXOpen::Routing::AttributeMembersBuilder:

Public Member Functions
NXString	AttributeName ()
	Returns the string containing attribute title to search for Created in NX8.5.0.

NXString	AttributeValue ()
	Returns the string containing attribute value to search for Created in NX8.5.0.

void	SetAttributeName (const NXString &attributeName)
	Sets the string containing attribute title to search for Created in NX8.5.0.

void	SetAttributeName (const char *attributeName)
	Sets the string containing attribute title to search for Created in NX8.5.0.

void	SetAttributeValue (const NXString &attributeValue)
	Sets the string containing attribute value to search for Created in NX8.5.0.

void	SetAttributeValue (const char *attributeValue)
	Sets the string containing attribute value to search for Created in NX8.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Creates attibutemembers builder object to add to the search criteria list used by FindByAttributesBuilder
To create a new instance of this class, use Routing::FindByAttributesBuilder::AttributeMembersBuilder

Created in NX8.5.0.
