Records / queries view section preferences. More...
Public Member Functions | |
| bool | LoadExact () |
| Returns the load exact geometry on a save section curves operation view section preference. | |
| void | SetDefaults () |
| Set current view section preferences to the default customer default values. | |
| void | SetLoadExact (bool loadExact) |
| Sets the load exact geometry on a save section curves operation view section preference. | |
| void | SetTranslucentPlanes (bool translucentPlanes) |
| Sets the translucent plane setting view section preference. | |
| bool | TranslucentPlanes () |
| Returns the translucent plane setting view section preference. | |

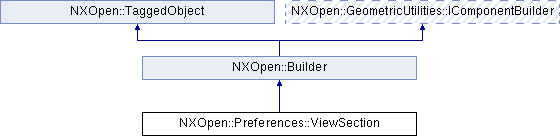

 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Records / queries view section preferences.
To obtain a instance of this class use Preferences::SessionPreferences::CreateViewSectionPreference
Created in NX7.5.0.
Member Function Documentation
| bool NXOpen::Preferences::ViewSection::LoadExact | ( | ) |
Returns the load exact geometry on a save section curves operation view section preference.
Created in NX7.5.0.
License requirements : None
| void NXOpen::Preferences::ViewSection::SetDefaults | ( | ) |
Set current view section preferences to the default customer default values.
Created in NX7.5.0.
License requirements : None
| void NXOpen::Preferences::ViewSection::SetLoadExact | ( | bool | loadExact | ) |
Sets the load exact geometry on a save section curves operation view section preference.
Created in NX7.5.0.
License requirements : None
- Parameters
-
loadExact loadexact
| void NXOpen::Preferences::ViewSection::SetTranslucentPlanes | ( | bool | translucentPlanes | ) |
Sets the translucent plane setting view section preference.
Created in NX7.5.0.
License requirements : None
- Parameters
-
translucentPlanes translucentplanes
| bool NXOpen::Preferences::ViewSection::TranslucentPlanes | ( | ) |
Returns the translucent plane setting view section preference.
Created in NX7.5.0.
License requirements : None
The documentation for this class was generated from the following file:
- Preferences_ViewSection.hxx
