Represents a Preferences::LoadDraftingStandardBuilder
To create a new instance of this class, use Preferences::DraftingPreferenceManager::CreateLoadDraftingStandardBuilder
Created in NX5.0.0.
More...
Public Types | |
| enum | LoadLevel { LoadLevelShipped, LoadLevelSite, LoadLevelGroup, LoadLevelUser } |
| This enum is for the load level. More... | |
Public Member Functions | |
| NXOpen::Preferences::LoadDraftingStandardBuilder::LoadLevel | Level () |
| Returns the standard level Created in NX5.0.0. | |
| NXString | Name () |
| Returns the standard name Created in NX5.0.0. | |
| void | SetLevel (NXOpen::Preferences::LoadDraftingStandardBuilder::LoadLevel level) |
| Sets the standard level Created in NX5.0.0. | |
| void | SetName (const NXString &name) |
| Sets the standard name Created in NX5.0.0. | |
| void | SetName (const char *name) |
| Sets the standard name Created in NX5.0.0. | |
| void | SetWelcomeMode (bool welcomeMode) |
| Sets the welcome mode Created in NX8.0.0. | |
| bool | WelcomeMode () |
| Returns the welcome mode Created in NX8.0.0. | |

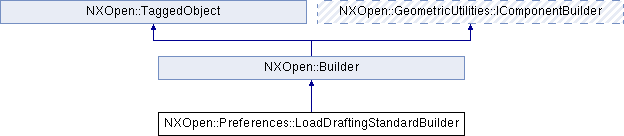

 Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a Preferences::LoadDraftingStandardBuilder
To create a new instance of this class, use Preferences::DraftingPreferenceManager::CreateLoadDraftingStandardBuilder
Created in NX5.0.0.
Member Enumeration Documentation
Member Function Documentation
| NXOpen::Preferences::LoadDraftingStandardBuilder::LoadLevel NXOpen::Preferences::LoadDraftingStandardBuilder::Level | ( | ) |
Returns the standard level
Created in NX5.0.0.
License requirements : None
| NXString NXOpen::Preferences::LoadDraftingStandardBuilder::Name | ( | ) |
Returns the standard name
Created in NX5.0.0.
License requirements : None
| void NXOpen::Preferences::LoadDraftingStandardBuilder::SetLevel | ( | NXOpen::Preferences::LoadDraftingStandardBuilder::LoadLevel | level | ) |
Sets the standard level
Created in NX5.0.0.
License requirements : None
- Parameters
-
level level
| void NXOpen::Preferences::LoadDraftingStandardBuilder::SetName | ( | const NXString & | name | ) |
Sets the standard name
Created in NX5.0.0.
License requirements : None
- Parameters
-
name name
| void NXOpen::Preferences::LoadDraftingStandardBuilder::SetName | ( | const char * | name | ) |
Sets the standard name
Created in NX5.0.0.
License requirements : None
- Parameters
-
name name
| void NXOpen::Preferences::LoadDraftingStandardBuilder::SetWelcomeMode | ( | bool | welcomeMode | ) |
Sets the welcome mode
Created in NX8.0.0.
License requirements : None
- Parameters
-
welcomeMode welcomemode
| bool NXOpen::Preferences::LoadDraftingStandardBuilder::WelcomeMode | ( | ) |
Returns the welcome mode
Created in NX8.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- Preferences_LoadDraftingStandardBuilder.hxx
