Used to import a part into the work part. More...

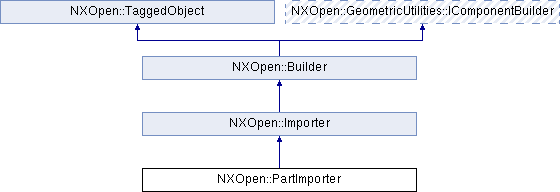

Inheritance diagram for NXOpen::PartImporter:

Public Types
enum	DestinationCoordinateSystemSpecificationType { DestinationCoordinateSystemSpecificationTypeWork, DestinationCoordinateSystemSpecificationTypeSpecified }
	Specifies the destination coordinate system specification. More...

enum	LayerOptionType { LayerOptionTypeWork, LayerOptionTypeOriginal }
	Specifies on which layer to import a part. More...

Public Member Functions
bool	CreateNamedGroup ()
	Returns the Create Named Group flag.

NXOpen::NXMatrix *	DestinationCoordinateSystem ()
	Returns the destination coordinate system.

NXOpen::PartImporter::DestinationCoordinateSystemSpecificationType	DestinationCoordinateSystemSpecification ()
	Returns the destination coordinate system specification.

NXOpen::Point3d	DestinationPoint ()
	Returns the destination point.

bool	ImportCamObjects ()
	Returns the Import CAM Objects flag.

bool	ImportViews ()
	Returns the Import Views flag.

NXOpen::PartImporter::LayerOptionType	LayerOption ()
	Returns the layer option.

double	Scale ()
	Returns the scale.

void	SetCreateNamedGroup (bool createNamedGroup)
	Sets the Create Named Group flag.

void	SetDestinationCoordinateSystem (NXOpen::NXMatrix *destinationCoordinateSystem)
	Sets the destination coordinate system.

void	SetDestinationCoordinateSystemSpecification (NXOpen::PartImporter::DestinationCoordinateSystemSpecificationType destinationCoordinateSystemSpecification)
	Sets the destination coordinate system specification.

void	SetDestinationPoint (const NXOpen::Point3d &destinationPoint)
	Sets the destination point.

void	SetImportCamObjects (bool importCamObjects)
	Sets the Import CAM Objects flag.

void	SetImportViews (bool importViews)
	Sets the Import Views flag.

void	SetLayerOption (NXOpen::PartImporter::LayerOptionType layerOption)
	Sets the layer option.

void	SetScale (double scale)
	Sets the scale.

void	SetSpecifiedCoordinateSystem (NXOpen::CoordinateSystem *specifiedCoordinateSystem)
	Sets the specified coordinate system.

void	SetSpecifiedCoordinateSystem (NXOpen::CoordinateSystem *specifiedCoordinateSystem, bool deleteSpecifiedCoordinateSystem)
	Sets the specified coordinate system.

Public Member Functions inherited from NXOpen::Importer
NXString	FileName ()
	Returns the name of the file containing the data to import.

void	SetFileName (const NXString &fileName)
	Sets the name of the file containing the data to import.

void	SetFileName (const char *fileName)
	Sets the name of the file containing the data to import.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Used to import a part into the work part.

The imported part can be an NX part or a foreign part, e.g. an I-DEAS, CATIA, or Teamcenter Visualization part.
To obtain an instance of this class use ImportManager::CreatePartImporter .

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::PartImporter::DestinationCoordinateSystemSpecificationType

Specifies the destination coordinate system specification.

Created in NX5.0.0.

Enumerator:

DestinationCoordinateSystemSpecificationTypeWork	Use Work Coordinate System.
DestinationCoordinateSystemSpecificationTypeSpecified	Use specified coordinate system.

enum NXOpen::PartImporter::LayerOptionType

Specifies on which layer to import a part.

Created in NX5.0.0.

Enumerator:

LayerOptionTypeWork	Import part on work layer.
LayerOptionTypeOriginal	Import part on original layers.
