Represents a @link Motion::PointOnCurveBuilder Motion::PointOnCurveBuilder@endlink
 <br> To create a new instance of this class, use @link Motion::PointOnCurveCollection::CreatePointOnCurveBuilder  Motion::PointOnCurveCollection::CreatePointOnCurveBuilder @endlink  <br>

Default values. More...

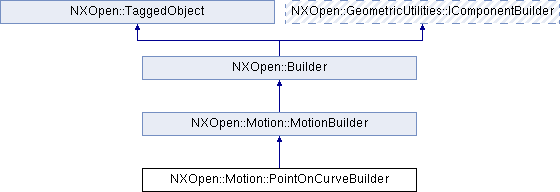

Inheritance diagram for NXOpen::Motion::PointOnCurveBuilder:

Public Member Functions
NXOpen::Motion::CurveParameterizedTypes	CurveParameterizedType ()
	Returns the curve parameterized type Created in NX8.0.0.

std::vector< NXOpen::NXObject * >	GetCurves ()
	Returns the curves.

NXOpen::Motion::SelectLink *	Link ()
	Returns the action link Created in NX8.0.0.

NXString	Name ()
	Returns the name Created in NX6.0.0.

NXOpen::Point *	Point ()
	Returns the selected point Created in NX6.0.0.

void	SetCurveParameterizedType (NXOpen::Motion::CurveParameterizedTypes curveParameterizedType)
	Sets the curve parameterized type Created in NX8.0.0.

void	SetCurves (const std::vector< NXOpen::NXObject * > &curves)
	Sets the curves Created in NX6.0.0.

void	SetName (const NXString &name)
	Sets the name Created in NX6.0.0.

void	SetName (const char *name)
	Sets the name Created in NX6.0.0.

void	SetPoint (NXOpen::Point *point)
	Sets the selected point Created in NX6.0.0.

NXOpen::Expression *	SpacingExpression ()
	Returns the user defined spacing Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Motion::MotionBuilder
double	DisplayScale ()
	Returns the icon display scale Created in NX5.0.0.

NXString	GroupName ()
	Returns the group name Created in NX5.0.0.

NXOpen::Motion::MotionObject::GroupType	GroupType ()
	Returns the group type Created in NX5.0.0.

void	SetDisplayScale (double displayScale)
	Sets the icon display scale Created in NX5.0.0.

void	SetGroupName (const NXString &groupName)
	Sets the group name Created in NX5.0.0.

void	SetGroupName (const char *groupName)
	Sets the group name Created in NX5.0.0.

void	SetGroupType (NXOpen::Motion::MotionObject::GroupType groupType)
	Sets the group type Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Motion::PointOnCurveBuilder Motion::PointOnCurveBuilder@endlink
 <br> To create a new instance of this class, use @link Motion::PointOnCurveCollection::CreatePointOnCurveBuilder  Motion::PointOnCurveCollection::CreatePointOnCurveBuilder @endlink  <br>

Default values.

Property

Value

CurveParameterizedType

Spacing

Created in NX6.0.0.

Member Function Documentation

NXOpen::Motion::CurveParameterizedTypes NXOpen::Motion::PointOnCurveBuilder::CurveParameterizedType ( )

Returns the curve parameterized type
Created in NX8.0.0.

License requirements : None

std::vector<NXOpen::NXObject *> NXOpen::Motion::PointOnCurveBuilder::GetCurves ( )

Returns the curves.

Returns: curve or edge
Created in NX6.0.0.

License requirements : None

NXOpen::Motion::SelectLink* NXOpen::Motion::PointOnCurveBuilder::Link ( )

Returns the action link
Created in NX8.0.0.

License requirements : None

NXString NXOpen::Motion::PointOnCurveBuilder::Name ( )

Returns the name
Created in NX6.0.0.

License requirements : None

NXOpen::Point* NXOpen::Motion::PointOnCurveBuilder::Point ( )

Returns the selected point
Created in NX6.0.0.

License requirements : None

void NXOpen::Motion::PointOnCurveBuilder::SetCurveParameterizedType ( NXOpen::Motion::CurveParameterizedTypes curveParameterizedType )

Sets the curve parameterized type
Created in NX8.0.0.
