This is the builder class to create or edit a Measure object. More...

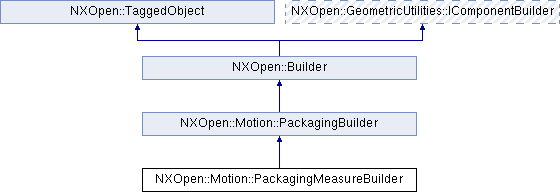

Inheritance diagram for NXOpen::Motion::PackagingMeasureBuilder:

Classes
struct	GeometryData
	Represents geometry data. More...

Public Types
enum	MeasureCondition { MeasureConditionLessThan, MeasureConditionGreaterThan, MeasureConditionEqualTo }
	Measure condition. More...

enum	MeasureType { MeasureTypeMinimumDistance, MeasureTypeAngle }
	Measure type. More...

Public Member Functions
NXOpen::Motion::PackagingMeasureBuilder::MeasureCondition	Condition ()
	Returns the measure condition defined at Motion::PackagingMeasureBuilder::MeasureCondition Created in NX4.0.0.

std::vector < NXOpen::DisplayableObject * >	GetList2 ()
	Returns the geometry list 2 of Motion::PackagingMeasure object.

void	GetSourceList (std::vector< NXOpen::Motion::PackagingMeasureBuilder::GeometryData > &sourceGeometryData)
	Gets the source geometry data.

void	GetTargetList (std::vector< NXOpen::Motion::PackagingMeasureBuilder::GeometryData > &targetGeometryData)
	Gets the target geometry data.

NXOpen::Motion::PackagingMeasureBuilder::MeasureType	MsType ()
	Returns the Measure type defined at Motion::PackagingMeasureBuilder::MeasureType Created in NX4.0.0.

void	SetCondition (NXOpen::Motion::PackagingMeasureBuilder::MeasureCondition condition)
	Sets the measure condition defined at Motion::PackagingMeasureBuilder::MeasureCondition Created in NX4.0.0.

void	SetList2 (const std::vector< NXOpen::DisplayableObject * > &list2)
	Sets the geometry list 2.

void	SetMsType (NXOpen::Motion::PackagingMeasureBuilder::MeasureType mType)
	Sets the Measure type defined at Motion::PackagingMeasureBuilder::MeasureType Created in NX4.0.0.

void	SetSourceList (const std::vector< NXOpen::Motion::PackagingMeasureBuilder::GeometryData > &sourceGeometryData)
	Sets the source geometry data.

void	SetStopOnEvent (bool stopOnEvent)
	Sets the Stop_On_Event flag of Motion::PackagingMeasure object Created in NX4.0.0.

void	SetTargetList (const std::vector< NXOpen::Motion::PackagingMeasureBuilder::GeometryData > &targetGeometryData)
	Sets the target geometry data.

void	SetThreshold (double threshold)
	Sets the Measure threshold value

void	SetTolerance (double tolerance)
	Sets the Measure tolerance value

bool	StopOnEvent ()
	Returns the Stop_On_Event flag of Motion::PackagingMeasure object Created in NX4.0.0.

double	Threshold ()
	Returns the Measure threshold value

NXOpen::Expression *	ThresholdAngleExpression ()
	Returns the Measure angular threshold expression value Created in NX8.0.0.

NXOpen::Expression *	ThresholdExpression ()
	Returns the Measure threshold expression value Created in NX8.0.0.

double	Tolerance ()
	Returns the Measure tolerance value

NXOpen::Expression *	ToleranceAngleExpression ()
	Returns the Measure angular tolerance expression value Created in NX8.0.0.

NXOpen::Expression *	ToleranceExpression ()
	Returns the Measure tolerance expression value Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Motion::PackagingBuilder
bool	Enable ()
	Returns the enable flag of Packaging object.

std::vector < NXOpen::DisplayableObject * >	GetList1 ()
	Returns geometry list 1 of Packaging object.

NXString	Name ()
	Returns the name of Packaging object.

void	SetEnable (bool enable)
	Sets the enable flag of Packaging object.

void	SetList1 (const std::vector< NXOpen::DisplayableObject * > &list1)
	Sets geometry list 1.

void	SetName (const NXString &name)
	Sets the name of Packaging object.

void	SetName (const char *name)
	Sets the name of Packaging object.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This is the builder class to create or edit a Measure object.

To create a new instance of this class, use Motion::PackagingCollection::CreateMeasureBuilder

Created in NX4.0.0.

Member Enumeration Documentation

enum NXOpen::Motion::PackagingMeasureBuilder::MeasureCondition

Measure condition.

Enumerator:

MeasureConditionLessThan	Stop event defined by minimum measurement less than threshold value.
MeasureConditionGreaterThan	Stop event defined by minimum measurement greater than threshold value.
MeasureConditionEqualTo	Stop event defined by minimum measurement equal to threshold (target) value.

enum NXOpen::Motion::PackagingMeasureBuilder::MeasureType

Measure type.

Enumerator:

MeasureTypeMinimumDistance	Measure minimum distance between objects.
MeasureTypeAngle	Measure angle between lines or linear edges.

Member Function Documentation

NXOpen::Motion::PackagingMeasureBuilder::MeasureCondition NXOpen::Motion::PackagingMeasureBuilder::Condition ( )

Returns the measure condition defined at Motion::PackagingMeasureBuilder::MeasureCondition
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

std::vector<NXOpen::DisplayableObject *> NXOpen::Motion::PackagingMeasureBuilder::GetList2 ( )

Returns the geometry list 2 of Motion::PackagingMeasure object.

   Measure can have one or two lists defined.  If the user
   defines two lists, then measurements will be done between
   each object in list 1 against each object in list 2.  @return

Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

void NXOpen::Motion::PackagingMeasureBuilder::GetSourceList ( std::vector< NXOpen::Motion::PackagingMeasureBuilder::GeometryData > & sourceGeometryData )

Gets the source geometry data.

Created in NX7.5.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

sourceGeometryData Source geometry data

void NXOpen::Motion::PackagingMeasureBuilder::GetTargetList ( std::vector< NXOpen::Motion::PackagingMeasureBuilder::GeometryData > & targetGeometryData )

Gets the target geometry data.

Created in NX7.5.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

targetGeometryData Target geometry data

NXOpen::Motion::PackagingMeasureBuilder::MeasureType NXOpen::Motion::PackagingMeasureBuilder::MsType ( )

Returns the Measure type defined at Motion::PackagingMeasureBuilder::MeasureType
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

void NXOpen::Motion::PackagingMeasureBuilder::SetCondition ( NXOpen::Motion::PackagingMeasureBuilder::MeasureCondition condition )

Sets the measure condition defined at Motion::PackagingMeasureBuilder::MeasureCondition
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

condition condition

void NXOpen::Motion::PackagingMeasureBuilder::SetList2 ( const std::vector< NXOpen::DisplayableObject * > & list2 )

Sets the geometry list 2.

Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

list2 list2

void NXOpen::Motion::PackagingMeasureBuilder::SetMsType ( NXOpen::Motion::PackagingMeasureBuilder::MeasureType mType )

Sets the Measure type defined at Motion::PackagingMeasureBuilder::MeasureType
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

mType m type

void NXOpen::Motion::PackagingMeasureBuilder::SetSourceList ( const std::vector< NXOpen::Motion::PackagingMeasureBuilder::GeometryData > & sourceGeometryData )

Sets the source geometry data.

Created in NX7.5.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

sourceGeometryData Source geometry data

void NXOpen::Motion::PackagingMeasureBuilder::SetStopOnEvent ( bool stopOnEvent )

Sets the Stop_On_Event flag of Motion::PackagingMeasure object
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

stopOnEvent stop on event

void NXOpen::Motion::PackagingMeasureBuilder::SetTargetList ( const std::vector< NXOpen::Motion::PackagingMeasureBuilder::GeometryData > & targetGeometryData )

Sets the target geometry data.

Created in NX7.5.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

targetGeometryData Target geometry data

void NXOpen::Motion::PackagingMeasureBuilder::SetThreshold ( double threshold )

Sets the Measure threshold value

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::PackagingMeasureBuilder::ThresholdExpression or Motion::PackagingMeasureBuilder::ThresholdAngleExpression to query or edit it.

Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

threshold threshold

void NXOpen::Motion::PackagingMeasureBuilder::SetTolerance ( double tolerance )

Sets the Measure tolerance value

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::PackagingMeasureBuilder::ToleranceExpression or Motion::PackagingMeasureBuilder::ToleranceAngleExpression to query or edit it.

Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

tolerance tolerance

bool NXOpen::Motion::PackagingMeasureBuilder::StopOnEvent ( )

Returns the Stop_On_Event flag of Motion::PackagingMeasure object
Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

double NXOpen::Motion::PackagingMeasureBuilder::Threshold ( )

Returns the Measure threshold value

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::PackagingMeasureBuilder::ThresholdExpression or Motion::PackagingMeasureBuilder::ThresholdAngleExpression to query or edit it.

Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

NXOpen::Expression* NXOpen::Motion::PackagingMeasureBuilder::ThresholdAngleExpression ( )

Returns the Measure angular threshold expression value
Created in NX8.0.0.

License requirements : mechanisms ("MECHANISMS")

NXOpen::Expression* NXOpen::Motion::PackagingMeasureBuilder::ThresholdExpression ( )

Returns the Measure threshold expression value
Created in NX8.0.0.

License requirements : mechanisms ("MECHANISMS")

double NXOpen::Motion::PackagingMeasureBuilder::Tolerance ( )

Returns the Measure tolerance value

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::PackagingMeasureBuilder::ToleranceExpression or Motion::PackagingMeasureBuilder::ToleranceAngleExpression to query or edit it.

Created in NX4.0.0.

License requirements : mechanisms ("MECHANISMS")

NXOpen::Expression* NXOpen::Motion::PackagingMeasureBuilder::ToleranceAngleExpression ( )

Returns the Measure angular tolerance expression value
Created in NX8.0.0.

License requirements : mechanisms ("MECHANISMS")

NXOpen::Expression* NXOpen::Motion::PackagingMeasureBuilder::ToleranceExpression ( )

Returns the Measure tolerance expression value
Created in NX8.0.0.

License requirements : mechanisms ("MECHANISMS")

The documentation for this class was generated from the following file:

Motion_PackagingMeasureBuilder.hxx
