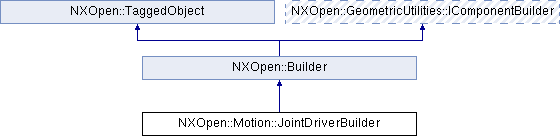

Inheritance diagram for NXOpen::Motion::JointDriverBuilder:

Public Member Functions
NXOpen::Motion::DriverMultiOperations *	DriverMultiOperations ()
	Returns the driver operations Created in NX6.0.0.

NXOpen::SelectTaggedObject *	Joint ()
	Returns the joint Created in NX5.0.0.

NXString	Name ()
	Returns the name Created in NX5.0.0.

void	SetName (const NXString &name)
	Sets the name Created in NX5.0.0.

void	SetName (const char *name)
	Sets the name Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Member Function Documentation

NXOpen::Motion::DriverMultiOperations* NXOpen::Motion::JointDriverBuilder::DriverMultiOperations ( )

Returns the driver operations
Created in NX6.0.0.

License requirements : None

NXOpen::SelectTaggedObject* NXOpen::Motion::JointDriverBuilder::Joint ( )

Returns the joint
Created in NX5.0.0.

License requirements : None

NXString NXOpen::Motion::JointDriverBuilder::Name ( )

Returns the name
Created in NX5.0.0.

License requirements : None

void NXOpen::Motion::JointDriverBuilder::SetName ( const NXString & name )

Sets the name
Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

name name

void NXOpen::Motion::JointDriverBuilder::SetName ( const char * name )

Sets the name
Created in NX5.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

name name

The documentation for this class was generated from the following file:
