Represents a DamperBuilder
To create a new instance of this class, use Motion::DamperCollection::CreateDamperBuilder

Created in NX6.0.0. More...

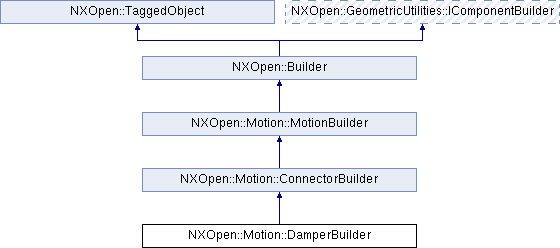

Inheritance diagram for NXOpen::Motion::DamperBuilder:

Public Member Functions
double	Coefficient ()
	Returns the coefficient.

NXOpen::Expression *	CoefficientExpression ()
	Returns the translational coefficient expression Created in NX8.0.0.

NXOpen::CAE::Function *	CoefficientFunction ()
	Returns the function tag.

NXOpen::Motion::ConnectorCoefficientTypes	CoefficientType ()
	Returns the coefficient type Created in NX6.0.0.

NXString	Name ()
	Returns the name Created in NX6.0.0.

void	SetCoefficient (double coefficient)
	Sets the coefficient.

void	SetCoefficientFunction (NXOpen::CAE::Function *function)
	Sets the function tag.

void	SetCoefficientType (NXOpen::Motion::ConnectorCoefficientTypes coefficientType)
	Sets the coefficient type Created in NX6.0.0.

void	SetName (const NXString &name)
	Sets the name Created in NX6.0.0.

void	SetName (const char *name)
	Sets the name Created in NX6.0.0.

NXOpen::Expression *	TorsionalCoefficientExpression ()
	Returns the torsional coefficient expression Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Motion::ConnectorBuilder
NXOpen::Motion::SelectLink *	ActionLink ()
	Returns the action link.

NXOpen::Point *	ActionPoint ()
	Returns the action point.

NXOpen::Motion::ConnectorBuilder::AttachmentType	Attachment ()
	Returns the attachment type Created in NX6.0.0.

NXOpen::Motion::SelectJoint *	Joint ()
	Returns the joint .

NXOpen::Motion::SelectLink *	ReactionLink ()
	Returns the reaction link.

NXOpen::Point *	ReactionPoint ()
	Returns the reaction point.

void	SetActionPoint (NXOpen::Point *actionPoint)
	Sets the action point.

void	SetAttachment (NXOpen::Motion::ConnectorBuilder::AttachmentType attachment)
	Sets the attachment type Created in NX6.0.0.

void	SetReactionPoint (NXOpen::Point *reactionPoint)
	Sets the reaction point.

Public Member Functions inherited from NXOpen::Motion::MotionBuilder
double	DisplayScale ()
	Returns the icon display scale Created in NX5.0.0.

NXString	GroupName ()
	Returns the group name Created in NX5.0.0.

NXOpen::Motion::MotionObject::GroupType	GroupType ()
	Returns the group type Created in NX5.0.0.

void	SetDisplayScale (double displayScale)
	Sets the icon display scale Created in NX5.0.0.

void	SetGroupName (const NXString &groupName)
	Sets the group name Created in NX5.0.0.

void	SetGroupName (const char *groupName)
	Sets the group name Created in NX5.0.0.

void	SetGroupType (NXOpen::Motion::MotionObject::GroupType groupType)
	Sets the group type Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::Motion::ConnectorBuilder
enum	AttachmentType { AttachmentTypeLink, AttachmentTypeSliderJoint, AttachmentTypeRevoluteJoint }
	Definitions of connector attachment type. More...

Detailed Description

Represents a DamperBuilder
To create a new instance of this class, use Motion::DamperCollection::CreateDamperBuilder

Created in NX6.0.0.

Member Function Documentation

double NXOpen::Motion::DamperBuilder::Coefficient ( )

Returns the coefficient.

Only valid if Motion::ConnectorCoefficientTypesConstant is set

Deprecated:: Deprecated in NX8.0.0. Obtain the expression using Motion::DamperBuilder::CoefficientExpression or Motion::DamperBuilder::TorsionalCoefficientExpression to query or edit it.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::DamperBuilder::CoefficientExpression ( )

Returns the translational coefficient expression
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Function* NXOpen::Motion::DamperBuilder::CoefficientFunction ( )

Returns the function tag.

Only valid if Motion::ConnectorCoefficientTypesSpline is set
Created in NX6.0.0.

License requirements : None

NXOpen::Motion::ConnectorCoefficientTypes NXOpen::Motion::DamperBuilder::CoefficientType ( )

Returns the coefficient type
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Motion::DamperBuilder::Name ( )

Returns the name
Created in NX6.0.0.

License requirements : None

void NXOpen::Motion::DamperBuilder::SetCoefficient ( double coefficient )

Sets the coefficient.

Only valid if Motion::ConnectorCoefficientTypesConstant is set

Deprecated:: Deprecated in NX8.0.0. Obtain the expression using Motion::DamperBuilder::CoefficientExpression or Motion::DamperBuilder::TorsionalCoefficientExpression to query or edit it.

Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

coefficient coefficient

void NXOpen::Motion::DamperBuilder::SetCoefficientFunction ( NXOpen::CAE::Function * function )

Sets the function tag.

Only valid if Motion::ConnectorCoefficientTypesSpline is set
Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

function function

void NXOpen::Motion::DamperBuilder::SetCoefficientType ( NXOpen::Motion::ConnectorCoefficientTypes coefficientType )

Sets the coefficient type
Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

coefficientType coefficienttype

void NXOpen::Motion::DamperBuilder::SetName ( const NXString & name )

Sets the name
Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

name name

void NXOpen::Motion::DamperBuilder::SetName ( const char * name )

Sets the name
Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

name name

NXOpen::Expression* NXOpen::Motion::DamperBuilder::TorsionalCoefficientExpression ( )

Returns the torsional coefficient expression
Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Motion_DamperBuilder.hxx
