Represents a @link Motion::CouplerGearBuilder Motion::CouplerGearBuilder@endlink <br> To create a new instance of this class, use @link Motion::CouplerCollection::CreateCouplerGearBuilder Motion::CouplerCollection::CreateCouplerGearBuilder @endlink <br>
Default values. More...

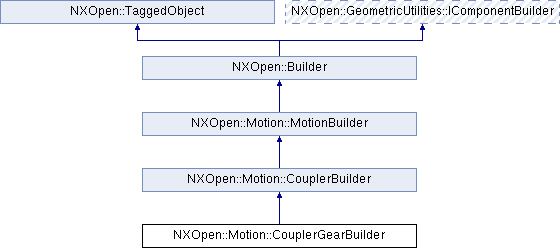

Inheritance diagram for NXOpen::Motion::CouplerGearBuilder:
Additional Inherited Members | |
 Public Member Functions inherited from NXOpen::Motion::CouplerBuilder | |
| NXOpen::Point * | ContactPoint () |
| Returns the contact point Created in NX6.0.0. | |
| NXOpen::Motion::SelectJoint * | FirstJoint () |
| Returns the first joint Created in NX6.0.0. | |
| NXString | Name () |
| Returns the name Created in NX6.0.0. | |
| double | Ratio () |
| Returns the ratio | |
| NXOpen::Expression * | RatioExpression () |
| Returns the ratio expression Created in NX8.5.0. | |
| NXOpen::Motion::SelectJoint * | SecondJoint () |
| Returns the second joint Created in NX6.0.0. | |
| void | SetContactPoint (NXOpen::Point *contactPt) |
| Sets the contact point Created in NX6.0.0. | |
| void | SetName (const NXString &name) |
| Sets the name Created in NX6.0.0. | |
| void | SetName (const char *name) |
| Sets the name Created in NX6.0.0. | |
| void | SetRatio (double ratio) |
| Sets the ratio | |
Detailed Description
Represents a @link Motion::CouplerGearBuilder Motion::CouplerGearBuilder@endlink <br> To create a new instance of this class, use @link Motion::CouplerCollection::CreateCouplerGearBuilder Motion::CouplerCollection::CreateCouplerGearBuilder @endlink <br>
Default values.
| Property | Value |
|---|---|
|
Ratio (deprecated) |
1.0 |
Created in NX6.0.0.
The documentation for this class was generated from the following file:
- Motion_CouplerGearBuilder.hxx
