Represents the System Root class. More...

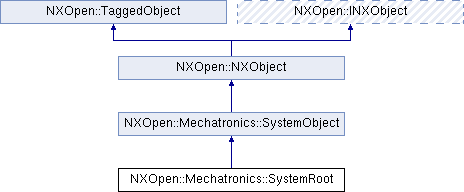

Inheritance diagram for NXOpen::Mechatronics::SystemRoot:
Public Types | |
| enum | Type { TypeFunction, TypeLogical, TypeRequirement } |
| the system root types. More... | |
 Public Types inherited from NXOpen::Mechatronics::SystemObject | |
| enum | ReorderType { ReorderTypeBefore = 1, ReorderTypeAfter } |
| Reorder object type to specify the relative position. More... | |
| Public Types inherited from NXOpen::NXObject | |
| enum | AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 } |
| Specifies attribute type. More... | |
| enum | DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual } |
| Specifies the format of the date and time attribute. More... | |
Additional Inherited Members | |
| Public Member Functions inherited from NXOpen::Mechatronics::SystemObject | |
| void | AddComponent (const std::vector< NXOpen::Assemblies::Component * > &comps) |
| Adds Assemblies::Component . | |
| void | AddOperation (const std::vector< NXOpen::NXObject * > &opers) |
| Adds operation object. | |
| void | AddPhysicsObjects (const std::vector< NXOpen::NXObject * > &objects) |
| Adds behavioral physics objects. | |
| void | AddSignalAdapters (const std::vector< NXOpen::NXObject * > &adapters) |
| Adds signal adapter objects. | |
| void | CreateTraceLink (NXOpen::Mechatronics::SystemObject *pComplying) |
| Creates the trace link for system objects. | |
| void | GetPhysicsObjects (std::vector< NXOpen::NXObject * > &objects) |
| Gets behavioral physics objects. | |
| void | RemoveComponent (const std::vector< NXOpen::Assemblies::Component * > &comps) |
| Removes Assemblies::Component . | |
| void | RemoveOperation (const std::vector< NXOpen::NXObject * > &opers) |
| Removes operation object. | |
| void | RemovePhysicsObjects (const std::vector< NXOpen::NXObject * > &objects) |
| Removes behavioral physics objects. | |
| void | RemoveSignalAdapters (const std::vector< NXOpen::NXObject * > &adapters) |
| Removes signal adapter objects. | |
| void | RemoveTraceLink (NXOpen::Mechatronics::SystemObject *pComplying) |
| Removes the trace link for system objects. | |
| void | RenameInstance (const NXString &name) |
| Renames system object instance. | |
| void | RenameInstance (const char *name) |
| Renames system object instance. | |
| void | ReorderObject (NXOpen::Mechatronics::SystemObject *pDestination, NXOpen::Mechatronics::SystemObject::ReorderType beforeOrAfter) |
| Reorders system objects. | |
| void | RestructureObject (NXOpen::Mechatronics::SystemObject *pDestination) |
| Restructure system object. | |
Detailed Description
Represents the System Root class.
System Root is the root object of system tree.
Not support KF.
Created in NX9.0.0.
Member Enumeration Documentation
The documentation for this class was generated from the following file:
- Mechatronics_SystemRoot.hxx
