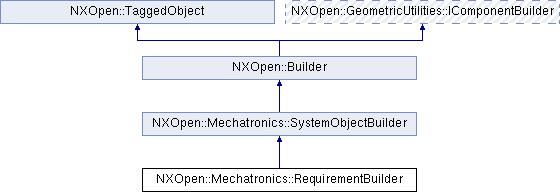

Inheritance diagram for NXOpen::Mechatronics::RequirementBuilder:

Public Member Functions
NXOpen::Mechatronics::ObjectInformationBuilder *	ObjectInformation ()
	Returns the object information builder, used to specify the information of requirement object.

NXOpen::NXObject *	ParentFunction ()
	Returns the parent object.

void	SetParentFunction (NXOpen::NXObject *parent)
	Sets the parent object.

Public Member Functions inherited from NXOpen::Mechatronics::SystemObjectBuilder
NXString	InstanceName ()
	Returns the name of instance.

void	SetInstanceName (const NXString &name)
	Sets the name of instance.

void	SetInstanceName (const char *name)
	Sets the name of instance.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Mechatronics::Requirement builder
To create a new instance of this class, use Mechatronics::RequirementCollection::CreateRequirementBuilder

Created in NX8.5.0.

Member Function Documentation

NXOpen::Mechatronics::ObjectInformationBuilder* NXOpen::Mechatronics::RequirementBuilder::ObjectInformation ( )

Returns the object information builder, used to specify the information of requirement object.

Created in NX8.5.0.

License requirements : None

NXOpen::NXObject* NXOpen::Mechatronics::RequirementBuilder::ParentFunction ( )

Returns the parent object.

Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

void NXOpen::Mechatronics::RequirementBuilder::SetParentFunction ( NXOpen::NXObject * parent )

Sets the parent object.

Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

parent Parent function object

The documentation for this class was generated from the following file:
