NXOpen::Mechatronics::ProxyObjectParameterBuilder Class Reference

Represents a Mechatronics::ProxyObjectParameterBuilder . More...

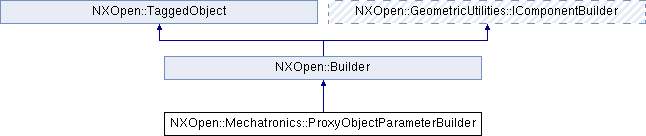

Inheritance diagram for NXOpen::Mechatronics::ProxyObjectParameterBuilder:

Public Member Functions
NXString	AttrName ()
	Returns the name of parameter attribute in proxy object Created in NX8.5.0.
int	AttrType ()
	Returns the data type of parameter attribute in proxy object Created in NX8.5.0.
NXOpen::Expression *	BoolValue ()
	Returns the bool value of parameter attribute in proxy object Created in NX8.5.0.
NXOpen::Expression *	IntValue ()
	Returns the int value of parameter attribute in proxy object Created in NX8.5.0.
int	ParamId ()
	Returns the maximum parameter id of parameter attribute in proxy object Created in NX8.5.0.
NXOpen::Expression *	RealValue ()
	Returns the real value of parameter attribute in proxy object Created in NX8.5.0.
void	SetAttrName (const NXString &name)
	Sets the name of parameter attribute in proxy object Created in NX8.5.0.
void	SetAttrName (const char *name)
	Sets the name of parameter attribute in proxy object Created in NX8.5.0.
void	SetAttrType (int type)
	Sets the data type of parameter attribute in proxy object Created in NX8.5.0.
void	SetBoolValue (NXOpen::Expression *boolValueExp)
	Sets the bool value of parameter attribute in proxy object Created in NX8.5.0.
void	SetIntValue (NXOpen::Expression *intValueExp)
	Sets the int value of parameter attribute in proxy object Created in NX8.5.0.
void	SetParamId (int paramId)
	Sets the maximum parameter id of parameter attribute in proxy object Created in NX8.5.0.
void	SetRealValue (NXOpen::Expression *realValueExp)
	Sets the real value of parameter attribute in proxy object Created in NX8.5.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Mechatronics::ProxyObjectParameterBuilder .

<br> To create a new instance of this class, use @link Mechatronics::ProxyObjectCollection::CreateProxyObjectParameterBuilder  Mechatronics::ProxyObjectCollection::CreateProxyObjectParameterBuilder @endlink  <br>

Created in NX8.5.0.

Member Function Documentation

NXString NXOpen::Mechatronics::ProxyObjectParameterBuilder::AttrName

(

)

Returns the name of parameter attribute in proxy object
Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

int NXOpen::Mechatronics::ProxyObjectParameterBuilder::AttrType

(

)

Returns the data type of parameter attribute in proxy object
Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Expression* NXOpen::Mechatronics::ProxyObjectParameterBuilder::BoolValue

(

)

Returns the bool value of parameter attribute in proxy object
Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Expression* NXOpen::Mechatronics::ProxyObjectParameterBuilder::IntValue

(

)

Returns the int value of parameter attribute in proxy object
Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

int NXOpen::Mechatronics::ProxyObjectParameterBuilder::ParamId

(

)

Returns the maximum parameter id of parameter attribute in proxy object
Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Expression* NXOpen::Mechatronics::ProxyObjectParameterBuilder::RealValue

(

)

Returns the real value of parameter attribute in proxy object
Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

void NXOpen::Mechatronics::ProxyObjectParameterBuilder::SetAttrName

(

const NXString &

name

)

Sets the name of parameter attribute in proxy object
Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

name

name

void NXOpen::Mechatronics::ProxyObjectParameterBuilder::SetAttrName

(

const char *

name

)

Sets the name of parameter attribute in proxy object
Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

name

name

void NXOpen::Mechatronics::ProxyObjectParameterBuilder::SetAttrType

(

int

type

)

Sets the data type of parameter attribute in proxy object
Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

type

type

void NXOpen::Mechatronics::ProxyObjectParameterBuilder::SetBoolValue

(

NXOpen::Expression *

boolValueExp

)

Sets the bool value of parameter attribute in proxy object
Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

boolValueExp

boolvalueexp

void NXOpen::Mechatronics::ProxyObjectParameterBuilder::SetIntValue

(

NXOpen::Expression *

intValueExp

)

Sets the int value of parameter attribute in proxy object
Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

intValueExp

intvalueexp

void NXOpen::Mechatronics::ProxyObjectParameterBuilder::SetParamId

(

int

paramId

)

Sets the maximum parameter id of parameter attribute in proxy object
Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

paramId

paramid

void NXOpen::Mechatronics::ProxyObjectParameterBuilder::SetRealValue

(

NXOpen::Expression *

realValueExp

)

Sets the real value of parameter attribute in proxy object
Created in NX8.5.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

realValueExp

realvalueexp

---

The documentation for this class was generated from the following file:

• Mechatronics_ProxyObjectParameterBuilder.hxx
