Represents a Mechatronics::Gear builder. More...

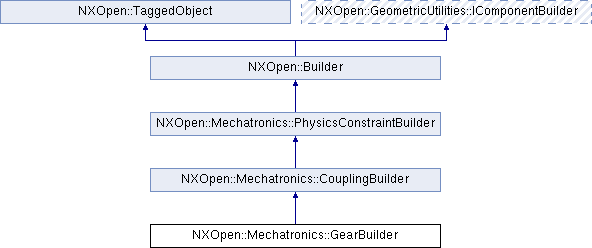

Inheritance diagram for NXOpen::Mechatronics::GearBuilder:

Public Types
enum	AxisJointType { AxisJointTypeLinear, AxisJointTypeAngular }
	the axis joint types. More...

Public Member Functions
NXOpen::Mechatronics::GearBuilder::AxisJointType	AxisType ()
	Returns the axis joint type.

NXOpen::Expression *	ExpressionMasterMultiple ()
	Returns the master multiple expression.

NXOpen::Expression *	ExpressionSlaveMultiple ()
	Returns the slave multiple expression.

double	MasterMultiple ()
	Returns the master multiple.

void	SetAxisType (NXOpen::Mechatronics::GearBuilder::AxisJointType axisType)
	Sets the axis joint type.

void	SetMasterMultiple (double masterMultiple)
	Sets the master multiple.

void	SetSlaveMultiple (double slaveMultiple)
	Sets the slave multiple.

double	SlaveMultiple ()
	Returns the slave multiple.

Public Member Functions inherited from NXOpen::Mechatronics::CouplingBuilder
bool	AllowSlip ()
	Returns the coulping can slip or not.

NXOpen::Mechatronics::SelectPhysicsJoint *	MasterAxisJoint ()
	Returns the master axis joint.

void	SetAllowSlip (bool allowSlip)
	Sets the coulping can slip or not.

void	SetMasterAxisJoint (NXOpen::Mechatronics::PhysicsJoint *master)
	Sets the master axis.

void	SetSlaveAxisJoint (NXOpen::Mechatronics::PhysicsJoint *slave)
	Sets the slave axis.

NXOpen::Mechatronics::SelectPhysicsJoint *	SlaveAxisJoint ()
	Returns the slave axis joint.

Public Member Functions inherited from NXOpen::Mechatronics::PhysicsConstraintBuilder
NXString	Name ()
	Returns the name.

void	SetName (const NXString &name)
	Sets the name.

void	SetName (const char *name)
	Sets the name.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Mechatronics::Gear builder.

To create a new instance of this class, use Mechatronics::GearCollection::CreateGearBuilder

Created in NX7.5.1.

Member Enumeration Documentation

enum NXOpen::Mechatronics::GearBuilder::AxisJointType

the axis joint types.

Enumerator:

AxisJointTypeLinear	Linear.
AxisJointTypeAngular	Angular.
