Represents a Mechatronics::AdapterSignalBuilder . More...

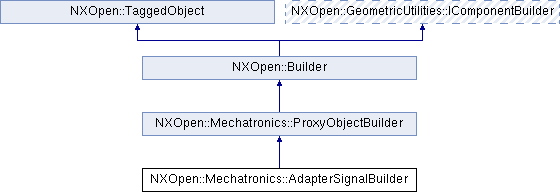

Inheritance diagram for NXOpen::Mechatronics::AdapterSignalBuilder:
Public Member Functions | |
| NXOpen::Mechatronics::AdapterFormula * | AssignedFormula () |
| Returns the assigned formula. | |
| int | InputOutput () |
| Returns the input/output (0 - Input, 1 - Output). | |
| void | SetAssignedFormula (NXOpen::Mechatronics::AdapterFormula *assignedFormula) |
| Sets the assigned formula. | |
| void | SetInputOutput (int inputOutput) |
| Sets the input/output (0 - Input, 1 - Output). | |
 Public Member Functions inherited from NXOpen::Mechatronics::ProxyObjectBuilder | |
| NXOpen::BasePart * | Context () |
| Returns the context part of the proxy object Created in NX8.5.0. | |
| int | MaxParamId () |
| Returns the maximum parameter id used in the proxy object Created in NX8.5.0. | |
| NXOpen::Mechatronics::ProxyObjectParameterBuilderList * | ParameterList () |
| Returns the parameter data Created in NX8.5.0. | |
| NXString | ProxyObjectName () |
| Returns the name of the proxy object Created in NX8.5.0. | |
| NXOpen::SelectNXObjectList * | SelectGeomObject () |
| Returns the select geometry object that describes the proxy object Created in NX8.5.0. | |
| NXOpen::SelectNXObjectList * | SelectPhysicsObject () |
| Returns the select physics objects that are encapsulated in the proxy object Created in NX8.5.0. | |
| void | SetContext (NXOpen::BasePart *context) |
| Sets the context part of the proxy object Created in NX8.5.0. | |
| void | SetMaxParamId (int paramId) |
| Sets the maximum parameter id used in the proxy object Created in NX8.5.0. | |
| void | SetProxyObjectName (const NXString &proxyObjectName) |
| Sets the name of the proxy object Created in NX8.5.0. | |
| void | SetProxyObjectName (const char *proxyObjectName) |
| Sets the name of the proxy object Created in NX8.5.0. | |
| void | SetUseType (int useType) |
| Sets the use type used in the proxy object Created in NX8.5.0. | |
| int | UseType () |
| Returns the use type used in the proxy object Created in NX8.5.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a Mechatronics::AdapterSignalBuilder .
<br> To create a new instance of this class, use @link Mechatronics::AdapterSignalCollection::CreateAdapterSignalBuilder Mechatronics::AdapterSignalCollection::CreateAdapterSignalBuilder @endlink <br>
Created in NX8.5.0.
Member Function Documentation
| NXOpen::Mechatronics::AdapterFormula* NXOpen::Mechatronics::AdapterSignalBuilder::AssignedFormula | ( | ) |
Returns the assigned formula.
Created in NX8.5.0.
License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")
| int NXOpen::Mechatronics::AdapterSignalBuilder::InputOutput | ( | ) |
Returns the input/output (0 - Input, 1 - Output).
Created in NX8.5.0.
License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")
| void NXOpen::Mechatronics::AdapterSignalBuilder::SetAssignedFormula | ( | NXOpen::Mechatronics::AdapterFormula * | assignedFormula | ) |
Sets the assigned formula.
Created in NX8.5.0.
License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")
- Parameters
-
assignedFormula assignedformula
| void NXOpen::Mechatronics::AdapterSignalBuilder::SetInputOutput | ( | int | inputOutput | ) |
Sets the input/output (0 - Input, 1 - Output).
Created in NX8.5.0.
License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")
- Parameters
-
inputOutput inputoutput
The documentation for this class was generated from the following file:
- Mechatronics_AdapterSignalBuilder.hxx
