Represents a MeasureFaceBuilder
To create a new instance of this class, use MeasureManager::CreateMeasureFaceBuilder
Created in NX5.0.0.
More...

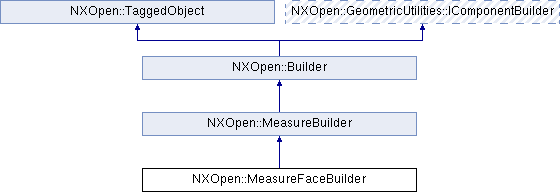

Inheritance diagram for NXOpen::MeasureFaceBuilder:
Public Member Functions | |
| NXOpen::ScCollector * | FaceCollector () |
| Returns the face collector Created in NX8.5.0. | |
| NXOpen::SelectDisplayableObjectList * | FaceObjects () |
| Returns the face objects Created in NX5.0.0. | |
 Public Member Functions inherited from NXOpen::MeasureBuilder | |
| NXOpen::MeasureBuilder::AnnotationType | AnnotationMode () |
| Returns the annotation mode Created in NX5.0.0. | |
| bool | InfoWindow () |
| Returns the info window Created in NX5.0.0. | |
| NXOpen::MeasureBuilder::RequirementType | RequirementMode () |
| Returns the requirement mode Created in NX5.0.0. | |
| void | SetAnnotationMode (NXOpen::MeasureBuilder::AnnotationType atype) |
| Sets the annotation mode Created in NX5.0.0. | |
| void | SetInfoWindow (bool infoWindow) |
| Sets the info window Created in NX5.0.0. | |
| void | SetRequirementMode (NXOpen::MeasureBuilder::RequirementType rtype) |
| Sets the requirement mode Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Additional Inherited Members | |
| Public Types inherited from NXOpen::MeasureBuilder | |
| enum | AnnotationType { AnnotationTypeNone, AnnotationTypeShowDimension, AnnotationTypeCreateLine, AnnotationTypeCreateCsys } |
| Represents the annotation type. More... | |
| enum | RequirementType { RequirementTypeNone, RequirementTypeNew, RequirementTypeExisting } |
| Represents the requirement type. More... | |
Detailed Description
Represents a MeasureFaceBuilder
To create a new instance of this class, use MeasureManager::CreateMeasureFaceBuilder
Created in NX5.0.0.
Member Function Documentation
| NXOpen::ScCollector* NXOpen::MeasureFaceBuilder::FaceCollector | ( | ) |
Returns the face collector
Created in NX8.5.0.
License requirements : None
| NXOpen::SelectDisplayableObjectList* NXOpen::MeasureFaceBuilder::FaceObjects | ( | ) |
Returns the face objects
Created in NX5.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- MeasureFaceBuilder.hxx
