Used to create or edit issue snapshot subset. More...

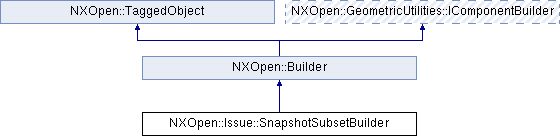

Inheritance diagram for NXOpen::Issue::SnapshotSubsetBuilder:

Public Types
enum	ContextType { ContextTypeProblem, ContextTypeImpacted, ContextTypeReference }
	The option specifying which kinds of issue snapshot subset should be created. More...

Public Member Functions
NXOpen::Issue::SnapshotSubsetBuilder::ContextType	Context ()
	Returns the context indicating the issue snapshot subset type.

NXOpen::Assemblies::SelectComponentList *	SelectParts ()
	Returns the select parts which will be collected into issue snapshot subset.

void	SetContext (NXOpen::Issue::SnapshotSubsetBuilder::ContextType context)
	Sets the context indicating the issue snapshot subset type.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Used to create or edit issue snapshot subset.

To create a new instance of this class, use Issue::IssueManager::CreateIssueSnapshotSubsetBuilder

Created in NX9.0.0.

Member Enumeration Documentation

The option specifying which kinds of issue snapshot subset should be created.

Enumerator:

NXOpen::Issue::SnapshotSubsetBuilder::ContextType NXOpen::Issue::SnapshotSubsetBuilder::Context ( )

Returns the context indicating the issue snapshot subset type.

Created in NX9.0.0.

License requirements : None

NXOpen::Assemblies::SelectComponentList* NXOpen::Issue::SnapshotSubsetBuilder::SelectParts ( )

Returns the select parts which will be collected into issue snapshot subset.

Created in NX9.0.0.

License requirements : None

void NXOpen::Issue::SnapshotSubsetBuilder::SetContext ( NXOpen::Issue::SnapshotSubsetBuilder::ContextType context )

Sets the context indicating the issue snapshot subset type.

Created in NX9.0.0.

License requirements : nx_issue_mgmt ("NX Issue Tracking")

Parameters

context context

The documentation for this class was generated from the following file:
