NXOpen::ISketchHelpedConstraint Class Reference

Represents a sketch constraint that has a help point or help parameter. More...

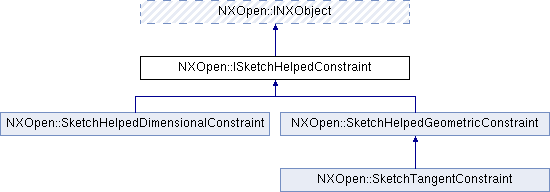

Inheritance diagram for NXOpen::ISketchHelpedConstraint:

Public Member Functions
virtual void	GetHelpData (bool *hasHelpPoint1, bool *hasHelpPoint2, bool *hasHelpParameter1, bool *hasHelpParameter2, NXOpen::Point3d *helpPoint1, NXOpen::Point3d *helpPoint2, double *helpParameter1, double *helpParameter2)=0
	Gets the help data for the constraint Created in NX3.0.0.
virtual void	SetHelpParameters (bool hasHelp1, bool hasHelp2, double helpParameter1, double helpParameter2)=0
	Sets the help parameters for the constraint Created in NX3.0.0.
virtual void	SetHelpPoints (bool hasHelp1, bool hasHelp2, const NXOpen::Point3d &helpPoint1, const NXOpen::Point3d &helpPoint2)=0
	Sets the help points for the constraint Created in NX3.0.0.
Public Member Functions inherited from NXOpen::INXObject
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)=0
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
virtual bool	IsOccurrence ()=0
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()=0
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()=0
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()=0
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()=0
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()=0
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()=0
	Returns the prototype of this object if it is an occurrence.
virtual void	SetName (const NXString &name)=0
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represents a sketch constraint that has a help point or help parameter.

Created in NX3.0.0.

Member Function Documentation

virtual void NXOpen::ISketchHelpedConstraint::GetHelpData ( bool *  hasHelpPoint1, bool *  hasHelpPoint2, bool *  hasHelpParameter1, bool *  hasHelpParameter2, NXOpen::Point3d *  helpPoint1, NXOpen::Point3d *  helpPoint2, double *  helpParameter1, double *  helpParameter2  )

pure virtual

Gets the help data for the constraint
Created in NX3.0.0.

License requirements : None

Parameters

hasHelpPoint1	Whether the constraint's first associated geometric item has an associated help point
hasHelpPoint2	Whether the constraint's second associated geometric item has an associated help point
hasHelpParameter1	Whether the constraint's first associated geometric item has an associated help parameter
hasHelpParameter2	Whether the constraint's second associated geometric item has an associated help parameter
helpPoint1	The first help point. Not used unless has_help_point1 is true.
helpPoint2	The second help point. Not used unless has_help_point2 is true.
helpParameter1	The first help parameter. Not used unless has_help_parameter1 is true.
helpParameter2	The second help parameter. Not used unless has_help_parameter2 is true.

Implemented in NXOpen::SketchHelpedDimensionalConstraint, and NXOpen::SketchHelpedGeometricConstraint.

virtual void NXOpen::ISketchHelpedConstraint::SetHelpParameters ( bool  hasHelp1, bool  hasHelp2, double  helpParameter1, double  helpParameter2  )

pure virtual

Sets the help parameters for the constraint
Created in NX3.0.0.

License requirements : solid_modeling ("SOLIDS MODELING") OR drafting ("DRAFTING")

Parameters

hasHelp1	Whether the constraint's first associated geometric item has an associated help parameter
hasHelp2	Whether the constraint's second associated geometric item has an associated help parameter
helpParameter1	The first help parameter. Not used unless has_help1 is true.
helpParameter2	The second help parameter. Not used unless has_help2 is true.

Implemented in NXOpen::SketchHelpedDimensionalConstraint, and NXOpen::SketchHelpedGeometricConstraint.

virtual void NXOpen::ISketchHelpedConstraint::SetHelpPoints ( bool  hasHelp1, bool  hasHelp2, const NXOpen::Point3d &  helpPoint1, const NXOpen::Point3d &  helpPoint2  )

pure virtual

Sets the help points for the constraint
Created in NX3.0.0.

License requirements : solid_modeling ("SOLIDS MODELING") OR drafting ("DRAFTING")

Parameters

hasHelp1	Whether the constraint's first associated geometric item has an associated help point
hasHelp2	Whether the constraint's second associated geometric item has an associated help point
helpPoint1	The first help point. Not used unless has_help1 is true.
helpPoint2	The second help point. Not used unless has_help2 is true.

Implemented in NXOpen::SketchHelpedDimensionalConstraint, and NXOpen::SketchHelpedGeometricConstraint.

---

The documentation for this class was generated from the following file:

• ISketchHelpedConstraint.hxx
