Represents something containing a two dimensional curve
Created in NX4.0.0. More...

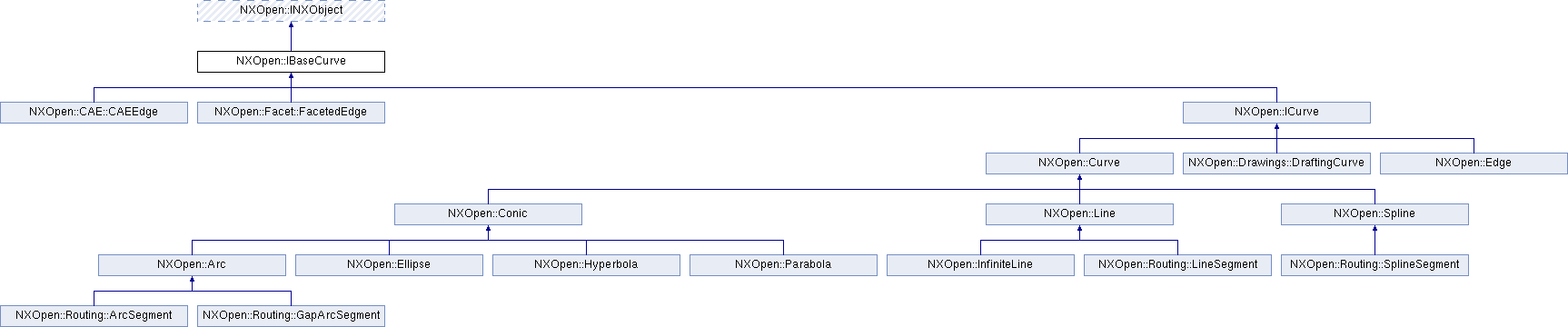

Inheritance diagram for NXOpen::IBaseCurve:

Public Member Functions
virtual double	GetLength ()=0
	Returns the length of the object.

virtual bool	IsReference ()=0
	Returns the reference state of a curve Created in NX8.0.0.

Public Member Functions inherited from NXOpen::INXObject
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)=0
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

virtual bool	IsOccurrence ()=0
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()=0
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()=0
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()=0
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()=0
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()=0
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()=0
	Returns the prototype of this object if it is an occurrence.

virtual void	SetName (const NXString &name)=0
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represents something containing a two dimensional curve
Created in NX4.0.0.

Member Function Documentation

virtual double NXOpen::IBaseCurve::GetLength ( )

pure virtual

Returns the length of the object.

virtual bool NXOpen::IBaseCurve::IsReference ( )

pure virtual

Returns the reference state of a curve
Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:
