Reduce Surface Radius Face Group Builder of Geometric Utilities. More...

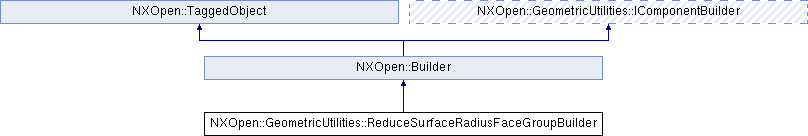

Inheritance diagram for NXOpen::GeometricUtilities::ReduceSurfaceRadiusFaceGroupBuilder:

Public Member Functions
NXOpen::GeometricUtilities::OnPathDimensionBuilder *	EndLimit ()
	Returns the end position of reduced sheet body Created in NX9.0.0.

NXOpen::ScCollector *	SelectFace ()
	Returns the selected entities of single chain for performing radius reduction Created in NX9.0.0.

NXOpen::GeometricUtilities::OnPathDimensionBuilder *	StartLimit ()
	Returns the start position of reduced sheet body Created in NX9.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Reduce Surface Radius Face Group Builder of Geometric Utilities.

No object is returned by this builder.
To create a new instance of this class, use GeometricUtilities::CAMDataPrepManager::CreateReduceSurfaceRadiusFaceGroupBuilder

Created in NX9.0.0.

Member Function Documentation

NXOpen::GeometricUtilities::OnPathDimensionBuilder* NXOpen::GeometricUtilities::ReduceSurfaceRadiusFaceGroupBuilder::EndLimit ( )

Returns the end position of reduced sheet body
Created in NX9.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::GeometricUtilities::ReduceSurfaceRadiusFaceGroupBuilder::SelectFace ( )

Returns the selected entities of single chain for performing radius reduction
Created in NX9.0.0.

License requirements : None

NXOpen::GeometricUtilities::OnPathDimensionBuilder* NXOpen::GeometricUtilities::ReduceSurfaceRadiusFaceGroupBuilder::StartLimit ( )

Returns the start position of reduced sheet body
Created in NX9.0.0.

License requirements : None
