Represents a @link GeometricUtilities::PartModuleInputBuilder GeometricUtilities::PartModuleInputBuilder@endlink   <br> To create a new instance of this class, use @link Features::PartModule::CreatePartModuleInputBuilder  Features::PartModule::CreatePartModuleInputBuilder @endlink  <br>

Default values. More...

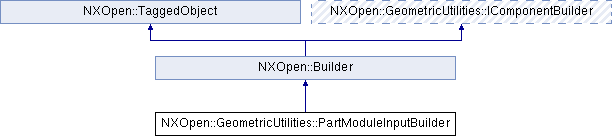

Inheritance diagram for NXOpen::GeometricUtilities::PartModuleInputBuilder:

Public Types
enum	ModifiableGeometryOptions { ModifiableGeometryOptionsWholeBody, ModifiableGeometryOptionsSelected }
	the Modifiable Geometry option types More...

Public Member Functions
bool	DefineSharedBodyInput ()
	Returns the shared body inputs option.

NXOpen::Features::PartGeometryCopyBuilder *	InputReferences ()
	Returns the part module input data Created in NX9.0.0.

NXOpen::ScCollectorList *	ModifiableGeometry ()
	Returns the faces/edges specified as modifiable geometry Created in NX9.0.0.

NXOpen::GeometricUtilities::PartModuleInputBuilder::ModifiableGeometryOptions	ModifiableGeometryOption ()
	Returns the Modifiable Geometry option Created in NX9.0.0.

void	SetDefineSharedBodyInput (bool defineSharedBodyInput)
	Sets the shared body inputs option.

void	SetModifiableGeometryOption (NXOpen::GeometricUtilities::PartModuleInputBuilder::ModifiableGeometryOptions modifiableGeometryOption)
	Sets the Modifiable Geometry option Created in NX9.0.0.

NXOpen::Features::PartGeometryCopyBuilder *	SharedBodyInput ()
	Returns the bodies for part module shared body Created in NX9.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link GeometricUtilities::PartModuleInputBuilder GeometricUtilities::PartModuleInputBuilder@endlink   <br> To create a new instance of this class, use @link Features::PartModule::CreatePartModuleInputBuilder  Features::PartModule::CreatePartModuleInputBuilder @endlink  <br>

Default values.

Property

Value

InputReferences.ObjectType

BodyCollector

ModifiableGeometryOption

WholeBody

Created in NX9.0.0.

Member Enumeration Documentation

enum NXOpen::GeometricUtilities::PartModuleInputBuilder::ModifiableGeometryOptions

the Modifiable Geometry option types

Enumerator:

ModifiableGeometryOptionsWholeBody	the whole shared body will be allowed for selection inside part module
ModifiableGeometryOptionsSelected	the faces/edges on shared body that are allowed for selection inside part module

Member Function Documentation

bool NXOpen::GeometricUtilities::PartModuleInputBuilder::DefineSharedBodyInput ( )

Returns the shared body inputs option.

If true, user will be able to provide shared body inputs.
Created in NX9.0.0.

License requirements : None

NXOpen::Features::PartGeometryCopyBuilder* NXOpen::GeometricUtilities::PartModuleInputBuilder::InputReferences ( )

Returns the part module input data
Created in NX9.0.0.

License requirements : None

NXOpen::ScCollectorList* NXOpen::GeometricUtilities::PartModuleInputBuilder::ModifiableGeometry ( )

Returns the faces/edges specified as modifiable geometry
Created in NX9.0.0.

License requirements : None

NXOpen::GeometricUtilities::PartModuleInputBuilder::ModifiableGeometryOptions NXOpen::GeometricUtilities::PartModuleInputBuilder::ModifiableGeometryOption ( )

Returns the Modifiable Geometry option
Created in NX9.0.0.

License requirements : None

void NXOpen::GeometricUtilities::PartModuleInputBuilder::SetDefineSharedBodyInput ( bool defineSharedBodyInput )

Sets the shared body inputs option.

If true, user will be able to provide shared body inputs.
Created in NX9.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

defineSharedBodyInput definesharedbodyinput

void NXOpen::GeometricUtilities::PartModuleInputBuilder::SetModifiableGeometryOption ( NXOpen::GeometricUtilities::PartModuleInputBuilder::ModifiableGeometryOptions modifiableGeometryOption )

Sets the Modifiable Geometry option
Created in NX9.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

modifiableGeometryOption modifiablegeometryoption

NXOpen::Features::PartGeometryCopyBuilder* NXOpen::GeometricUtilities::PartModuleInputBuilder::SharedBodyInput ( )

Returns the bodies for part module shared body
Created in NX9.0.0.

License requirements : None

The documentation for this class was generated from the following file:

GeometricUtilities_PartModuleInputBuilder.hxx
