NXOpen::GeometricUtilities::CircularFrameBuilder Class Reference

Represents a GeometricUtilities::CircularFrameBuilder. More...

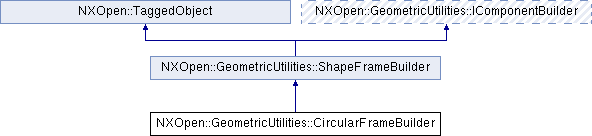

Inheritance diagram for NXOpen::GeometricUtilities::CircularFrameBuilder:

Public Types
enum	Subtypes { SubtypesArbitrary, SubtypesHalf, SubtypesQuarter, SubtypesFull }
	Represents the circular frame subtypes. More...
Public Types inherited from NXOpen::GeometricUtilities::ShapeFrameBuilder
enum	AnchorAttachmentType {   AnchorAttachmentTypeNone, AnchorAttachmentTypeCenter, AnchorAttachmentTypeVertex1, AnchorAttachmentTypeVertex2,   AnchorAttachmentTypeVertex3, AnchorAttachmentTypeVertex4 }
	Represents the anchor attachment type. More...

Public Member Functions
double	GetAngle (int index)
	Gets the i-th angle of the circular frame.
double	GetRadius (int index)
	Gets the i-th radius of the circular frame.
void	SetAngle (int index, double angle)
	Sets the i-th angle of the circular frame Created in NX6.0.0.
void	SetRadius (int index, double radius)
	Sets the i-th radius of the circular frame Created in NX6.0.0.
void	SetSubtype (NXOpen::GeometricUtilities::CircularFrameBuilder::Subtypes subtype)
	Sets the subtype Created in NX6.0.0.
NXOpen::GeometricUtilities::CircularFrameBuilder::Subtypes	Subtype ()
	Returns the subtype Created in NX6.0.0.
Public Member Functions inherited from NXOpen::GeometricUtilities::ShapeFrameBuilder
NXOpen::GeometricUtilities::AnchorLocatorBuilder *	Anchor ()
	Returns the anchor of the frame Created in NX6.0.0.
NXOpen::GeometricUtilities::ShapeFrameBuilder::AnchorAttachmentType	AnchorAttachment ()
	Returns the anchor attachment Created in NX6.0.0.
NXOpen::Point2d	GetMidpointCoords (int index)
	Gets the coordinates of the i-th midpoint of the frame with respect to the plane.
NXOpen::Point2d	GetVertexCoords (int index)
	Gets the coordinates of the i-th vertex of the frame with respect to the plane.
int	NumberVertices ()
	Returns the number of vertices of the frame Created in NX6.0.0.
void	SetAnchorAttachment (NXOpen::GeometricUtilities::ShapeFrameBuilder::AnchorAttachmentType anchorAttachment)
	Sets the anchor attachment Created in NX6.0.0.
void	SetMidpointCoords (int index, const NXOpen::Point2d &coords)
	Sets the coordinates of the i-th midpoint of the frame with respect to the plane Created in NX6.0.0.
void	SetVertexCoords (int index, const NXOpen::Point2d &coords)
	Sets the coordinates of the i-th vertex of the frame with respect to the plane Created in NX6.0.0.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a GeometricUtilities::CircularFrameBuilder.

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::GeometricUtilities::CircularFrameBuilder::Subtypes

Represents the circular frame subtypes.

Enumerator:

SubtypesArbitrary	Arbitrary circle.
SubtypesHalf	Half circle.
SubtypesQuarter	Quarter circle.
SubtypesFull	Full circle.

Member Function Documentation

double NXOpen::GeometricUtilities::CircularFrameBuilder::GetAngle

(

int

index

)

Gets the i-th angle of the circular frame.

Returns

angle
Created in NX6.0.0.

License requirements : None

Parameters

index

index of angle

double NXOpen::GeometricUtilities::CircularFrameBuilder::GetRadius

(

int

index

)

Gets the i-th radius of the circular frame.

Returns

radius
Created in NX6.0.0.

License requirements : None

Parameters

index

index of radius

void NXOpen::GeometricUtilities::CircularFrameBuilder::SetAngle	(	int	index,
		double	angle
	)

Sets the i-th angle of the circular frame
Created in NX6.0.0.

License requirements : None

Parameters

index	index of angle
angle	angle

void NXOpen::GeometricUtilities::CircularFrameBuilder::SetRadius	(	int	index,
		double	radius
	)

Sets the i-th radius of the circular frame
Created in NX6.0.0.

License requirements : None

Parameters

index	index of radius
radius	radius

void NXOpen::GeometricUtilities::CircularFrameBuilder::SetSubtype

(

NXOpen::GeometricUtilities::CircularFrameBuilder::Subtypes

subtype

)

Sets the subtype
Created in NX6.0.0.

License requirements : None

Parameters

subtype

subtype

NXOpen::GeometricUtilities::CircularFrameBuilder::Subtypes NXOpen::GeometricUtilities::CircularFrameBuilder::Subtype

(

)

Returns the subtype
Created in NX6.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• GeometricUtilities_CircularFrameBuilder.hxx
