DeviationGaugeBuilder class   <br> To create a new instance of this class, use @link GeometricAnalysis::AnalysisObjectCollection::CreateDeviationGaugeBuilder  GeometricAnalysis::AnalysisObjectCollection::CreateDeviationGaugeBuilder @endlink  <br>

Default values. More...

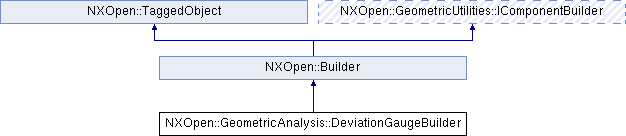

Inheritance diagram for NXOpen::GeometricAnalysis::DeviationGaugeBuilder:

Public Types
enum	AdditionalValuesLabelType { AdditionalValuesLabelTypeUserDefined, AdditionalValuesLabelTypeIntermediate, AdditionalValuesLabelTypeAll, AdditionalValuesLabelTypeNone }
	This enum represents the Deviation Gauge Analysis Object additional values label type. More...

enum	ColorPlotTypes { ColorPlotTypesBlend, ColorPlotTypesStepped, ColorPlotTypesNone }
	This enum represents the Deviation Gauge Analysis Object color plot types. More...

enum	MeasurementMethodType { MeasurementMethodTypeThreeDim, MeasurementMethodTypeXyzDirection, MeasurementMethodTypeWorkView, MeasurementMethodTypeVectorComponent, MeasurementMethodTypePlane, MeasurementMethodTypeAlongVector }
	This enum represents the Deviation Gauge Analysis Object evaluation types. More...

enum	MinMaxType { MinMaxTypeMinmax, MinMaxTypeMinimum, MinMaxTypeMaximum, MinMaxTypeNone }
	This enum represents the Deviation Gauge Analysis Object min max type. More...

enum	ReportingPerTypes { ReportingPerTypesAnalysisObject, ReportingPerTypesTarget, ReportingPerTypesReference }
	This enum represents the Deviation Gauge Analysis Object reporting per setting. More...

enum	XyzDirectionType { XyzDirectionTypeX, XyzDirectionTypeY, XyzDirectionTypeZ }
	This enum represents the Deviation Gauge Analysis Object X, Y, Z direction options. More...

Public Member Functions
void	AddDynamicPoints ()
	Adds dynamic points to the Deviation Gauge.

void	AddPMILabel (NXOpen::NXObject *snappedObject)
	Add a PMI label in specified position to represent the deviation value.

NXOpen::GeometricAnalysis::DeviationGaugeBuilder::ColorPlotTypes	ColorPlotType ()
	Returns the color plot type Created in NX6.0.0.

NXOpen::Features::GeometricConstraintDataManager *	ConstraintManager ()
	Returns the constraint manager Created in NX7.0.0.

NXOpen::GeometricUtilities::CurveRangeBuilder *	CurveRangeControl ()
	Returns the curve range Created in NX6.0.0.

int	DeviationIntervals ()
	Returns the number of deviation intervals Created in NX6.0.0.

bool	HasAbsoluteColorPlot ()
	Returns a value indicating whether to plot using absolute value Created in NX6.0.0.

NXOpen::GeometricAnalysis::DeviationGaugeBuilder::AdditionalValuesLabelType	HasAdditionalValuesLabel ()
	Returns a value indicating whether to add additional values label Created in NX6.0.0.

bool	HasCrossCurveDeviationLabel ()
	Returns a value indicating whether to display cross_curve deviation label Created in NX6.0.0.

bool	HasInfoLabel ()
	Returns a value indicating whether to enable floating info label Created in NX6.0.0.

bool	HasInnerToleranceLabel ()
	Returns a value indicating whether to display inner tolerance label Created in NX6.0.0.

bool	HasMaximumValueLabel ()
	Returns a value indicating whether to display maximum value label Created in NX6.0.0.

bool	HasMinimumValueLabel ()
	Returns a value indicating whether to display minimum value label Created in NX6.0.0.

double	InnerTolerance ()
	Returns the inner tolerance Created in NX6.0.0.

bool	IsColorMapDisplayed ()
	Returns a value indicating whether to display color map Created in NX6.0.0.

bool	IsDirectionReversed ()
	Returns a value indicating whether to reverse the direction Created in NX6.0.0.

bool	IsLabelDisplayed ()
	Returns a value indicating whether to display label Created in NX6.0.0.

bool	IsMarkerDisplayed ()
	Returns a value indicating whether to display marker Created in NX6.0.0.

bool	IsNeedlePlotDisplayed ()
	Returns a value indicating whether to display needle plot Created in NX6.0.0.

double	MaxCheckingAngle ()
	Returns the maximum checking angle Created in NX6.0.0.

double	MaxCheckingDistance ()
	Returns the maximum checking distance Created in NX6.0.0.

NXOpen::GeometricAnalysis::DeviationGaugeBuilder::MeasurementMethodType	MeasurementMethod ()
	Returns the measurement method Created in NX6.0.0.

int	MeasurementSamples ()
	Returns the number of measurement samples Created in NX6.0.0.

NXOpen::GeometricAnalysis::DeviationGaugeBuilder::MinMaxType	MinMaxOption ()
	Returns the min_max type Created in NX6.0.0.

double	NeedleScale ()
	Returns the needle scale Created in NX6.0.0.

double	NegativeInnerTolerance ()
	Returns the negative inner tolerance Created in NX6.0.0.

double	NegativeOuterTolerance ()
	Returns the negative outer tolerance Created in NX6.0.0.

double	OuterTolerance ()
	Returns the outer tolerance Created in NX6.0.0.

NXOpen::Plane *	Plane ()
	Returns the plane for measurement direction Created in NX6.0.0.

double	PositiveInnerTolerance ()
	Returns the positive inner tolerance Created in NX6.0.0.

double	PositiveOuterTolerance ()
	Returns the positive outer tolerance Created in NX6.0.0.

NXOpen::SelectNXObjectList *	ReferenceObjects ()
	Returns the reference object Created in NX6.0.0.

NXOpen::GeometricAnalysis::DeviationGaugeBuilder::ReportingPerTypes	ReportingPerType ()
	Returns the reporting per option Created in NX8.0.0.

void	SetColorMapDisplayed (bool isColorMapDisplayed)
	Sets a value indicating whether to display color map Created in NX6.0.0.

void	SetColorPlotType (NXOpen::GeometricAnalysis::DeviationGaugeBuilder::ColorPlotTypes colorPlotType)
	Sets the color plot type Created in NX6.0.0.

void	SetDeviationIntervals (int deviationIntervals)
	Sets the number of deviation intervals Created in NX6.0.0.

void	SetDirectionReversed (bool reverseDirection)
	Sets a value indicating whether to reverse the direction Created in NX6.0.0.

void	SetHasAbsoluteColorPlot (bool absoluteColorPlot)
	Sets a value indicating whether to plot using absolute value Created in NX6.0.0.

void	SetHasAdditionalValuesLabel (NXOpen::GeometricAnalysis::DeviationGaugeBuilder::AdditionalValuesLabelType additionalValuesLabel)
	Sets a value indicating whether to add additional values label Created in NX6.0.0.

void	SetHasCrossCurveDeviationLabel (bool crossCurveDeviationLabel)
	Sets a value indicating whether to display cross_curve deviation label Created in NX6.0.0.

void	SetHasInfoLabel (bool infoLabel)
	Sets a value indicating whether to enable floating info label Created in NX6.0.0.

void	SetHasInnerToleranceLabel (bool innerToleranceLabel)
	Sets a value indicating whether to display inner tolerance label Created in NX6.0.0.

void	SetHasMaximumValueLabel (bool maximumValueLabel)
	Sets a value indicating whether to display maximum value label Created in NX6.0.0.

void	SetHasMinimumValueLabel (bool minimumValueLabel)
	Sets a value indicating whether to display minimum value label Created in NX6.0.0.

void	SetInnerTolerance (double innerTolerance)
	Sets the inner tolerance Created in NX6.0.0.

void	SetLabelDisplayed (bool labelDisplayed)
	Sets a value indicating whether to display label Created in NX6.0.0.

void	SetMarkerDisplayed (bool isMarkerDisplayed)
	Sets a value indicating whether to display marker Created in NX6.0.0.

void	SetMaxCheckingAngle (double maxCheckingAngle)
	Sets the maximum checking angle Created in NX6.0.0.

void	SetMaxCheckingDistance (double maxCheckingDistance)
	Sets the maximum checking distance Created in NX6.0.0.

void	SetMeasurementMethod (NXOpen::GeometricAnalysis::DeviationGaugeBuilder::MeasurementMethodType measurementMethod)
	Sets the measurement method Created in NX6.0.0.

void	SetMeasurementSamples (int measurementSamples)
	Sets the number of measurement samples Created in NX6.0.0.

void	SetMinMaxOption (NXOpen::GeometricAnalysis::DeviationGaugeBuilder::MinMaxType minMax)
	Sets the min_max type Created in NX6.0.0.

void	SetNeedlePlotDisplayed (bool isNeedlePlotDisplayed)
	Sets a value indicating whether to display needle plot Created in NX6.0.0.

void	SetNeedleScale (double needleScale)
	Sets the needle scale Created in NX6.0.0.

void	SetNegativeInnerTolerance (double negativennerTolerance)
	Sets the negative inner tolerance Created in NX6.0.0.

void	SetNegativeOuterTolerance (double negativeOuterTolerance)
	Sets the negative outer tolerance Created in NX6.0.0.

void	SetOuterTolerance (double outerTolerance)
	Sets the outer tolerance Created in NX6.0.0.

void	SetPlane (NXOpen::Plane *plane)
	Sets the plane for measurement direction Created in NX6.0.0.

void	SetPositiveInnerTolerance (double positiveInnerTolerance)
	Sets the positive inner tolerance Created in NX6.0.0.

void	SetPositiveOuterTolerance (double positiveOuterTolerance)
	Sets the positive outer tolerance Created in NX6.0.0.

void	SetReportingPerType (NXOpen::GeometricAnalysis::DeviationGaugeBuilder::ReportingPerTypes reportingPerType)
	Sets the reporting per option Created in NX8.0.0.

void	SetSpatialResolution (double spatialResolution)
	Sets the maximum checking angle Created in NX6.0.0.

void	SetSuggestScaleFactor (bool suggestScaleFactor)
	Sets a value indicating whether to use automatic scale factor Created in NX6.0.0.

void	SetUseDefiningPoints (bool useDefiningPoints)
	Sets a value indicating whether to use defining points.

void	SetVectorComponentDirection (NXOpen::Direction *vectorComponentDirection)
	Sets the direction vector.

void	SetXyzDirection (NXOpen::GeometricAnalysis::DeviationGaugeBuilder::XyzDirectionType xyzDirection)
	Sets the xyz direction Created in NX6.0.0.

double	SpatialResolution ()
	Returns the maximum checking angle Created in NX6.0.0.

bool	SuggestScaleFactor ()
	Returns a value indicating whether to use automatic scale factor Created in NX6.0.0.

NXOpen::GeometricUtilities::SurfaceRangeBuilder *	SurfaceRangeControl ()
	Returns the surface range Created in NX6.0.0.

NXOpen::SelectNXObjectList *	TargetObjects ()
	Returns the target object Created in NX6.0.0.

bool	UseDefiningPoints ()
	Returns a value indicating whether to use defining points.

NXOpen::Direction *	VectorComponentDirection ()
	Returns the direction vector.

NXOpen::GeometricAnalysis::DeviationGaugeBuilder::XyzDirectionType	XyzDirection ()
	Returns the xyz direction Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

DeviationGaugeBuilder class   <br> To create a new instance of this class, use @link GeometricAnalysis::AnalysisObjectCollection::CreateDeviationGaugeBuilder  GeometricAnalysis::AnalysisObjectCollection::CreateDeviationGaugeBuilder @endlink  <br>

Default values.

Property

Value

ColorPlotType

Blend

CurveRangeControl.AnchorPosition

Start

DeviationIntervals

5

HasAbsoluteColorPlot

0

HasAdditionalValuesLabel

None

HasMaximumValueLabel

1

HasMinimumValueLabel

0

InnerTolerance

0.1

IsLabelDisplayed

0

IsMarkerDisplayed

0

IsNeedlePlotDisplayed

1

MaxCheckingAngle

5

MaxCheckingDistance

1 (millimeters part), 0.5 (inches part)

MeasurementMethod

ThreeDim

MeasurementSamples

20

MinMaxOption

Minmax

NeedleScale

1.0

NegativeInnerTolerance

-0.001

NegativeOuterTolerance

-0.001

OuterTolerance

0.1

PositiveInnerTolerance

0.001

PositiveOuterTolerance

0.001

ReportingPerType

AnalysisObject

SpatialResolution

0.1

SurfaceRangeControl.AnchorPosition

Vertex1

XyzDirection

X

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::GeometricAnalysis::DeviationGaugeBuilder::AdditionalValuesLabelType

This enum represents the Deviation Gauge Analysis Object additional values label type.

Enumerator:

AdditionalValuesLabelTypeUserDefined	User Defined.
AdditionalValuesLabelTypeIntermediate	Intermediate.
AdditionalValuesLabelTypeAll	All.
AdditionalValuesLabelTypeNone	None.

enum NXOpen::GeometricAnalysis::DeviationGaugeBuilder::ColorPlotTypes

This enum represents the Deviation Gauge Analysis Object color plot types.

Enumerator:

ColorPlotTypesBlend	Blend.
ColorPlotTypesStepped	Stepped.
ColorPlotTypesNone	None.

enum NXOpen::GeometricAnalysis::DeviationGaugeBuilder::MeasurementMethodType

This enum represents the Deviation Gauge Analysis Object evaluation types.

Enumerator:

MeasurementMethodTypeThreeDim	3D
MeasurementMethodTypeXyzDirection	XYZ direction.
MeasurementMethodTypeWorkView	Work view.
MeasurementMethodTypeVectorComponent	Vector component.
MeasurementMethodTypePlane	Plane.
MeasurementMethodTypeAlongVector	Along vector.

enum NXOpen::GeometricAnalysis::DeviationGaugeBuilder::MinMaxType

This enum represents the Deviation Gauge Analysis Object min max type.

Enumerator:

MinMaxTypeMinmax	Minimum/Maximum.
MinMaxTypeMinimum	Minimum.
MinMaxTypeMaximum	Maximum.
MinMaxTypeNone	None.

enum NXOpen::GeometricAnalysis::DeviationGaugeBuilder::ReportingPerTypes

This enum represents the Deviation Gauge Analysis Object reporting per setting.

Enumerator:

ReportingPerTypesAnalysisObject	Per Analysis Object.
ReportingPerTypesTarget	Per Target Object.
ReportingPerTypesReference	Per Reference Object.

enum NXOpen::GeometricAnalysis::DeviationGaugeBuilder::XyzDirectionType

This enum represents the Deviation Gauge Analysis Object X, Y, Z direction options.

Enumerator:

XyzDirectionTypeX	X direction.
XyzDirectionTypeY	Y direction.
XyzDirectionTypeZ	Z direction.

Member Function Documentation

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::AddDynamicPoints ( )

Adds dynamic points to the Deviation Gauge.

Created in NX7.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::AddPMILabel ( NXOpen::NXObject * snappedObject )

Add a PMI label in specified position to represent the deviation value.

Created in NX9.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

snappedObject The face or curve which the PMI label pointed to.

NXOpen::GeometricAnalysis::DeviationGaugeBuilder::ColorPlotTypes NXOpen::GeometricAnalysis::DeviationGaugeBuilder::ColorPlotType ( )

Returns the color plot type
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

NXOpen::Features::GeometricConstraintDataManager* NXOpen::GeometricAnalysis::DeviationGaugeBuilder::ConstraintManager ( )

Returns the constraint manager
Created in NX7.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

NXOpen::GeometricUtilities::CurveRangeBuilder* NXOpen::GeometricAnalysis::DeviationGaugeBuilder::CurveRangeControl ( )

Returns the curve range
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

int NXOpen::GeometricAnalysis::DeviationGaugeBuilder::DeviationIntervals ( )

Returns the number of deviation intervals
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

bool NXOpen::GeometricAnalysis::DeviationGaugeBuilder::HasAbsoluteColorPlot ( )

Returns a value indicating whether to plot using absolute value
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

NXOpen::GeometricAnalysis::DeviationGaugeBuilder::AdditionalValuesLabelType NXOpen::GeometricAnalysis::DeviationGaugeBuilder::HasAdditionalValuesLabel ( )

Returns a value indicating whether to add additional values label
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

bool NXOpen::GeometricAnalysis::DeviationGaugeBuilder::HasCrossCurveDeviationLabel ( )

Returns a value indicating whether to display cross_curve deviation label
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

bool NXOpen::GeometricAnalysis::DeviationGaugeBuilder::HasInfoLabel ( )

Returns a value indicating whether to enable floating info label
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

bool NXOpen::GeometricAnalysis::DeviationGaugeBuilder::HasInnerToleranceLabel ( )

Returns a value indicating whether to display inner tolerance label
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

bool NXOpen::GeometricAnalysis::DeviationGaugeBuilder::HasMaximumValueLabel ( )

Returns a value indicating whether to display maximum value label
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

bool NXOpen::GeometricAnalysis::DeviationGaugeBuilder::HasMinimumValueLabel ( )

Returns a value indicating whether to display minimum value label
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

double NXOpen::GeometricAnalysis::DeviationGaugeBuilder::InnerTolerance ( )

Returns the inner tolerance
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

bool NXOpen::GeometricAnalysis::DeviationGaugeBuilder::IsColorMapDisplayed ( )

Returns a value indicating whether to display color map
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

bool NXOpen::GeometricAnalysis::DeviationGaugeBuilder::IsDirectionReversed ( )

Returns a value indicating whether to reverse the direction
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

bool NXOpen::GeometricAnalysis::DeviationGaugeBuilder::IsLabelDisplayed ( )

Returns a value indicating whether to display label
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

bool NXOpen::GeometricAnalysis::DeviationGaugeBuilder::IsMarkerDisplayed ( )

Returns a value indicating whether to display marker
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

bool NXOpen::GeometricAnalysis::DeviationGaugeBuilder::IsNeedlePlotDisplayed ( )

Returns a value indicating whether to display needle plot
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

double NXOpen::GeometricAnalysis::DeviationGaugeBuilder::MaxCheckingAngle ( )

Returns the maximum checking angle
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

double NXOpen::GeometricAnalysis::DeviationGaugeBuilder::MaxCheckingDistance ( )

Returns the maximum checking distance
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

NXOpen::GeometricAnalysis::DeviationGaugeBuilder::MeasurementMethodType NXOpen::GeometricAnalysis::DeviationGaugeBuilder::MeasurementMethod ( )

Returns the measurement method
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

int NXOpen::GeometricAnalysis::DeviationGaugeBuilder::MeasurementSamples ( )

Returns the number of measurement samples
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

NXOpen::GeometricAnalysis::DeviationGaugeBuilder::MinMaxType NXOpen::GeometricAnalysis::DeviationGaugeBuilder::MinMaxOption ( )

Returns the min_max type
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

double NXOpen::GeometricAnalysis::DeviationGaugeBuilder::NeedleScale ( )

Returns the needle scale
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

double NXOpen::GeometricAnalysis::DeviationGaugeBuilder::NegativeInnerTolerance ( )

Returns the negative inner tolerance
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

double NXOpen::GeometricAnalysis::DeviationGaugeBuilder::NegativeOuterTolerance ( )

Returns the negative outer tolerance
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

double NXOpen::GeometricAnalysis::DeviationGaugeBuilder::OuterTolerance ( )

Returns the outer tolerance
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

NXOpen::Plane* NXOpen::GeometricAnalysis::DeviationGaugeBuilder::Plane ( )

Returns the plane for measurement direction
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

double NXOpen::GeometricAnalysis::DeviationGaugeBuilder::PositiveInnerTolerance ( )

Returns the positive inner tolerance
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

double NXOpen::GeometricAnalysis::DeviationGaugeBuilder::PositiveOuterTolerance ( )

Returns the positive outer tolerance
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

NXOpen::SelectNXObjectList* NXOpen::GeometricAnalysis::DeviationGaugeBuilder::ReferenceObjects ( )

Returns the reference object
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

NXOpen::GeometricAnalysis::DeviationGaugeBuilder::ReportingPerTypes NXOpen::GeometricAnalysis::DeviationGaugeBuilder::ReportingPerType ( )

Returns the reporting per option
Created in NX8.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetColorMapDisplayed ( bool isColorMapDisplayed )

Sets a value indicating whether to display color map
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

isColorMapDisplayed iscolormapdisplayed

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetColorPlotType ( NXOpen::GeometricAnalysis::DeviationGaugeBuilder::ColorPlotTypes colorPlotType )

Sets the color plot type
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

colorPlotType colorplottype

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetDeviationIntervals ( int deviationIntervals )

Sets the number of deviation intervals
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

deviationIntervals deviationintervals

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetDirectionReversed ( bool reverseDirection )

Sets a value indicating whether to reverse the direction
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

reverseDirection reversedirection

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetHasAbsoluteColorPlot ( bool absoluteColorPlot )

Sets a value indicating whether to plot using absolute value
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

absoluteColorPlot absolutecolorplot

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetHasAdditionalValuesLabel ( NXOpen::GeometricAnalysis::DeviationGaugeBuilder::AdditionalValuesLabelType additionalValuesLabel )

Sets a value indicating whether to add additional values label
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

additionalValuesLabel additionalvalueslabel

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetHasCrossCurveDeviationLabel ( bool crossCurveDeviationLabel )

Sets a value indicating whether to display cross_curve deviation label
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

crossCurveDeviationLabel crosscurvedeviationlabel

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetHasInfoLabel ( bool infoLabel )

Sets a value indicating whether to enable floating info label
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

infoLabel infolabel

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetHasInnerToleranceLabel ( bool innerToleranceLabel )

Sets a value indicating whether to display inner tolerance label
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

innerToleranceLabel innertolerancelabel

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetHasMaximumValueLabel ( bool maximumValueLabel )

Sets a value indicating whether to display maximum value label
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

maximumValueLabel maximumvaluelabel

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetHasMinimumValueLabel ( bool minimumValueLabel )

Sets a value indicating whether to display minimum value label
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

minimumValueLabel minimumvaluelabel

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetInnerTolerance ( double innerTolerance )

Sets the inner tolerance
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

innerTolerance innertolerance

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetLabelDisplayed ( bool labelDisplayed )

Sets a value indicating whether to display label
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

labelDisplayed labeldisplayed

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetMarkerDisplayed ( bool isMarkerDisplayed )

Sets a value indicating whether to display marker
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

isMarkerDisplayed ismarkerdisplayed

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetMaxCheckingAngle ( double maxCheckingAngle )

Sets the maximum checking angle
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

maxCheckingAngle maxcheckingangle

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetMaxCheckingDistance ( double maxCheckingDistance )

Sets the maximum checking distance
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

maxCheckingDistance maxcheckingdistance

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetMeasurementMethod ( NXOpen::GeometricAnalysis::DeviationGaugeBuilder::MeasurementMethodType measurementMethod )

Sets the measurement method
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

measurementMethod measurementmethod

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetMeasurementSamples ( int measurementSamples )

Sets the number of measurement samples
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

measurementSamples measurementsamples

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetMinMaxOption ( NXOpen::GeometricAnalysis::DeviationGaugeBuilder::MinMaxType minMax )

Sets the min_max type
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

minMax minmax

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetNeedlePlotDisplayed ( bool isNeedlePlotDisplayed )

Sets a value indicating whether to display needle plot
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

isNeedlePlotDisplayed isneedleplotdisplayed

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetNeedleScale ( double needleScale )

Sets the needle scale
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

needleScale needlescale

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetNegativeInnerTolerance ( double negativennerTolerance )

Sets the negative inner tolerance
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

negativennerTolerance negativennertolerance

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetNegativeOuterTolerance ( double negativeOuterTolerance )

Sets the negative outer tolerance
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

negativeOuterTolerance negativeoutertolerance

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetOuterTolerance ( double outerTolerance )

Sets the outer tolerance
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

outerTolerance outertolerance

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetPlane ( NXOpen::Plane * plane )

Sets the plane for measurement direction
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

plane plane

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetPositiveInnerTolerance ( double positiveInnerTolerance )

Sets the positive inner tolerance
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

positiveInnerTolerance positiveinnertolerance

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetPositiveOuterTolerance ( double positiveOuterTolerance )

Sets the positive outer tolerance
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

positiveOuterTolerance positiveoutertolerance

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetReportingPerType ( NXOpen::GeometricAnalysis::DeviationGaugeBuilder::ReportingPerTypes reportingPerType )

Sets the reporting per option
Created in NX8.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

reportingPerType reportingpertype

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetSpatialResolution ( double spatialResolution )

Sets the maximum checking angle
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

spatialResolution spatialresolution

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetSuggestScaleFactor ( bool suggestScaleFactor )

Sets a value indicating whether to use automatic scale factor
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

suggestScaleFactor suggestscalefactor

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetUseDefiningPoints ( bool useDefiningPoints )

Sets a value indicating whether to use defining points.

Available only if target is curve with defining points
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

useDefiningPoints usedefiningpoints

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetVectorComponentDirection ( NXOpen::Direction * vectorComponentDirection )

Sets the direction vector.

Not used if the measurement method is ThreeDim or Plane
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

vectorComponentDirection vectorcomponentdirection

void NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SetXyzDirection ( NXOpen::GeometricAnalysis::DeviationGaugeBuilder::XyzDirectionType xyzDirection )

Sets the xyz direction
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

Parameters

xyzDirection xyzdirection

double NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SpatialResolution ( )

Returns the maximum checking angle
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

bool NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SuggestScaleFactor ( )

Returns a value indicating whether to use automatic scale factor
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

NXOpen::GeometricUtilities::SurfaceRangeBuilder* NXOpen::GeometricAnalysis::DeviationGaugeBuilder::SurfaceRangeControl ( )

Returns the surface range
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

NXOpen::SelectNXObjectList* NXOpen::GeometricAnalysis::DeviationGaugeBuilder::TargetObjects ( )

Returns the target object
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

bool NXOpen::GeometricAnalysis::DeviationGaugeBuilder::UseDefiningPoints ( )

Returns a value indicating whether to use defining points.

Available only if target is curve with defining points
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

NXOpen::Direction* NXOpen::GeometricAnalysis::DeviationGaugeBuilder::VectorComponentDirection ( )

Returns the direction vector.

Not used if the measurement method is ThreeDim or Plane
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

NXOpen::GeometricAnalysis::DeviationGaugeBuilder::XyzDirectionType NXOpen::GeometricAnalysis::DeviationGaugeBuilder::XyzDirection ( )

Returns the xyz direction
Created in NX6.0.0.

License requirements : studio_free_form ("STUDIO FREE FORM")

The documentation for this class was generated from the following file:

GeometricAnalysis_DeviationGaugeBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
