This is the Gateway::BaseExplicitOrderBuilder for the explicit order
This is an abstract class, and cannot be instantiated. More...

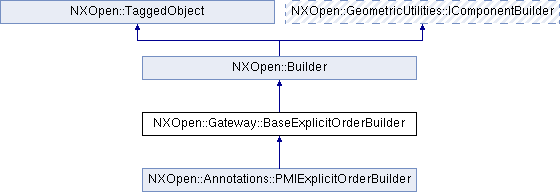

Inheritance diagram for NXOpen::Gateway::BaseExplicitOrderBuilder:

Public Member Functions
void	Clear ()
	Clears the current order and restores it to the default order Created in NX9.0.0.

std::vector< NXString >	Delete (std::vector< NXString > &selectedEntries, std::vector< NXString > &currentOrder, int numOfRemainingEntries)
	Deletes the saved order/orders that has/have been selected by the user from the list of saved orders.

std::vector< NXString >	DownArrow (std::vector< NXString > &selectedEntries, std::vector< NXString > &currentOrder)
	Moves down the row/rows selected by the user in the lists.

std::vector< NXString >	Paste (int pastePoint, std::vector< NXString > &selectedEntries, std::vector< NXString > &currentOrder)
	Pastes the rows that have been previously selected using the cut operation.

void	Save (std::vector< NXString > &orderList, const NXString &saveName)
	Saves an explicit order defined by the user Created in NX9.0.0.

void	Save (std::vector< NXString > &orderList, const char *saveName)
	Saves an explicit order defined by the user Created in NX9.0.0.

void	SaveAsTextFile (const NXString &savedOrderName, const NXString &saveFileName, bool overwriteFile)
	Saves the selected saved order in the form of a text file Created in NX9.0.0.

void	SaveAsTextFile (const char savedOrderName, const char saveFileName, bool overwriteFile)
	Saves the selected saved order in the form of a text file Created in NX9.0.0.

NXString	SaveName ()
	Returns the save name Created in NX9.0.0.

void	SetSaveName (const NXString &saveName)
	Sets the save name Created in NX9.0.0.

void	SetSaveName (const char *saveName)
	Sets the save name Created in NX9.0.0.

std::vector< NXString >	UpArrow (std::vector< NXString > &selectedEntries, std::vector< NXString > &currentOrder)
	Moves up the row/rows selected by the user in the lists.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This is the Gateway::BaseExplicitOrderBuilder for the explicit order
This is an abstract class, and cannot be instantiated.

Created in NX9.0.0.

Member Function Documentation

void NXOpen::Gateway::BaseExplicitOrderBuilder::Clear ( )

Clears the current order and restores it to the default order
Created in NX9.0.0.

License requirements : None

std::vector<NXString> NXOpen::Gateway::BaseExplicitOrderBuilder::Delete	(	std::vector< NXString > &	selectedEntries,
		std::vector< NXString > &	currentOrder,
		int	numOfRemainingEntries
	)

Deletes the saved order/orders that has/have been selected by the user from the list of saved orders.

Returns: Created in NX9.0.0.

License requirements : None

Parameters

selectedEntries	selectedentries
currentOrder	currentorder
numOfRemainingEntries	numofremainingentries

std::vector<NXString> NXOpen::Gateway::BaseExplicitOrderBuilder::DownArrow	(	std::vector< NXString > &	selectedEntries,
		std::vector< NXString > &	currentOrder
	)

Moves down the row/rows selected by the user in the lists.

Returns: Created in NX9.0.0.

License requirements : None

Parameters

selectedEntries	selectedentries
currentOrder	currentorder

std::vector<NXString> NXOpen::Gateway::BaseExplicitOrderBuilder::Paste	(	int	pastePoint,
		std::vector< NXString > &	selectedEntries,
		std::vector< NXString > &	currentOrder
	)

Pastes the rows that have been previously selected using the cut operation.

Returns: Created in NX9.0.0.

License requirements : None

Parameters

pastePoint	pastepoint
selectedEntries	selectedentries
currentOrder	currentorder

void NXOpen::Gateway::BaseExplicitOrderBuilder::Save	(	std::vector< NXString > &	orderList,
		const NXString &	saveName
	)

Saves an explicit order defined by the user
Created in NX9.0.0.

License requirements : None

Parameters

orderList	orderlist
saveName	savename

void NXOpen::Gateway::BaseExplicitOrderBuilder::Save	(	std::vector< NXString > &	orderList,
		const char *	saveName
	)

Saves an explicit order defined by the user
Created in NX9.0.0.

License requirements : None

Parameters

orderList	orderlist
saveName	savename

void NXOpen::Gateway::BaseExplicitOrderBuilder::SaveAsTextFile	(	const NXString &	savedOrderName,
		const NXString &	saveFileName,
		bool	overwriteFile
	)

Saves the selected saved order in the form of a text file
Created in NX9.0.0.

License requirements : None

Parameters

savedOrderName	NOTE: The full Unicode character set is not supported for this parameter.
saveFileName	NOTE: The full Unicode character set is not supported for this parameter.
overwriteFile	overwritefile

void NXOpen::Gateway::BaseExplicitOrderBuilder::SaveAsTextFile	(	const char *	savedOrderName,
		const char *	saveFileName,
		bool	overwriteFile
	)

Saves the selected saved order in the form of a text file
Created in NX9.0.0.

License requirements : None

Parameters

savedOrderName	NOTE: The full Unicode character set is not supported for this parameter.
saveFileName	NOTE: The full Unicode character set is not supported for this parameter.
overwriteFile	overwritefile

NXString NXOpen::Gateway::BaseExplicitOrderBuilder::SaveName ( )

Returns the save name
Created in NX9.0.0.

License requirements : None

void NXOpen::Gateway::BaseExplicitOrderBuilder::SetSaveName ( const NXString & saveName )

Sets the save name
Created in NX9.0.0.

License requirements : None

Parameters

saveName savename

void NXOpen::Gateway::BaseExplicitOrderBuilder::SetSaveName ( const char * saveName )

Sets the save name
Created in NX9.0.0.

License requirements : None

Parameters

saveName savename

std::vector<NXString> NXOpen::Gateway::BaseExplicitOrderBuilder::UpArrow	(	std::vector< NXString > &	selectedEntries,
		std::vector< NXString > &	currentOrder
	)

Moves up the row/rows selected by the user in the lists.

Returns: Created in NX9.0.0.

License requirements : None

Parameters

selectedEntries	selectedentries
currentOrder	currentorder

The documentation for this class was generated from the following file:

Gateway_BaseExplicitOrderBuilder.hxx
